DTC Confirmation Procedure

CAUTION: Always drive vehicle at a safe speed.

NOTE: If "DTC Confirmation Procedure" has been previously conducted, always turn ignition switch "OFF" and wait at least 5 seconds before conducting the next test.

TESTING CONDITION:
Steps 1 and 2 may be conducted with the drive wheels lifted in the shop or by driving the vehicle. If a road test is expected to be easier, it is unnecessary to lift the vehicle.

With CONSULT
(1) Start engine.

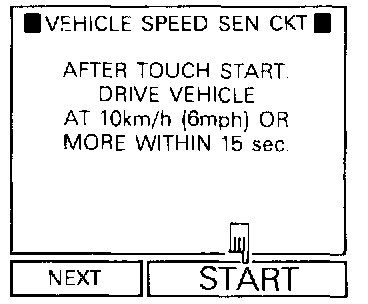

(2) Perform "VEHICLE SPEED SEN CKT" in "FUNCTION TEST" mode with CONSULT.

With CONSULT
(1) Start engine
(2) Read "VHCL SPEED SE" in "DATA MONITOR" mode with CONSULT. The vehicle speed on CONSULT should exceed 10 km/h (6 MPH) when rotating wheels with suitable gear position.
If NG, go to "Diagnostic Procedure".
If OK, go to following step.

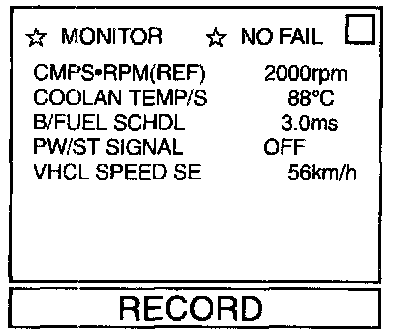

(3) Select "DATA MONITOR" mode with CONSULT.
(4) Warm engine up to normal operating temperature.
(5) Maintain the following conditions for at least 10 consecutive a seconds.
CMPS.RPM (REF):
2,000 - 2,800 rpm (A/T models)
1,800 - 2,600 rpm (M/T models)
COOLAN TEMP/S: More than 70°C (158°F)
B/FUEL SCHDL:
2.3 - 3.7 ms (A/T models)
2.5 - 4.5 ms (M/T models)
Selector lever: Suitable position
PW/ST SIGNAL: OFF
