DTC Confirmation Procedure

NOTE: If "DTC Confirmation Procedure" has been previously conducted, always turn ignition switch "OFF" and wait at least 5 seconds before conducting the next test.

With CONSULT

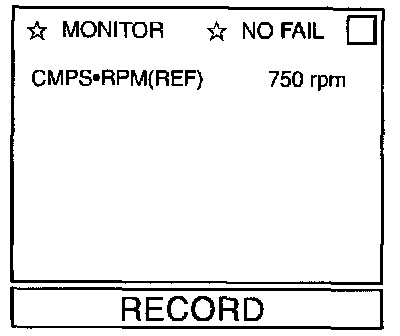

(1) Turn ignition switch "ON" and select "DATA MONITOR" mode with CONSULT.
(2) Start engine and run it for at least 15 seconds at idle speed.

With GST
(1) Start engine and run it for at least 15 seconds at idle speed.
(2) Select "MODE 7" with GST.

No Tools
(1) Start engine and run it for at least 15 seconds at idle speed.
(2) Turn ignition switch "OFF", wait at least 5 seconds and then turn "ON".
(3) Perform "Diagnostic Test Mode II" (Self-diagnostic results) with ECM.
