To VIN # 350000

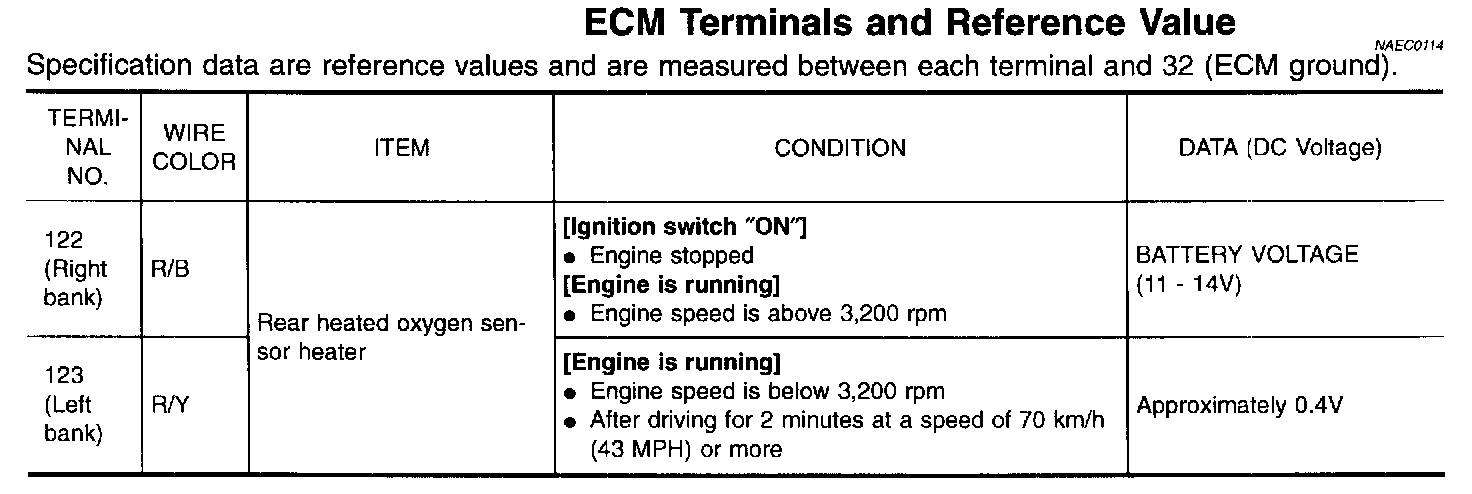

DTC Confirmation Procedure

NOTE:
If "DTC Confirmation Procedure" has been previously conducted, always turn ignition switch "OFF" and wait at least 5 seconds before conducting the next test.

TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is between 1O.5V and 16V at idle.

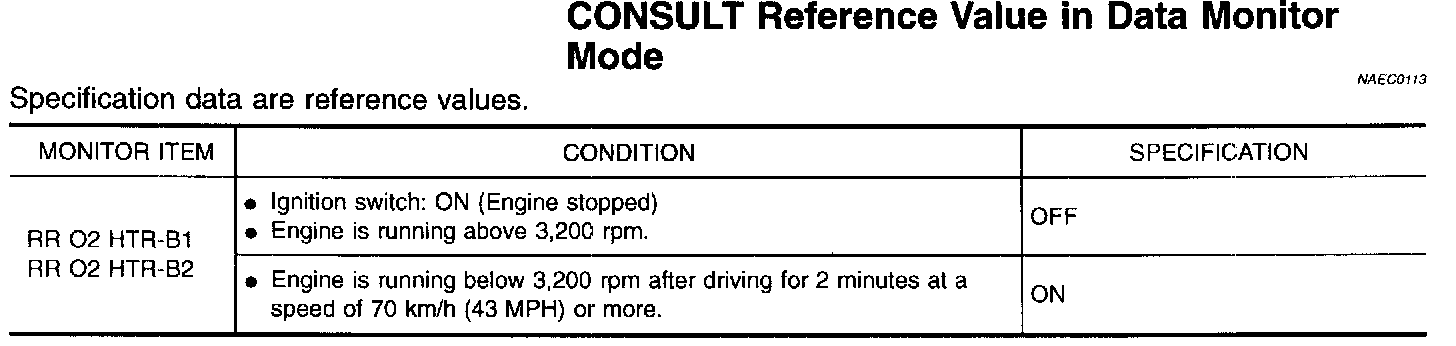

With CONSULT

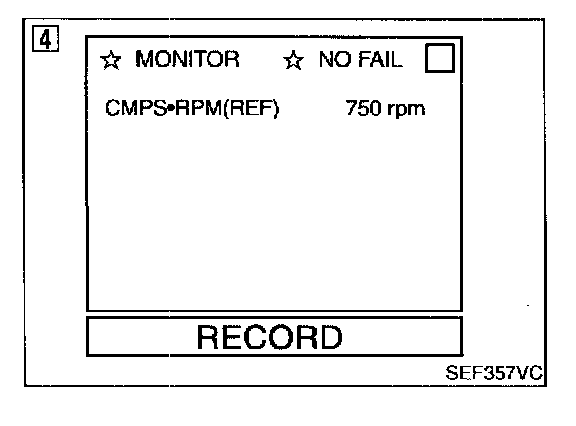

1. Turn ignition switch "ON" and select "DATA MONITOR" mode with CONSULT.
2. Start engine.
3. Drive vehicle at a speed of more than 70 km/h (43 MPH) for 2 consecutive minutes.




4. Stop vehicle and let engine idle for at least 6 seconds.
5. If 1st trip DTC is detected, go to "Diagnostic Procedure".

With GST
1. Start engine.
2. Drive vehicle at a speed of more than 70 km/h (43 MPH) for 2 consecutive minutes.
3. Stop vehicle and let engine idle for at least 6 seconds.
4. Turn ignition switch "OFF" and wait at least 5 seconds.
5. Start engine.
6. Drive vehicle at a speed of more than 70 km/h (43 MPH) for 2 consecutive minutes.
7. Stop vehicle and let engine idle for at least 6 seconds.
8. Select "MODE 3" with GST.
9. If DTC is detected, go to "Diagnostic Procedure"

No Tools
1. Start engine.
2. Drive vehicle at a speed of more than 70 km/h (43 MPH) for 2 consecutive minutes.
3. Stop vehicle and let engine idle for at least 6 seconds.
4. Turn ignition switch "OFF", wait at least 5 seconds and then turn "ON".
5. Perform "Diagnostic Test Mode II (Self-diagnostic results)" with ECM.
6. If 1st trip DTC is detected, go to "Diagnostic Procedure".

When using GST, "DTC Confirmation Procedure" should be performed twice as much as when using CONSULT or ECM (Diagnostic Test Mode II) because GST cannot display MODE 7 (1st trip DTC) concerning this diagnosis. Therefore, using CONSULT or ECM (Diagnostic Test Mode II) is recommended.
