From VIN # 350001

System Description:

SYSTEM DESCRIPTION
The ECM performs ON/OFF control of the rear heated oxygen sensor heaters corresponding to the engine speed.

Operation:

OPERATION

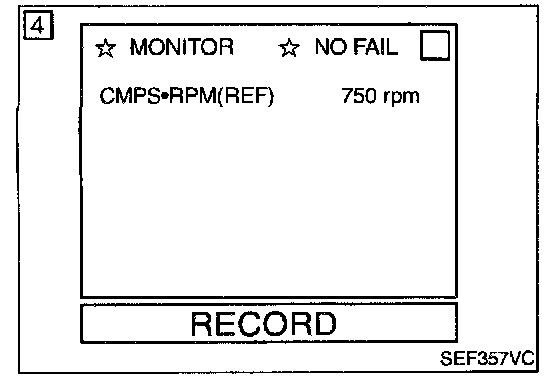

CONSULT Reference Value In Data Monitor Mode:

CONSULT Reference Value in Data Monitor Mode
Specification data are reference values.

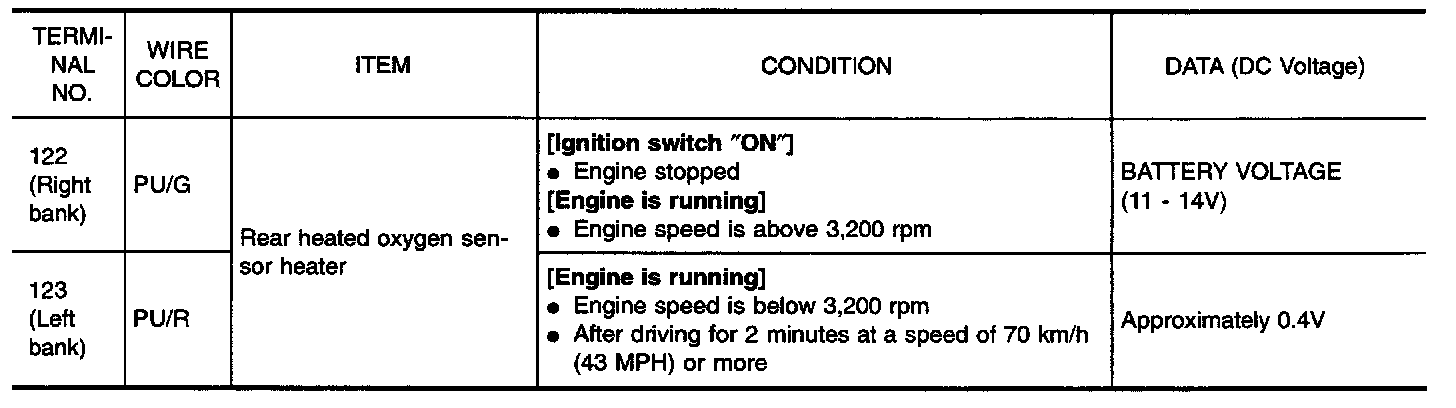

ECM Terminals And Reference Value:

ECM Terminals and Reference Value
Specification data are reference values and are measured between each terminal and 32 (ECM ground).

On Board Diagnosis Logic:

DTC Confirmation Procedure

NOTE: If "DTC Confirmation Procedure" has been previously conducted, always turn ignition switch "OFF" and wait at least 5 seconds before conducting the next test.

TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is between 10.5 V and 16 V at idle.




With CONSULT
1. Turn ignition switch "ON" and select "DATA MONITOR" mode with CONSULT.
2. Start engine.
3. Drive vehicle at a speed of more than 70 km/h (43 MPH) for 2 consecutive minutes.
4. Stop vehicle and let engine idle for at least 6 seconds.
5. If 1st trip DTC is detected, go to "Diagnostic Procedure".

With GST
1. Start engine.
2. Drive vehicle at a speed of more than 70 km/h (43 MPH) for 2 consecutive minutes.
3. Stop vehicle and let engine idle for at least 6 seconds.
4. Turn ignition switch "OFF" and wait at least 5 seconds.
5. Start engine.
6. Drive vehicle at a speed of more than 70 km/h (43 MPH) for 2 consecutive minutes.
7. Stop vehicle and let engine idle for at least 6 seconds.
8. Select "MODE 3" with GST.
9. If DTC is detected, go to "Diagnostic Procedure".

No Tools
1. Start engine.
2. Drive vehicle at a speed of more than 70 km/h (43 MPH) for 2 consecutive minutes.
3. Stop vehicle and let engine idle for at least 6 seconds.
4. Turn ignition switch "OFF", wait at least 5 seconds and then turn "ON".
5. Perform "Diagnostic Test Mode II (Self-diagnostic results)" with ECM.
6. If 1st trip DTC is detected, go to "Diagnostic Procedure".
- When using GST, "DTC Confirmation Procedure" should be performed twice as much as when using CONSULT or ECM (Diagnostic Test Mode II) because GST cannot display MODE 7 (1st trip DTC) concerning this diagnosis. Therefore, using CONSULT or ECM (Diagnostic Test Mode II) is recommended.

EC-RO2H-R-01:

EC-RO2H-L-01:

Wiring Diagram

Fuse Block J/B Connector Views:

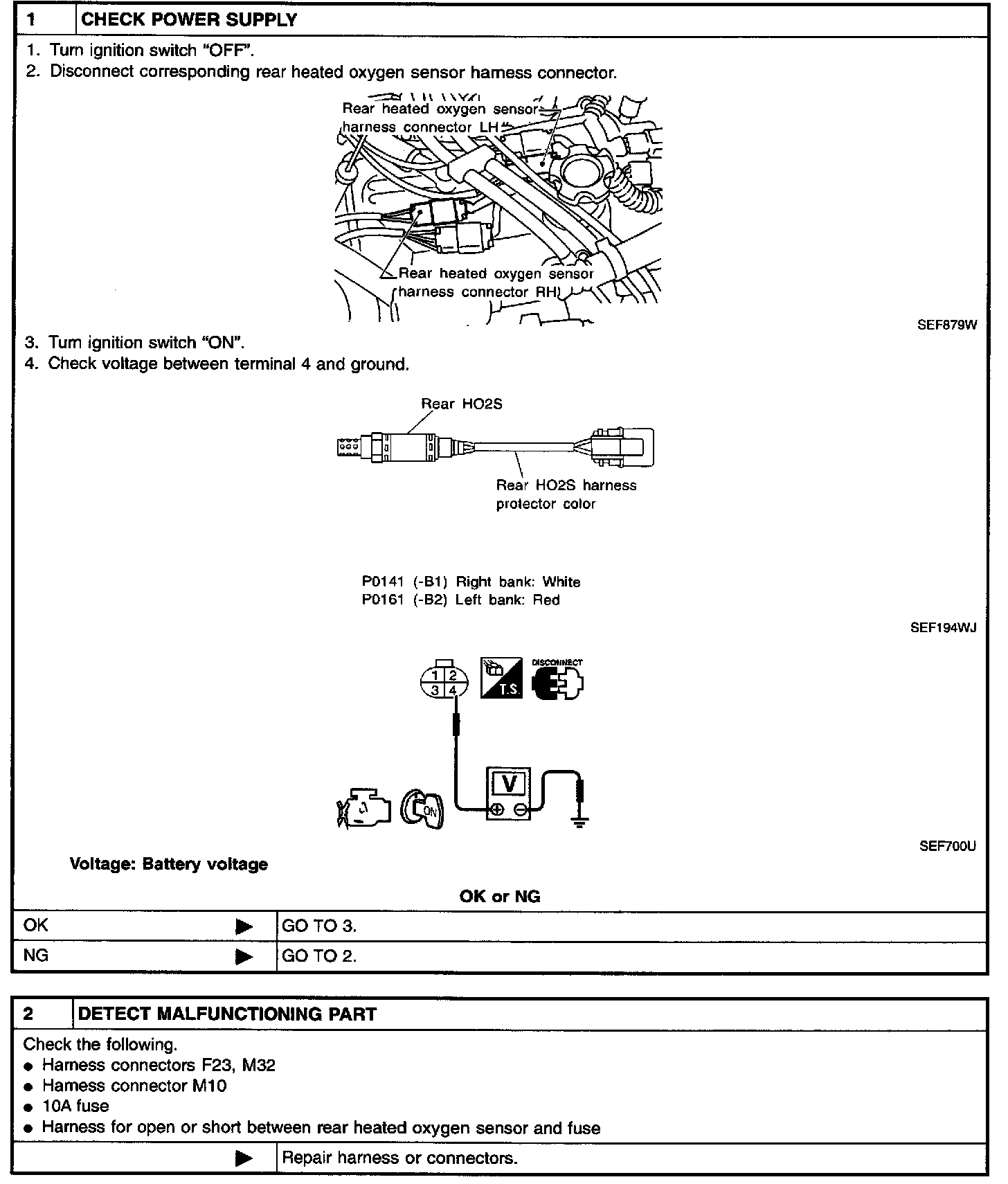

Steps 1 - 2:

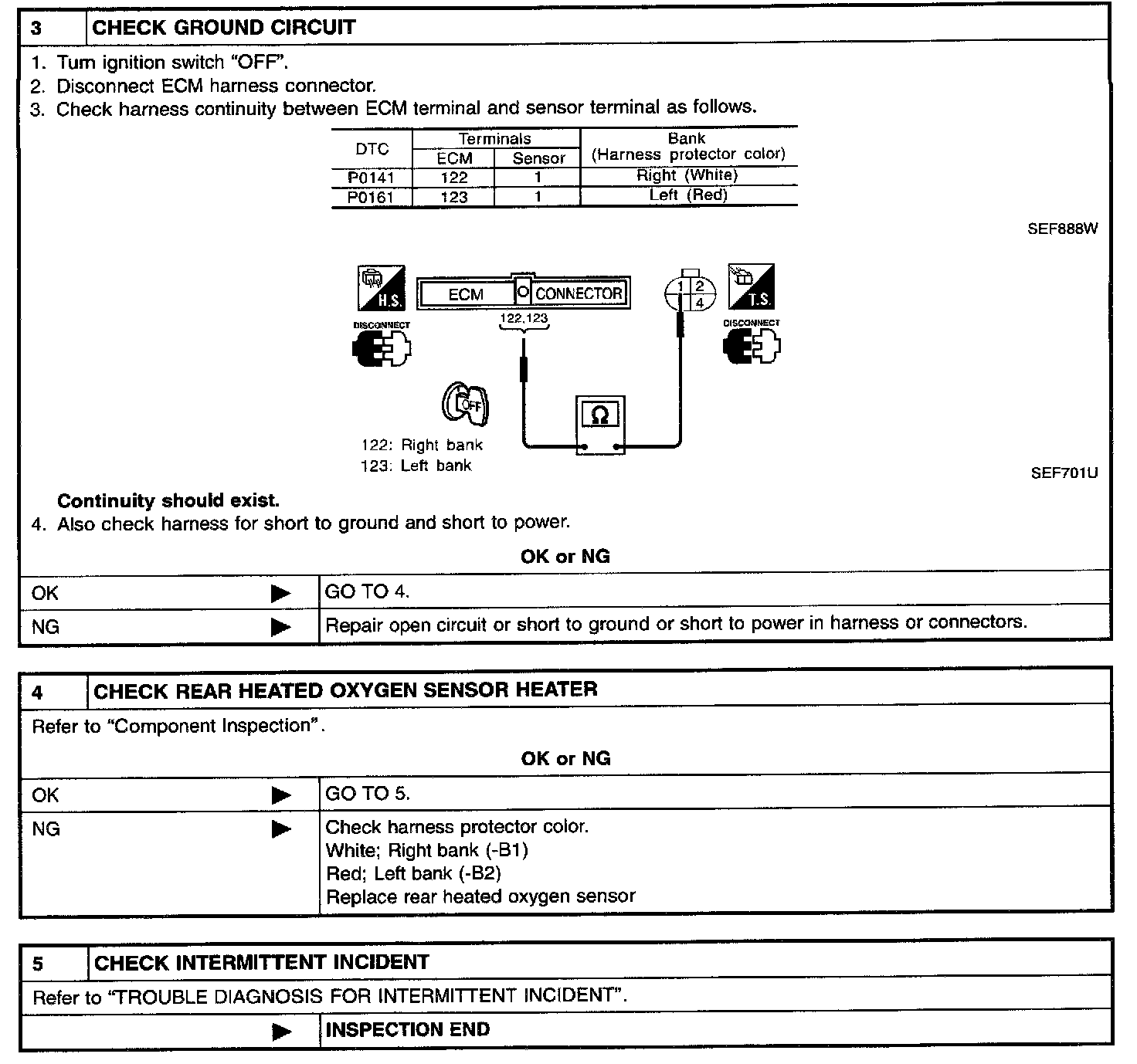

Steps 3 - 5:

Diagnostic Procedure




Component Inspection

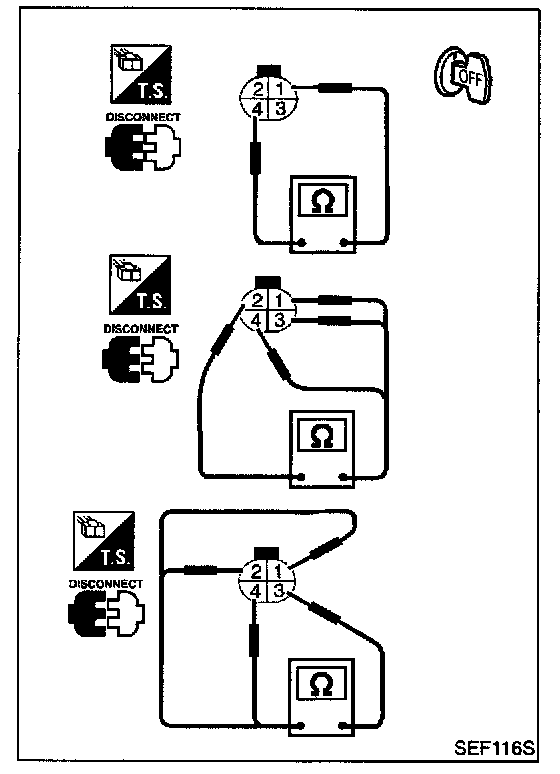

REAR HEATED OXYGEN SENSOR HEATER
Check the following.
1. Check resistance between terminals 4 and 1.

Resistance: 2.3 - 4.3 ohms at 25°C (77^01|F)

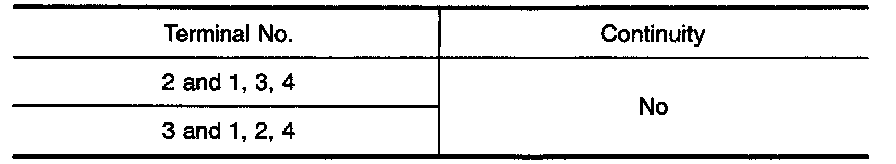

2. Check continuity.




If NG, replace the rear heated oxygen sensor.

CAUTION:
- Discard any heated oxygen sensor which has been dropped from a height of more than 0.5 m (19.7 in) onto a hard surface such as a concrete floor; use a new one.
- Before installing new oxygen sensor, clean exhaust system threads using Oxygen Sensor Thread Cleaner tool J-43897-18 or J-43897-12 and approved anti-seize lubricant
