Overall Function Check

Use this procedure to check the overall function of the park/neutral position switch circuit. During this check, a 1st trip DTC might not be confirmed.

Without CONSULT
(1) Turn ignition switch "ON".

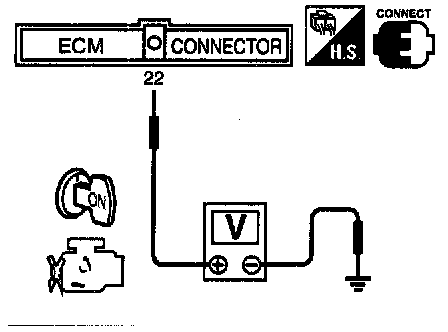

(2) Check voltage between ECM terminal 22 and body ground under the following conditions.
