DTC Confirmation Procedure

CAUTION: Always drive vehicle at a safe speed.

NOTE: If "DTC Confirmation Procedure" has been previously conducted, always turn ignition switch "OFF" and wait at least 5 seconds before conducting the next test.

With CONSULT
(1) Turn ignition switch "ON".

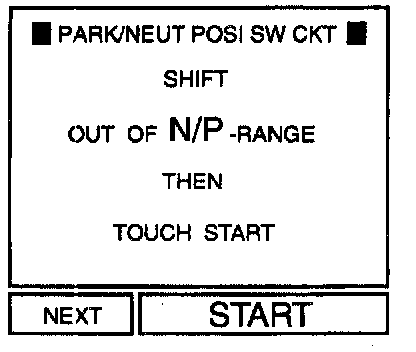

(2) Perform "PARK/NEUT POSI SW CKT" in "FUNCTION TEST" mode with CONSULT

With CONSULT
(1) Turn ignition switch "ON".

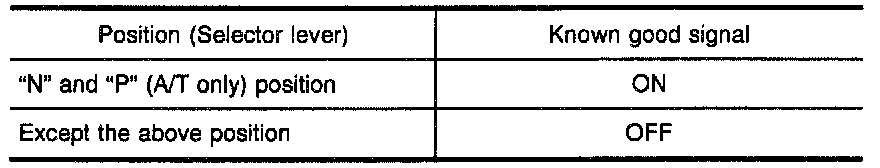

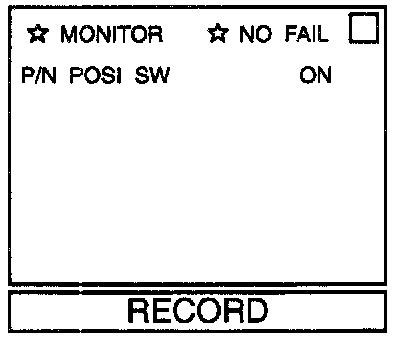

(2) Select "P/N POSI SW" in "DATA MONITOR" mode with CONSULT Then check the "P/N POSI SW" signal under the following conditions.
If NG, go to "Diagnostic Procedure". If OK, go to following step.

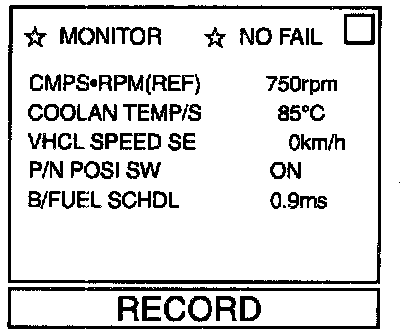

(3) Select "DATA MONITOR" mode with CONSULT
(4) Start engine and warm it up to normal operating temperature.
(5) Maintain the following conditions for at least 60 consecutive seconds.
CMPS.RPM (REF):
1,600 - 2,600 rpm (A/T models)
1,700 - 2,700 rpm (M/T models)
COOLAN TEMP/S: More than 70° C (158° F)
B/FUEL SCHDL:
1.7 - 6.5 ms (A/T models)
1.9 - 5.5 ms (M/T models)
VHCL SPEED SE: 70 - 100 km/h (43 - 62 MPH)
Selector lever: Suitable position
