DTC Confirmation Procedure

CAUTION: Always drive vehicle at a safe speed.

NOTE: If "DTC Confirmation Procedure" has been previously conducted, always turn ignition switch "OFF" and wait at least 5 seconds before conducting the next test.

TESTING CONDITION:
Before performing the following procedure, confirm battery voltage is more than 11 V at idle.





With CONSULT
(1) Turn ignition switch "ON".

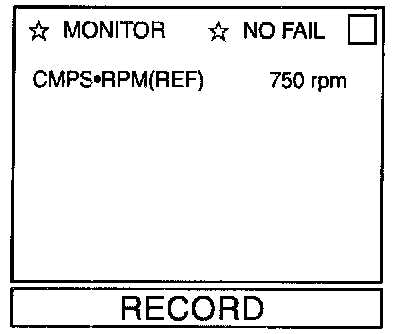

(2) Select "DATA MONITOR" mode with CONSULT.
(3) Start engine and wait at least 8 seconds.

With GST
(1) Start engine and wait at least 8 seconds.
(2) Select "MODE 7" with GST.

No Tools
(1) Start engine and wait at least 8 seconds.
(2) Turn ignition switch "OFF", wait at least 5 seconds and then turn "ON".
(3) Perform "Diagnostic Test Mode II (Self-diagnostic results)" with ECM.
