Overall Function Check

Use this procedure to check the overall function of the front heated oxygen sensor circuit. During this check, a 1st trip DTC might not be confirmed.

Without CONSULT
(1) Start engine and warm it up to normal operating temperature.

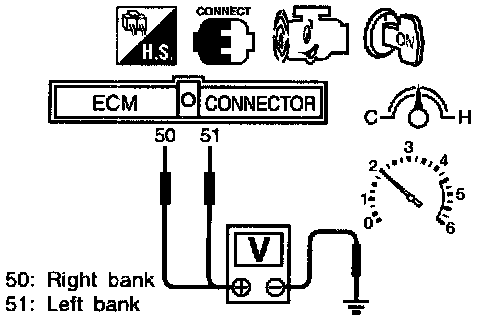

(2) Set voltmeter probes between ECM terminal 50 (right bank sensor signal) or 51 (left bank sensor signal) and engine ground.
(3) Check the following with engine speed held at 2,000 rpm constant under no load.
- The voltage does not remain in the range of 0.2 - 0.4 V.
