DTC Confirmation Procedure

NOTE: If "DTC Confirmation Procedure" has been previously conducted, always turn ignition switch "OFF" and wait at least 5 seconds before conducting the next test.

TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than l0V at idle.

With CONSULT

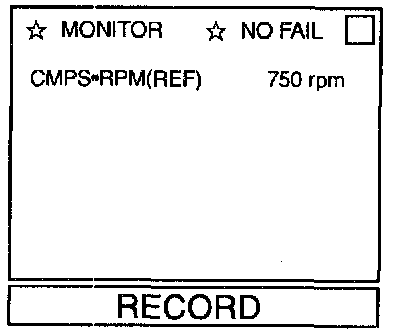

(1) Turn ignition switch "ON" and select "DATA MONITOR" mode with CONSULT.
(2) Start engine and run it for at least 5 seconds at idle speed.

With GST
(1) Start engine and run it for at least 5 seconds at idle speed.
(2) Select "MODE 3" with GST.

No Tools
(1) Start engine and run it for at least 5 seconds at idle speed.
(2) Turn ignition switch "OFF", wait at least 5 seconds and then turn "ON".
(3) Perform "Diagnostic Test Mode II" (Self-diagnostic results) with ECM.
