Home >> Nissan-Datsun Truck >> 1999 >> Pathfinder XE 2WD V6-3.3L (VG33E) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Antilock Brakes / Traction Control Systems >> MFG Diagnostic Trouble Code Charts >> To VIN # 350000 >> DTC 63: Solenoid Valve Relay

DTC 63: Solenoid Valve Relay

Malfunction Code No. 63

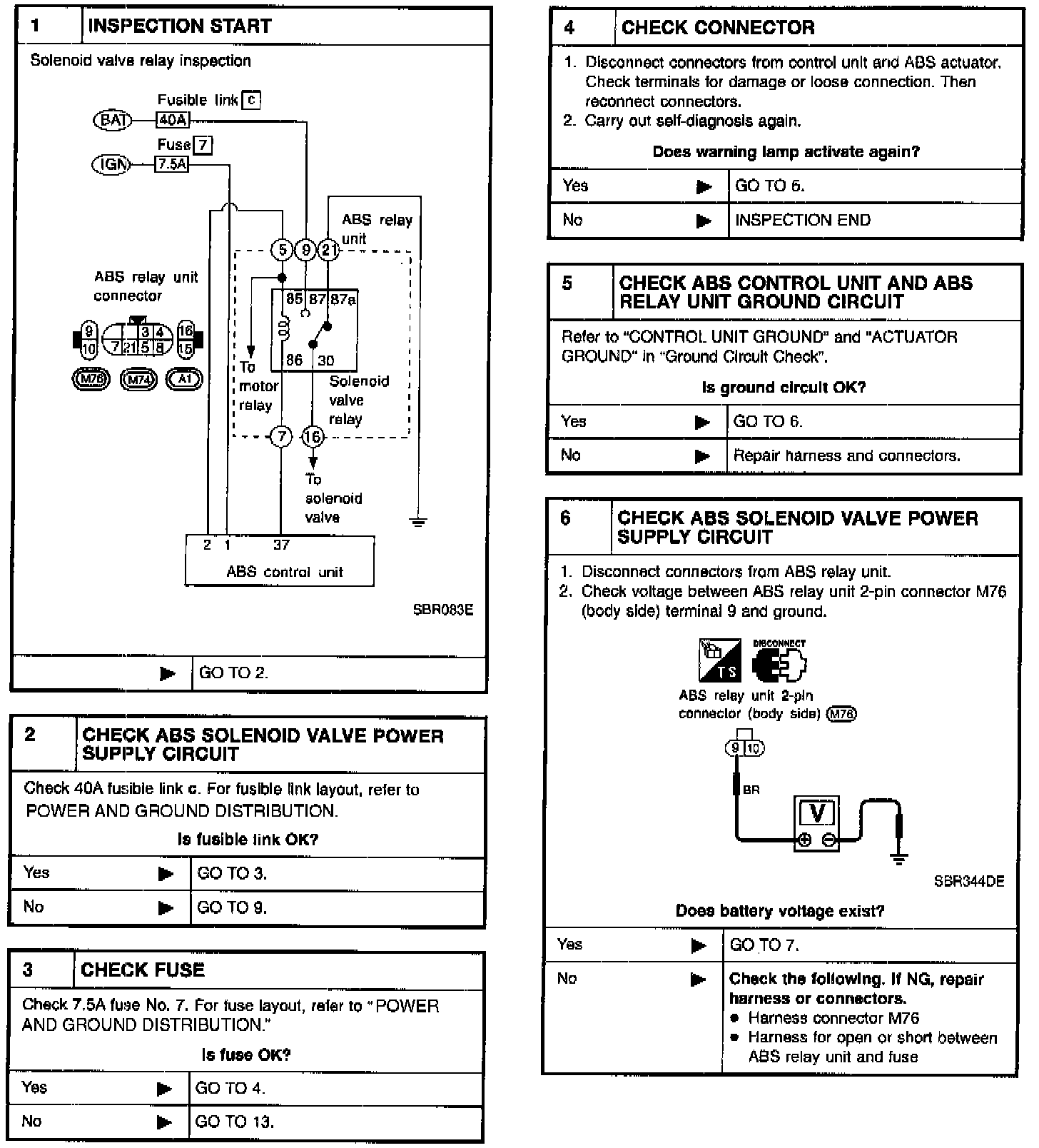

- Inspection Steps 1 through 6

Part 2 of 3:





- Inspection Steps 7 through 9

Part 3 of 3:





- Inspection Steps 10 through 13
