Indexed By P Number

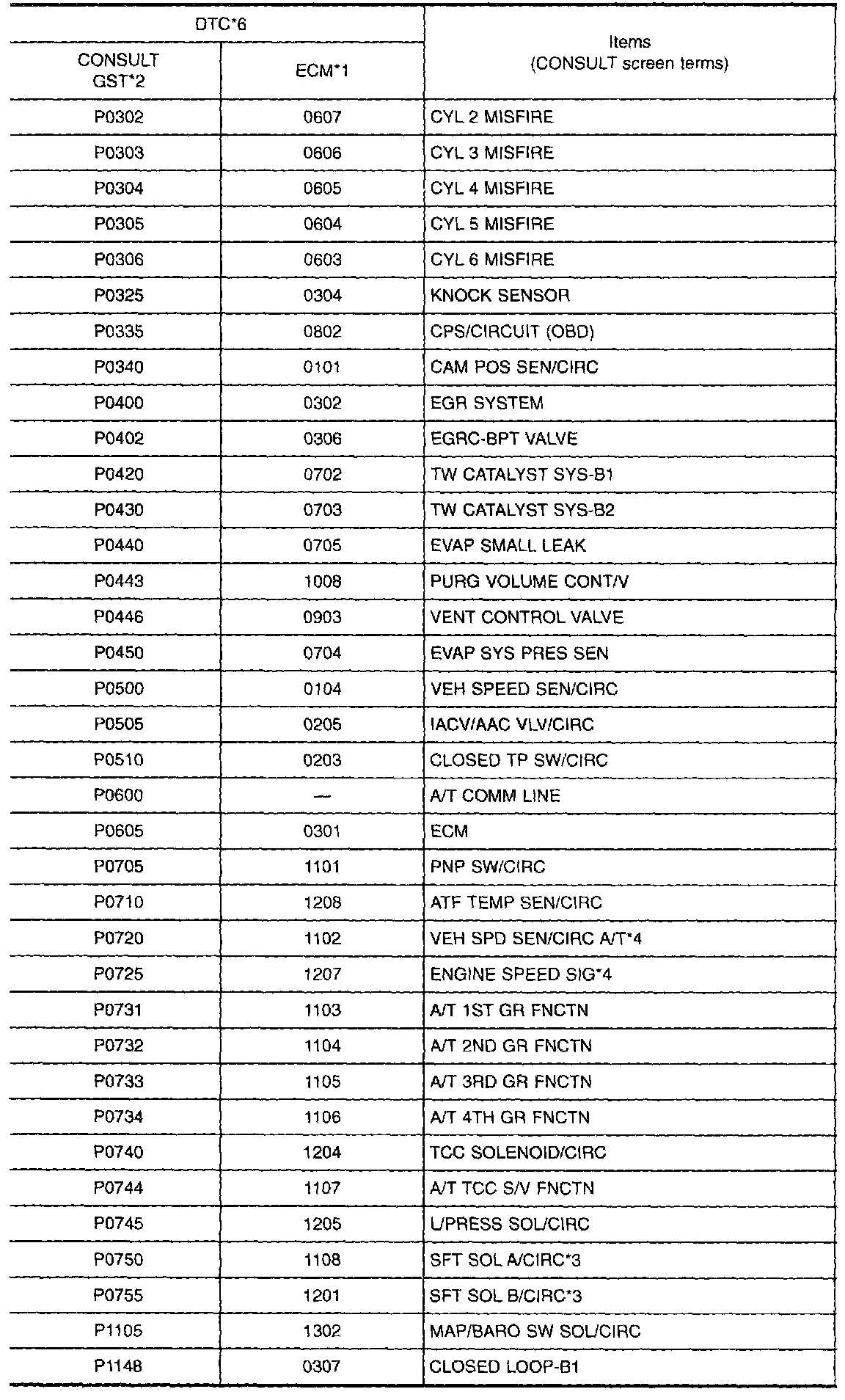

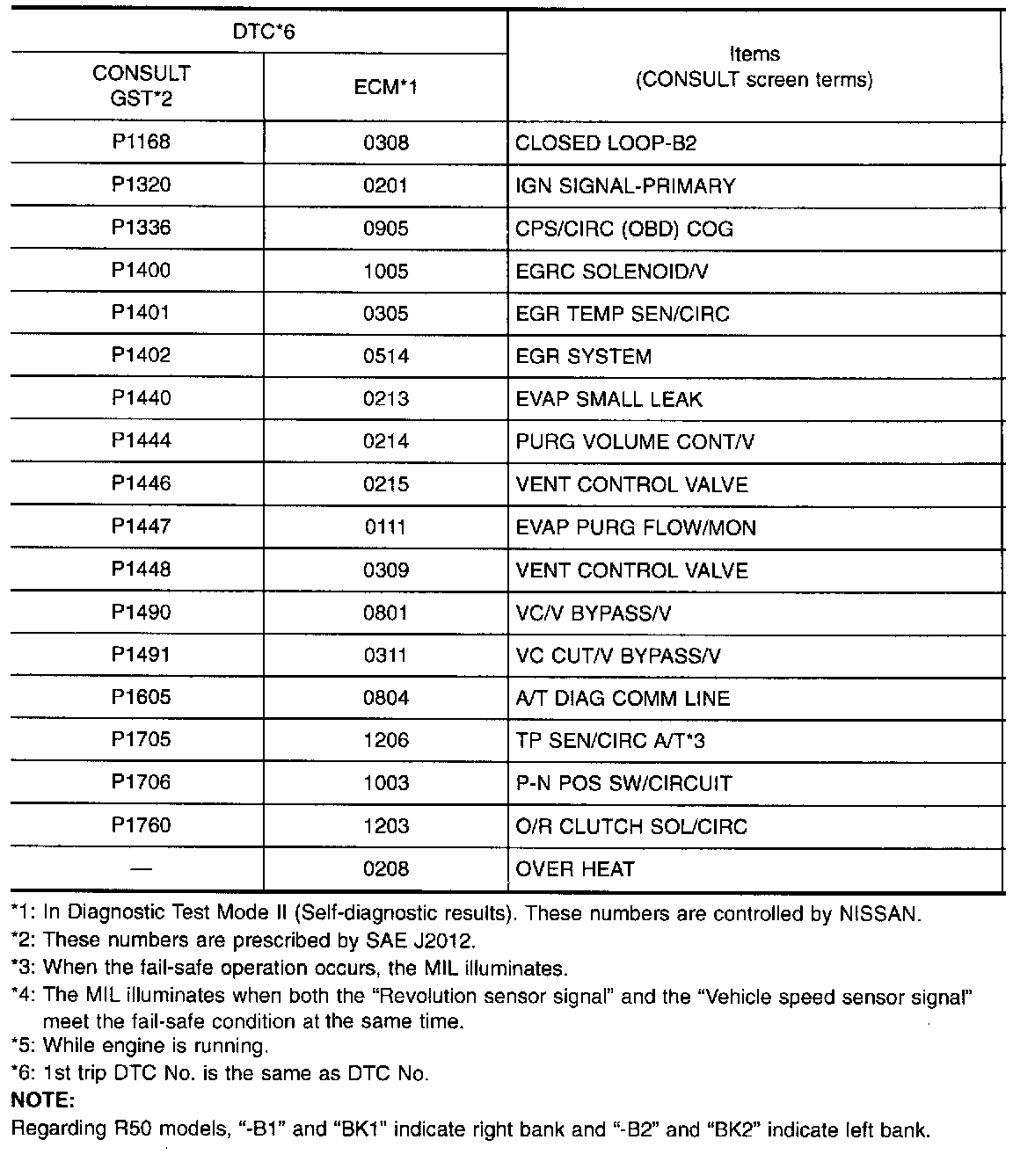

P.NO INDEX FOR DTC

















*1: In Diagnostic Test Mode II (Self-diagnostic results). These numbers are controlled by NISSAN.
*2: These numbers are prescribed by SAE J2012.
*3: When the fail-safe operation occurs, the MIL illuminates.
*4: The MIL illuminates when both the "Revolution sensor signal" and the "Vehicle speed sensor signal" meet the fail-safe condition at the same time.
*5: While engine is running.
*6: 1st trip DTC No. is the same as DTC No.

NOTE: Regarding R50 models, "-B" and "BK1" indicate right bank and "-B2" and "BK2" indicate left bank.
