Initial Inspection and Diagnostic Overview

DESCRIPTION





^ The mechanical key interlock mechanism also operates as a shift lock:
With the key switch turned to ON, the selector lever cannot be shifted from P (parking) to any other position unless the brake pedal is depressed.
With the key removed, the selector lever cannot be shifted from P to any other position.
The key cannot be removed unless the selector lever is placed in P.
^ The shift lock and key interlock mechanisms are controlled by the ON-OFF operation of the shift lock solenoid and by the operation of the rotator and slider located inside the key cylinder, respectively.

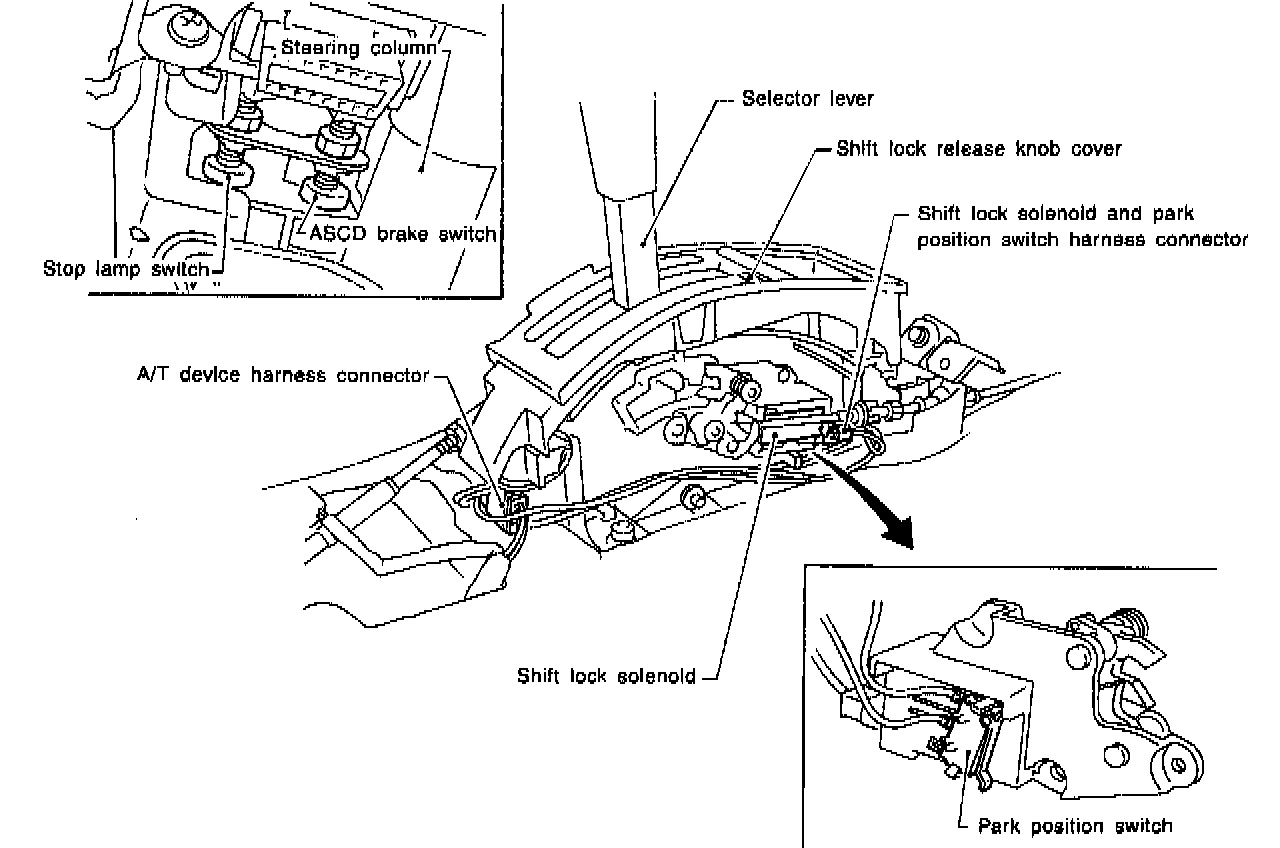

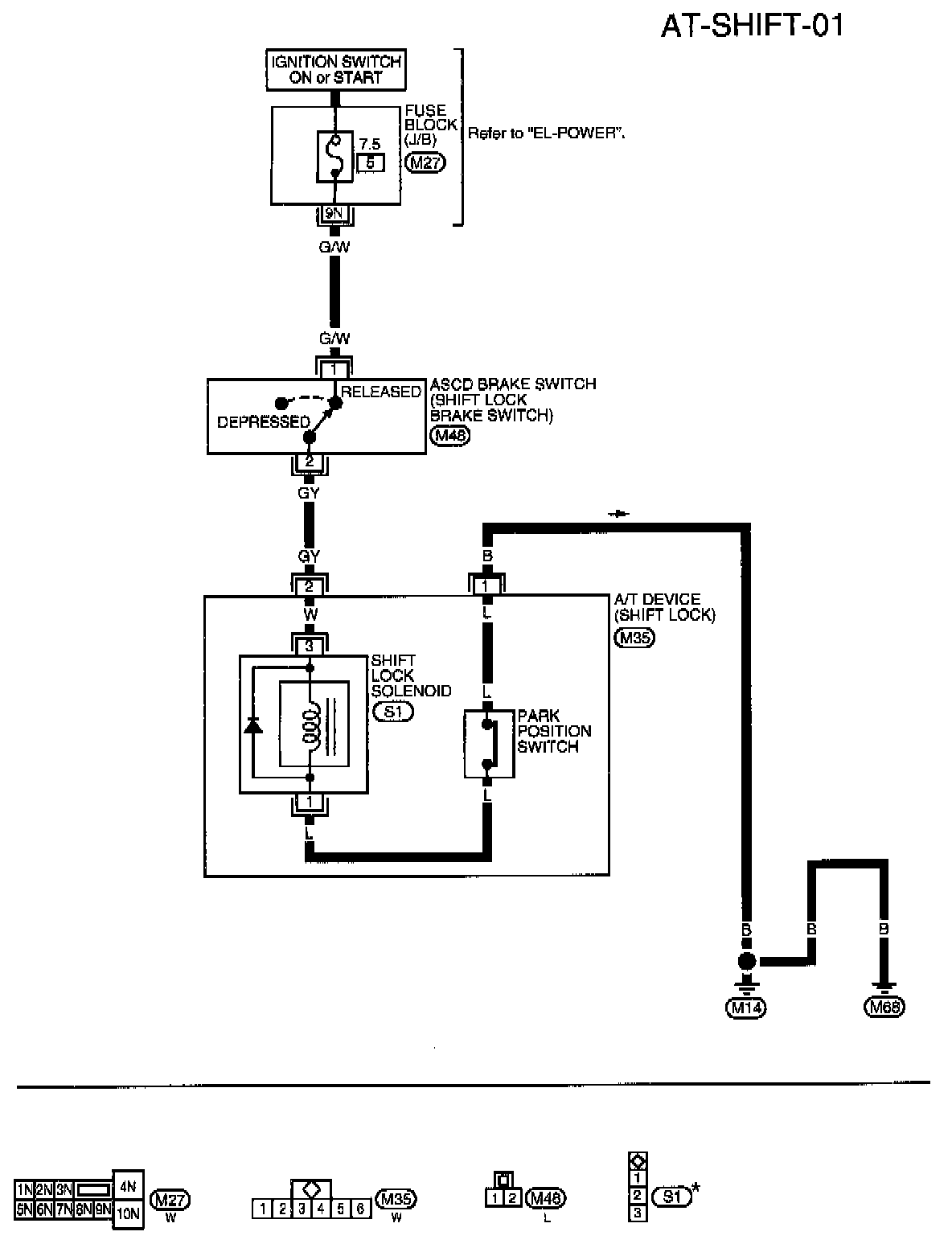

WIRING DIAGRAM - SHIFT





DIAGNOSTIC PROCEDURE

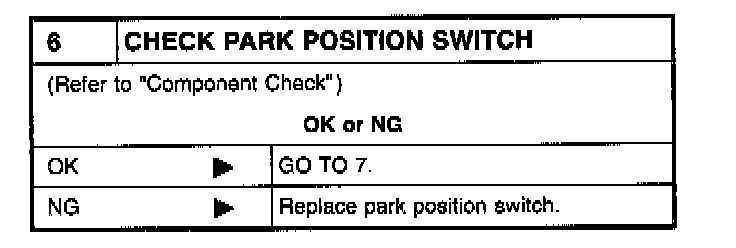

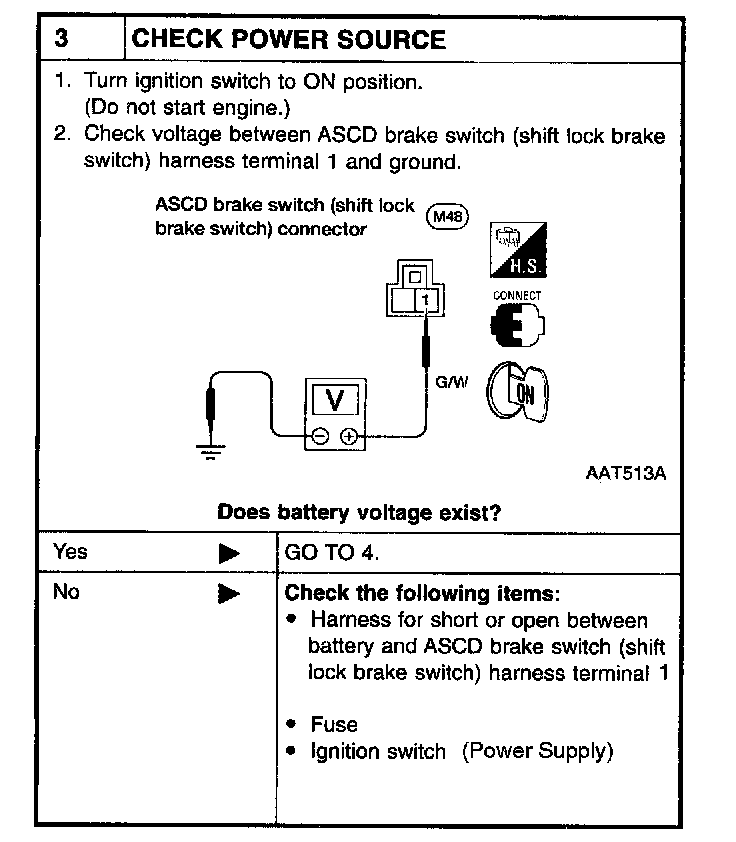

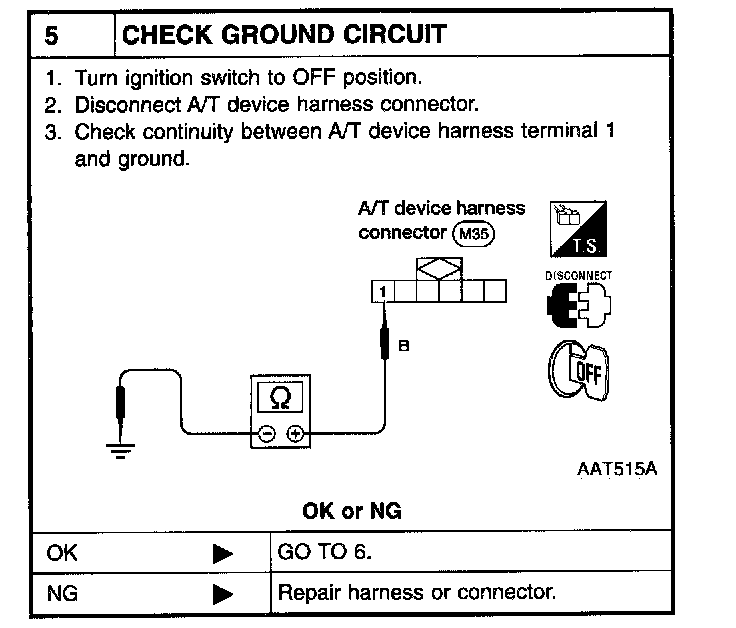

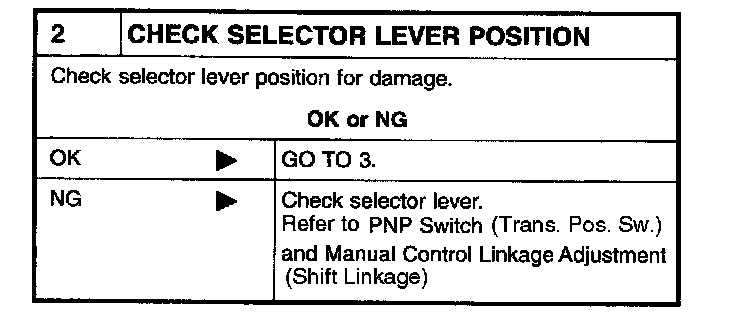

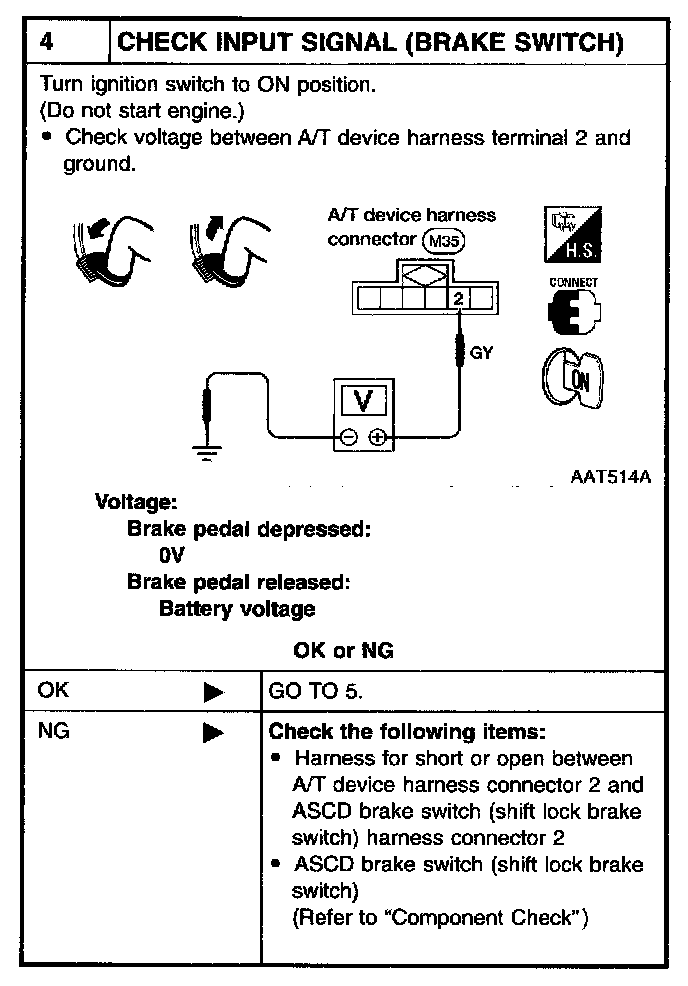

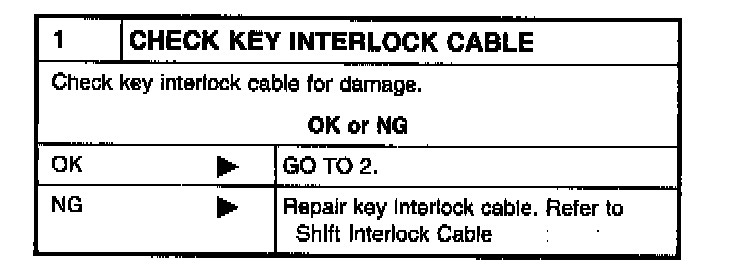

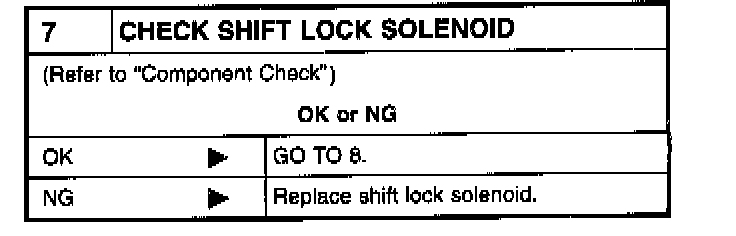

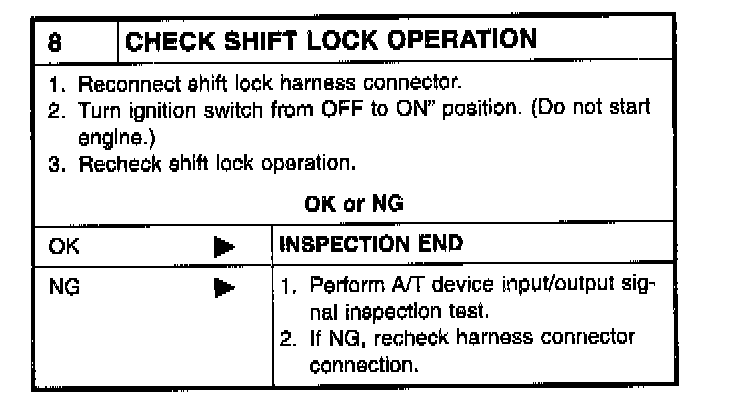

SYMPTOM 1:
^ Selector lever cannot be moved from P position with key in ON position and brake pedal applied.
^ Selector lever can be moved from P position with key in ON position and brake pedal released.
^ Selector lever can be moved from P position when key is removed from key cylinder.
SYMPTOM 2:
^ Ignition key cannot be removed when selector lever is set to P position.
^ It can be removed when selector lever is set to any position except P.
