Front Wheel Turning Angle Inspection

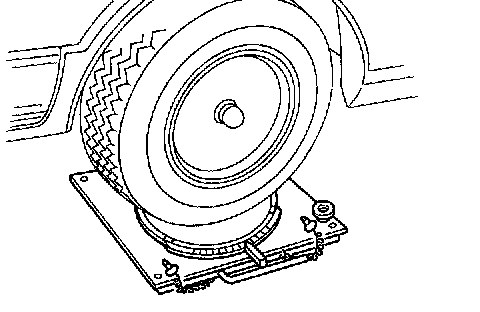

1. Rotate steering wheel fully right, then left; measure turning angle.

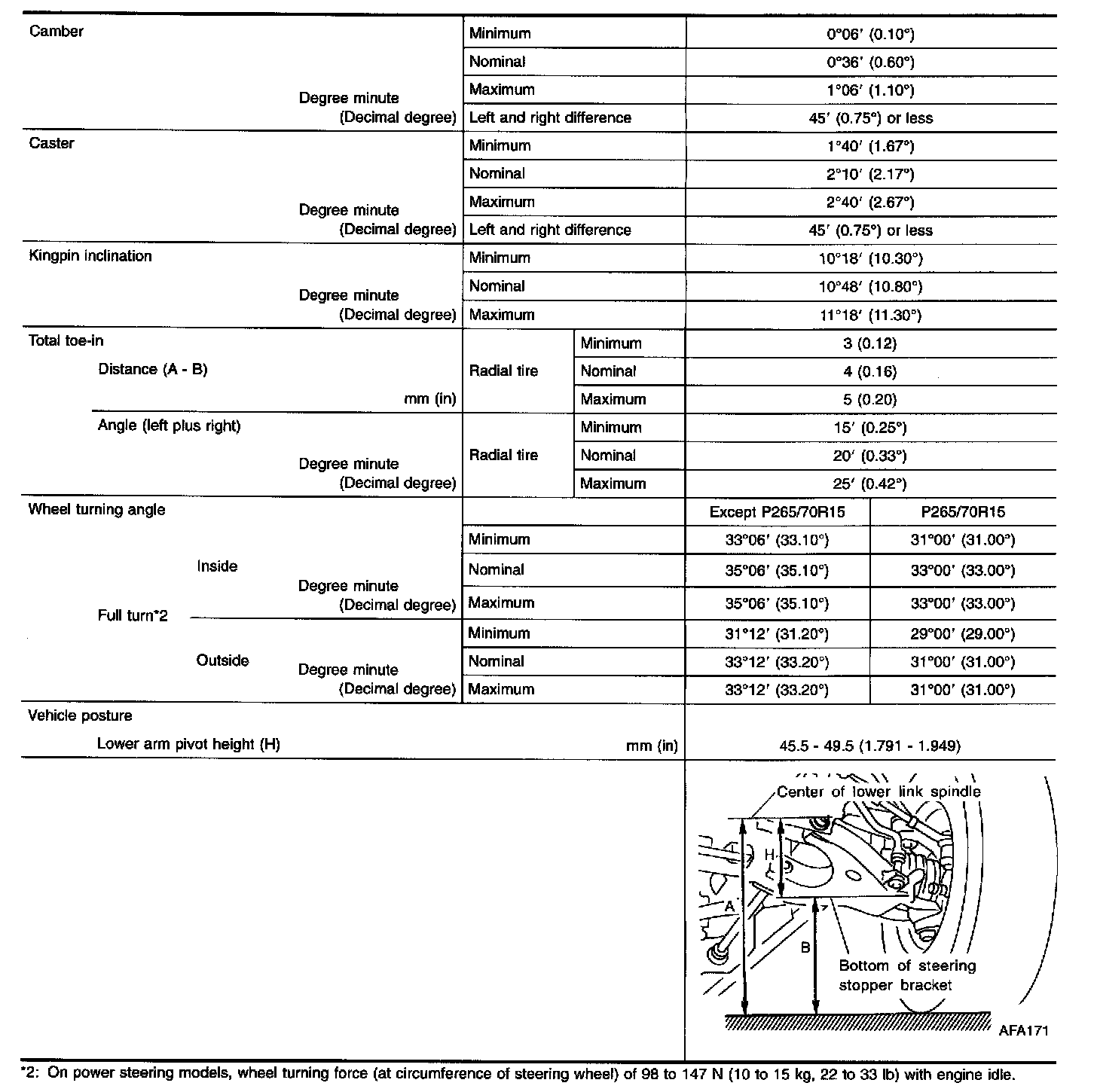

Turning angle of full turns

2. If it is not within specification, check stopper bolt adjustment.
