Ignition Power Supply - Ignition SW. In "ON" and/or "START"

Part 1 Of 2:

Part 2 Of 2:

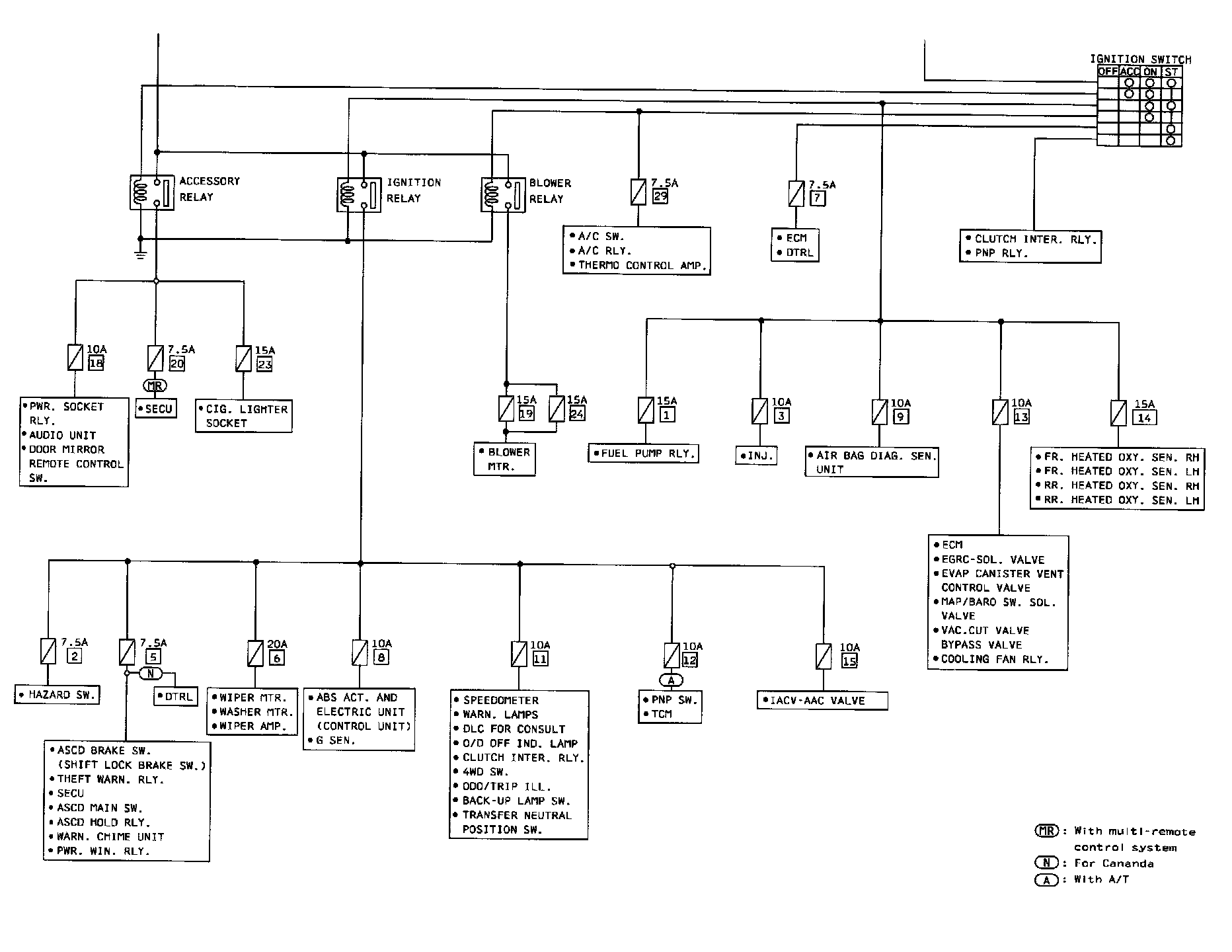

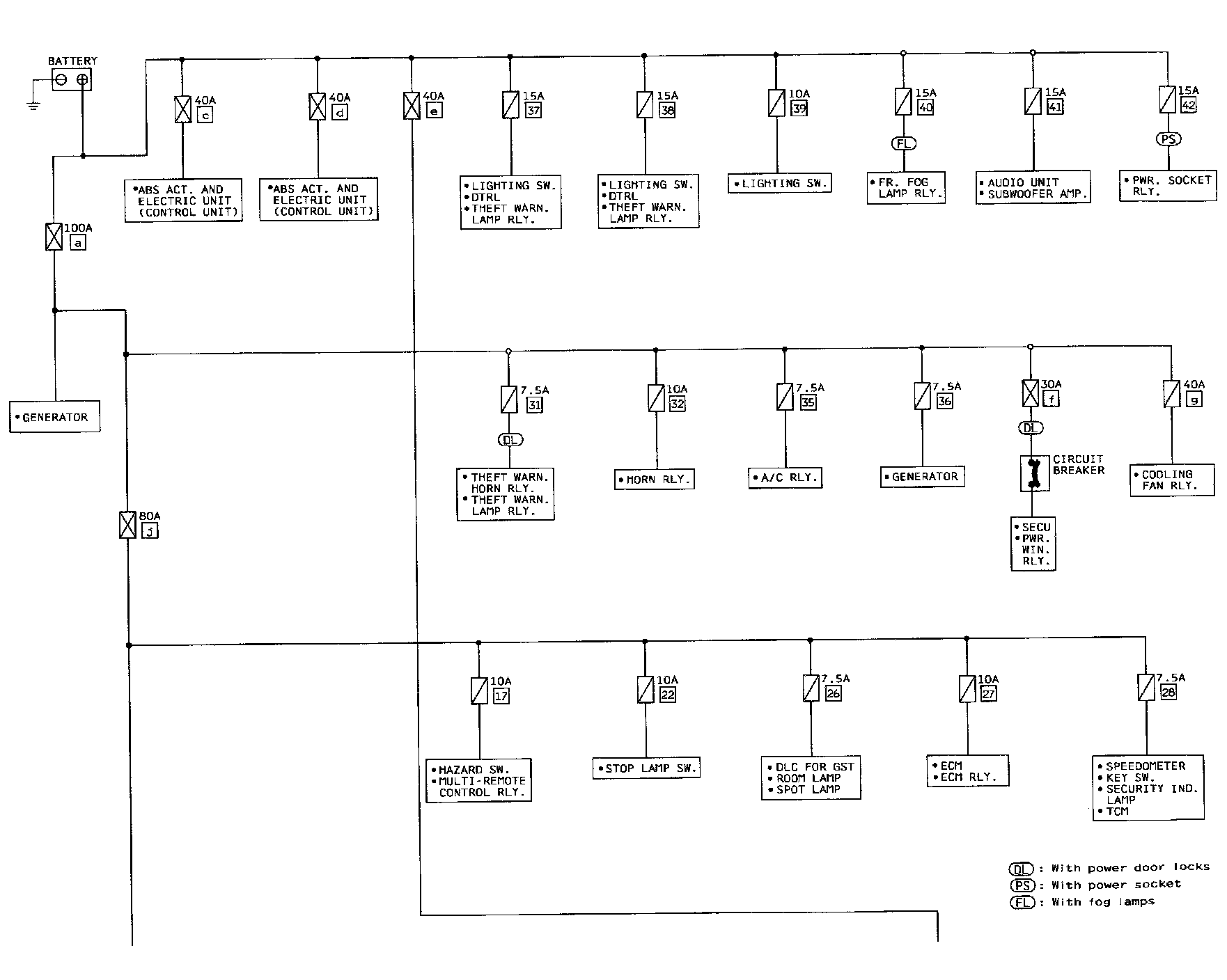

Schematic

Circuit Diagram

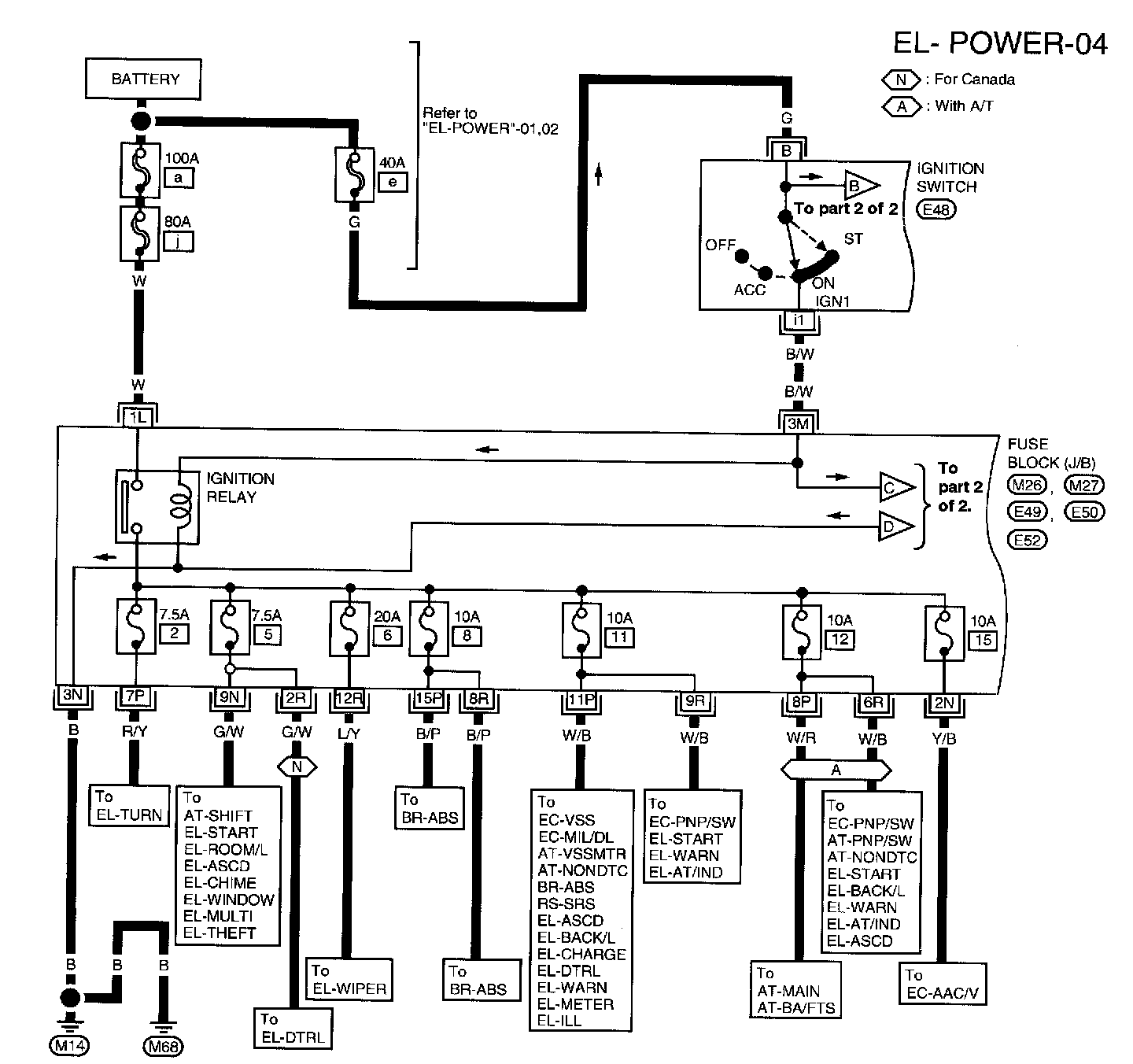

Part 1 Of 2:

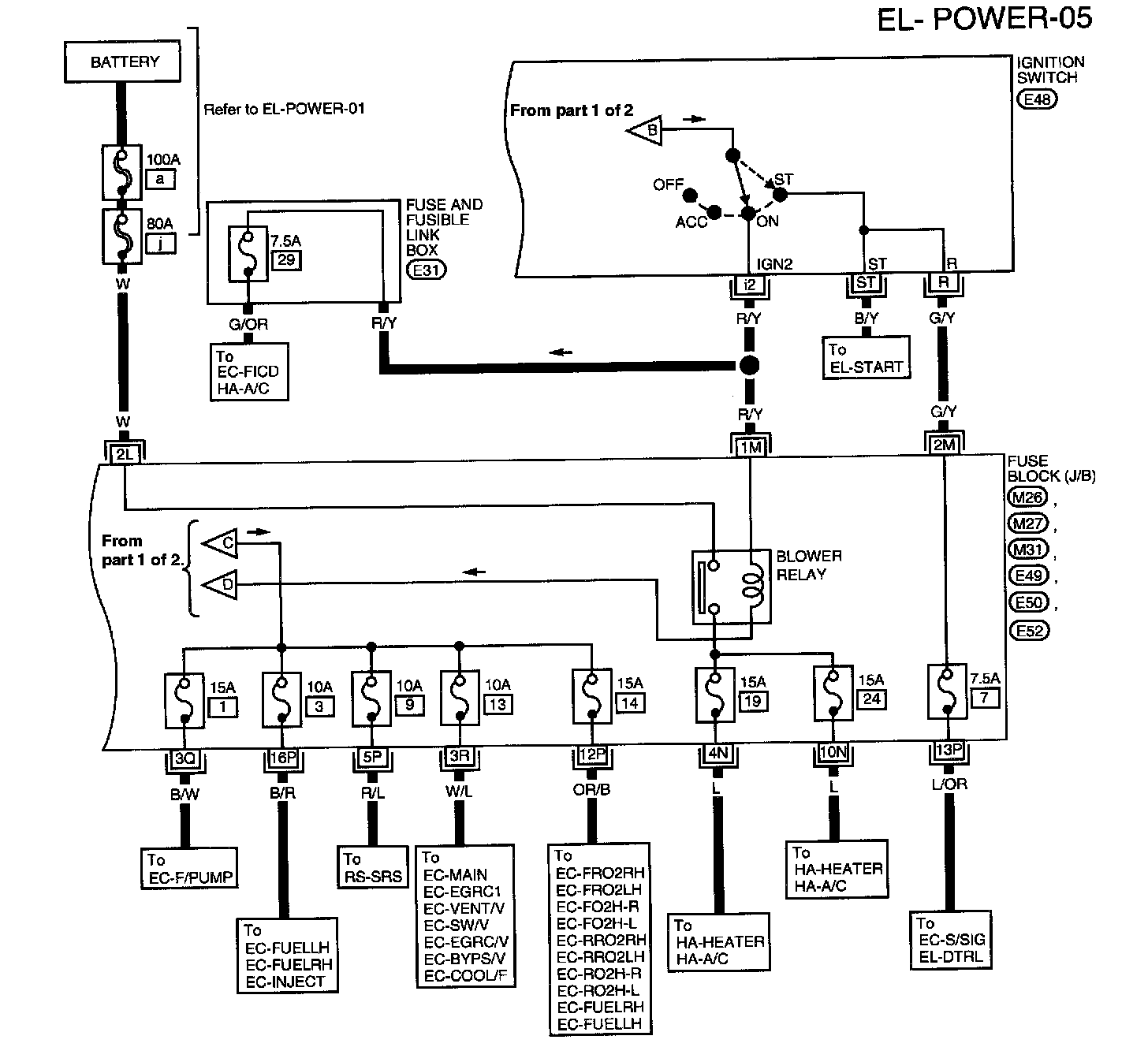

Part 2 Of 2:

NOTE: For detailed ground distribution information, refer to "GROUND DISTRIBUTION".

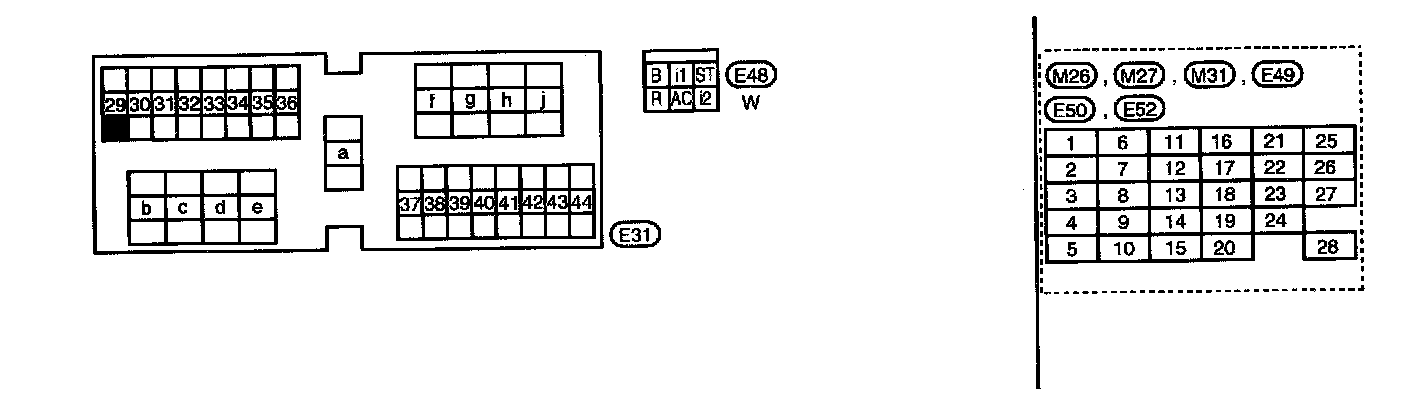

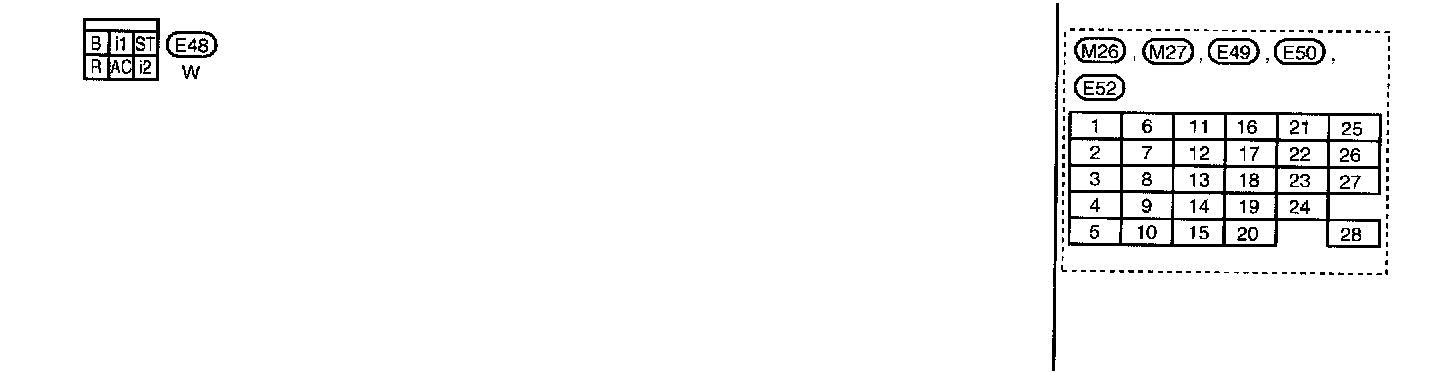

Circuit Connectors

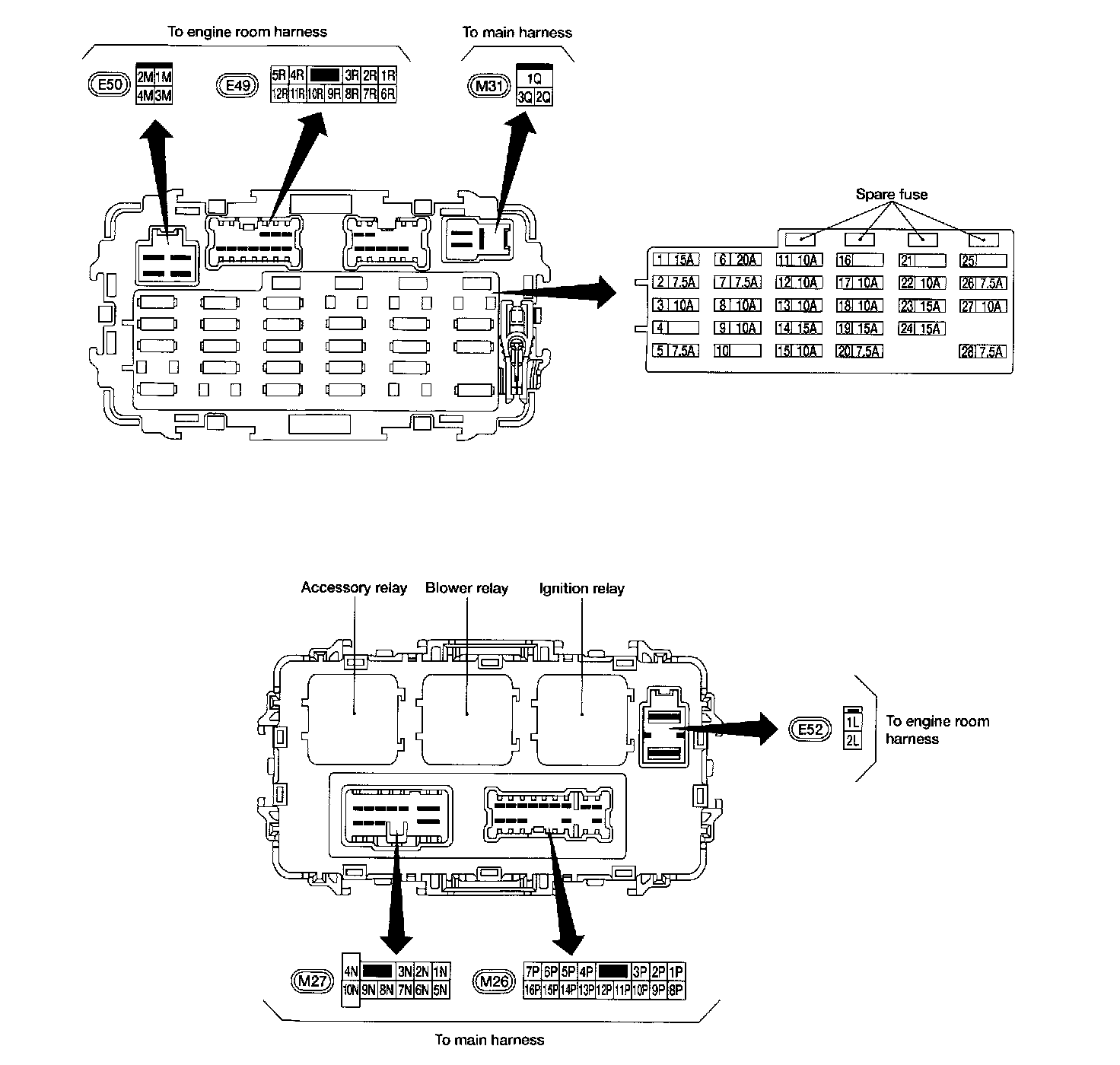

M26, M27, E49, E50, E52 Fuse Block - Junction Box (J/B) Terminal Arrangement
