Battery Power Supply - Ignition Switch In Any Position

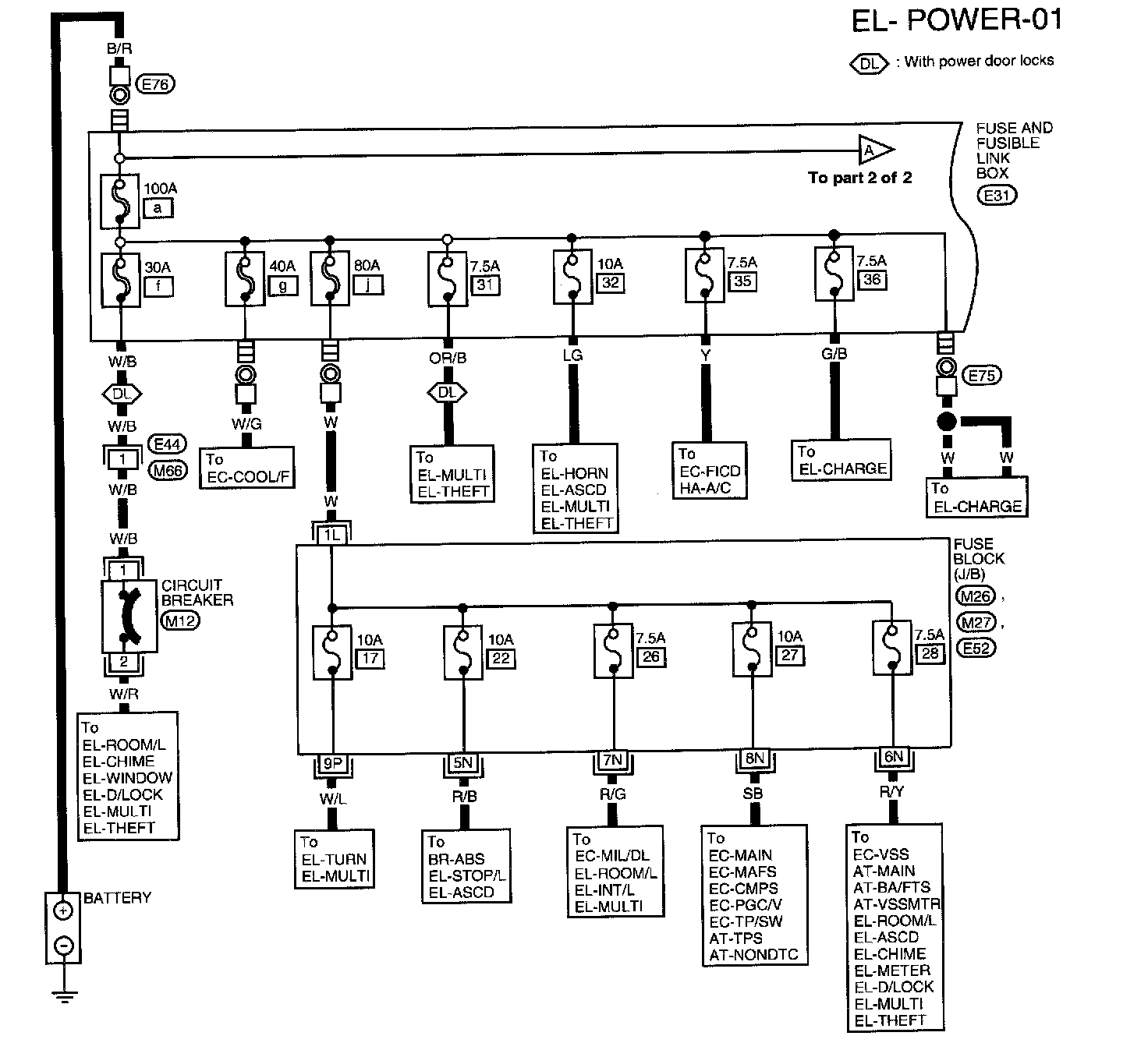

Part 1 Of 2:

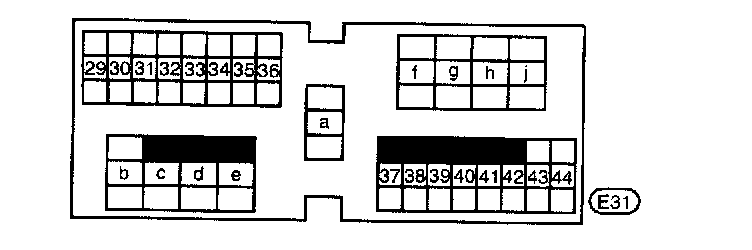

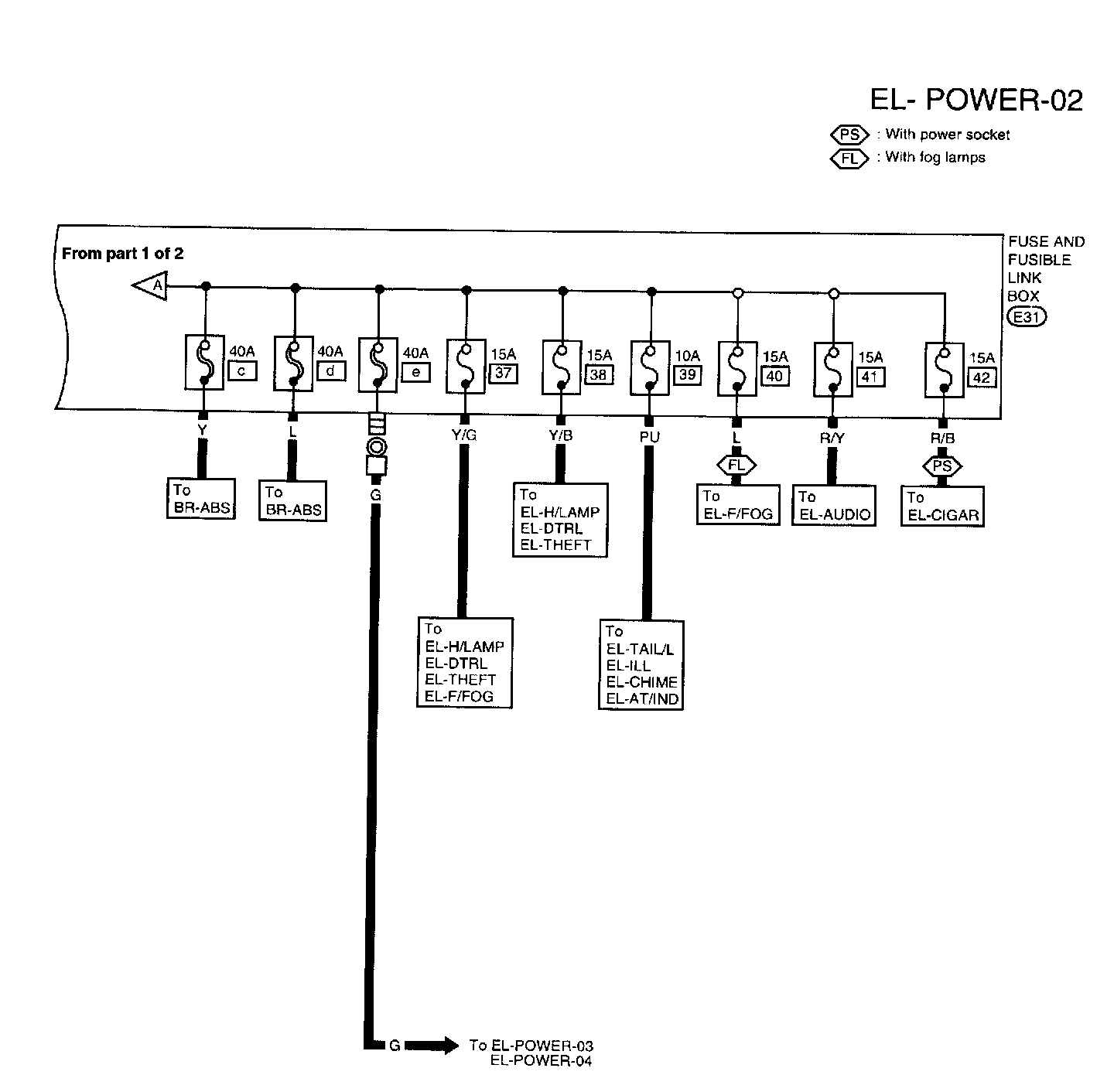

Part 2 Of 2:

Schematic

Circuit Diagrams

Part 1 of 2:

Part 2 Of 2:

NOTE: For detailed ground distribution information, refer to "GROUND DISTRIBUTION". Diagram Information and Instructions







Circuit Connectors

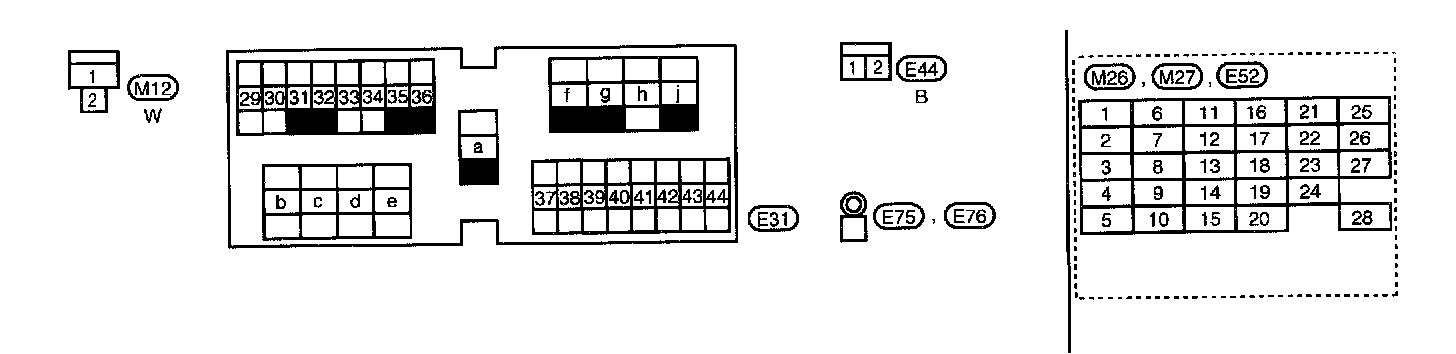

M26, M27, E52 Fuse Block - Junction Box (J/B) Terminal Arrangement
