Accessory Power Supply - Ignition Switch In "ACC" or "ON"

Part 1 Of 2:

Part 2 Of 2:

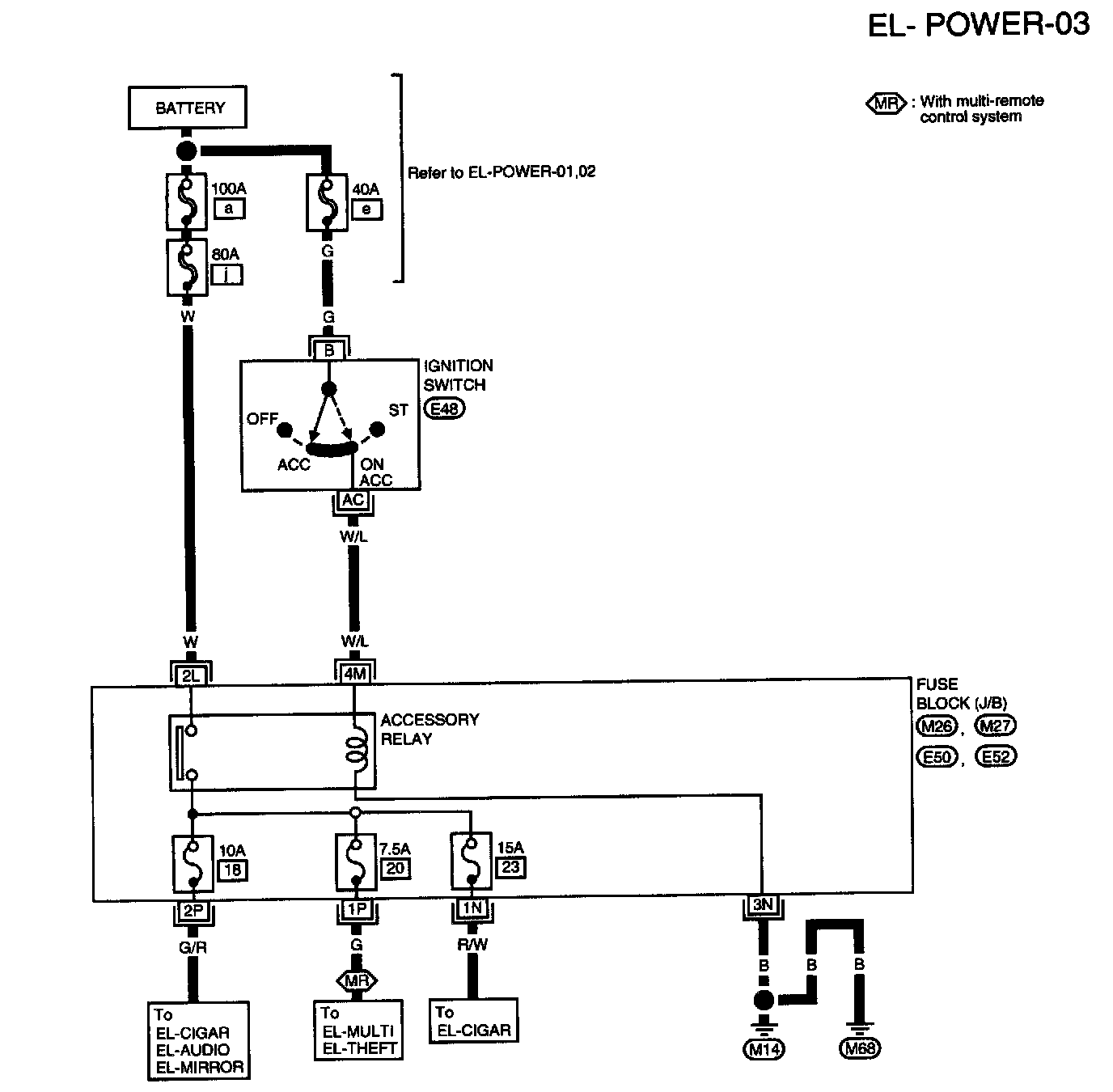

Schematic

Circuit Diagrams




NOTE: For detailed ground distribution information, refer to "GROUND DISTRIBUTION".




Circuit Connectors

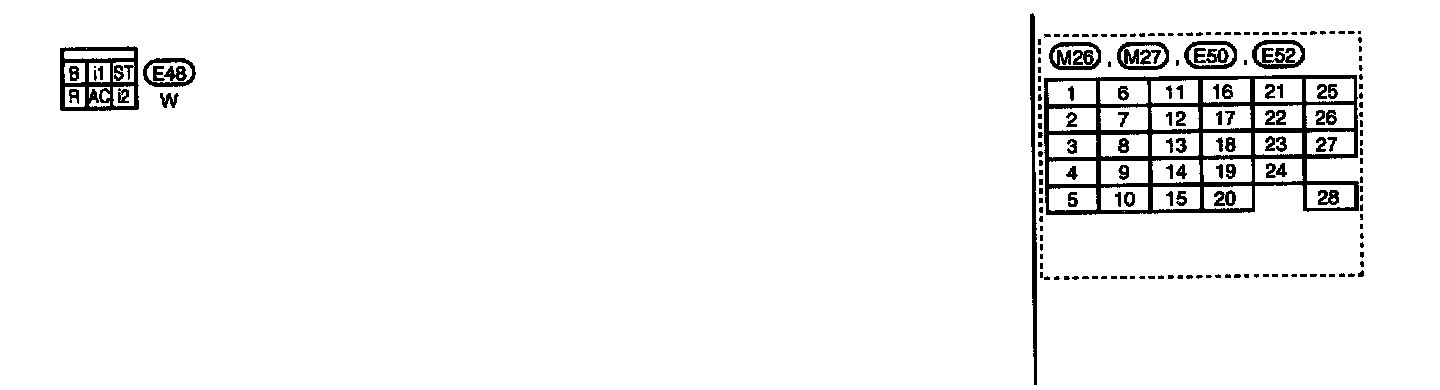

M26, M27, E50, E52 Fuse Block - Junction Box (J/B) Terminal Arrangement
