Transmission Pan Bolt Torque Values

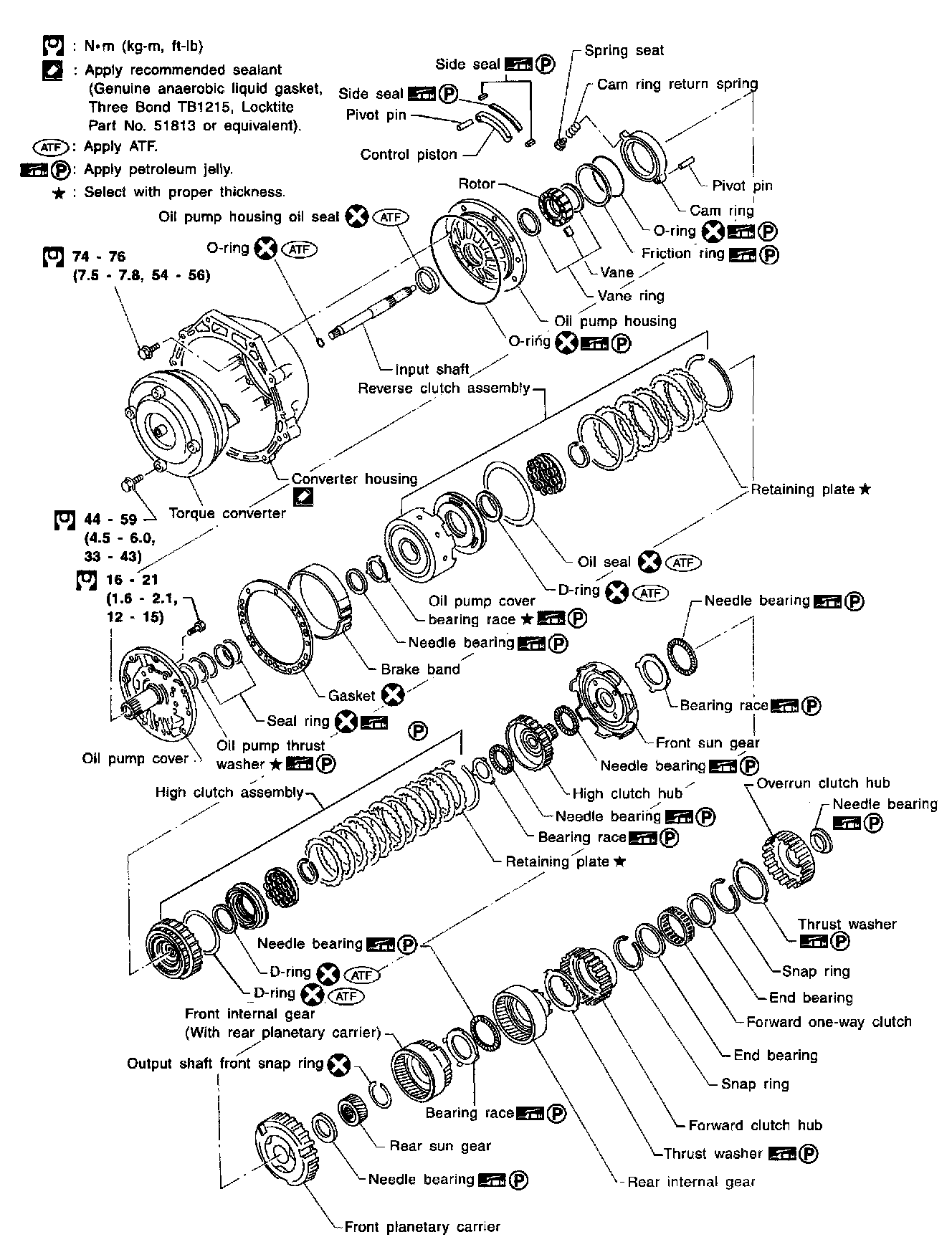

Part 1 Of 2:

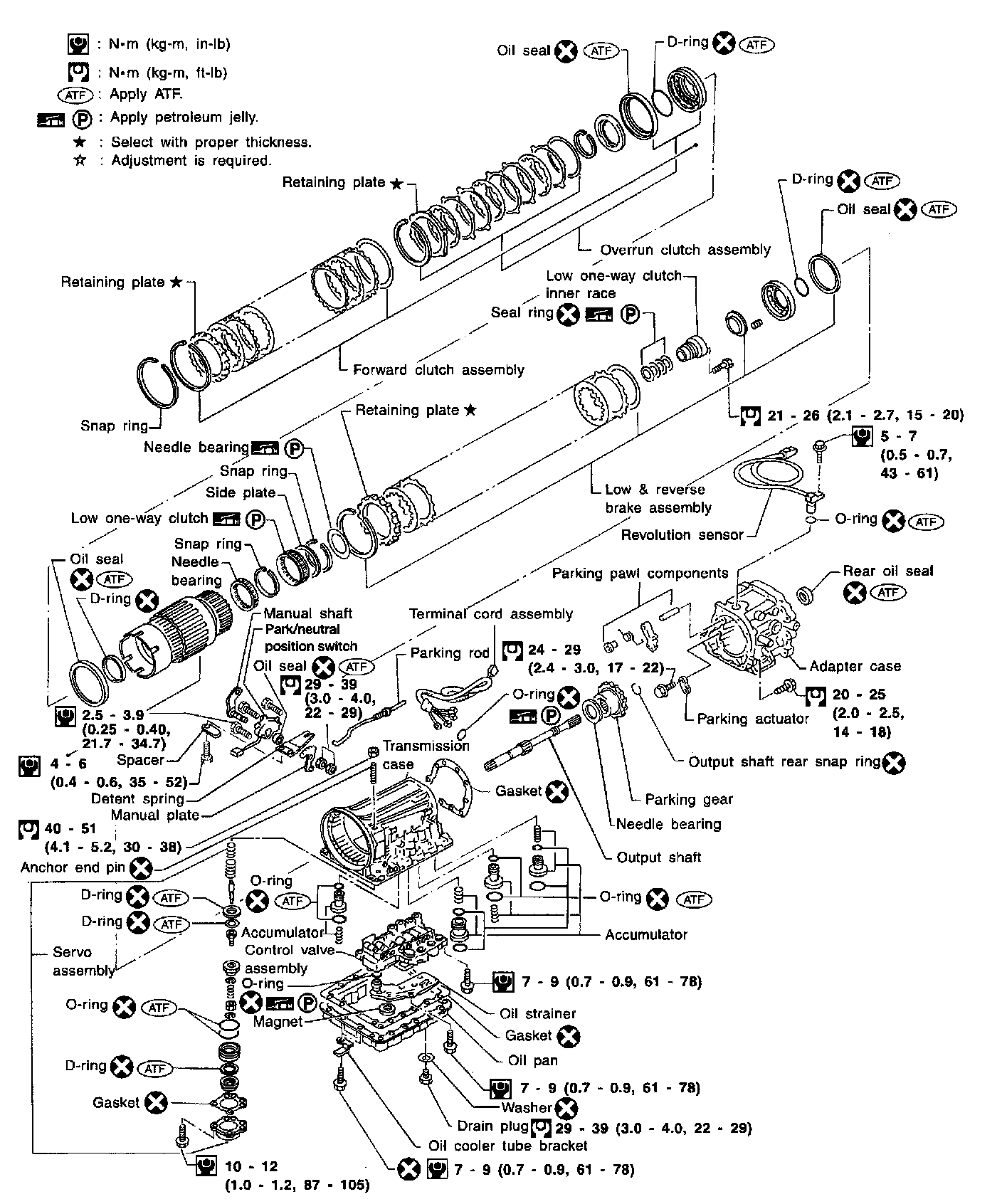

Part 2 Of 2:





OVERHAUL

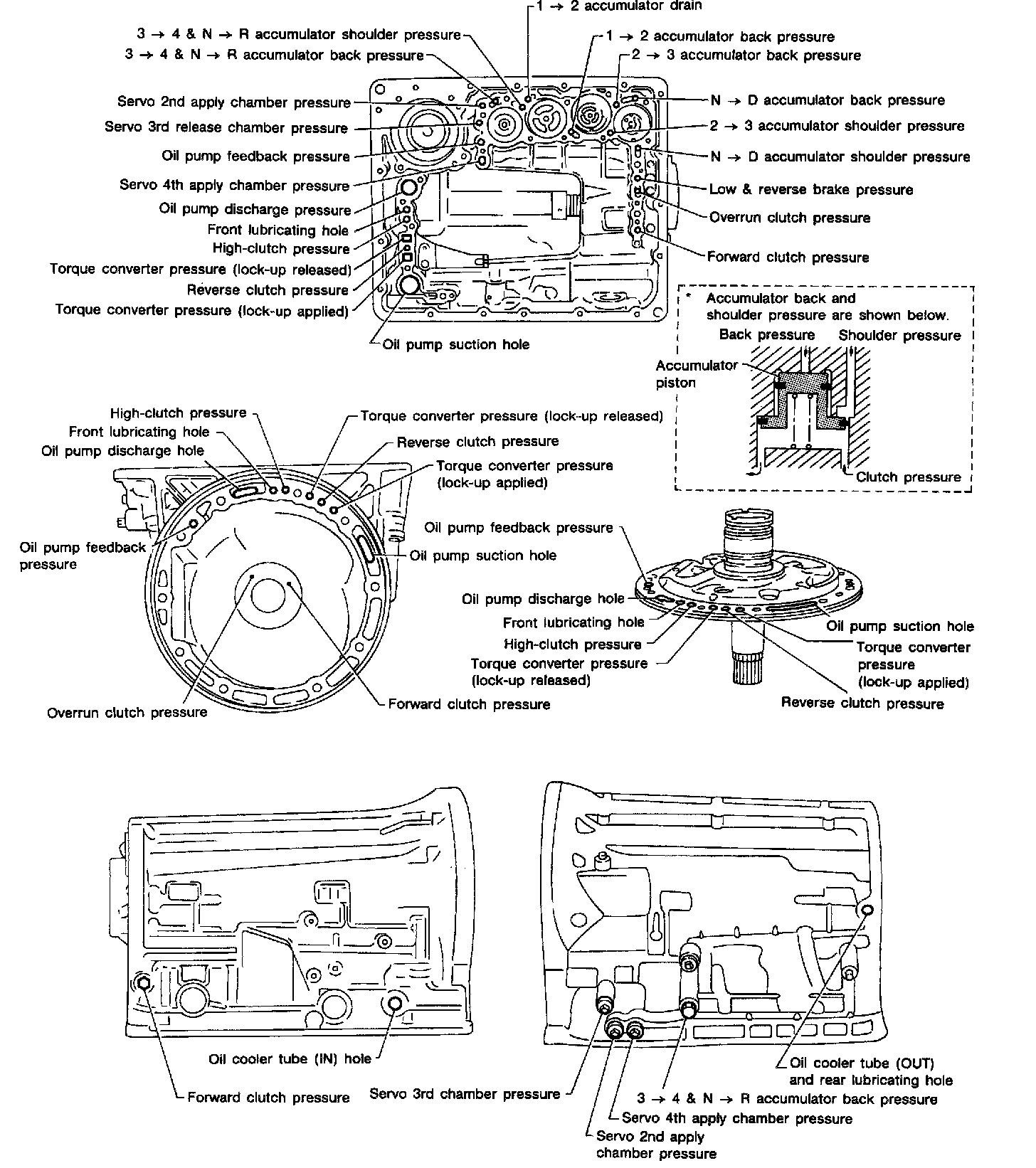

Oil Channel

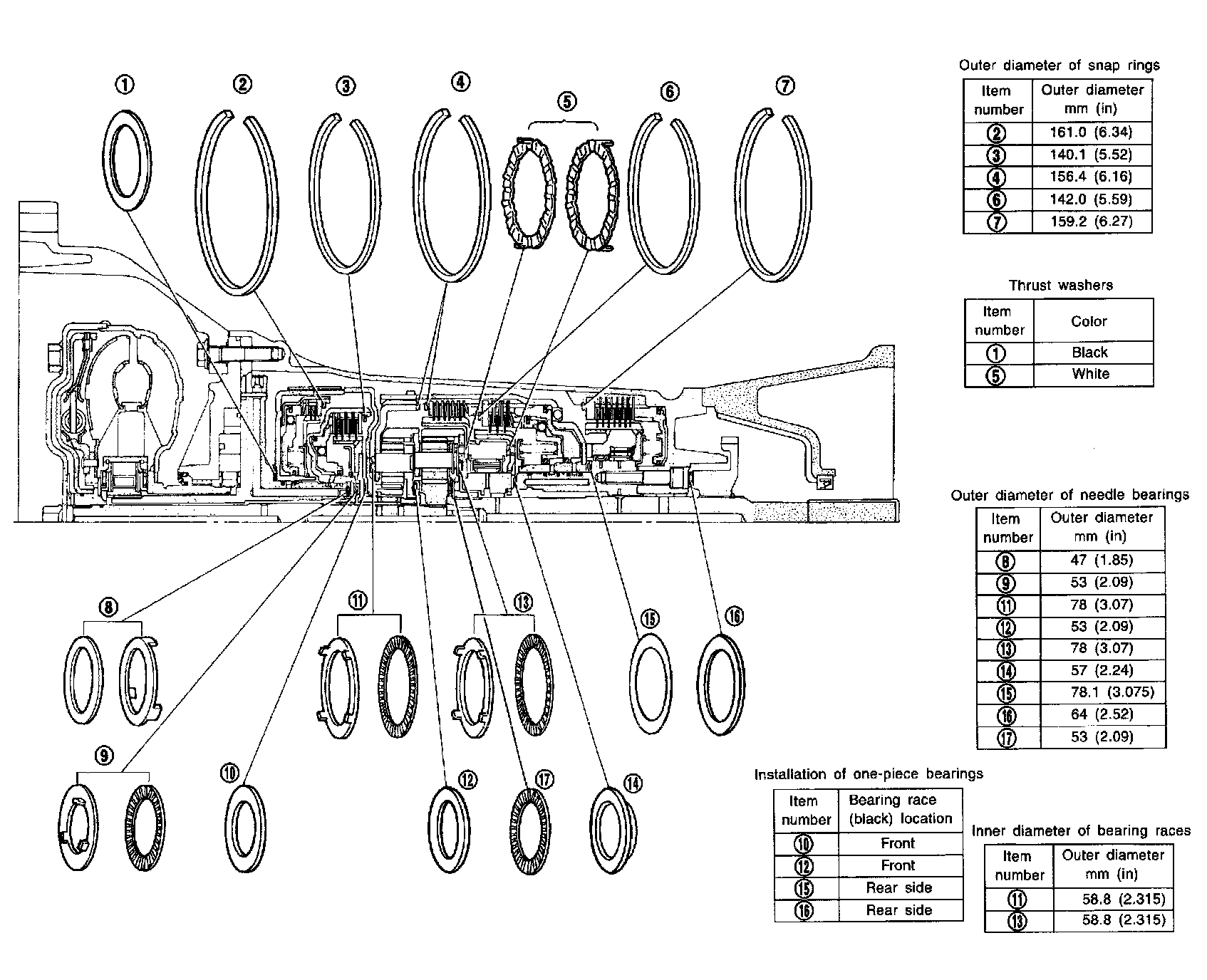

Locations of Needle Bearings, Thrust Washers and Snap Rings
