System Specifications

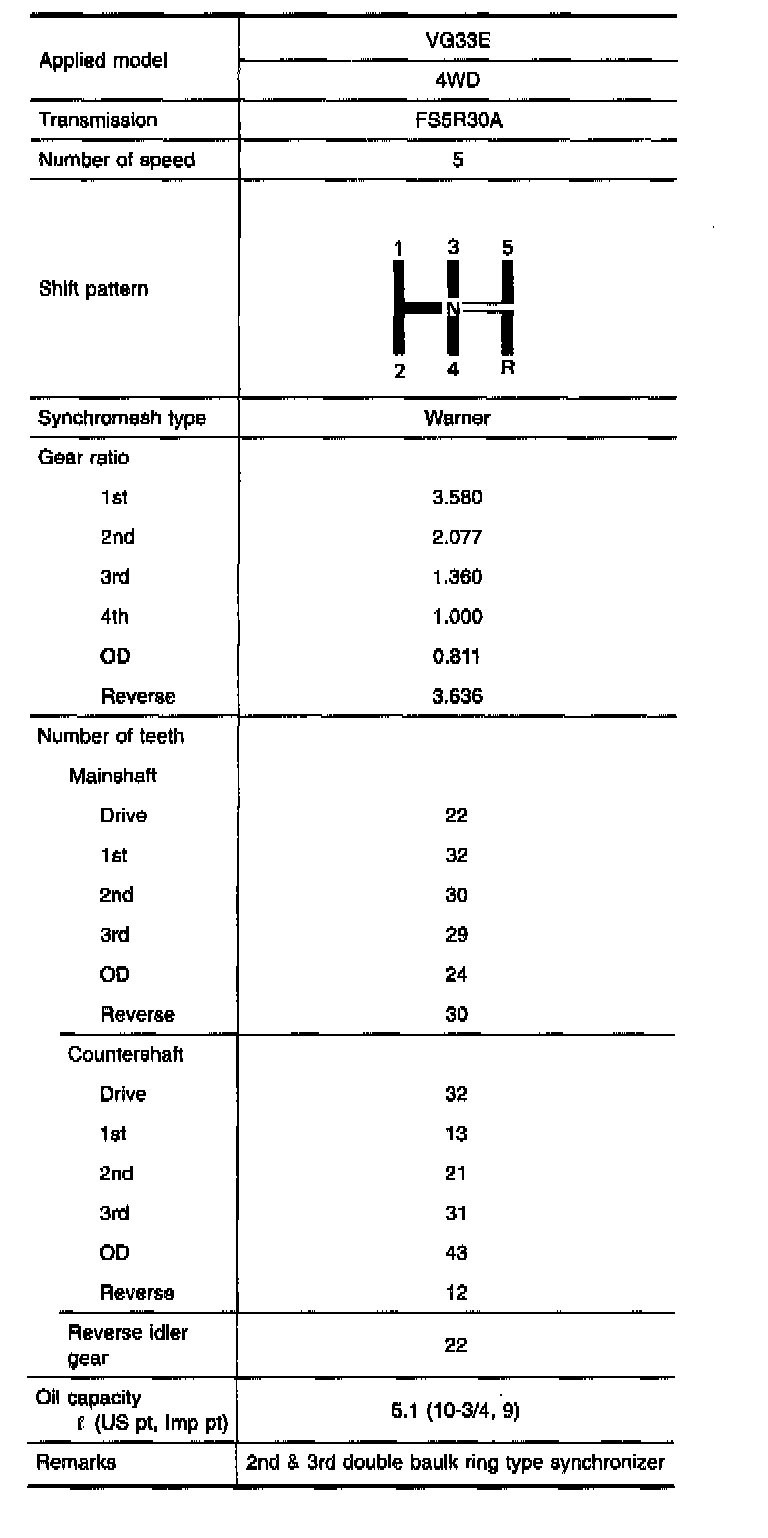

General Specifications
Inspection and Adjustment

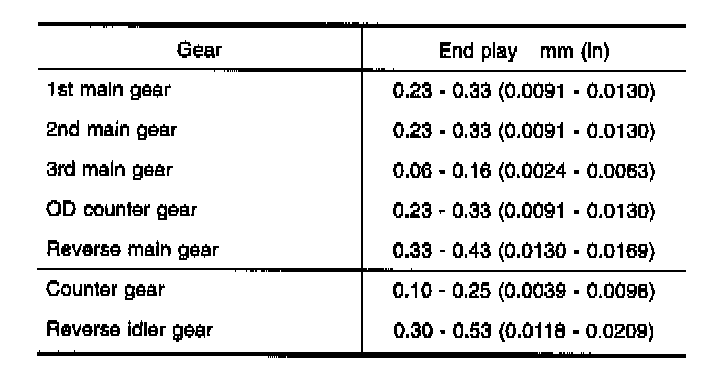

GEAR END PLAY

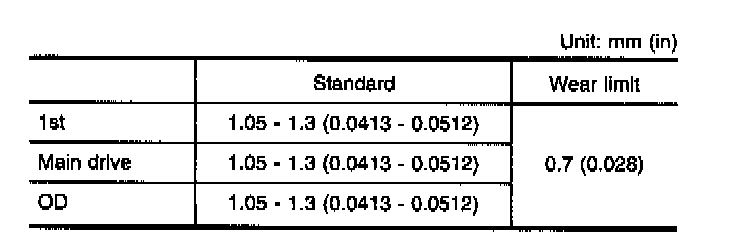

CLEARANCE BETWEEN BAULK RING AND GEAR

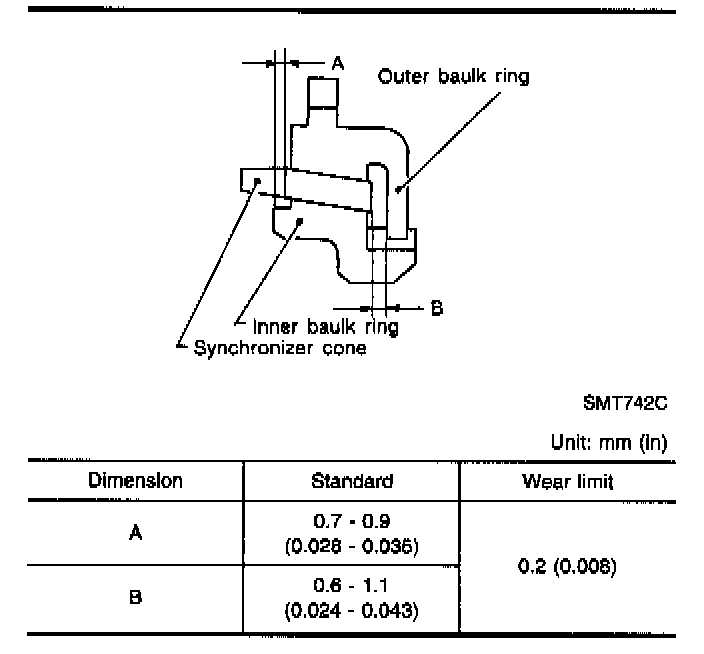

2nd and 3rd baulk ring

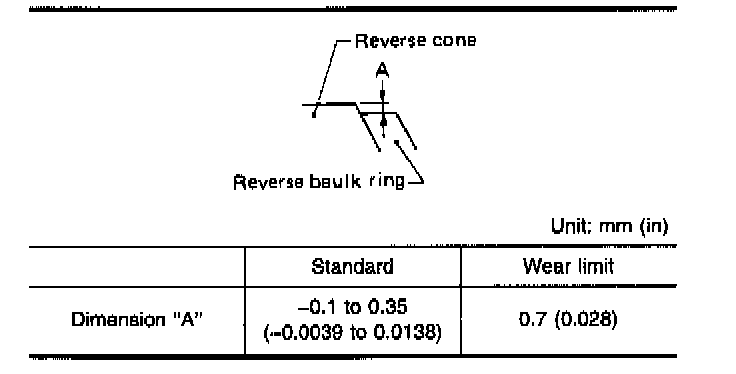

DISTANCE BETWEEN REAR SURFACE OF REVERSE CONE AND REVERSE BAULK RING
AVAILABLE SNAP RING
Main drive gear snap ring
Mainshaft front snap ring
Counter gear rear snap ring
AVAILABLE C-RING
Mainshaft C-ring
AVAILABLE SHIM AND WASHER
Counter gear front bearing thrust washer
Reverse idler rear thrust washer
