With Consult Scan Tool

HOW TO DISPLAY DIAGNOSIS CODES - With CONSULT
Inspecting SRS malfunctioning parts by using CONSULT - Diagnosis mode






1. Turn ignition switch OFF.

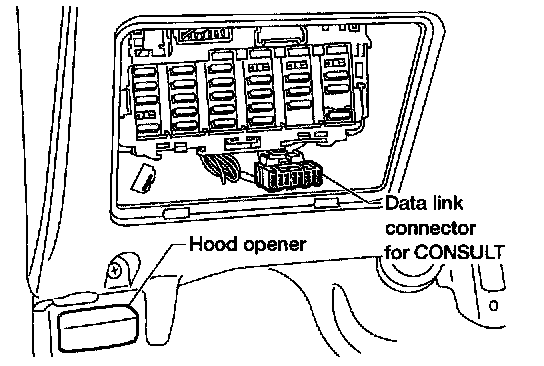

2. Connect CONSULT to Data link connector.






3. Turn ignition switch ON.

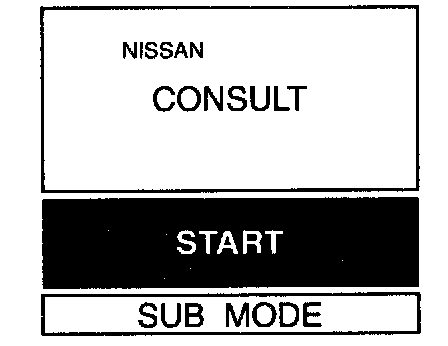

4. Touch "START".

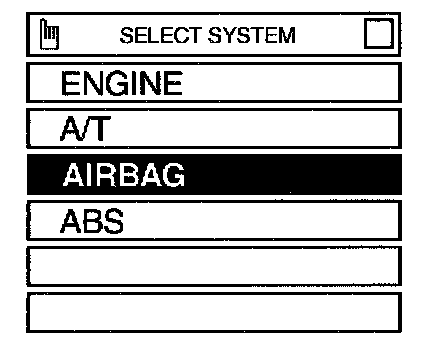

5. Touch "AIRBAG".

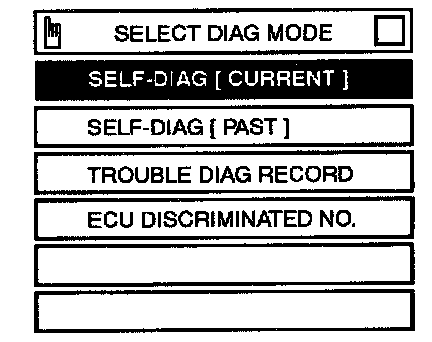

6. Touch "SELF-DIAG [CURRENT]".

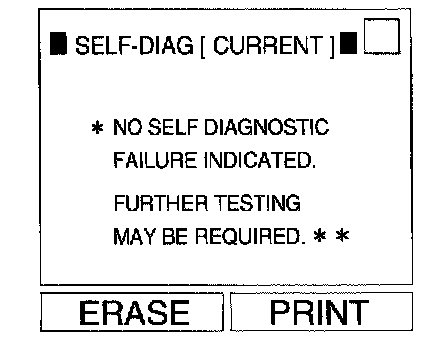

7. Self-diagnosis result is displayed on "SELF-DIAG [CUR-RENT]".






- If no malfunction is detected on "SELF-DIAG [CURRENT]" but malfunction is indicated by the "AIR BAG" warning lamp in User mode, go to DIAGNOSTIC PROCEDURE 4:
- Sell-diagnosis result (previously stored in the memory) might not have been erased after repair.
- The SRS system is malfunctioning intermittently.

8. Touch "PRINT".
9. Compare diagnostic codes to the CONSULT DIAGNOSTIC CODE CHART.
10. Touch "BACK" key of CONSULT until "SELECT SYSTEM" appears in order to return to User mode from Diagnosis mode, then turn off CONSULT.
11. Turn ignition switch OFF, then disconnect CONSULT and both battery cables.

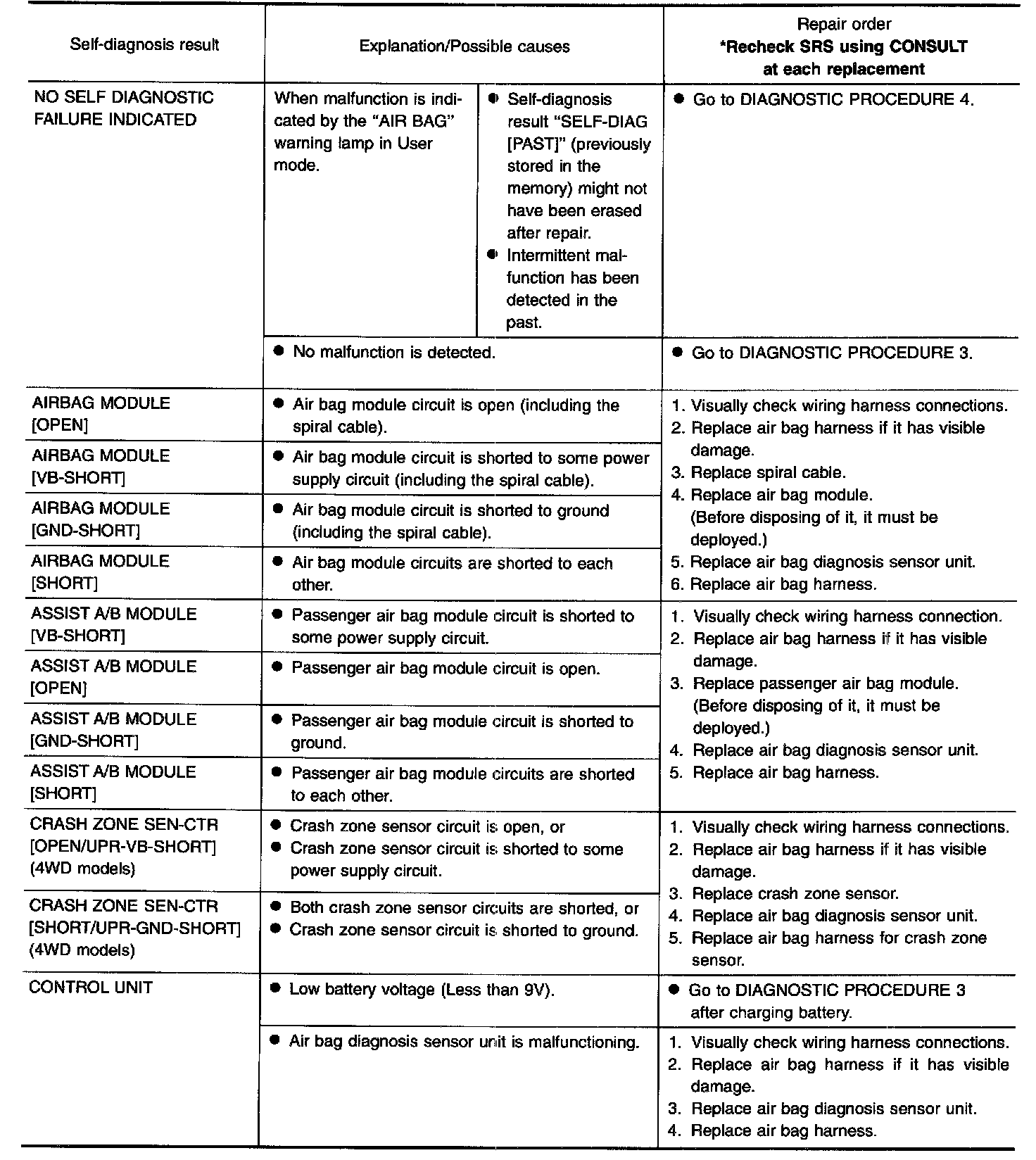

CONSULT DIAGNOSTIC CODE CHART ("SELF-DIAG [CURRENT]") {1 Of 2}:

CONSULT DIAGNOSTIC CODE CHART ("SELF-DIAG [CURRENT]") {2 Of 2}:

12. Repair the system as outlined by the Repair order in CONSULT DIAGNOSTIC CODE CHART that corresponds to the self-diagnosis result. For replacement procedure of component parts.
13. After repairing the system, connect battery cables and go to DIAGNOSTIC PROCEDURE 3, for final checking.
