Home >> Nissan-Datsun Truck >> 1999 >> Frontier XE King Cab 4WD V6-3.3L (VG33E) >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Lighting and Horns >> Turn Signal Relay >> Locations

Turn Signal Relay: Locations




Combination Flasher Unit M45

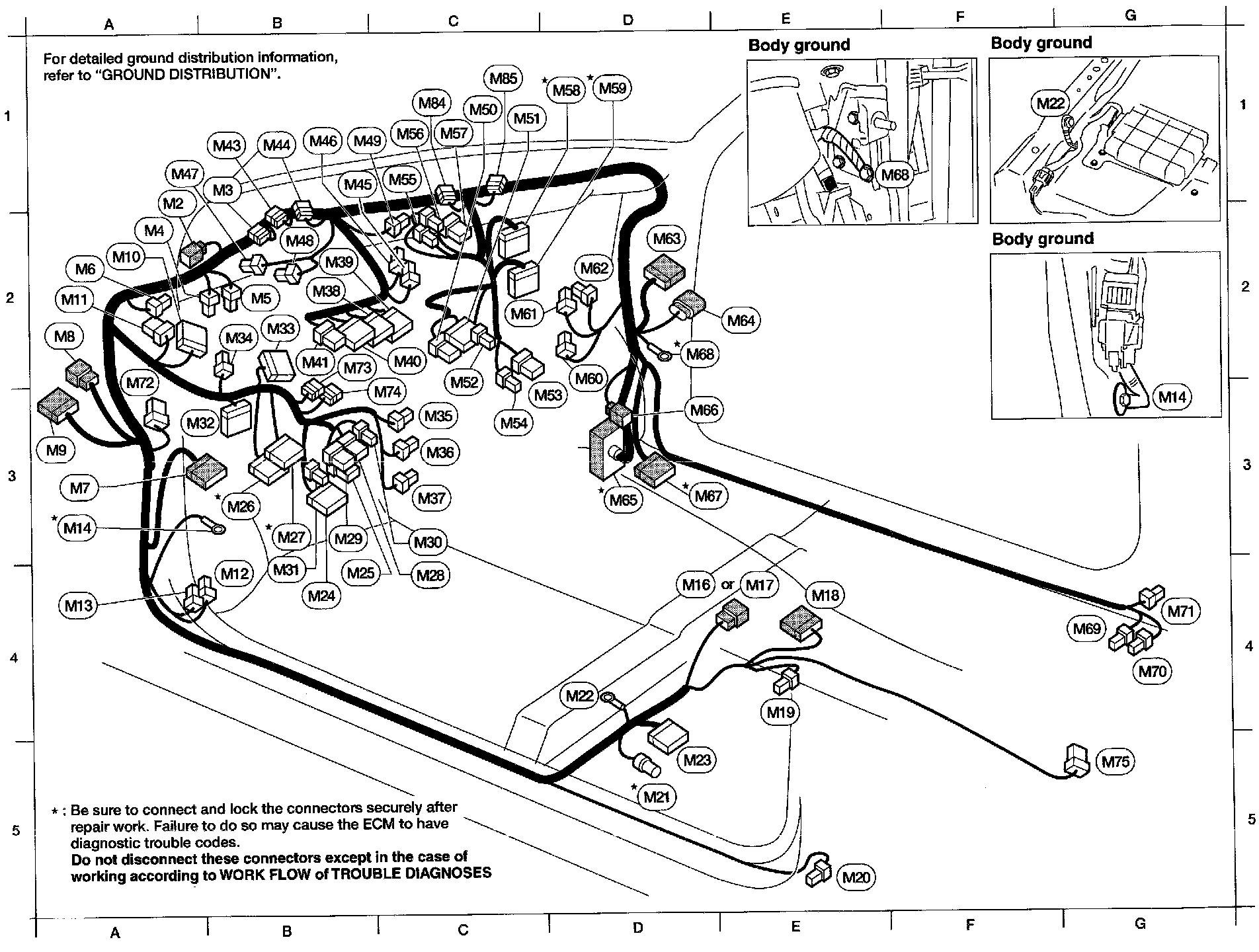

Main Harness Layout

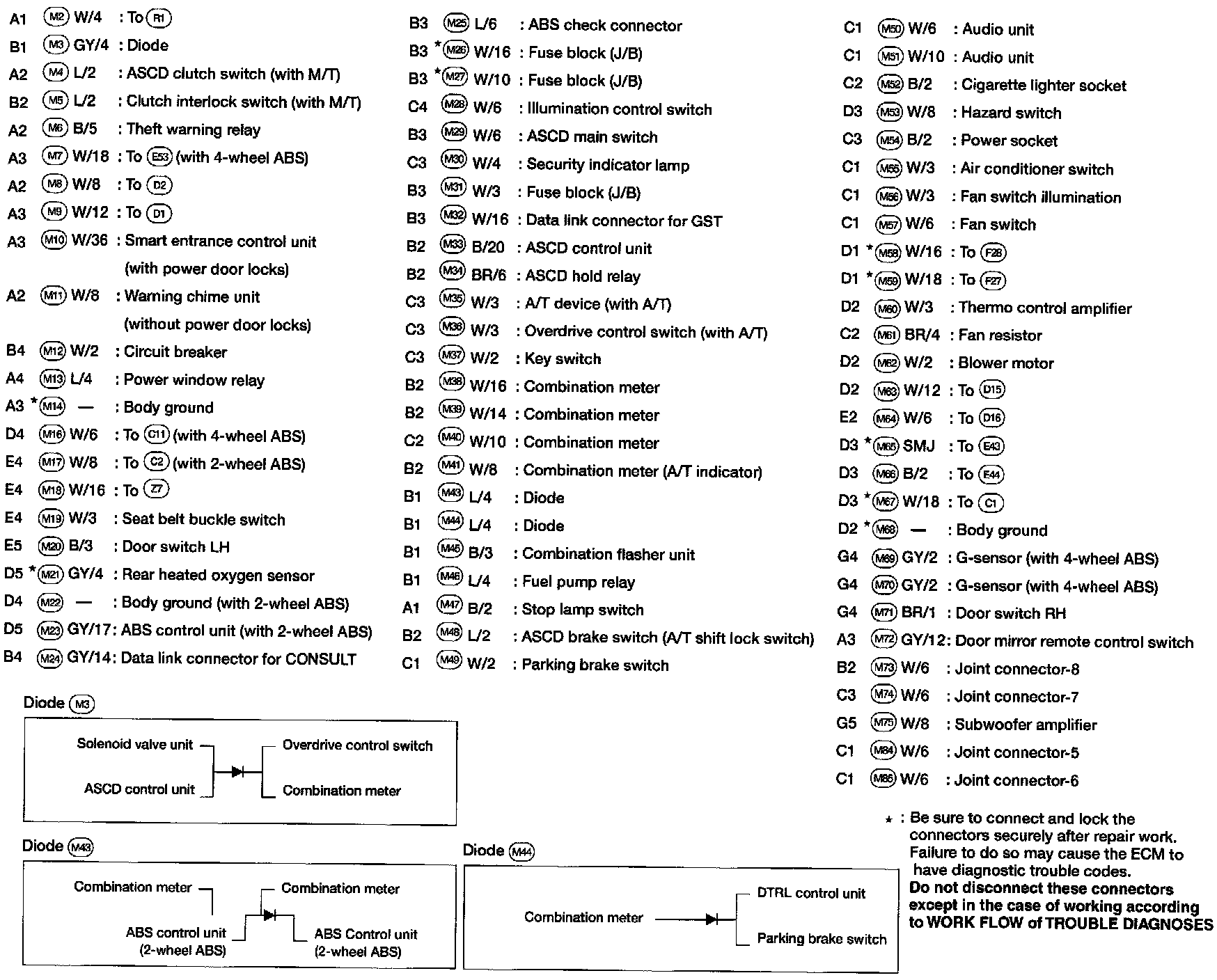

Main Harness Layout Index
