TCM Power Supply

TROUBLE DIAGNOSIS FOR POWER SUPPLY

WIRING DIAGRAM - AT - MAIN

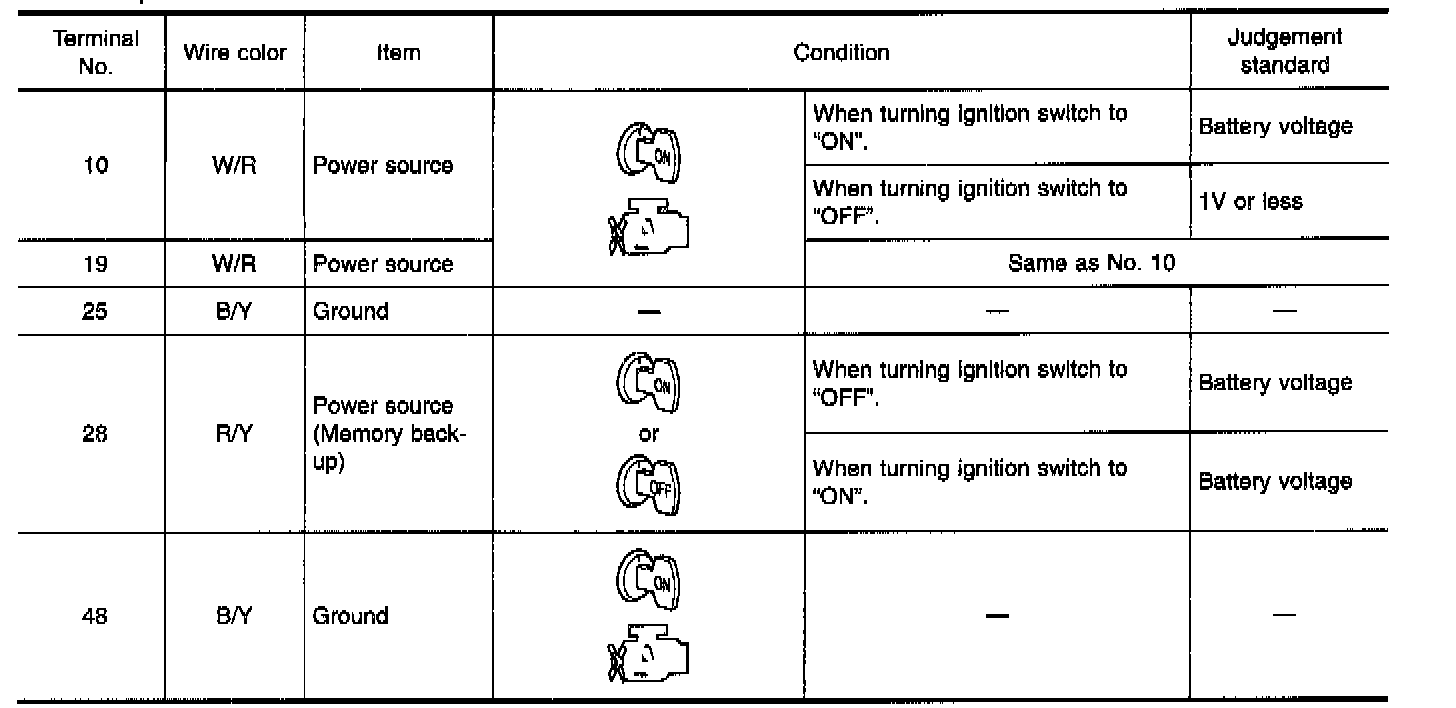

TCM TERMINALS AND REFERENCE VALUE

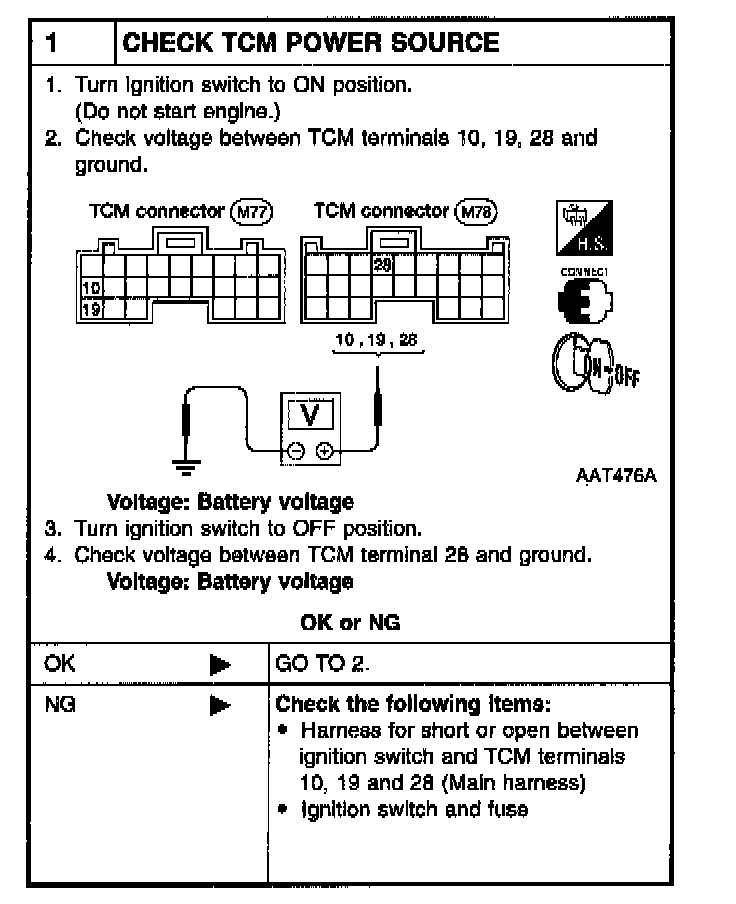

PROCEDURE
