Electrical Diagrams

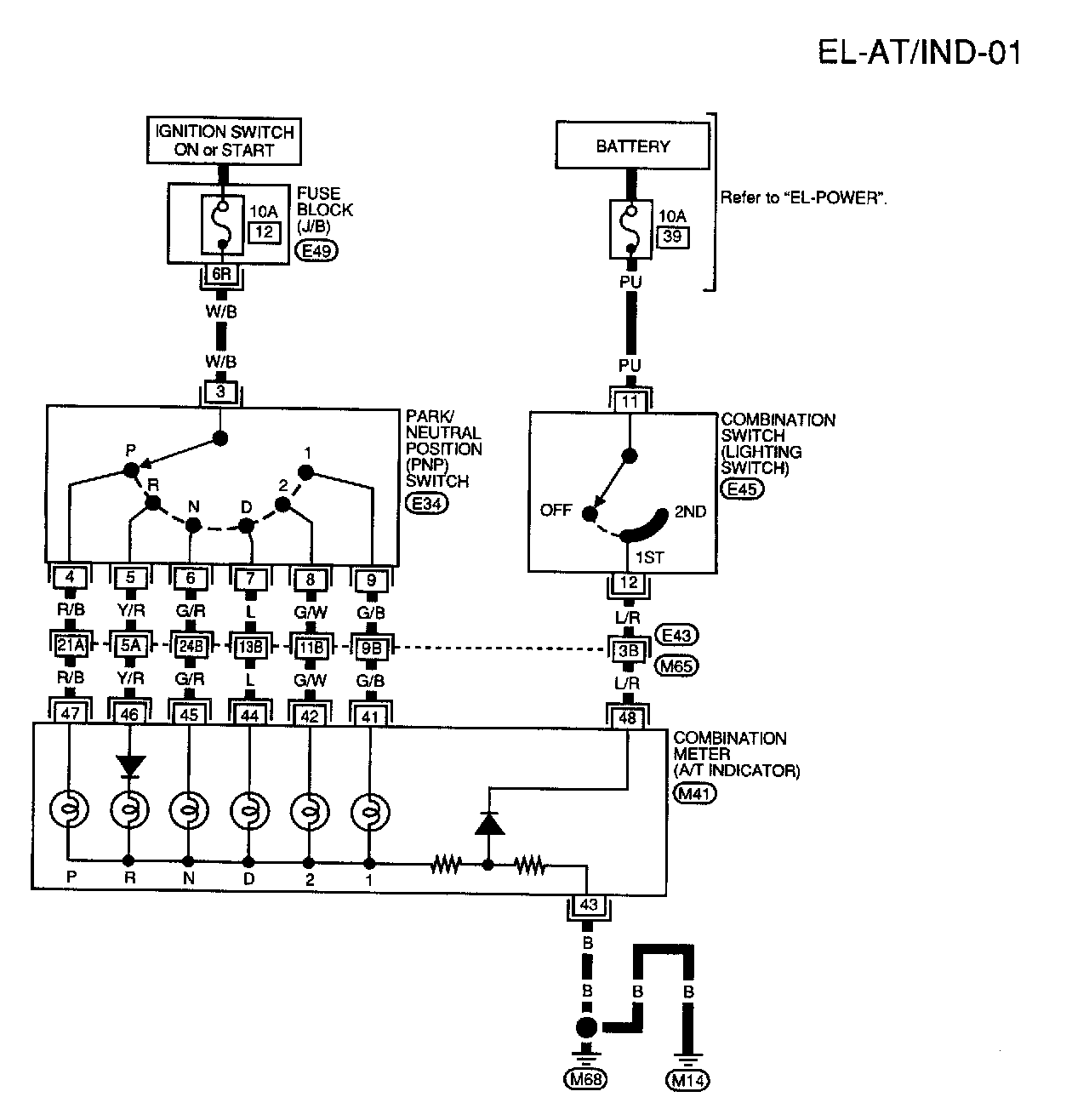

Circuit Diagram




Circuit Connectors




M65, E43 Super Multiple Junction (SMJ) Terminal Arrangement
