Fuel Pump: Service and Repair

REMOVAL AND INSTALLATION





1. Remove fuel tank. Refer to "Fuel Tank" "REMOVAL".

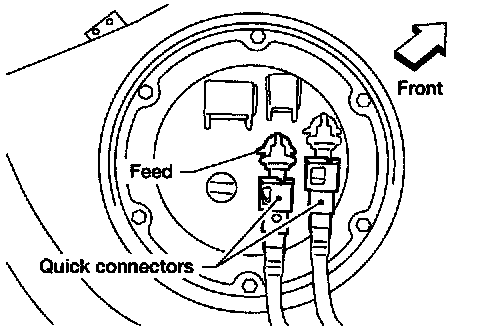

- For removal of quick connectors, refer to step 6 of "Fuel Tank" "Removal".
2. Remove the six screws.
3. Remove fuel gauge retainer and fuel gauge.
4. Remove fuel pump with bracket while lifting the pawl of the fuel pump bracket upward.




5. Installation procedure is the reverse order of removal.
- Install fuel gauge as shown.

CAUTION:
- Tighten bolts to specified torque.

Tightening Torque :2.0 - 2.5 Nm (0.20 - 0.26 kg-m, 17.4 - 22.6 in-lb)

- Always replace O-ring with a new one.
- After installation, run engine and check for leaks at connections.
