Basic Inspection
BASIC INSPECTIONPrecaution: Perform Basic Inspection without electrical or mechanical loads applied;
- Headlamp switch is OFF,
- Air conditioner switch is OFF,
- Rear window defogger switch is OFF,
- Steering wheel is in the straight-ahead position, etc.

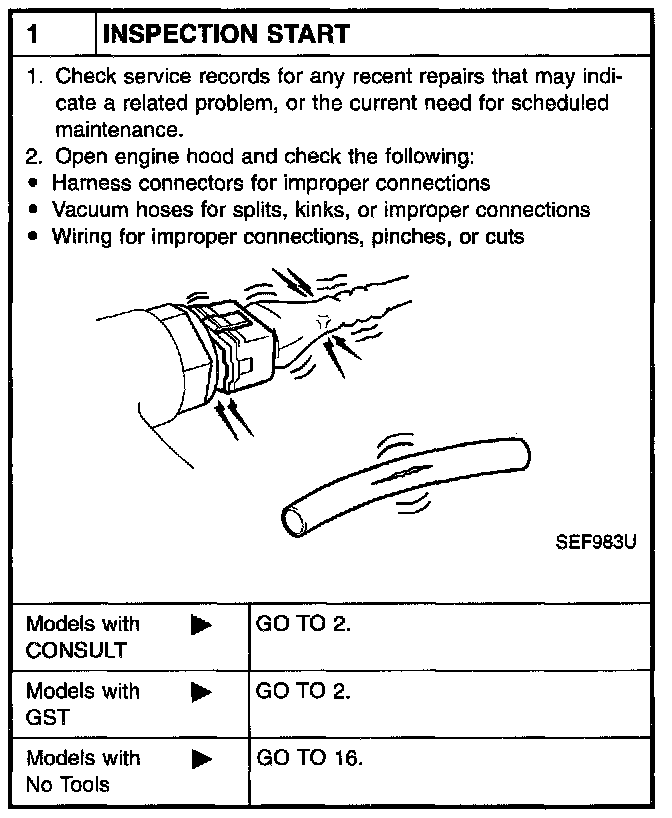

1 Of 28 / Inspection Start:

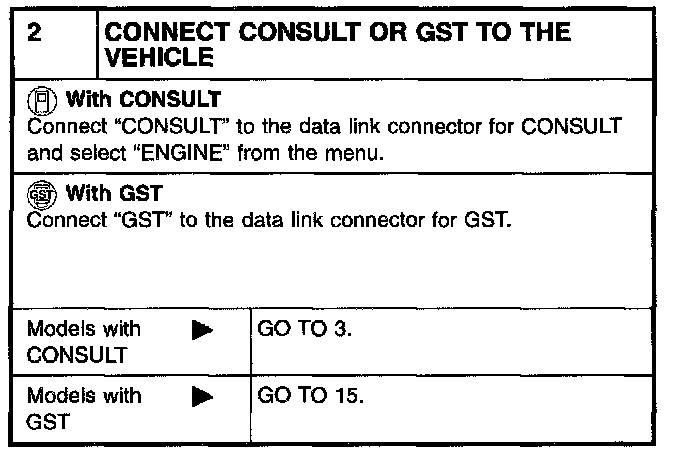

2 0f 28 / Connect Scan Tool To The Vehicle:
3 Of 28 / Check FI Cam Function:

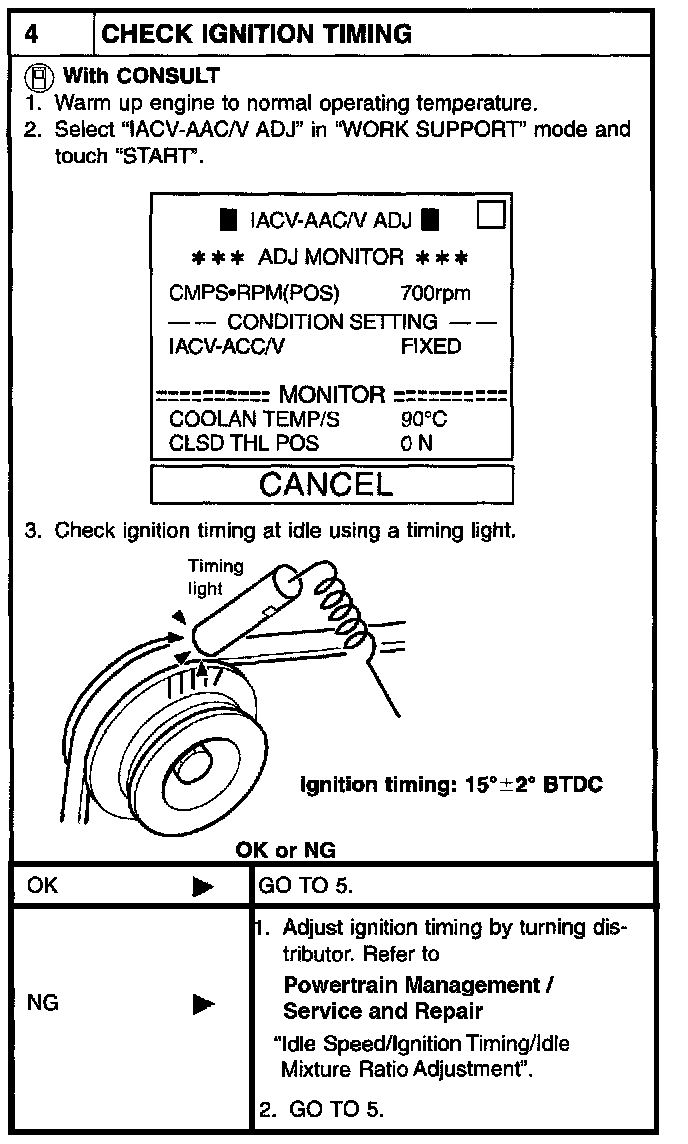

4 Of 28 / Check Ignition Timing:

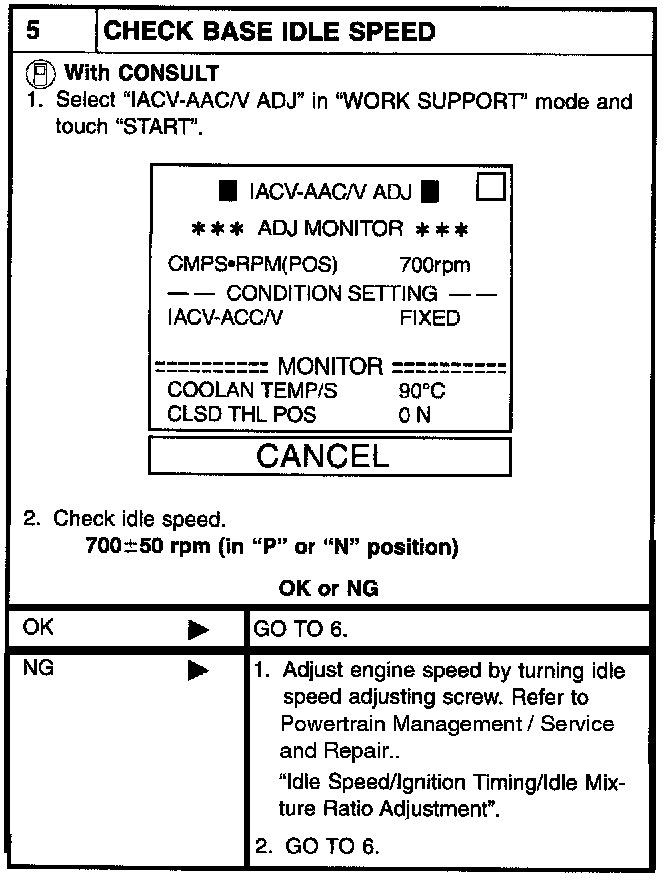

5 Of 28 / Check Base Idle Speed:

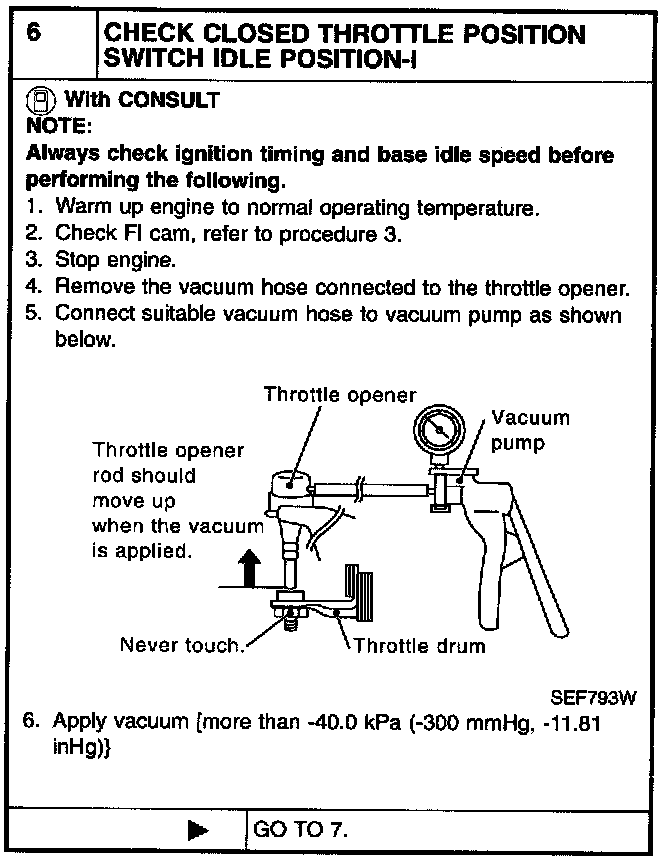

6 Of 28 / Check Closed Throttle Position Switch Idle Position II:

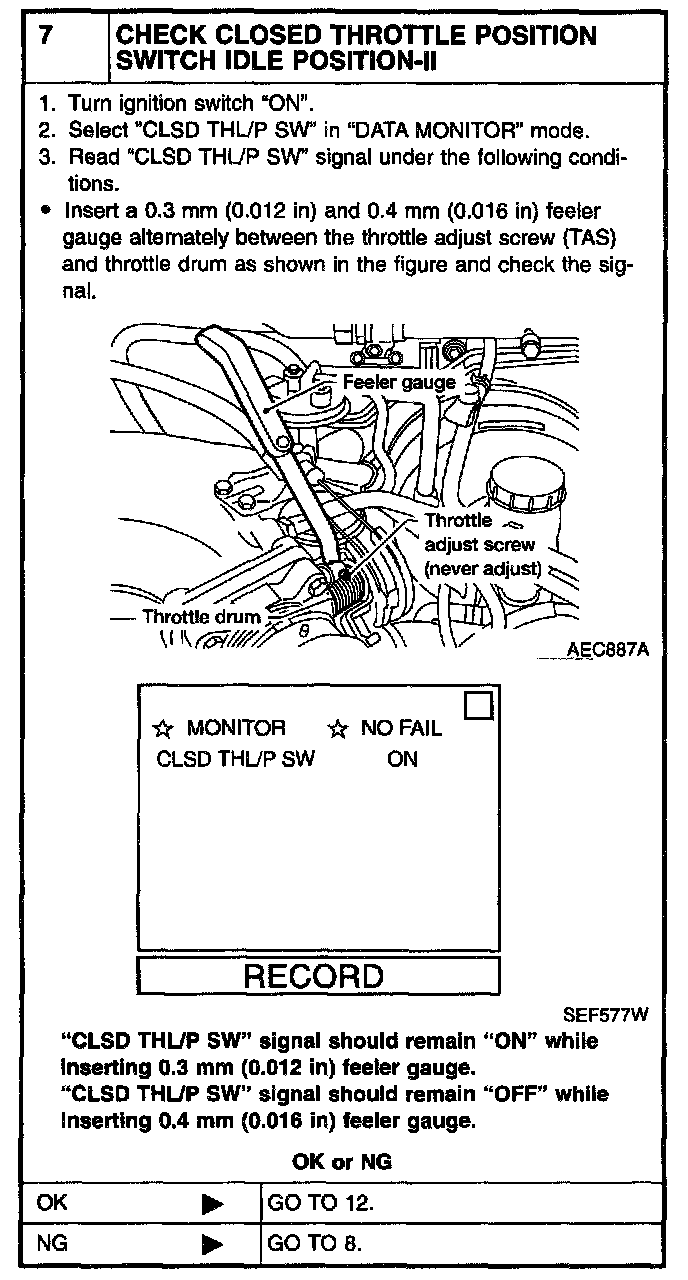

7 Of 28 / Check Closed Throttle Position Switch Idle Position II:

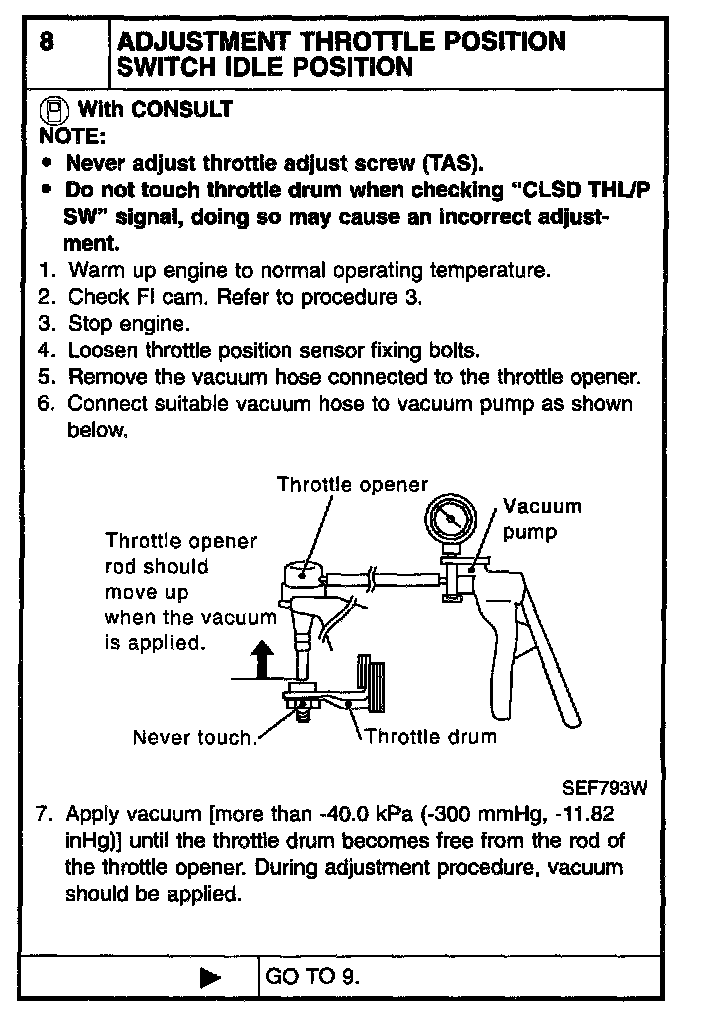

8 Of 28 / Adjustment Throttle Position Switch Idle Position:

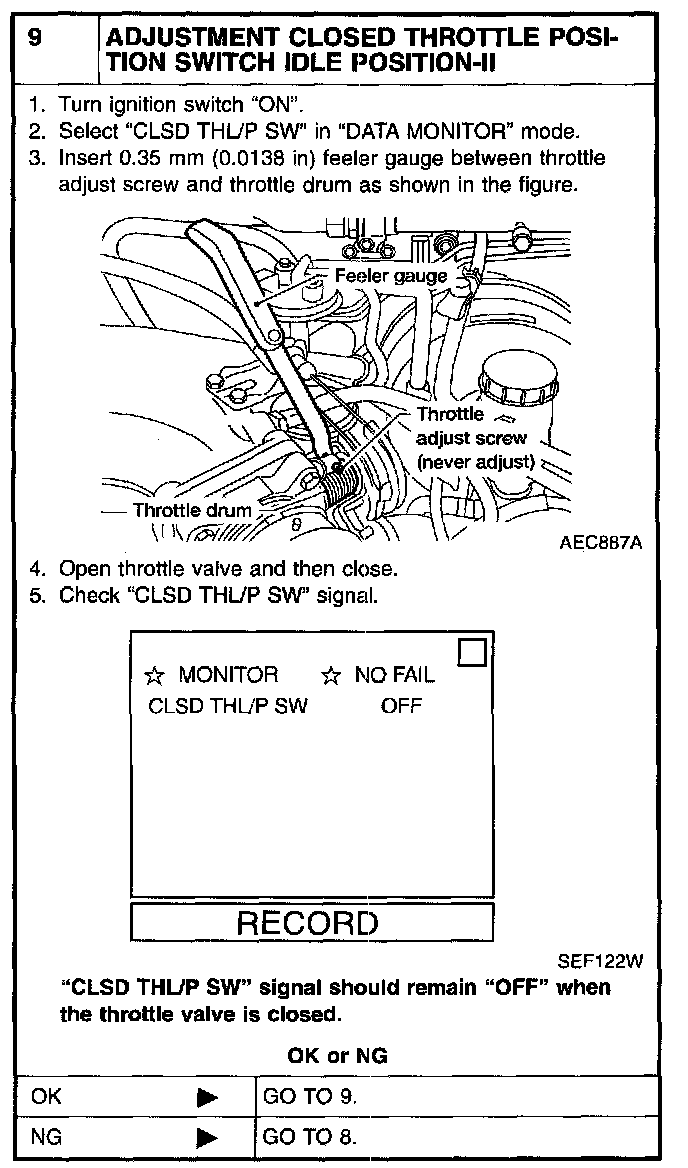

9 Of 28 / Adjustment Closed Throttle Position Switch Idle Position II:

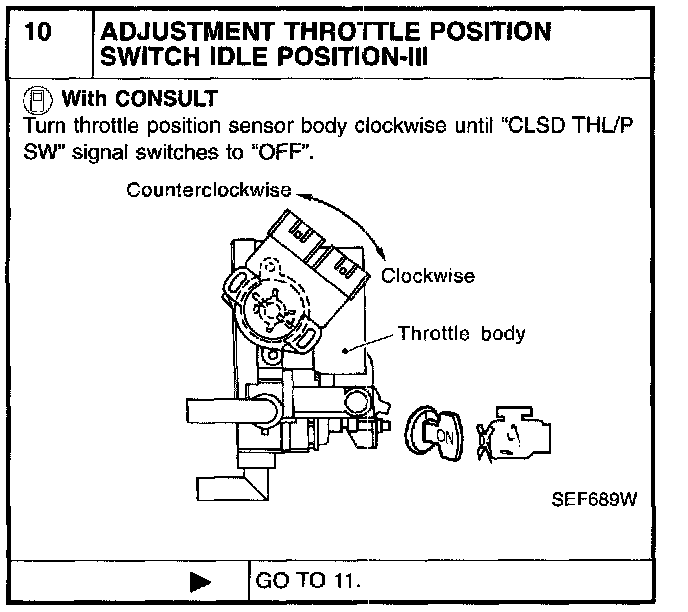

10 Of 28 / Adjustment Throttle Position Switch Idle Position III:

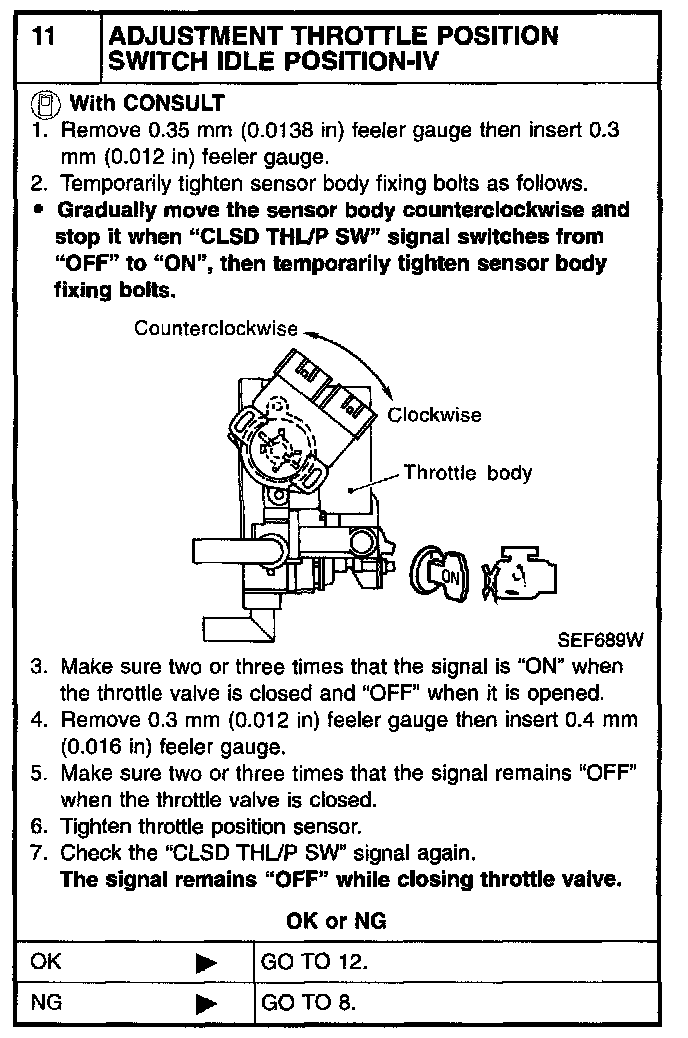

11 Of 28 / Adjustment Throttle Position Switch Idle Position IV:

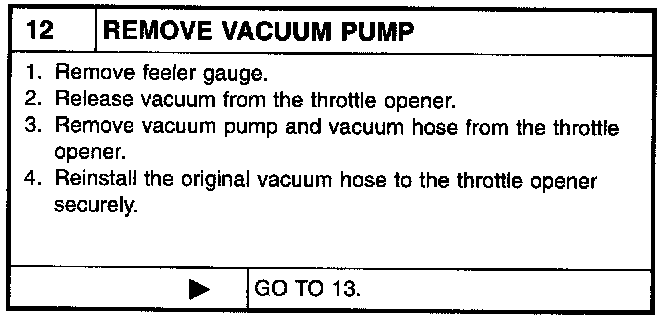

12 Of 28 / Remove Vacuum Pump:

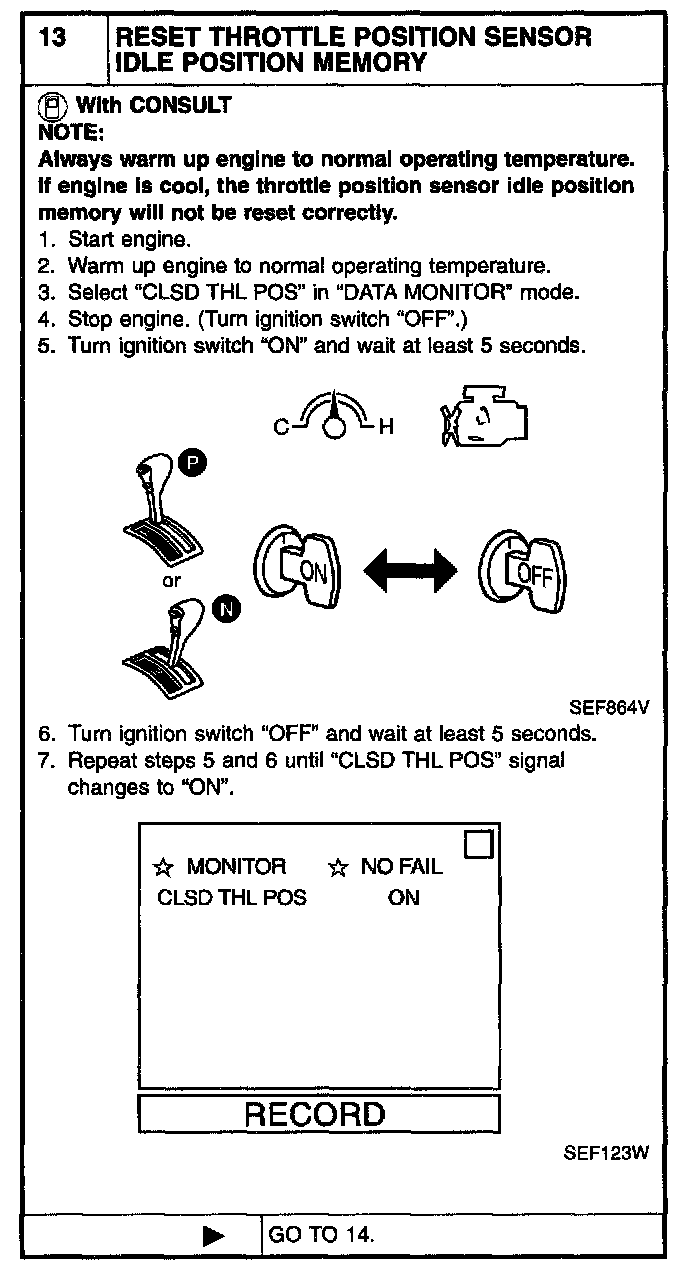

13 Of 28 / Reset Throttle Position Sensor Idle Position Memory:

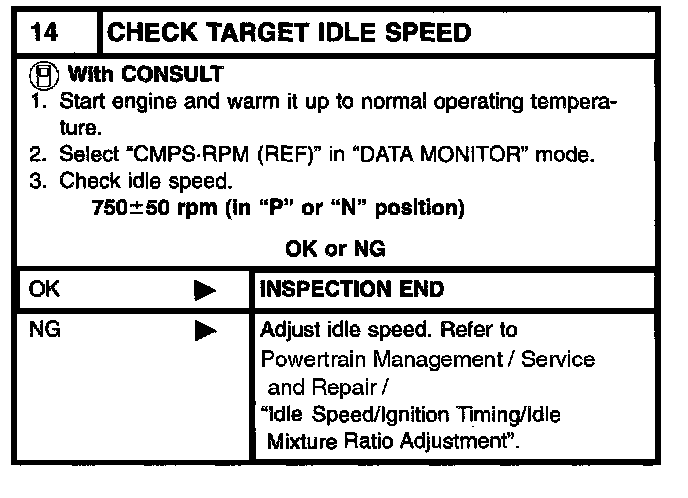

14 Of 28 / Check Target Idle Speed:

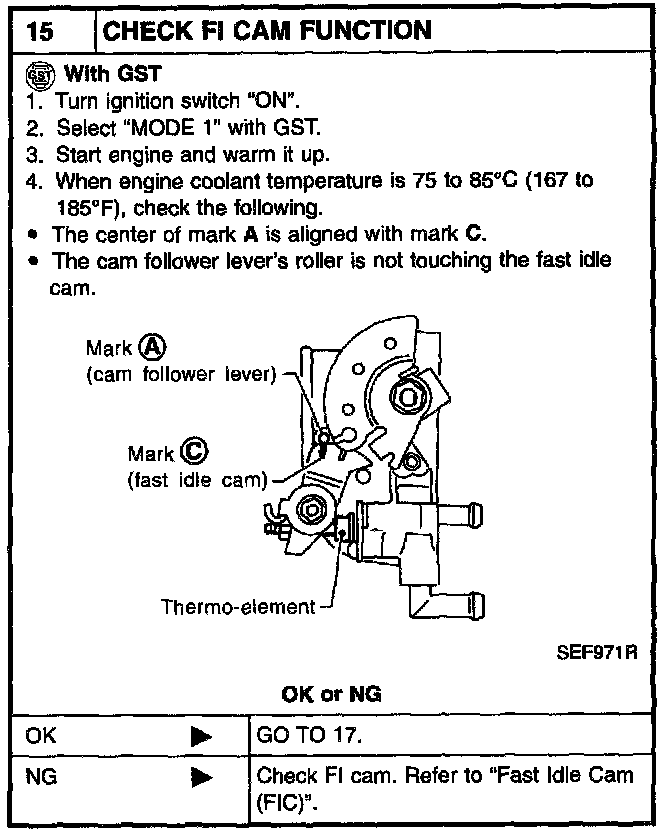

15 Of 28 / Check FI Cam Function:

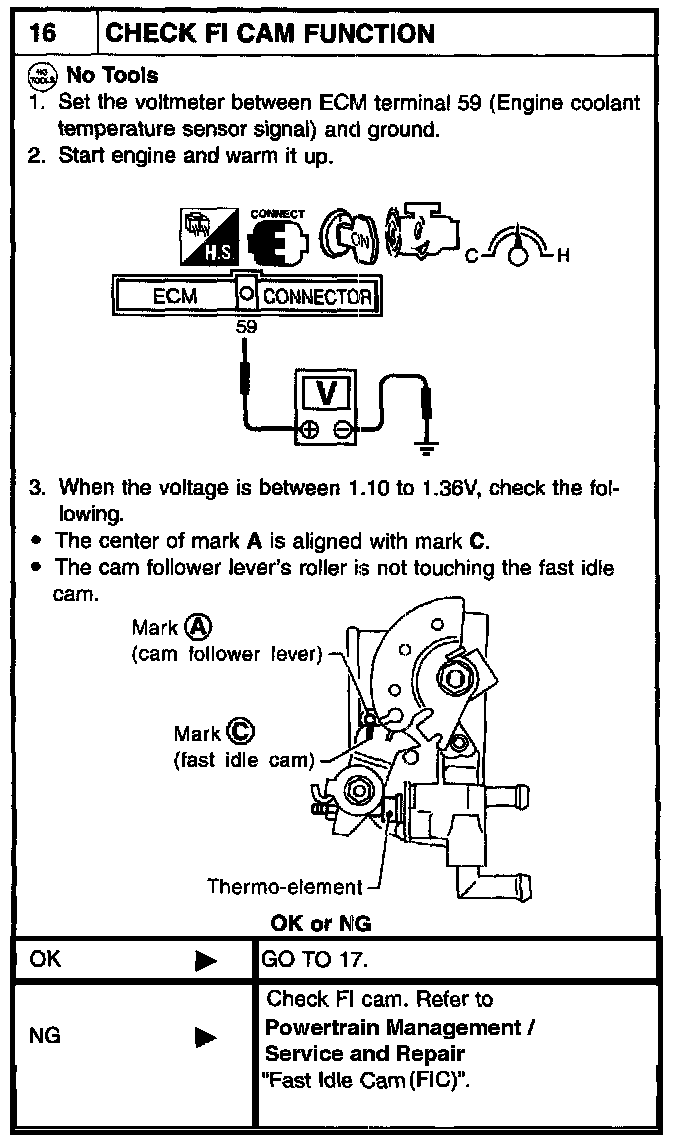

16 Of 28 / Check FI Cam Function:

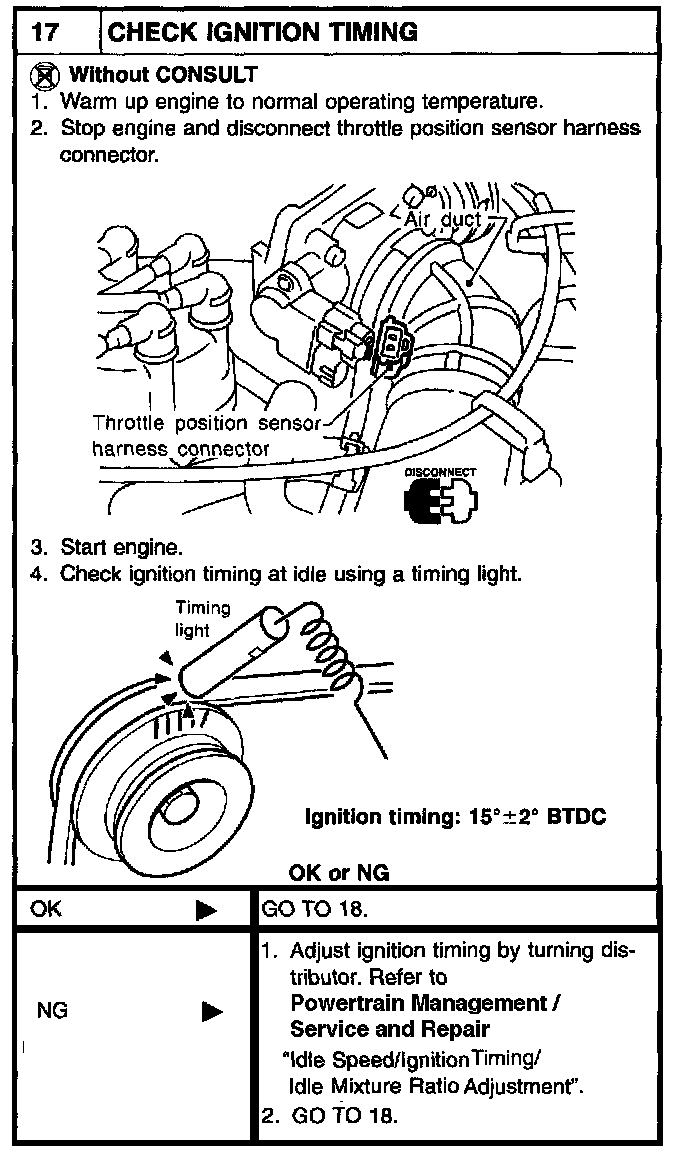

17 Of 28 / Check Ignition Timing:

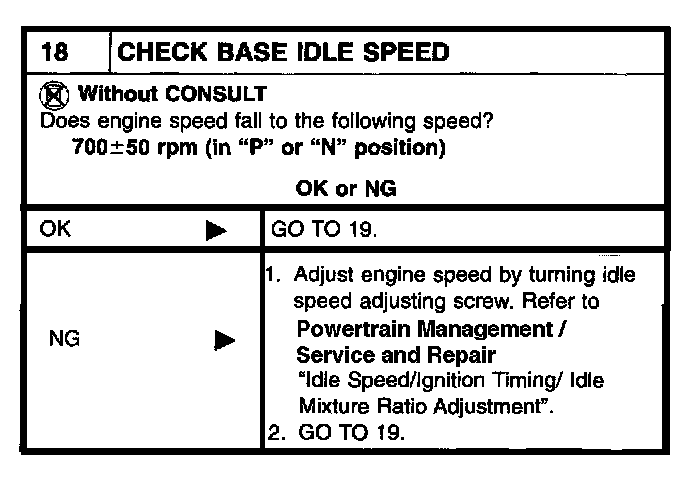

18 Of 28 / Check Base Idle Speed:

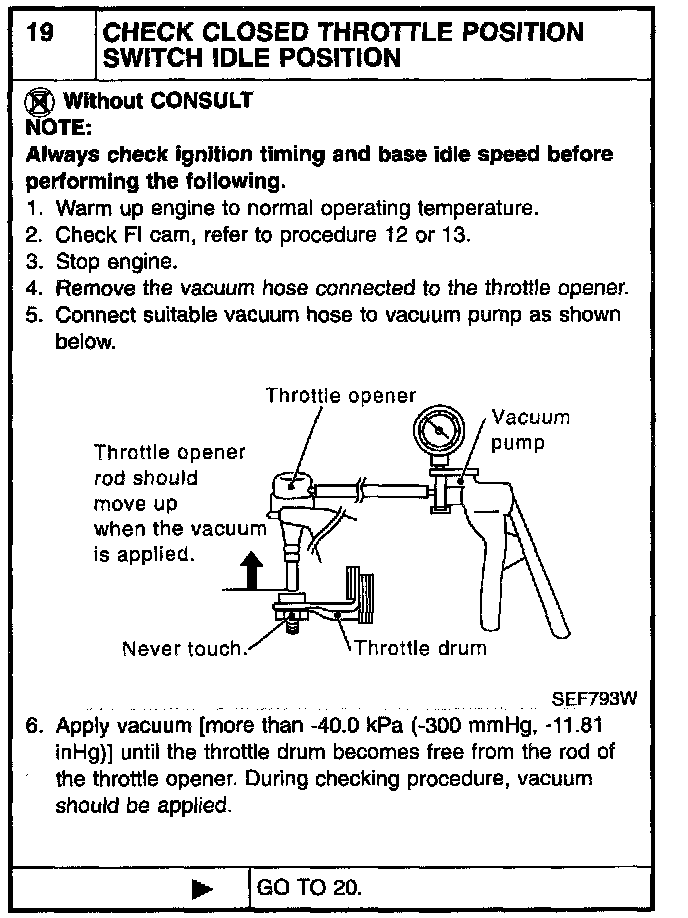

19 Of 28 / Check Closed Throttle Position Switch Idle Position:

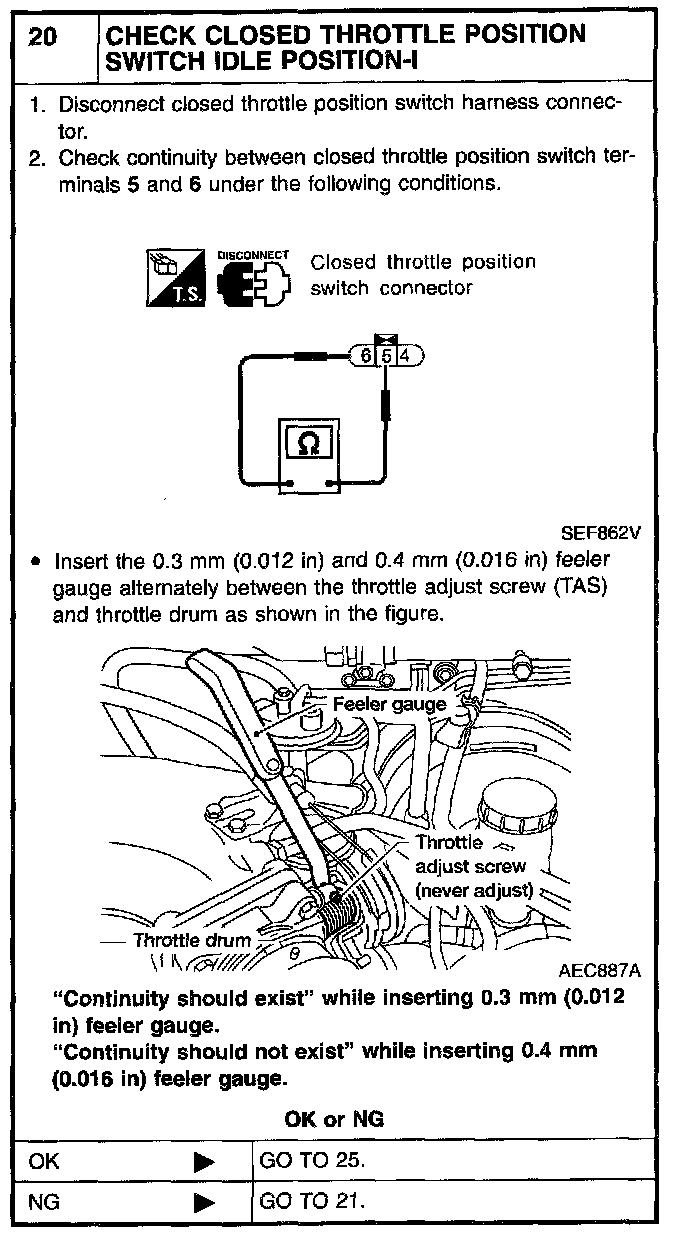

20 Of 28 / Check Closed Throttle Position Switch Idle Position I:

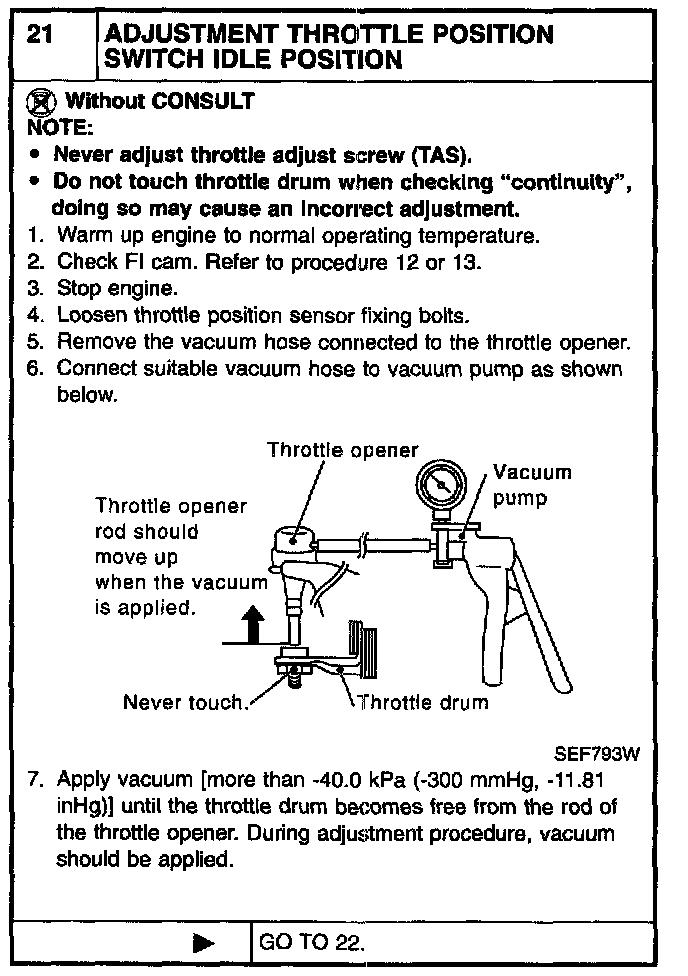

21 Of 28 / Adjustment Throttle Position Switch Idle Position:

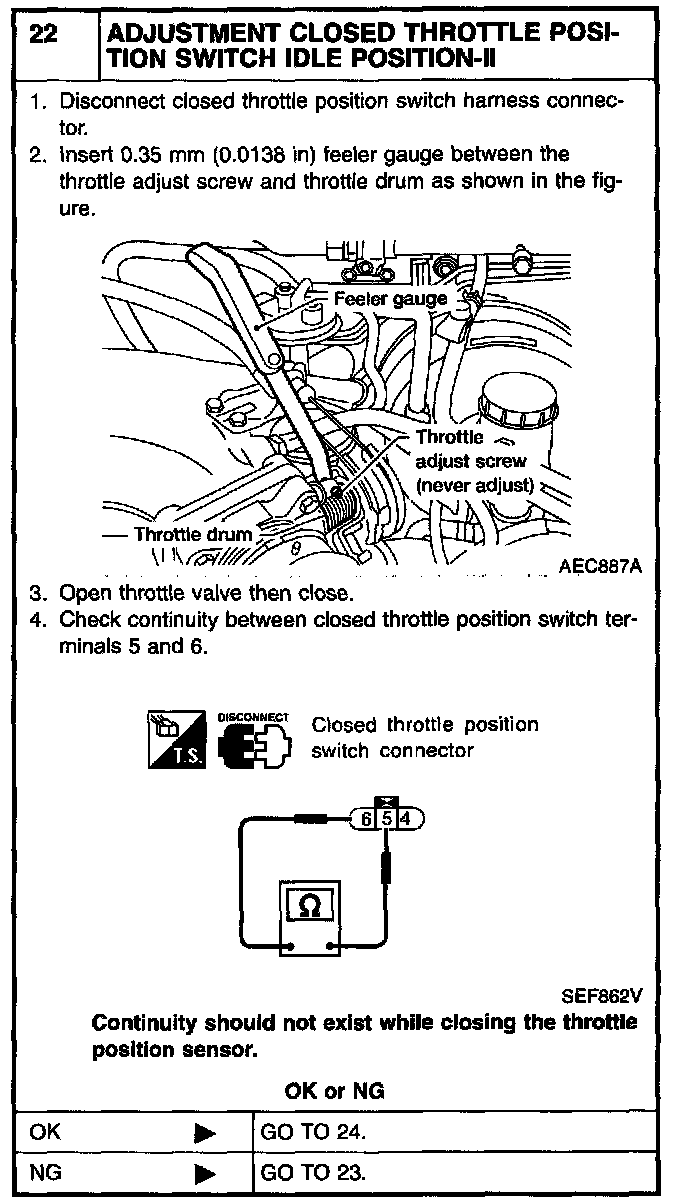

22 Of 28 / Adjustment Closed Throttle Position Switch Idle Position II:

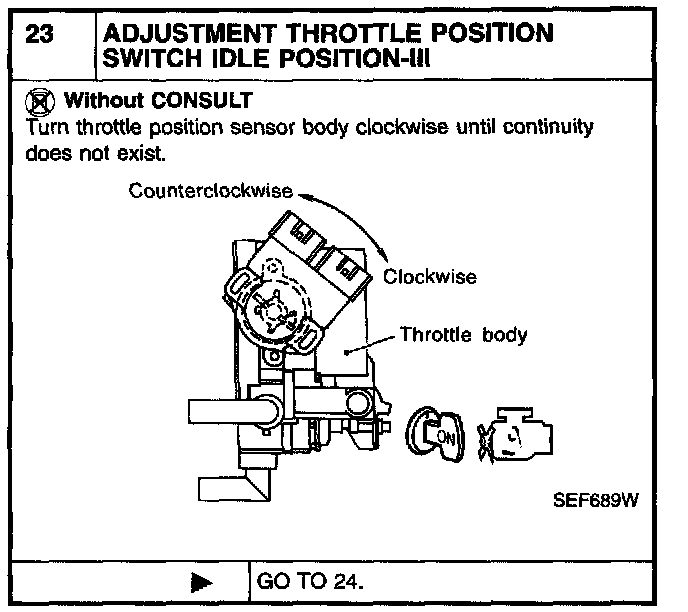

23 Of 28 / Adjustment Throttle Position Switch Idle Position III:

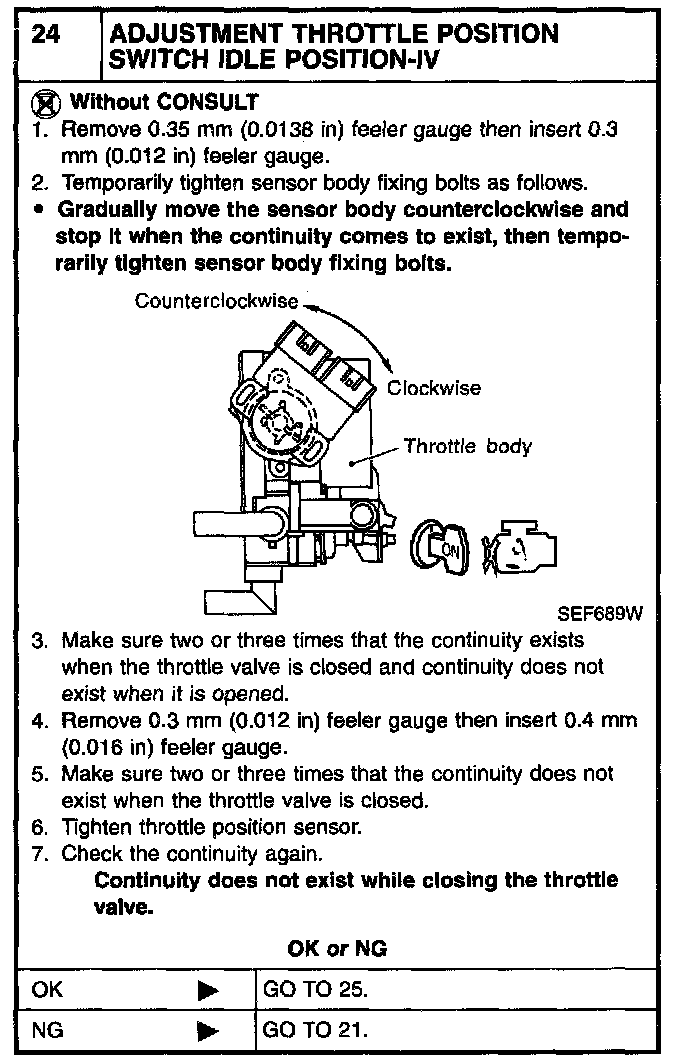

24 Of 28 / Adjustment Throttle Position Switch Idle Position IV:

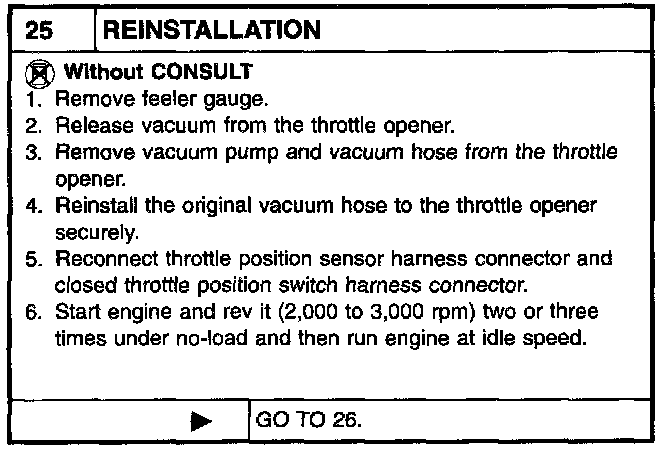

25 Of 28 / Reinstallation:

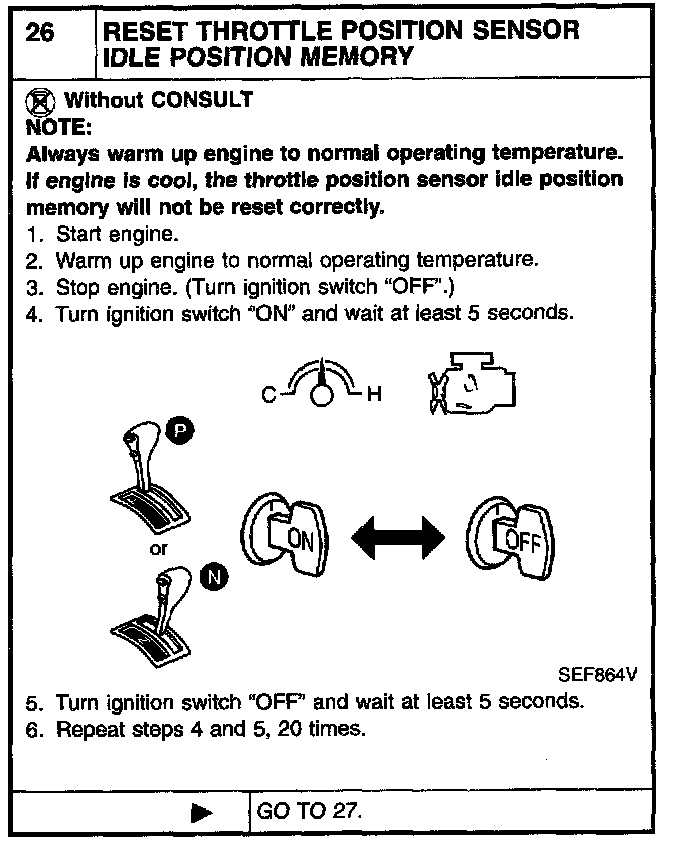

26 Of 28 / Reset Throttle Position Sensor Idle Position Memory:
