Power Supply Testing

Main Power Supply and Ground Circuit

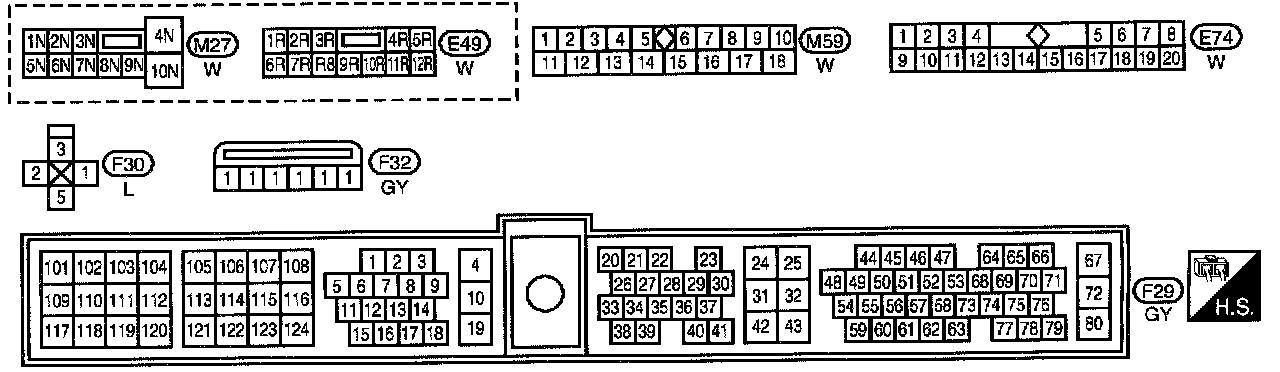

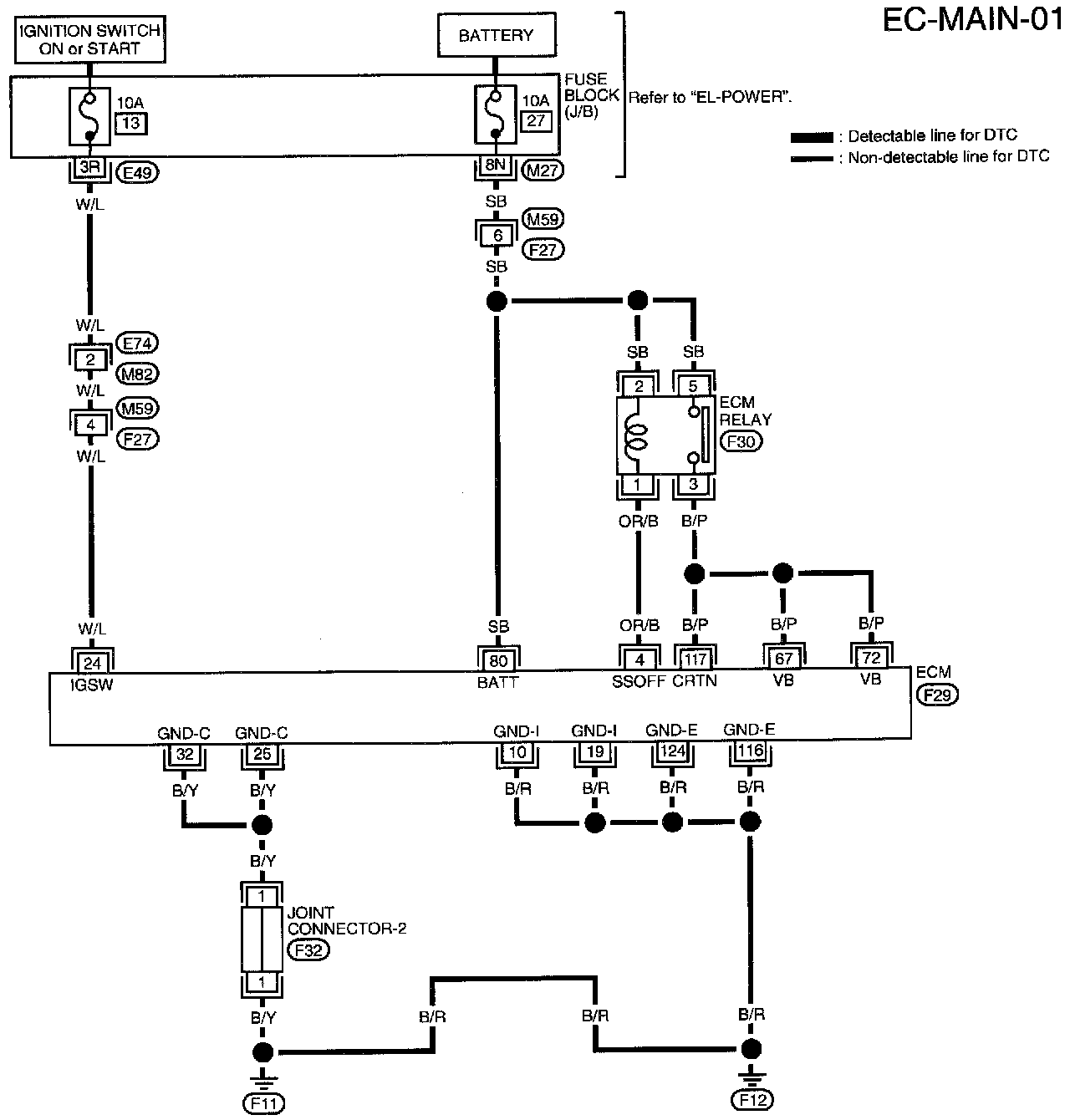

WIRING DIAGRAM

Terminals 4 Thru 124:

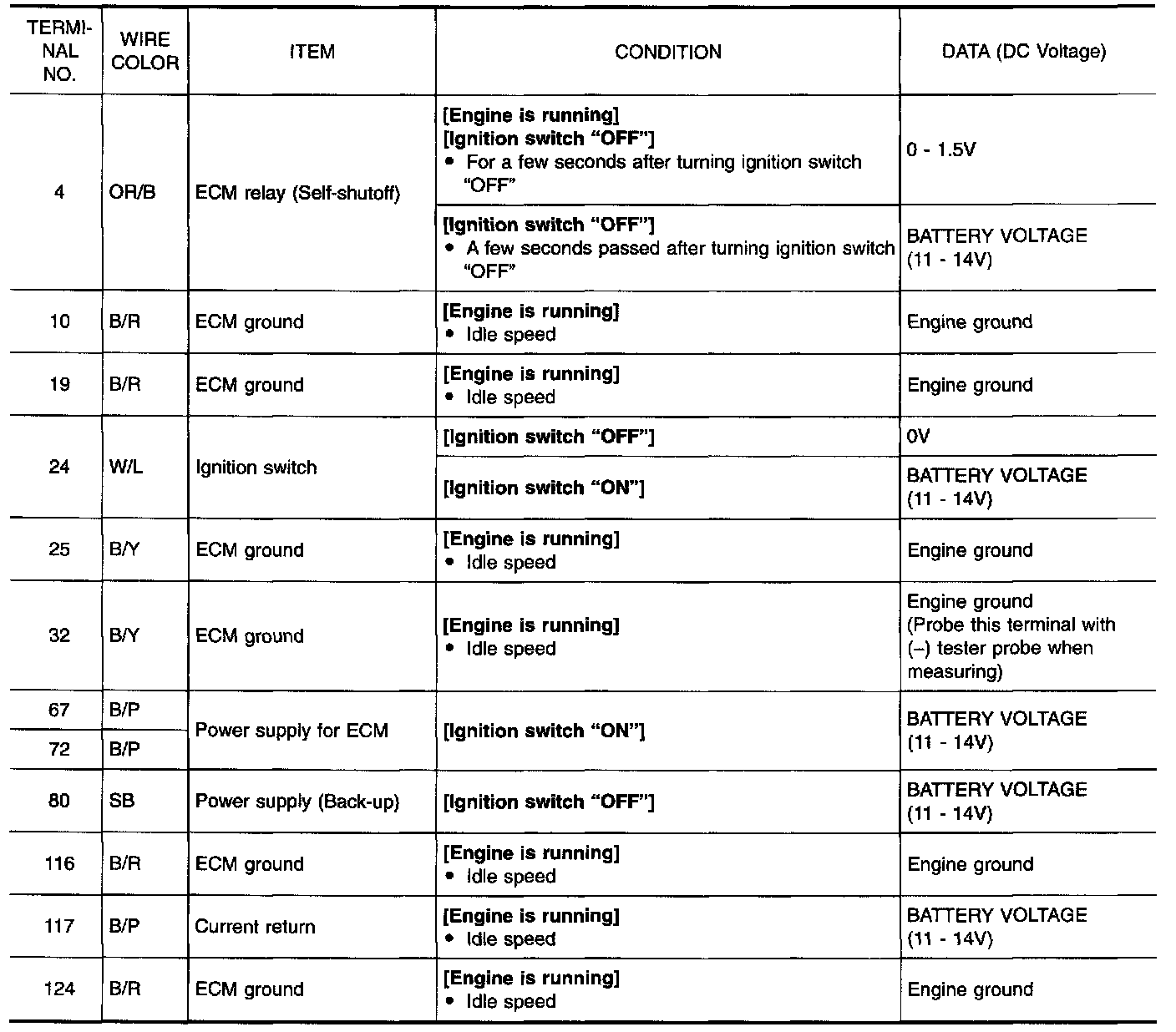

ECM TERMINALS AND REFERENCE VALUE
Specification data are reference values and are measured between each terminal and 32 (ECM ground).

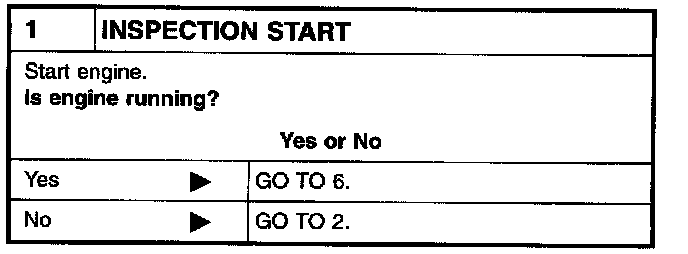

1 Of 15 / Inspection Start:

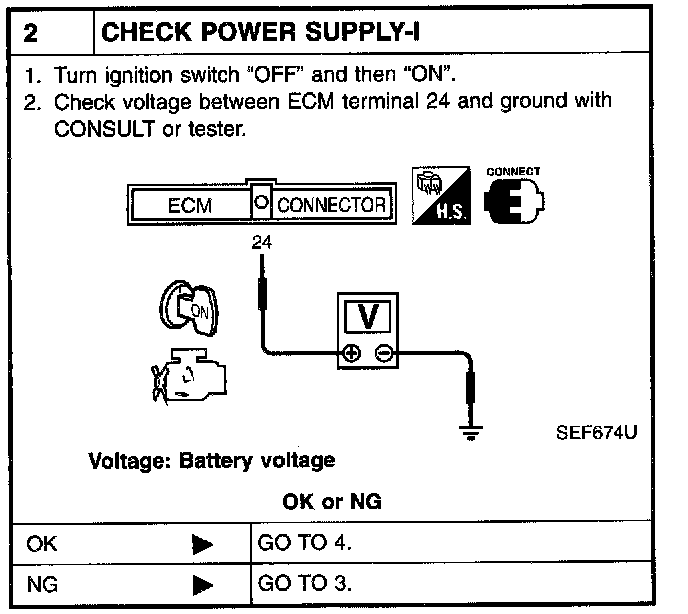

2 Of 15 / Check Power Supply I:

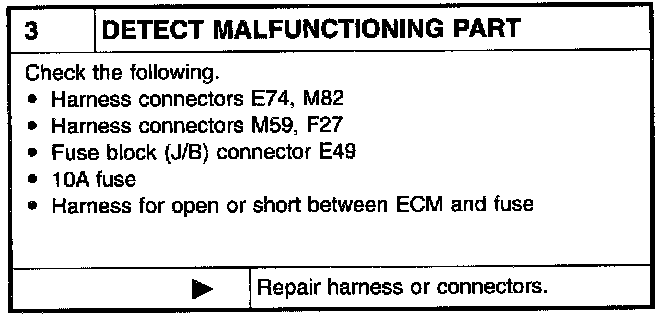

3 Of 15 / Detect Malfunctioning Part:

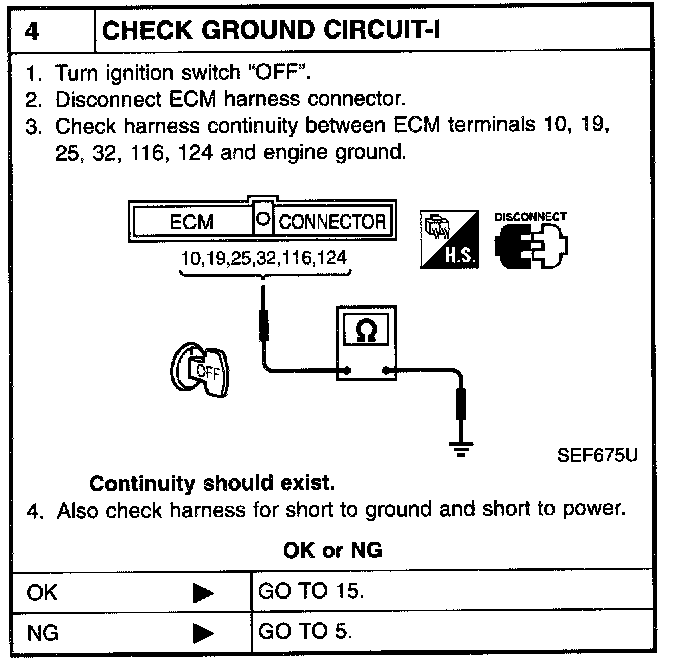

4 Of 15 / Check Ground Circuit I:

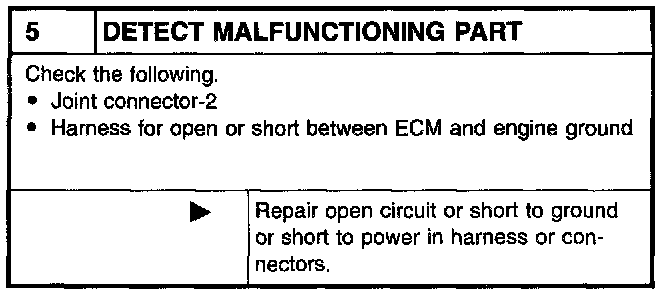

5 Of 15 / Detect Malfunctioning Part:

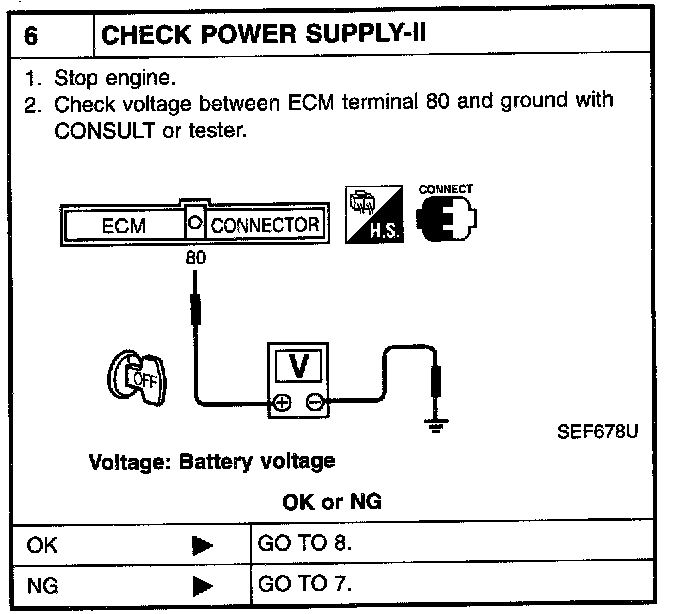

6 Of 15 / Check Power Supply II:

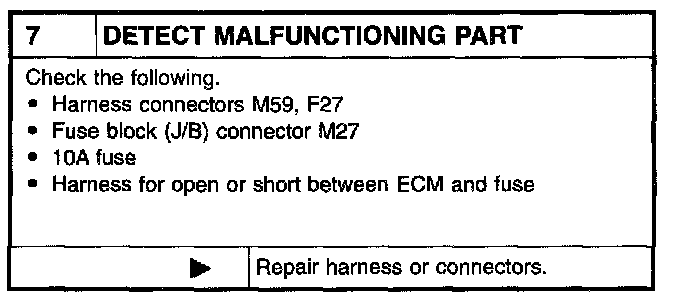

7 Of 15 / Detect Malfunctioning Part:

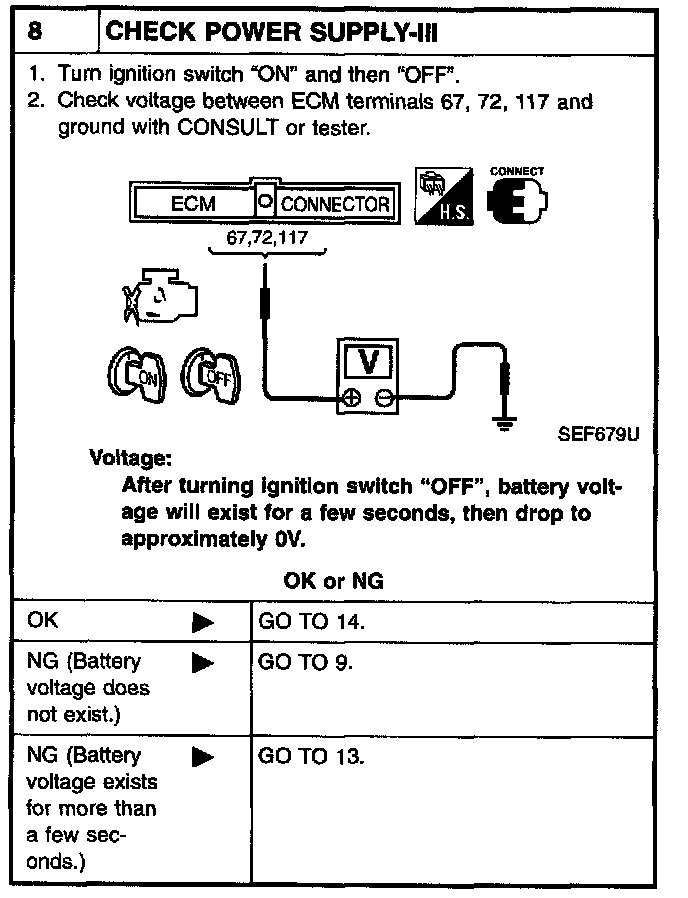

8 Of 15 / Check Power Supply III:

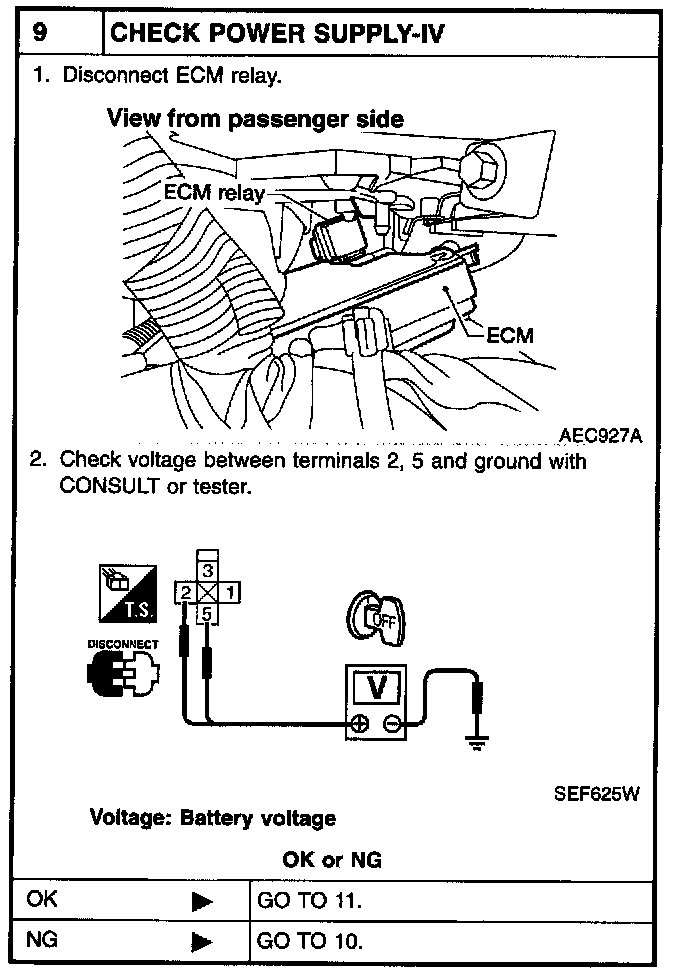

9 Of 15 / Check Power Supply IV:

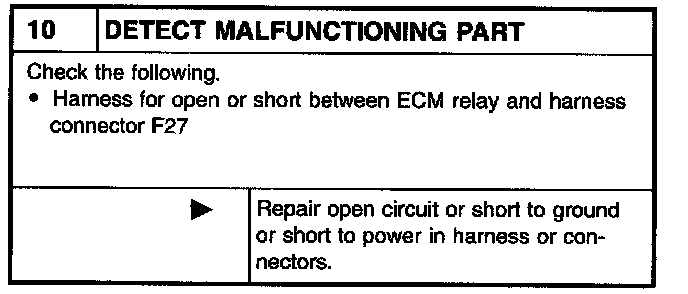

10 Of 15 / Detect Malfunctioning Part:

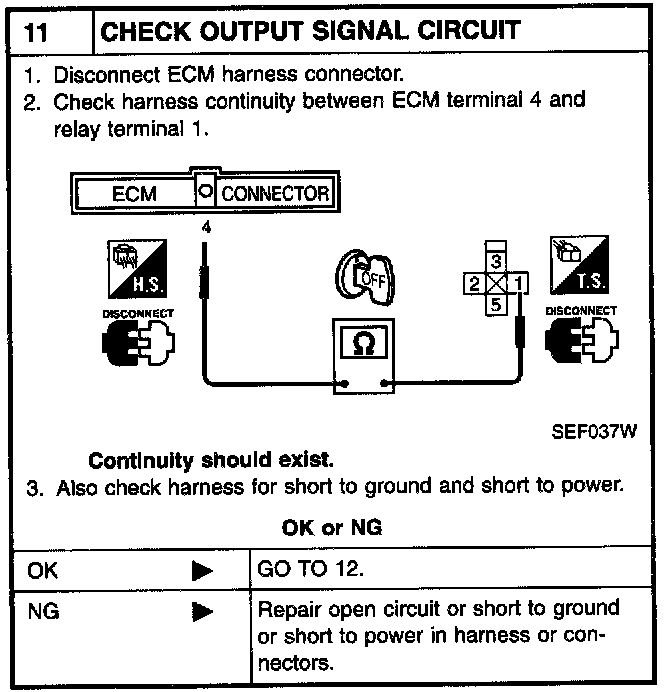

11 Of 15 / Check Output Signal Circuit:

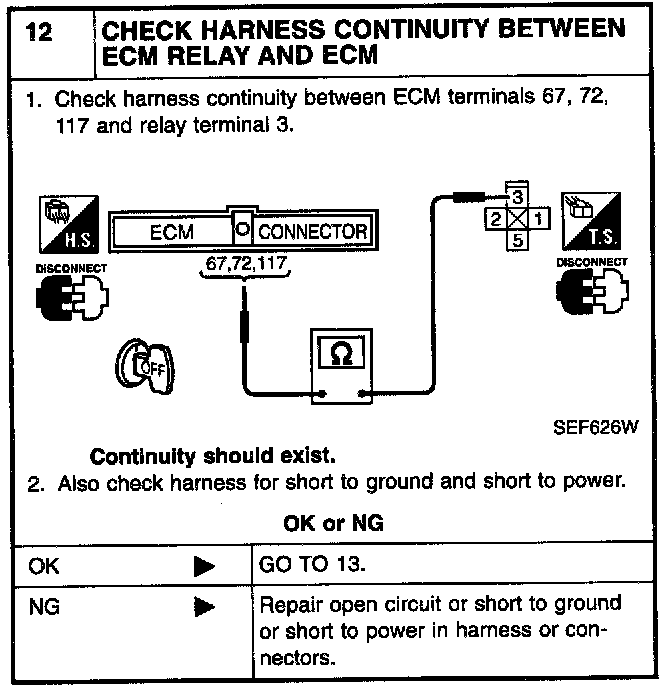

12 Of 15 / Check Harness Continuity Between ECM Relay And ECM:

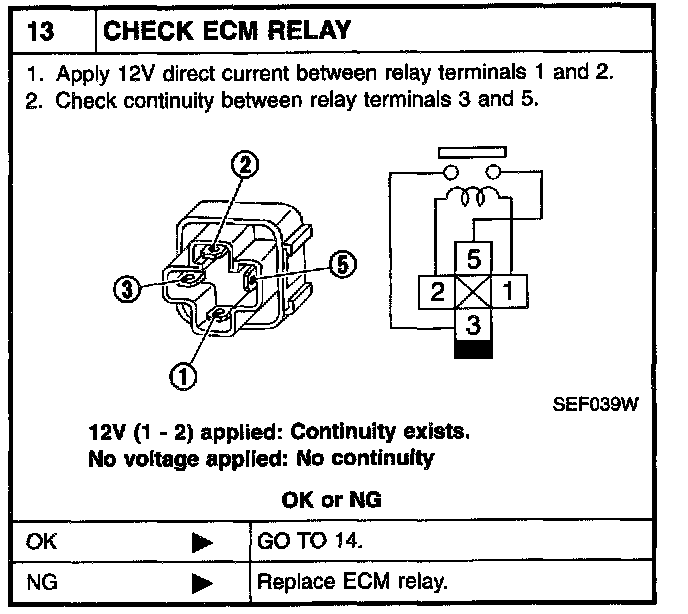

13 Of 15 / Check ECM Relay:

14 Of 15 / Check Ground Circuit II:

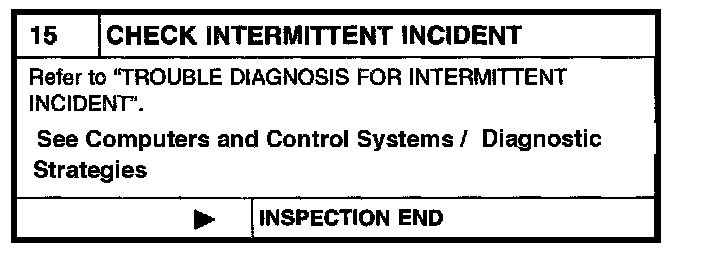

15 Of 15 / Check Intermittent Incident:

DIAGNOSTIC PROCEDURE
