Start Signal

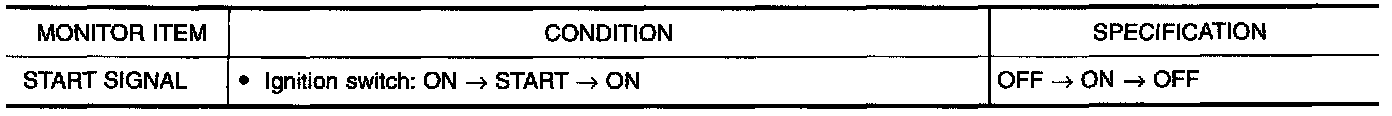

CONSULT REFERENCE VALUE IN DATA MONITOR MODE
Specification data are reference values.

Termianl 20:

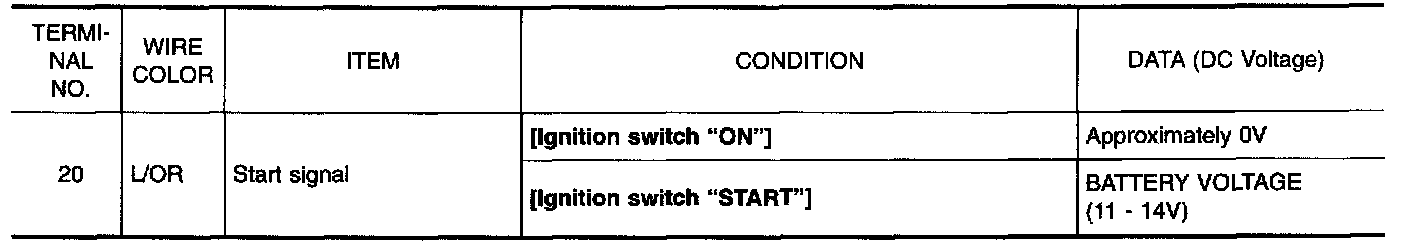

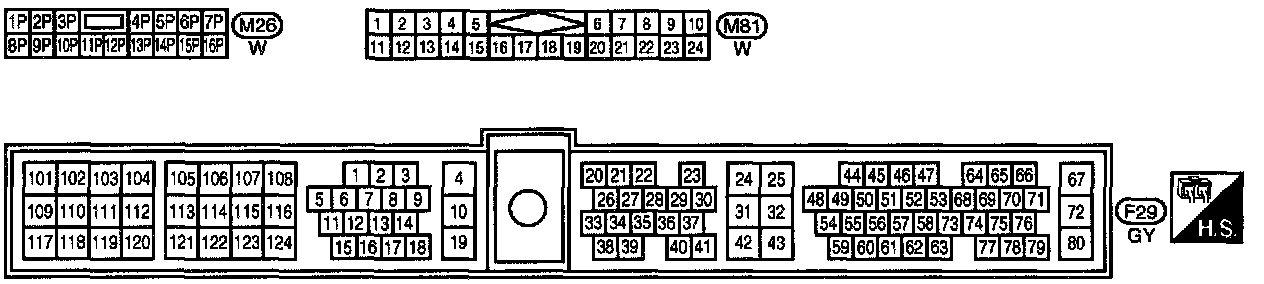

ECM TERMINALS AND REFERENCE VALUE
Specification data are reference values and are measured between each terminal and 32 (ECM ground).

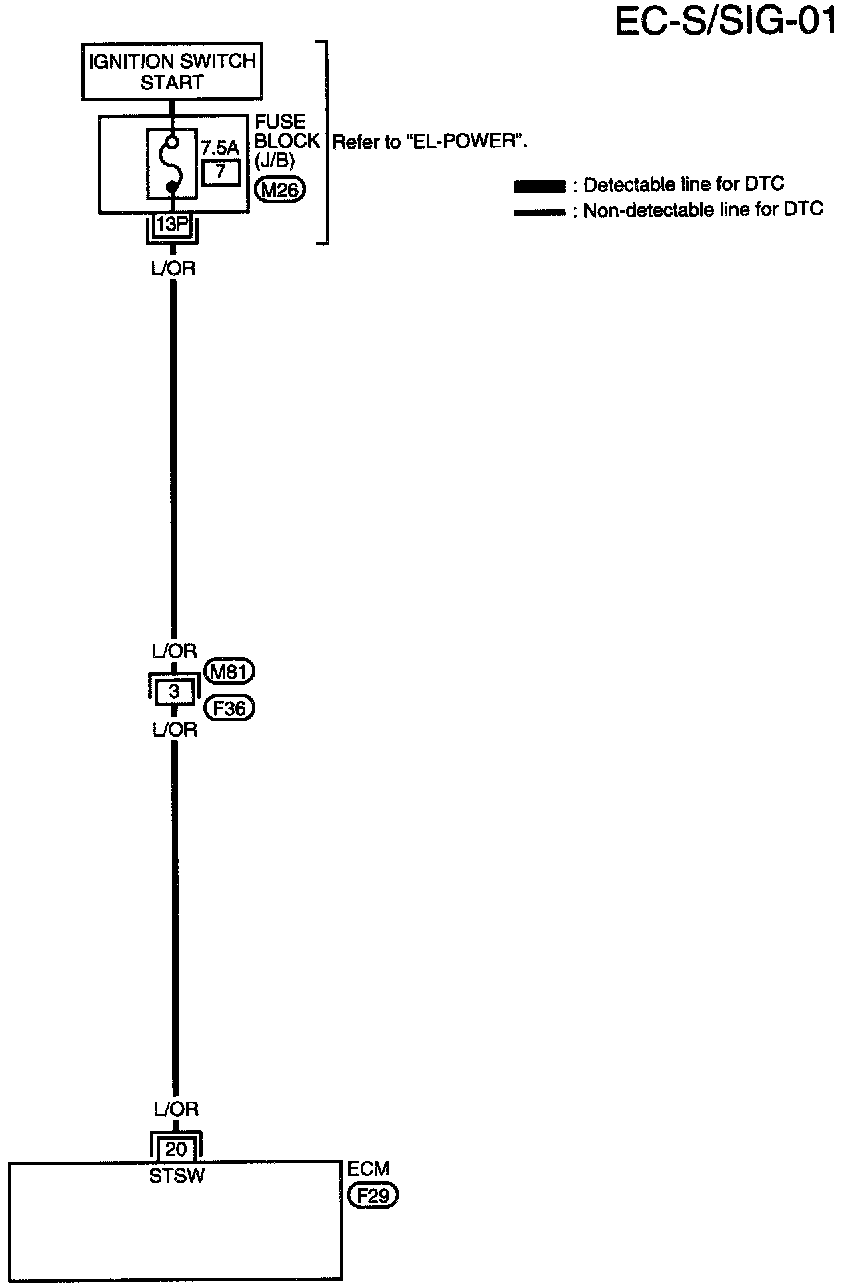

WIRING DIAGRAM

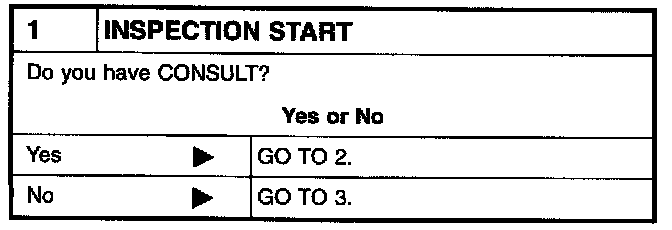

1 Of 8 / Inspection Start:

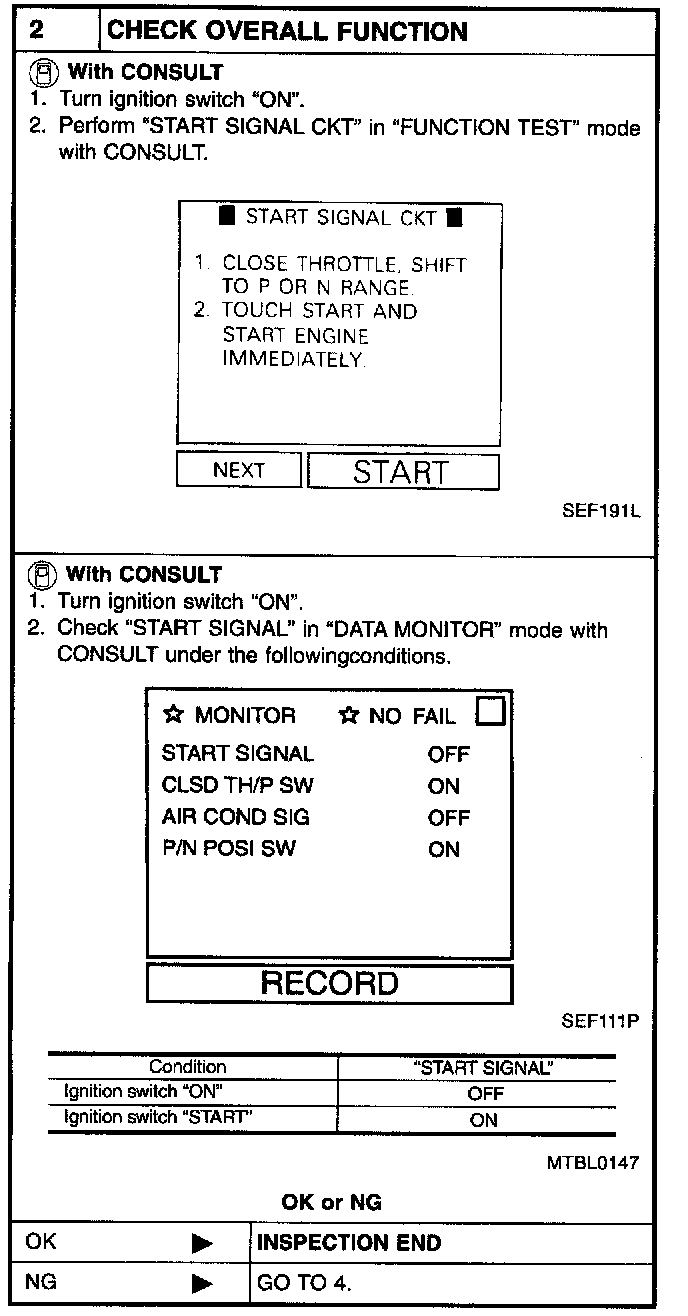

2 Of 8 / Check Overall Function:

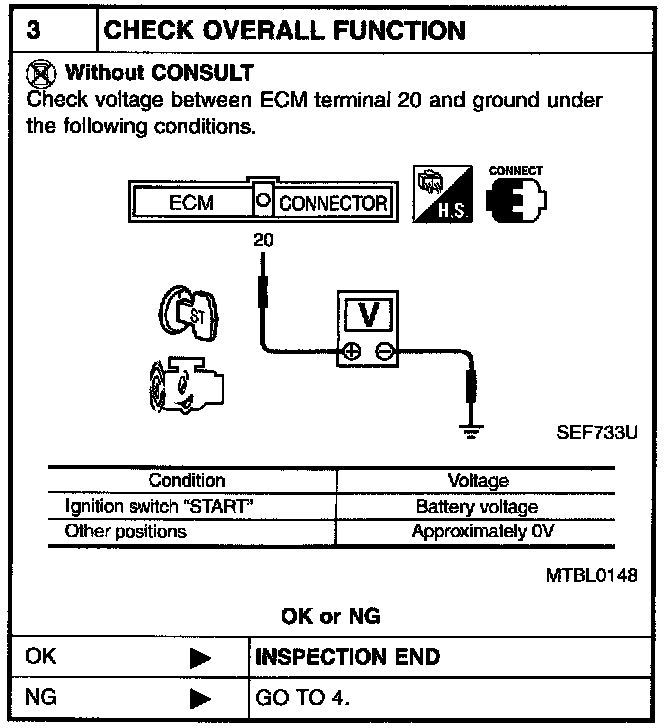

3 Of 8 / Check Overall Function:

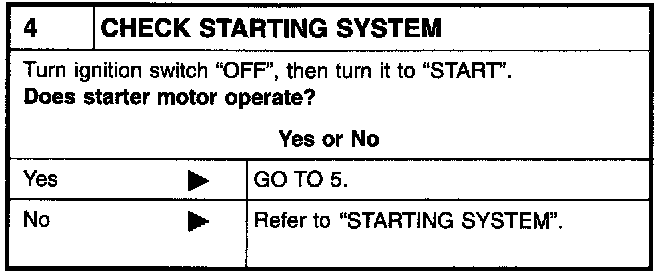

4 Of 8 / Check Starting System:

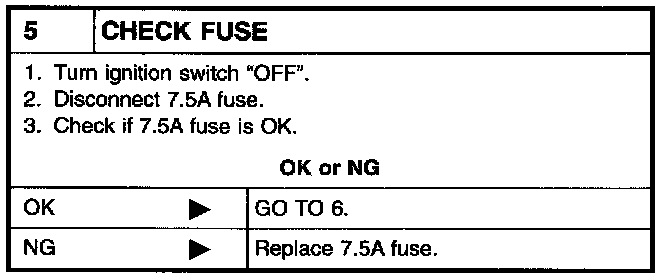

5 Of 8 / Check Fuse:

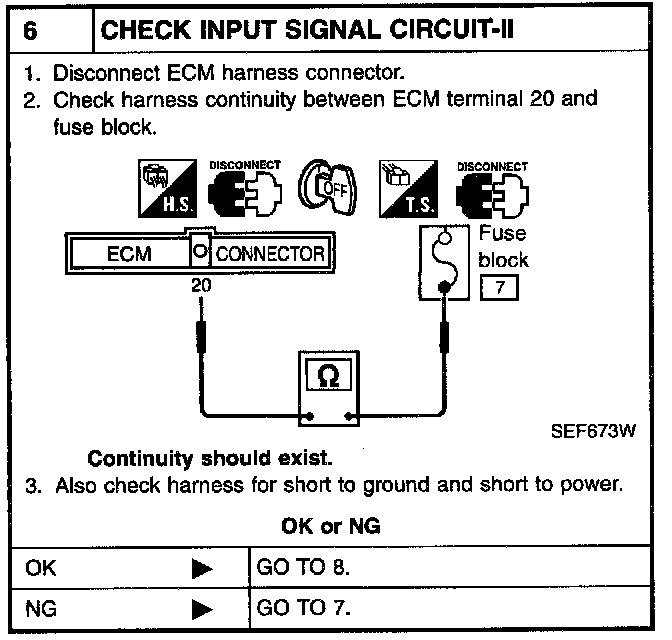

6 Of 8 / Check Input Signal Circuit II:

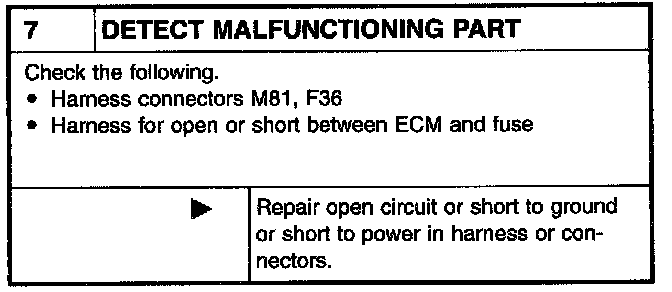

7 Of 8 / Detect Malfunctioning Part:

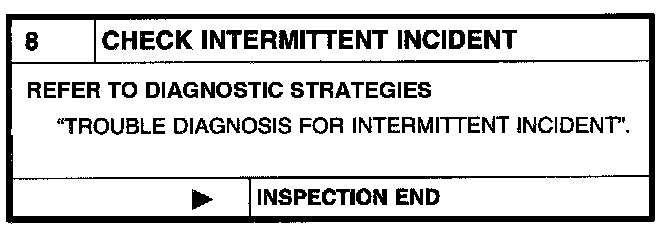

8 Of 8 / Check Intermittent Incident:

DIAGNOSTIC PROCEDURE
