IACV-FICD Solenoid Valve

COMPONENT DESCRIPTION
When the air conditioner is on, the IACV-FICD solenoid valve supplies additional air to adjust to the increased load.

Terminals 9 Thru 21:

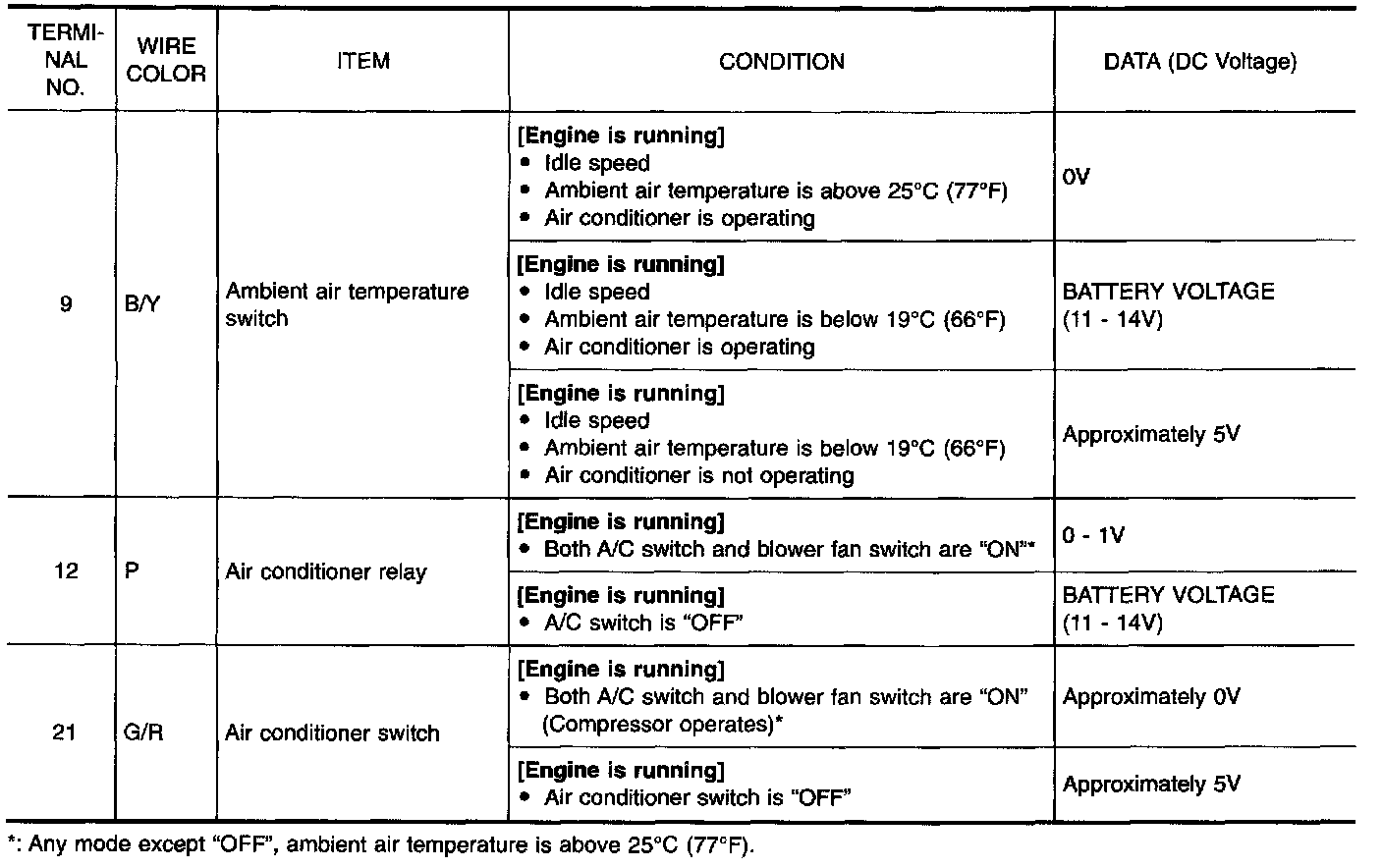

ECM TERMINALS AND REFERENCE VALUE
Specification data are reference values and are measured between each terminal and 32 (ECM ground).

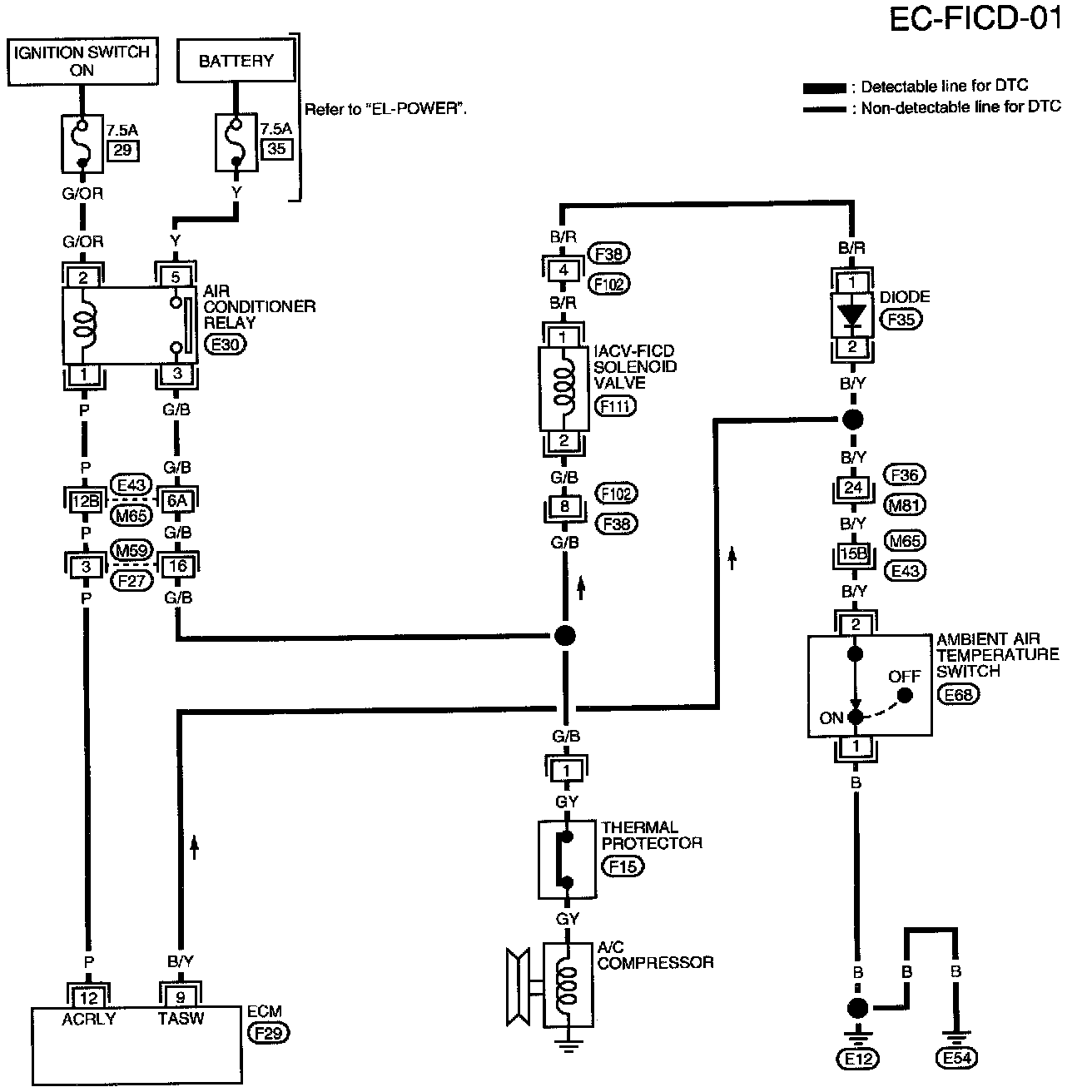

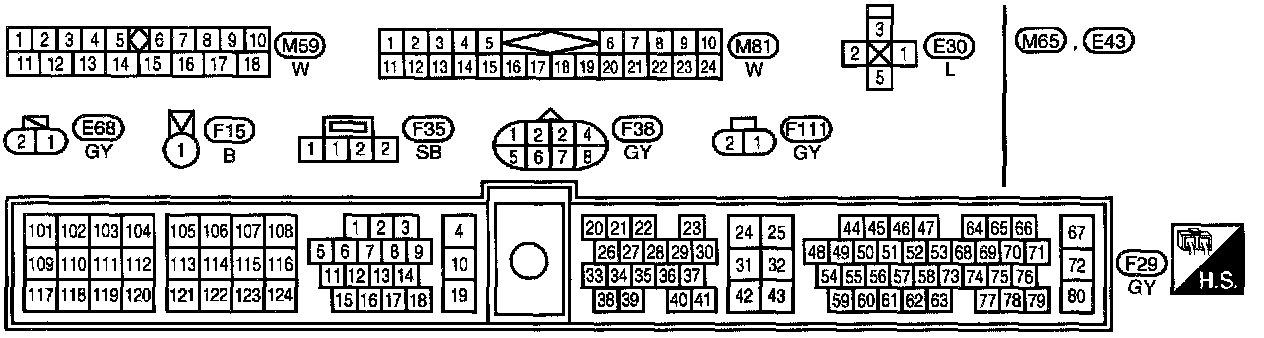

WIRING DIAGRAM

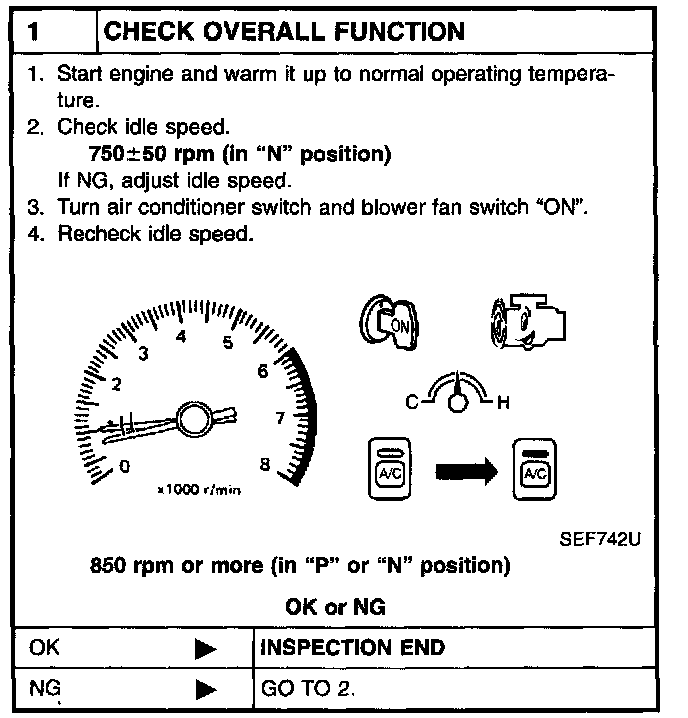

1 Of 9 / Check Overall Function:

2 Of 9 / Check Air Conditioner Function:

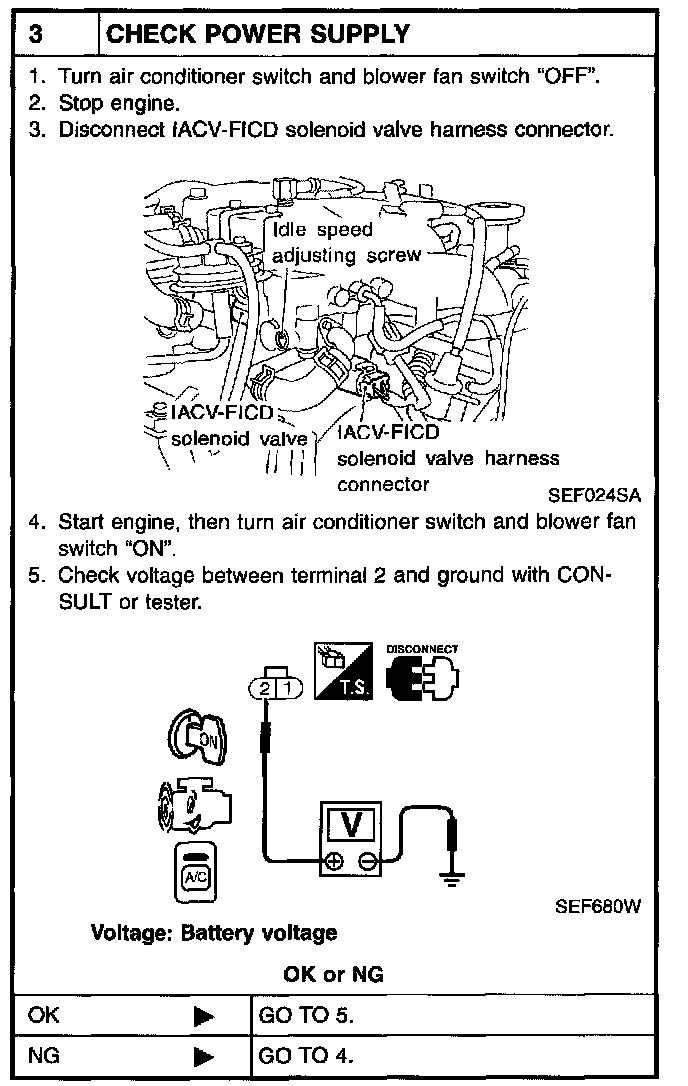

3 Of 9 / Check Power Supply:

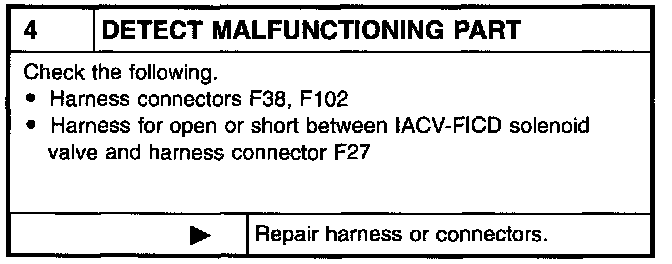

4 Of 9 / Detect Malfunctioning Part:

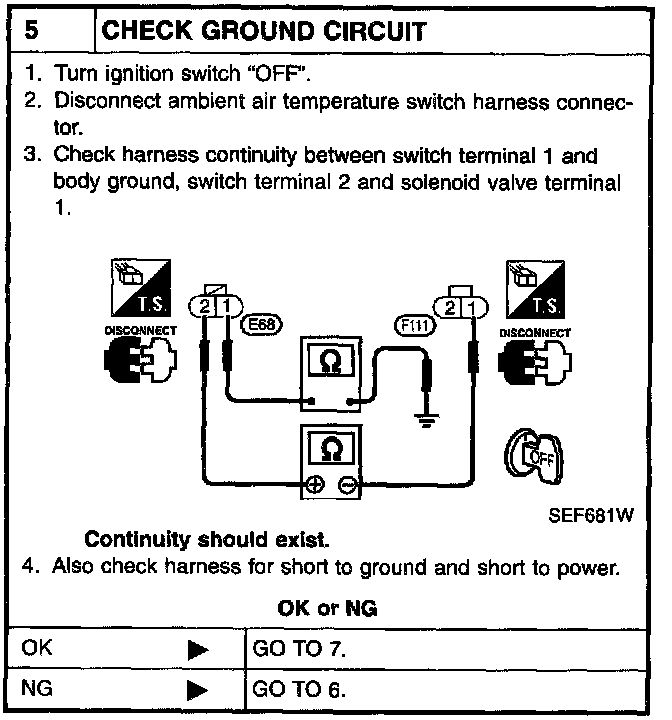

5 Of 9 / Check Ground Circuit:

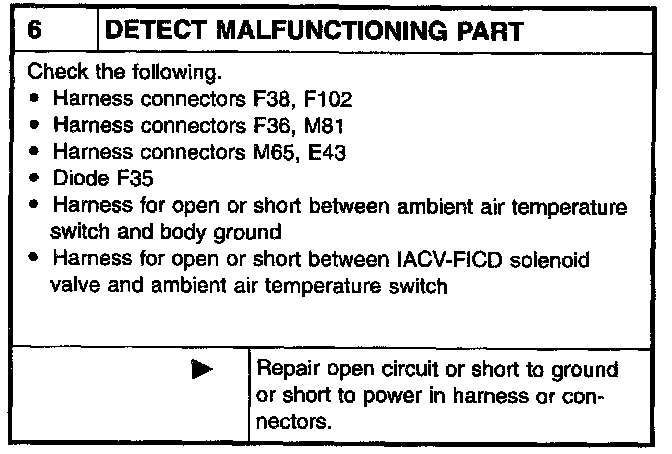

6 Of 9 / Detect Malfunctioning Part:

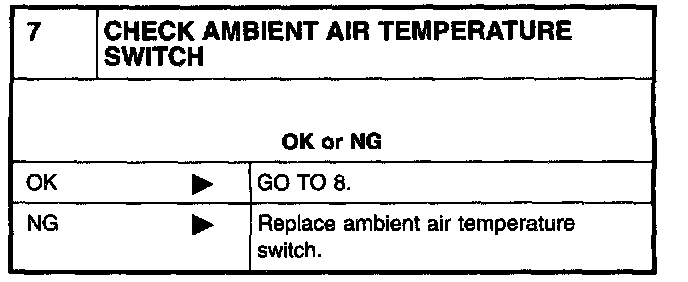

7 Of 9 / Check Ambient Air Temperature Switch:

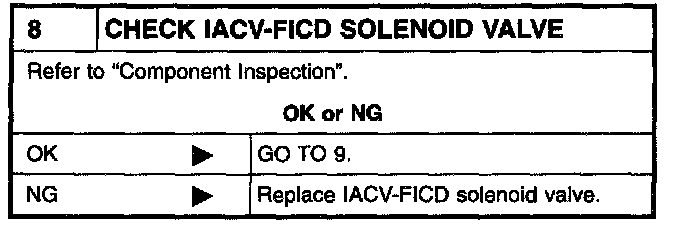

8 Of 9 / Check IACV-FICD Solenoid Valve:

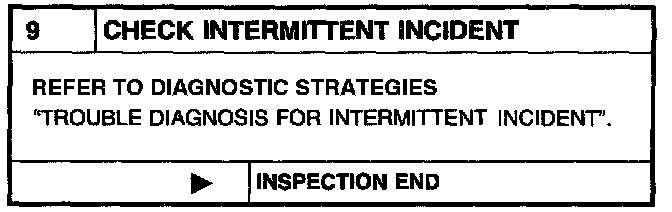

9 Of 9 / Check Intermittent Incident:

DIAGNOSTIC PROCEDURE

COMPONENT INSPECTION

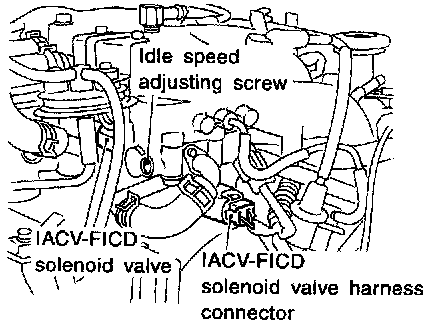

Disconnect IACV-FICD solenoid valve harness connector.

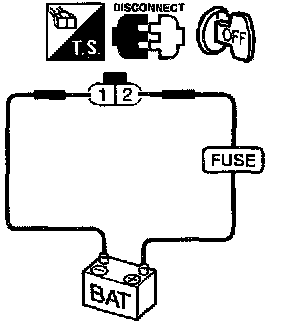

- Check for clicking sound when applying 12 V direct current to terminals.

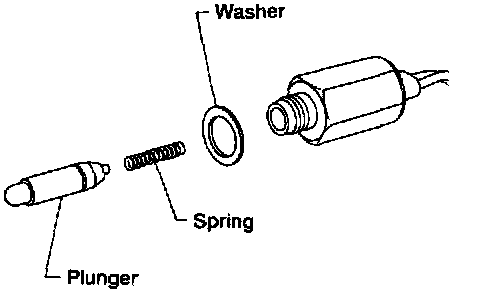

- Check plunger for seizing or sticking.
- Check for broken spring.
