Warning Lamp

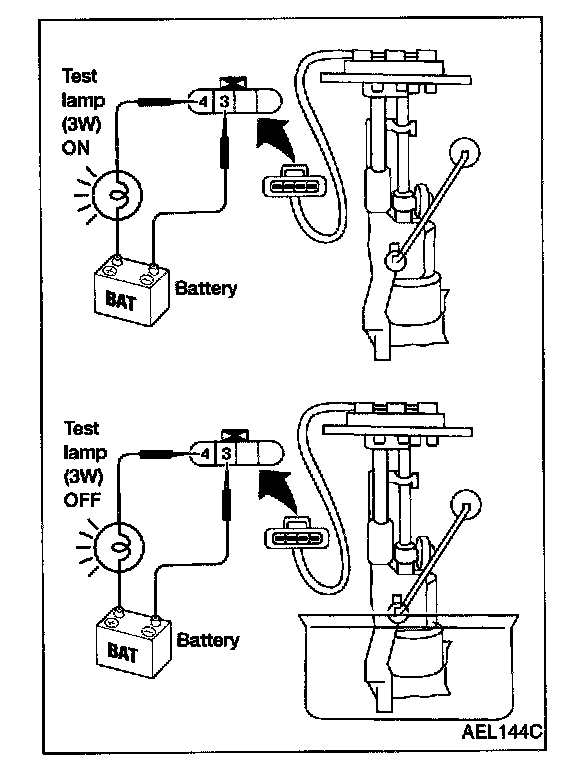

FUEL WARNING LAMP SENSOR CHECK
- It will take a short time for the bulb to light.

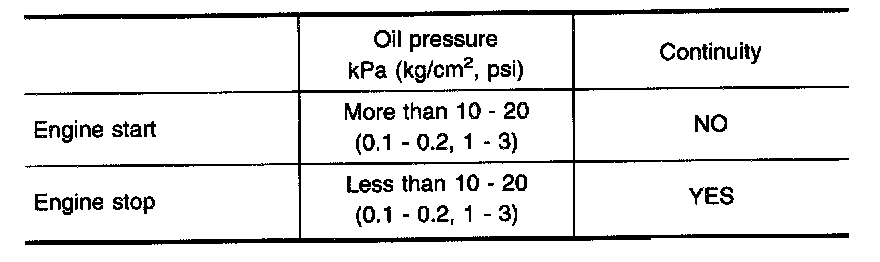

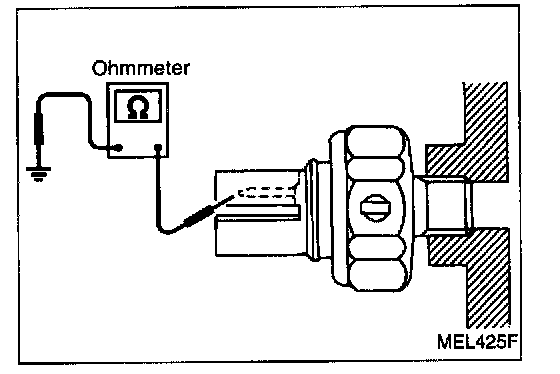

OIL PRESSURE SWITCH CHECK
Check the continuity between the terminals of oil pressure switch and body ground.

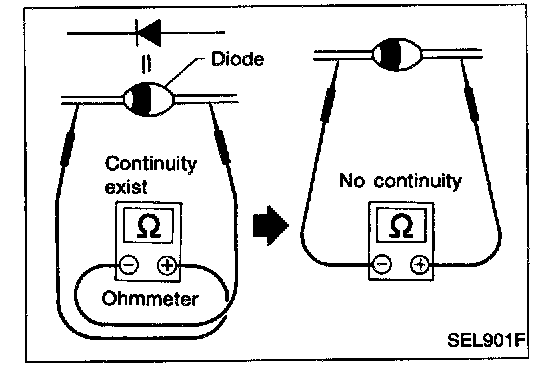

DIODE CHECK
- Check continuity using an ohmmeter.
- Diode is functioning properly if test results are as shown in the figure at left.


NOTE: Specification may vary depending on the type of tester. Before performing this inspection, be sure to refer to the instruction manual for the tester to be used.

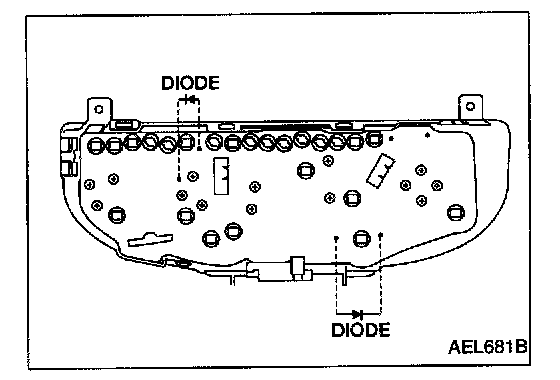

- Diodes for warning lamps are built into the combination meter printed circuit.
