Meter/Gauge, Odo/Trip Meter Segment Check In Diagnosis Mode

DIAGNOSIS FUNCTION
- Odo/trip meter segment can be checked in diagnosis mode.
- Meters/gauges can be checked in diagnosis mode.




HOW TO ALTERNATE DIAGNOSIS MODE
1. Turn ignition switch to ON and change odo/trip meter to "TRIP A" or "TRIP B".
2. Turn ignition switch to OFF.
3. Turn ignition switch to ON when pushing odo/trip meter switch.
4. Confirm that trip meter indicates "000.0".
5. Push odo/trip meter switch more than three times within 5 seconds.

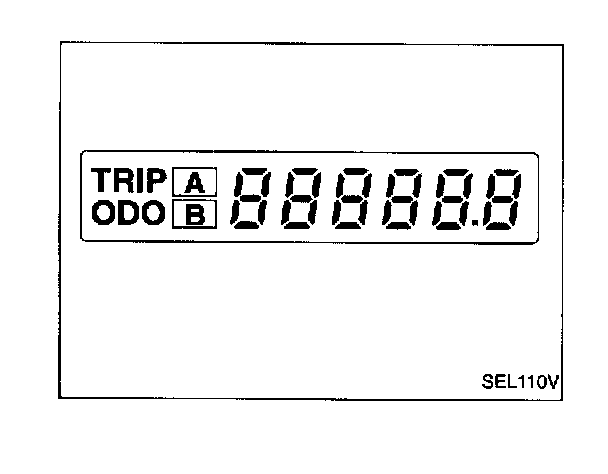

6. All odo/trip meter segments should be turned on.


NOTE: If some segments are not turned on, speedometer (unified meter control unit) with odo/trip meter should be replaced.
At this point, the unified control meter is turned to diagnosis mode.

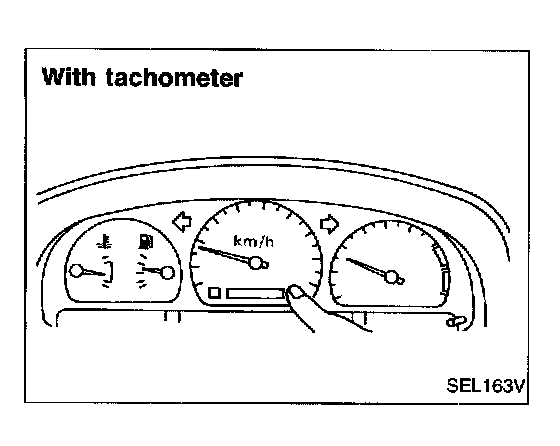

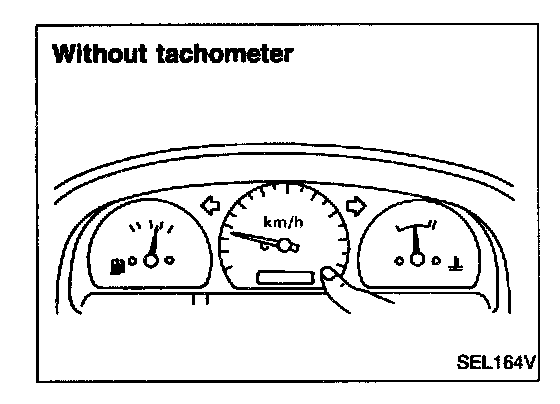

7. Push odo/trip meter switch. Indication of each meter/gauge should be as shown left during pushing odo/trip meter switch if it is not malfunctioning.


NOTE: It takes about 1 minute for indication of fuel gauge to become stable.

Flexible Print Circuit (FPC)
Tachometer, fuel gauge and water temperature gauge are connected with unified meter control unit (speedometer) by Flexible Print Circuit (FPC) connector. When replacing or removing and installing unified control unit (speedometer), disconnect and connect FPC connector according to the following steps.




DISCONNECT

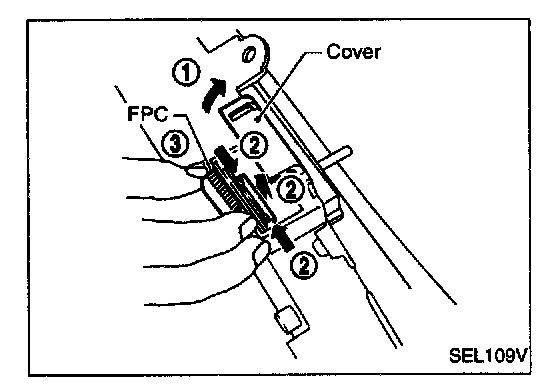

1. Open connector cover.
2. Release connector lock by holding both ends of it and pulling it up.
3. Disconnect FPC by pulling it up.




CONNECT
1. Insert FPC into connector and lock connector pushing FPC downward.
2. Check secure connection of FPC.
3. Check continuity of check land terminals for secure connection of FPC.
Resistance: 0 ohm.
4. Close connector cover.
