Insufficient Heating

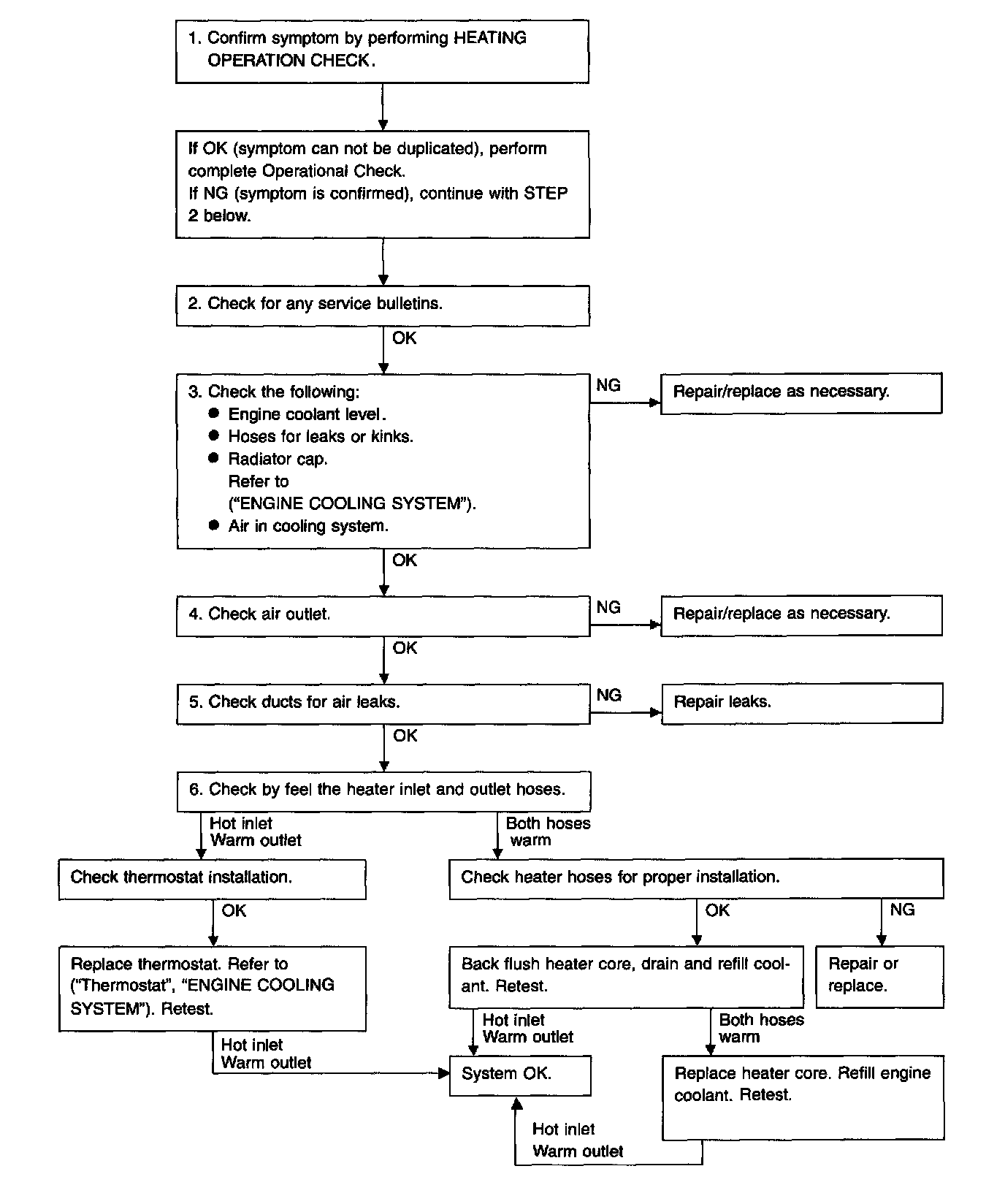

INSPECTION FLOW





HEATING OPERATION CHECK
1. Start and warm up engine.
2. Slide fan control lever to 4-speed.
3. Turn air conditioner switch OFF.
4. Check temperature increase.
a. Turn temperature switch to full hot.
b. Check hot air at discharge air outlets.
