Performance Charts

TEST CONDITION
Testing must be performed as follows:
Vehicle location: Indoors or in the shade (in a well-ventilated place)
Doors: Closed Door window: Open
Hood: Open
TEMP. setting: Max. COLD
Discharge Air: FACE VENT
INTAKE
lever position: (Recirculation)
FAN speed: 4-speed
Engine speed: 1,500 rpm
Operate the air conditioner system for 10 minutes before taking measurements.

TEST READING

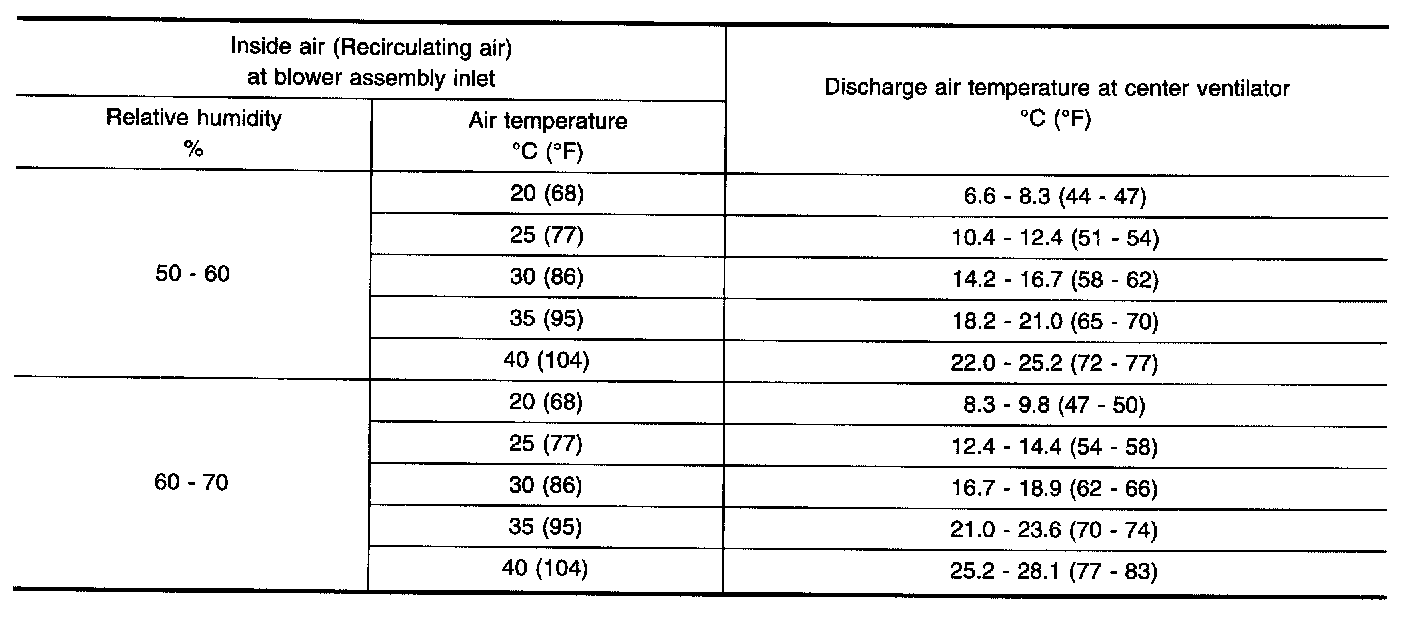

Recirculating-to-discharge air temperature table





Ambient air temperature-to-operating pressure table
