Cooling Operation Check

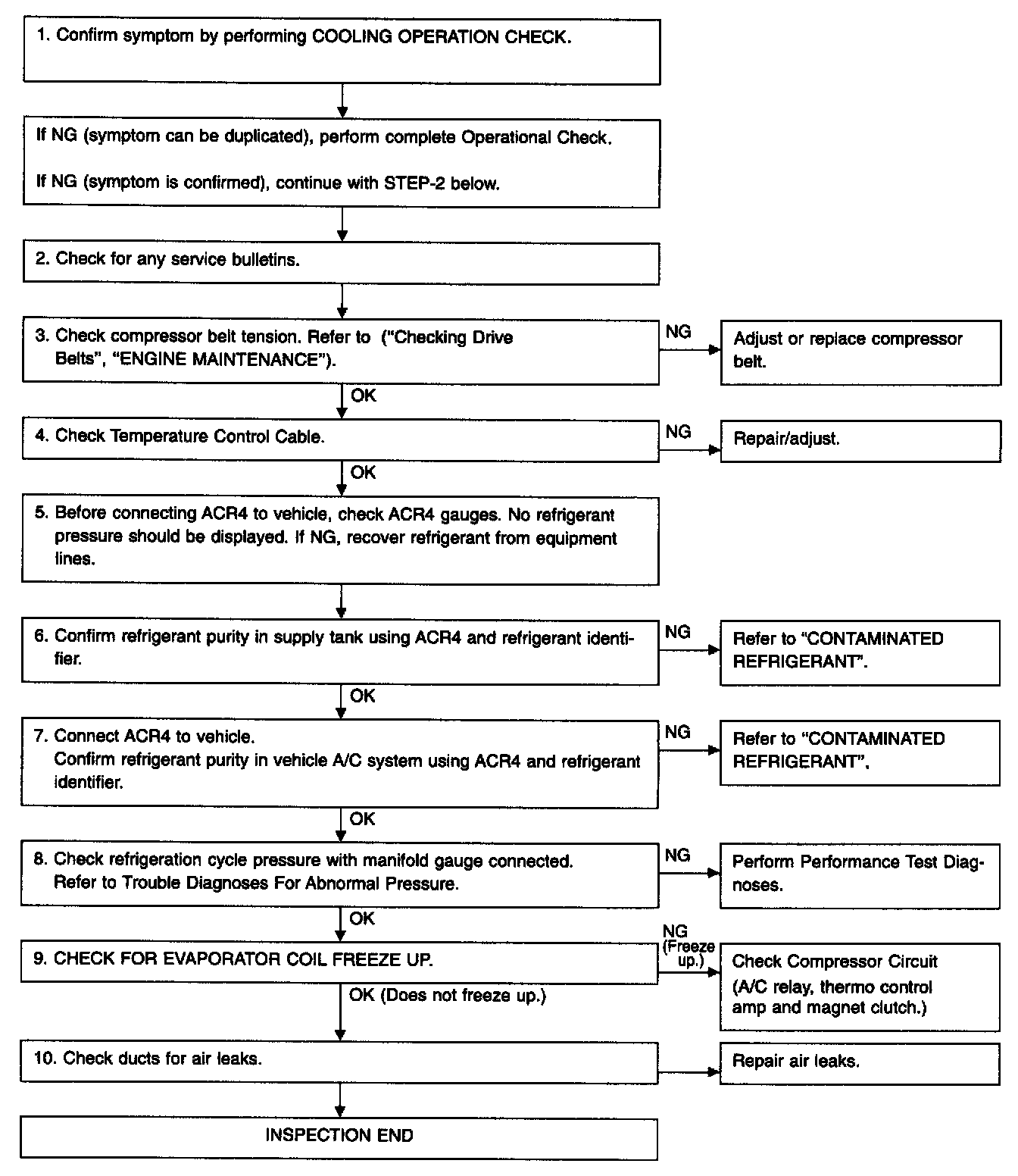

INSPECTION FLOW





COOLING OPERATION CHECK
1. Start engine.
2. Slide fan control lever to 4-speed.

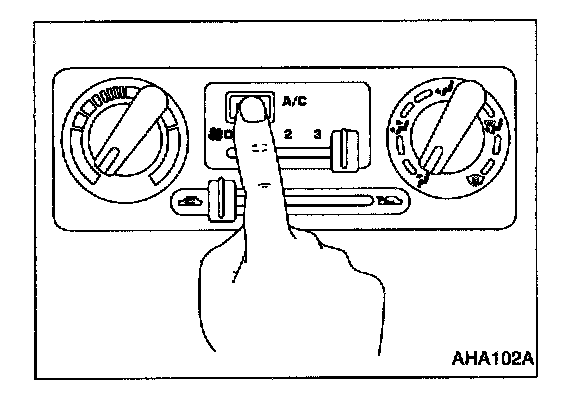

3. Turn air conditioner switch ON.
4. Check temperature decrease.
a. Turn temperature switch to full cold.
b. Check for cold air at discharge air outlets.
