Engine: Testing and Inspection

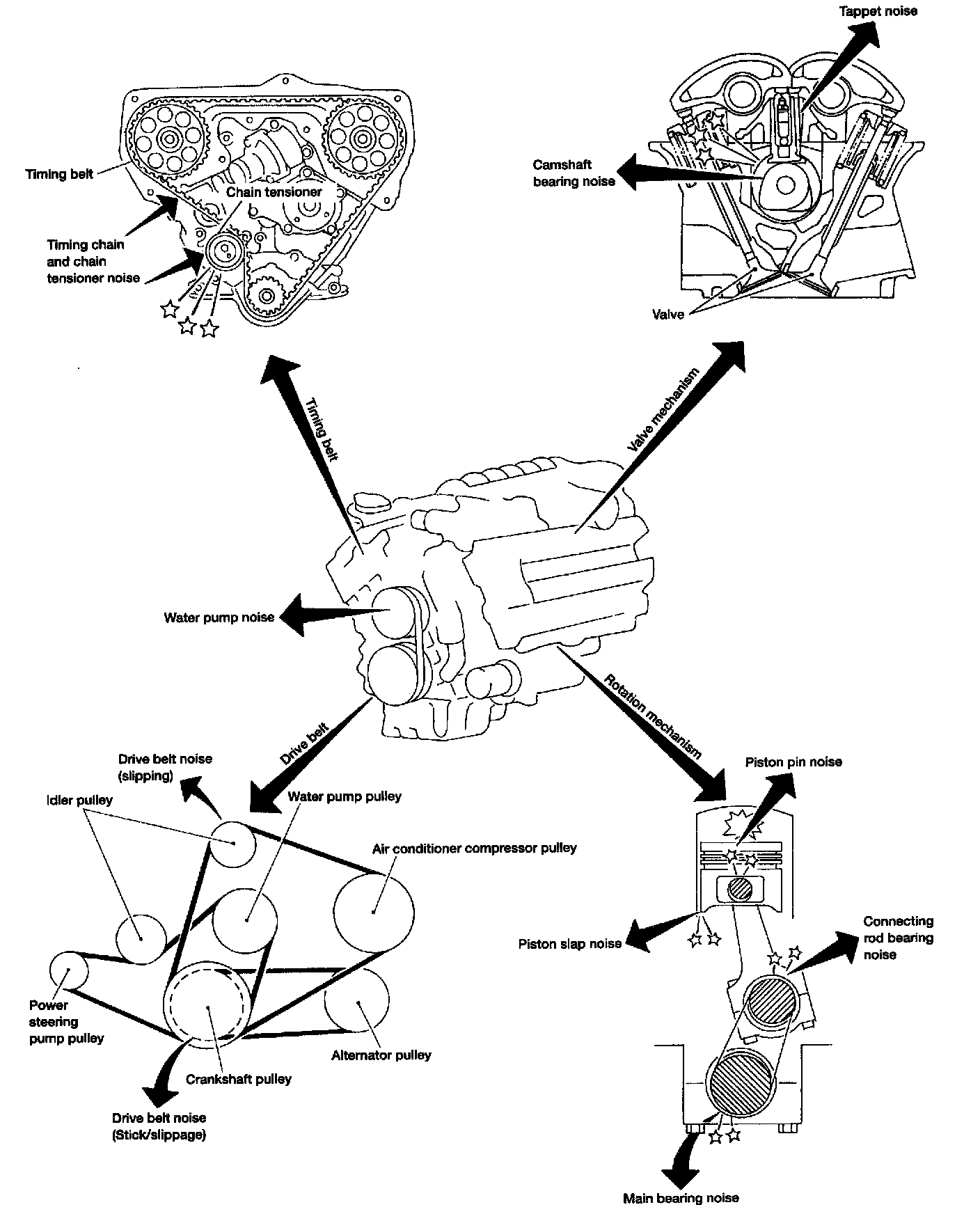

Troubleshooting Chart - Engine Noise








Use the chart to help you find the cause of the symptom.
1. Locate the area where the noise occurs.
2. Confirm the type of noise.
3. Specify the operating condition of engine.
4. Check specified noise source.
If necessary repair or replace these parts.
