Drive/Propeller Shaft

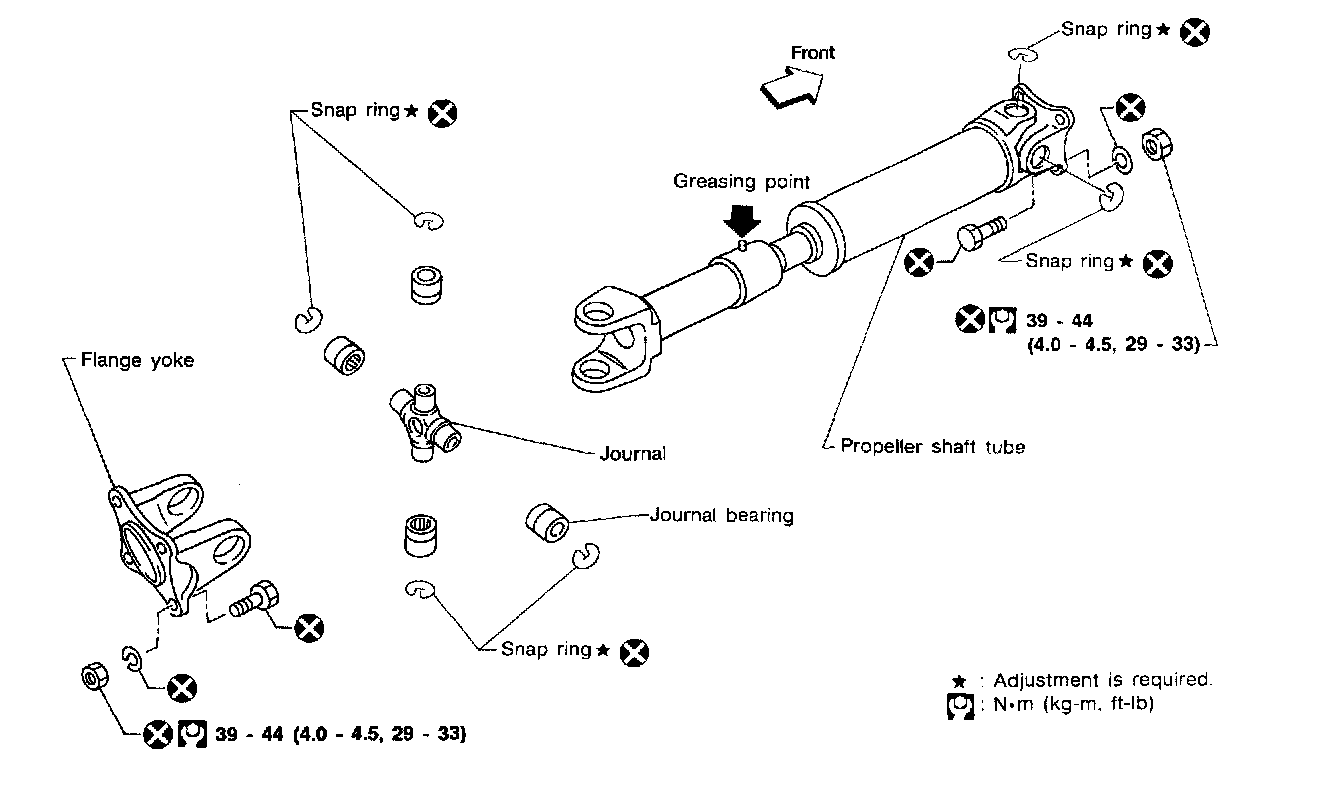

Front propeller shaft





(Model 2F1310)

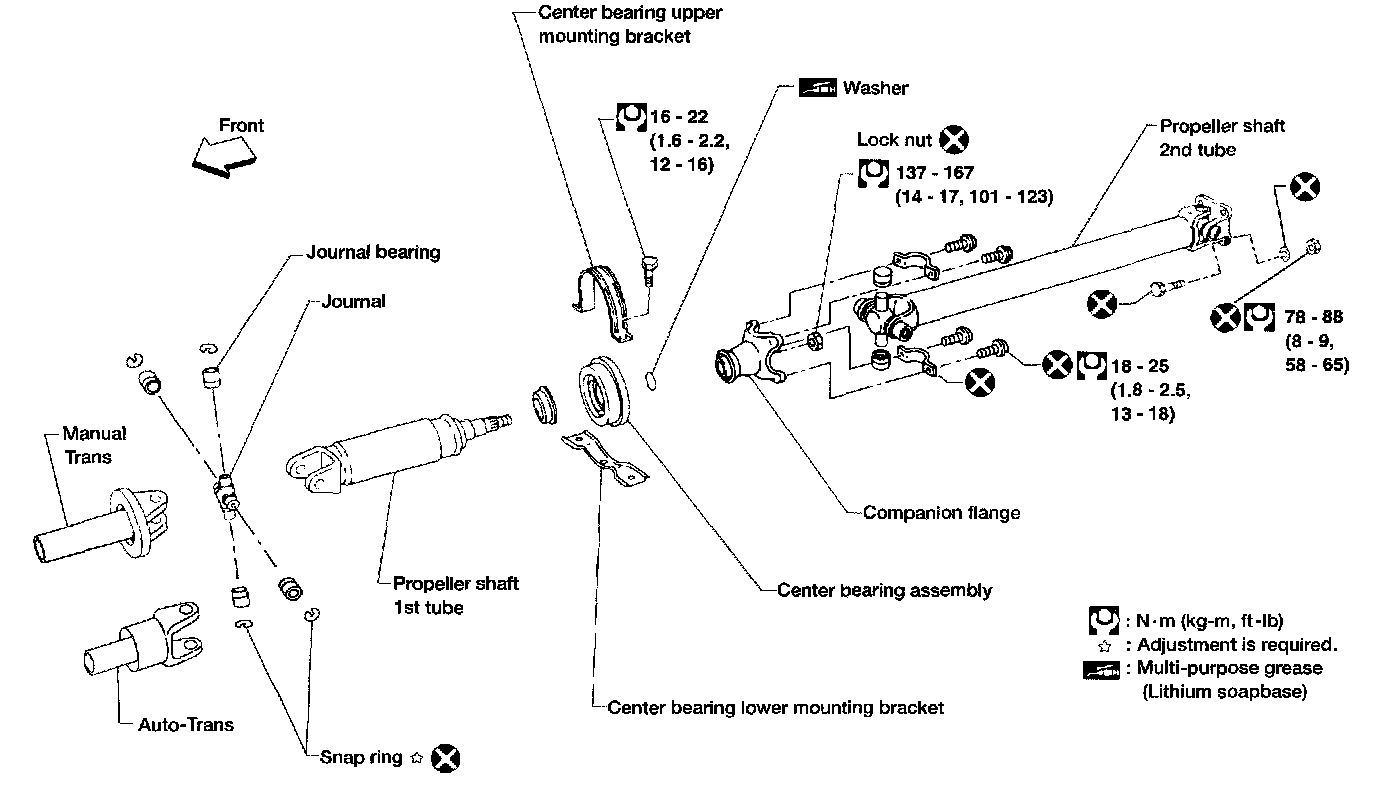

Rear propeller shaft





(Model 3S1310)
