Meters and Gauges




With Tachometer




Without Tachometer

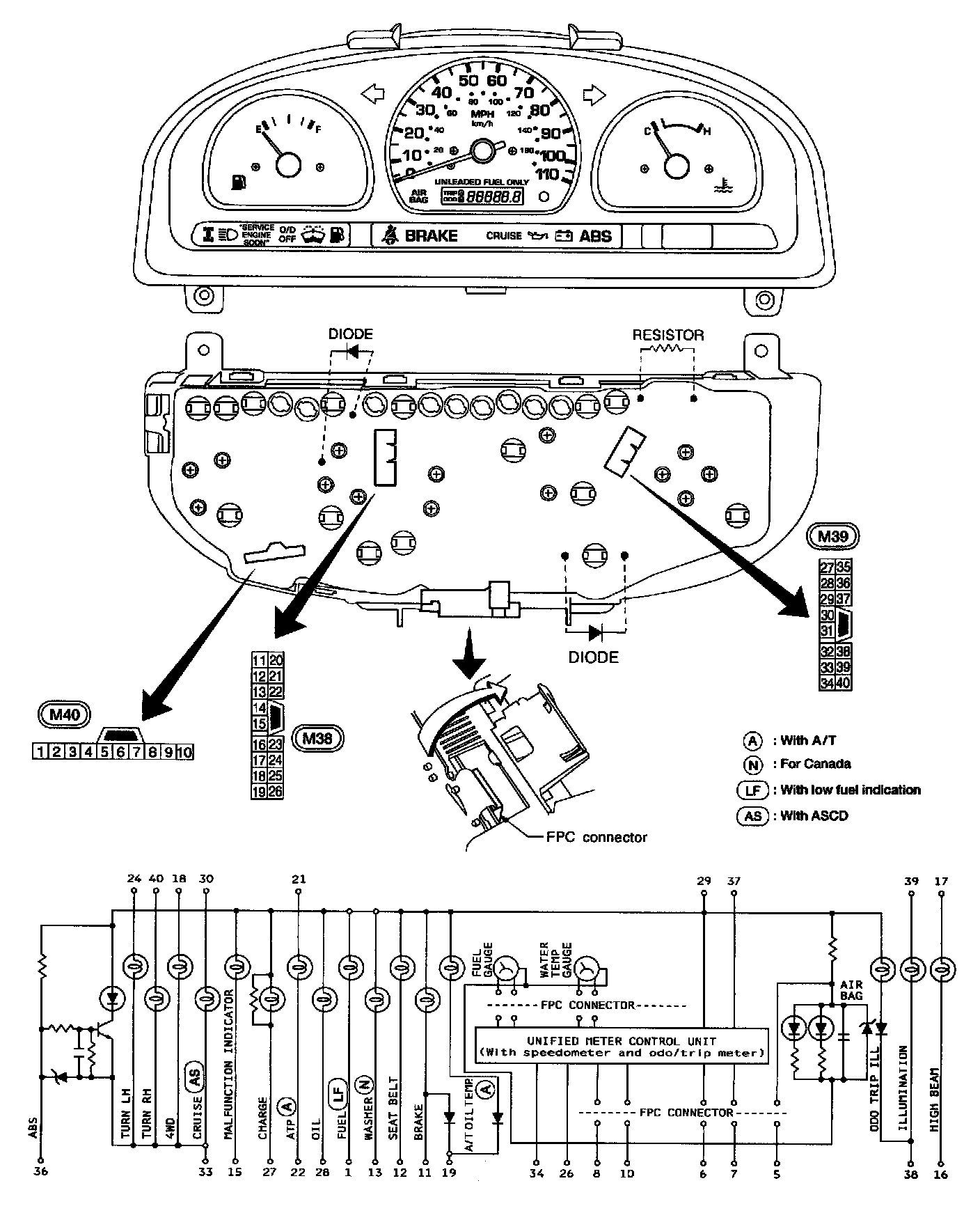

Circuit Diagram




Circuit Connectors




F29 Electrical Units Terminal Arrangement
