EL-START-01 (M/T Models)

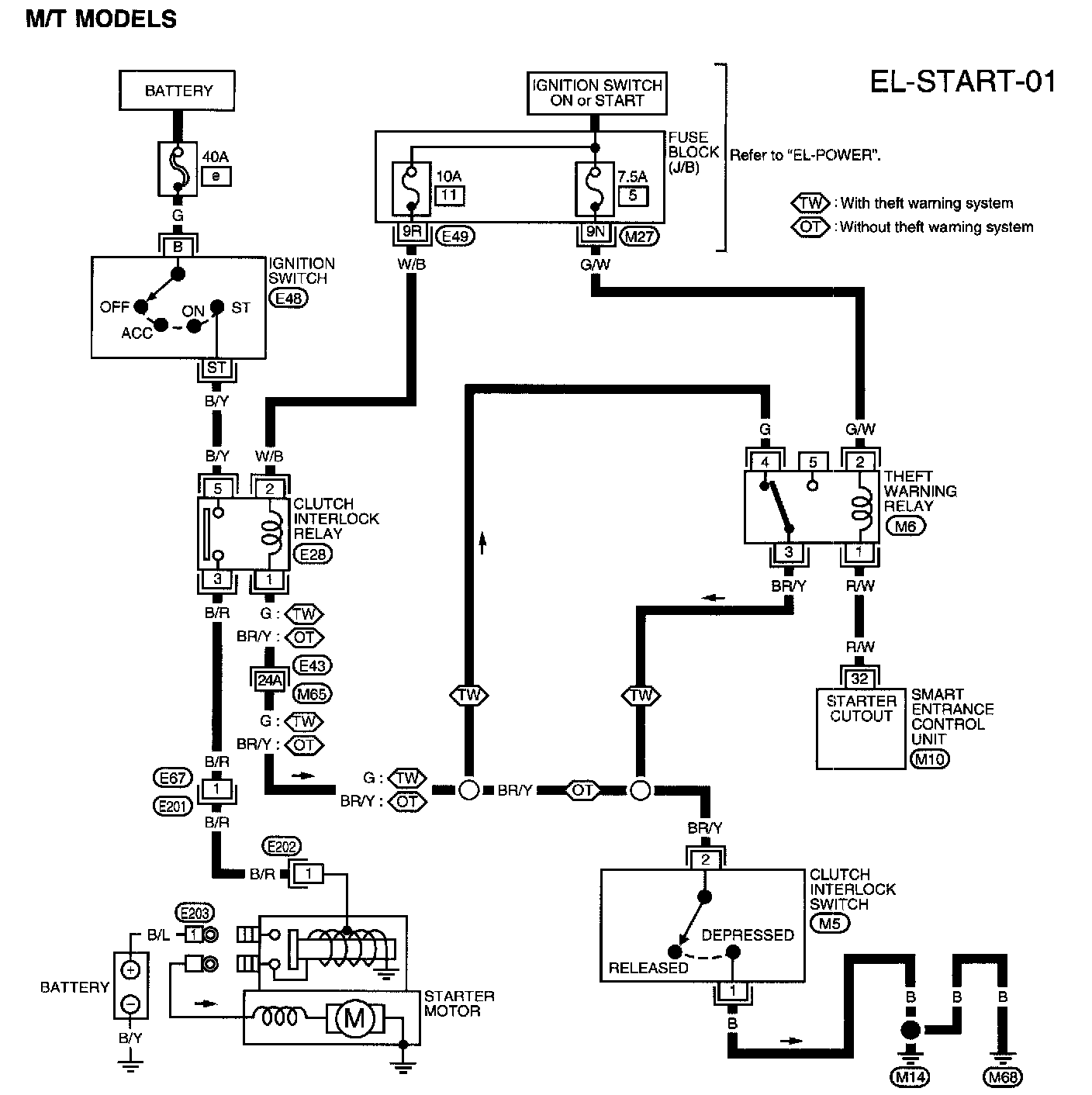

EL-START-01

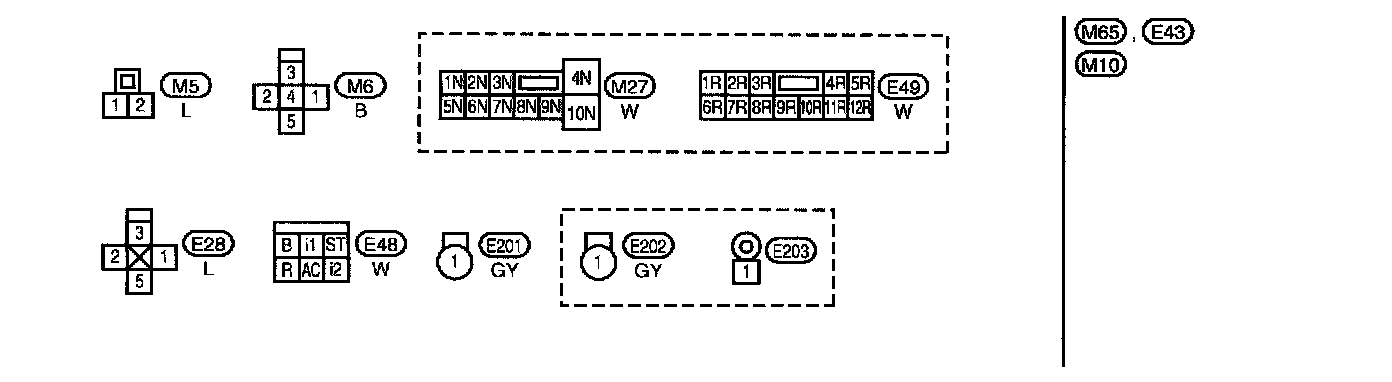

Circuit Connectors

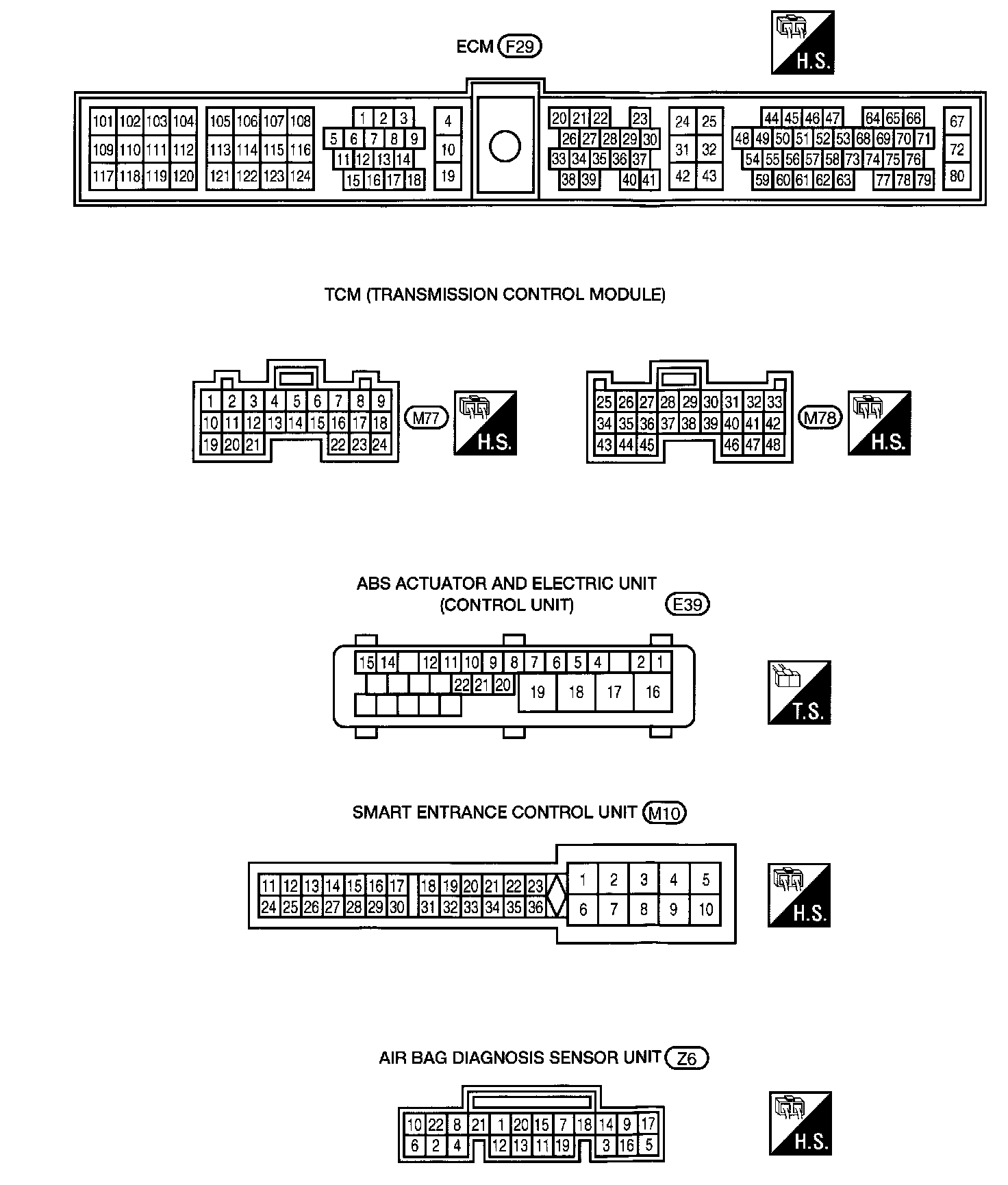

M65, E43 Super Multiple Junction (SMJ) and M10 Electrical Units Terminal Arrangement
