Antitheft and Alarm Systems

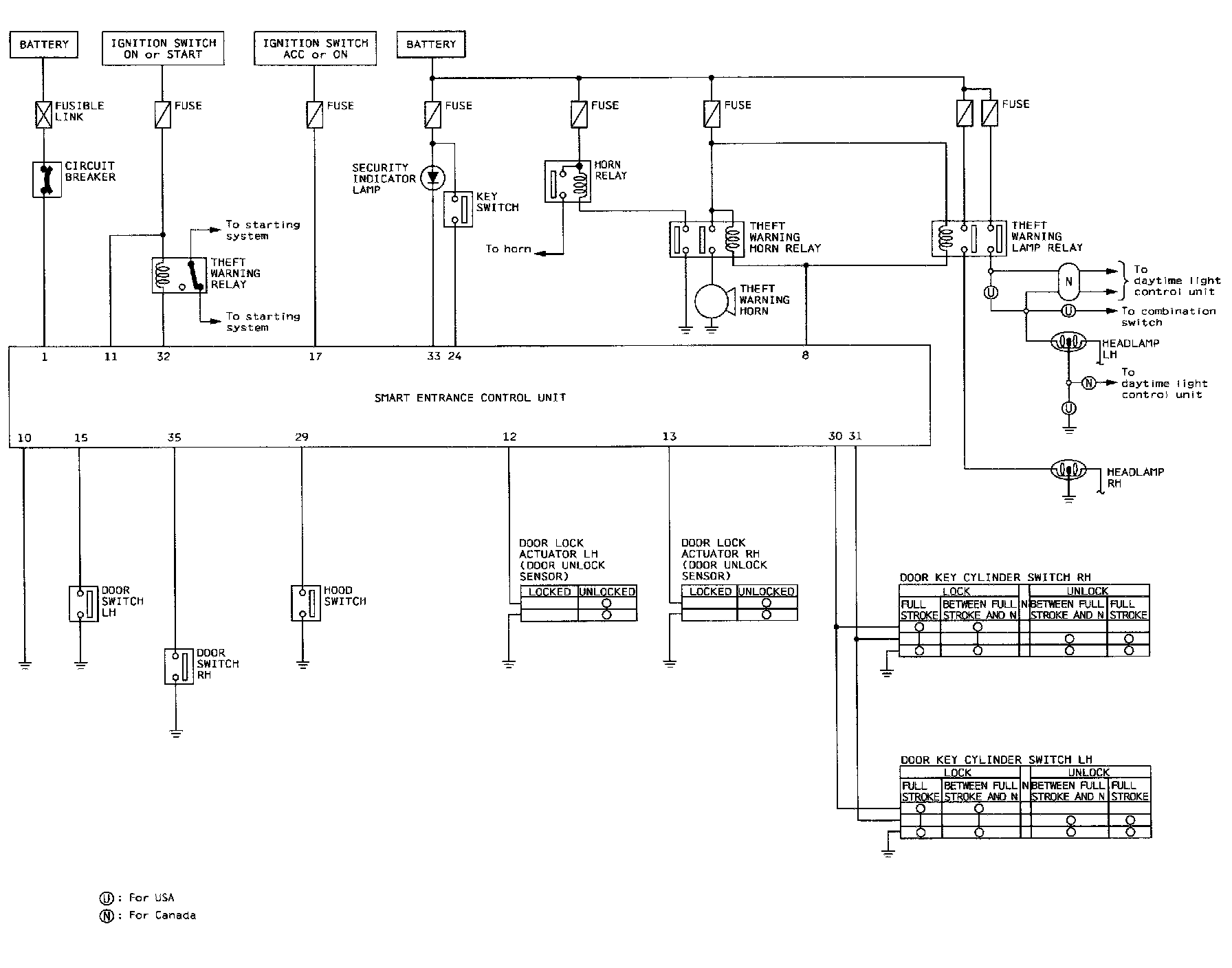

Schematic

Part 1 Of 3:




Part 2 Of 3:




Part 3 Of 3:

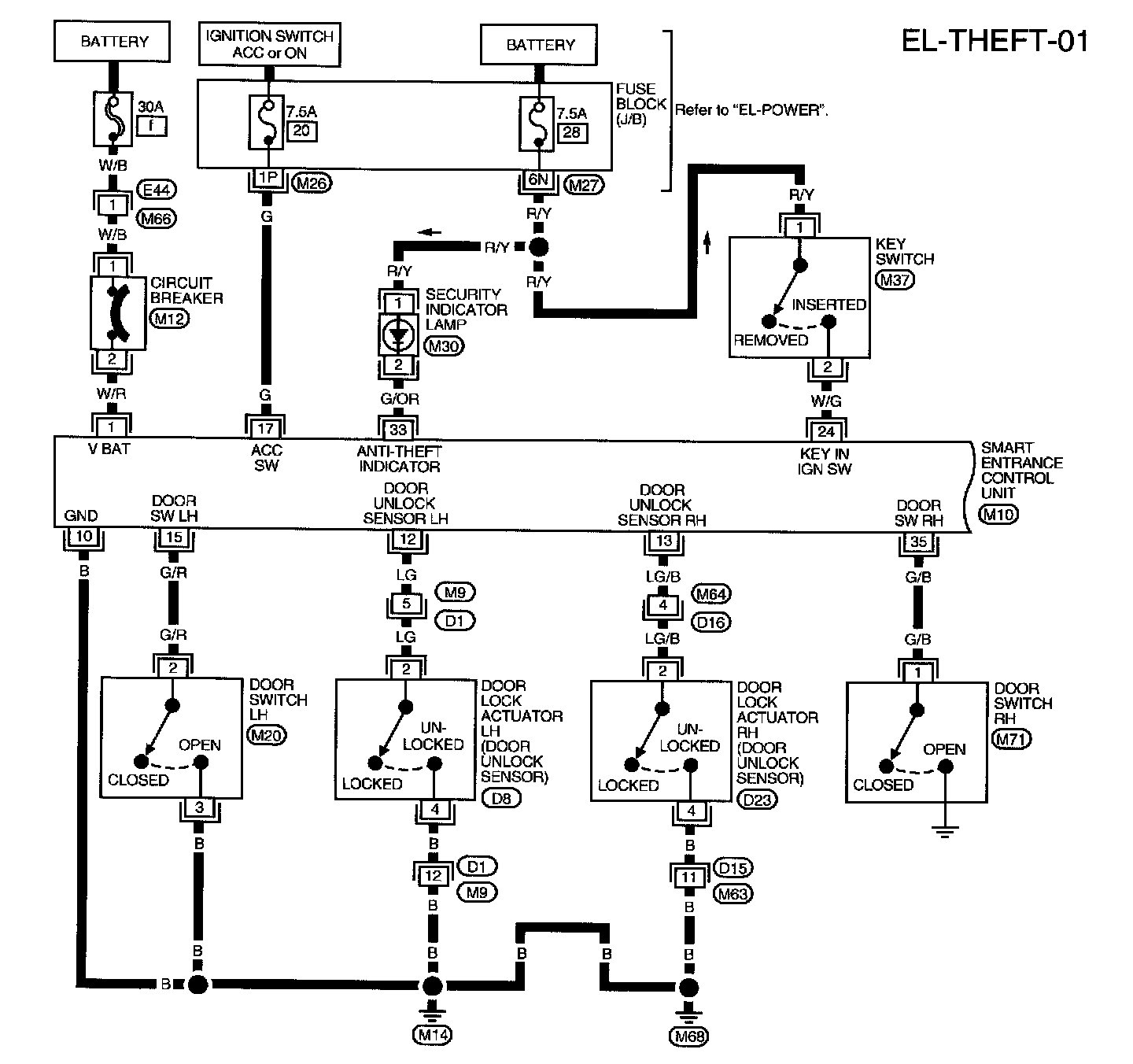

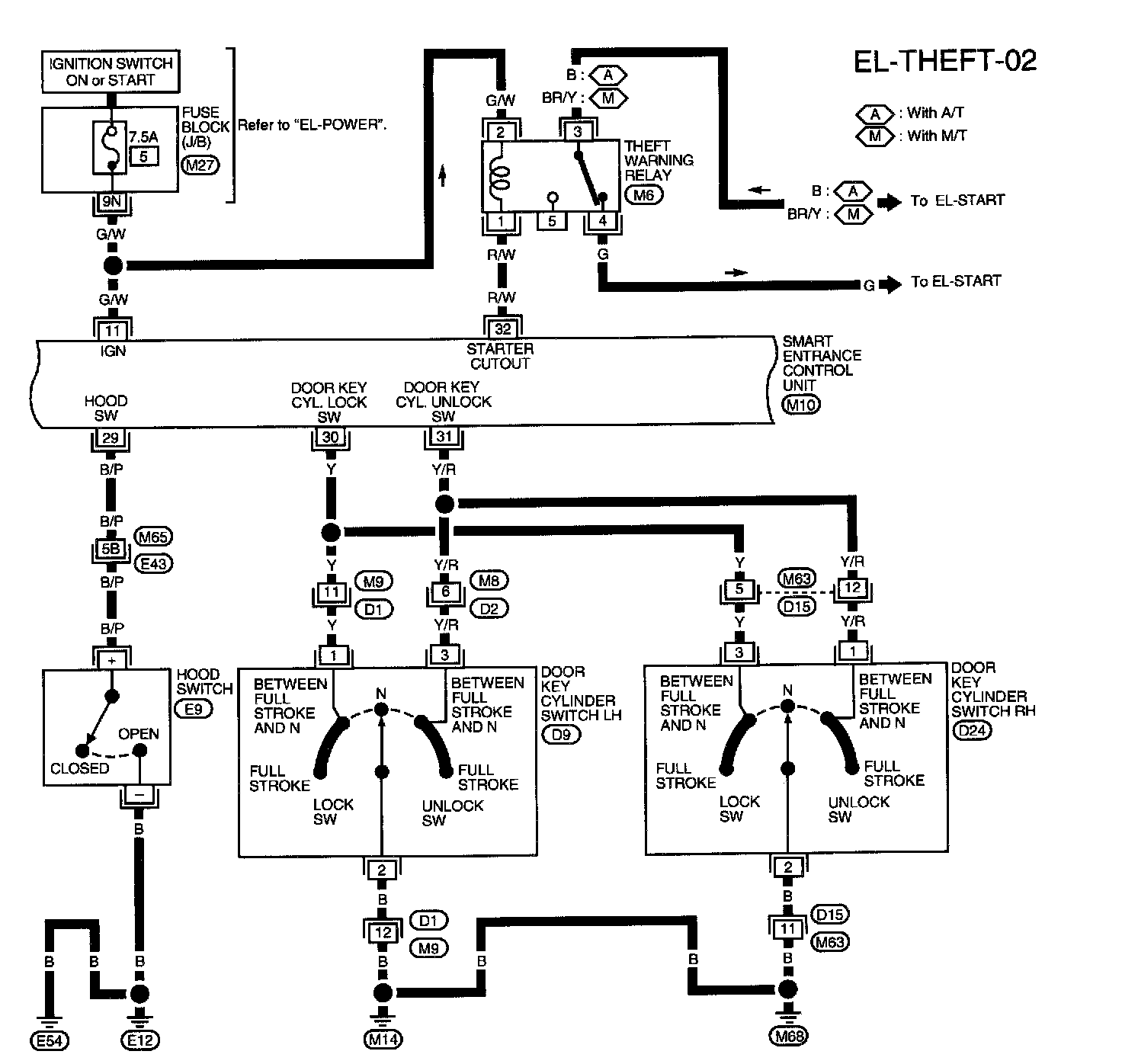

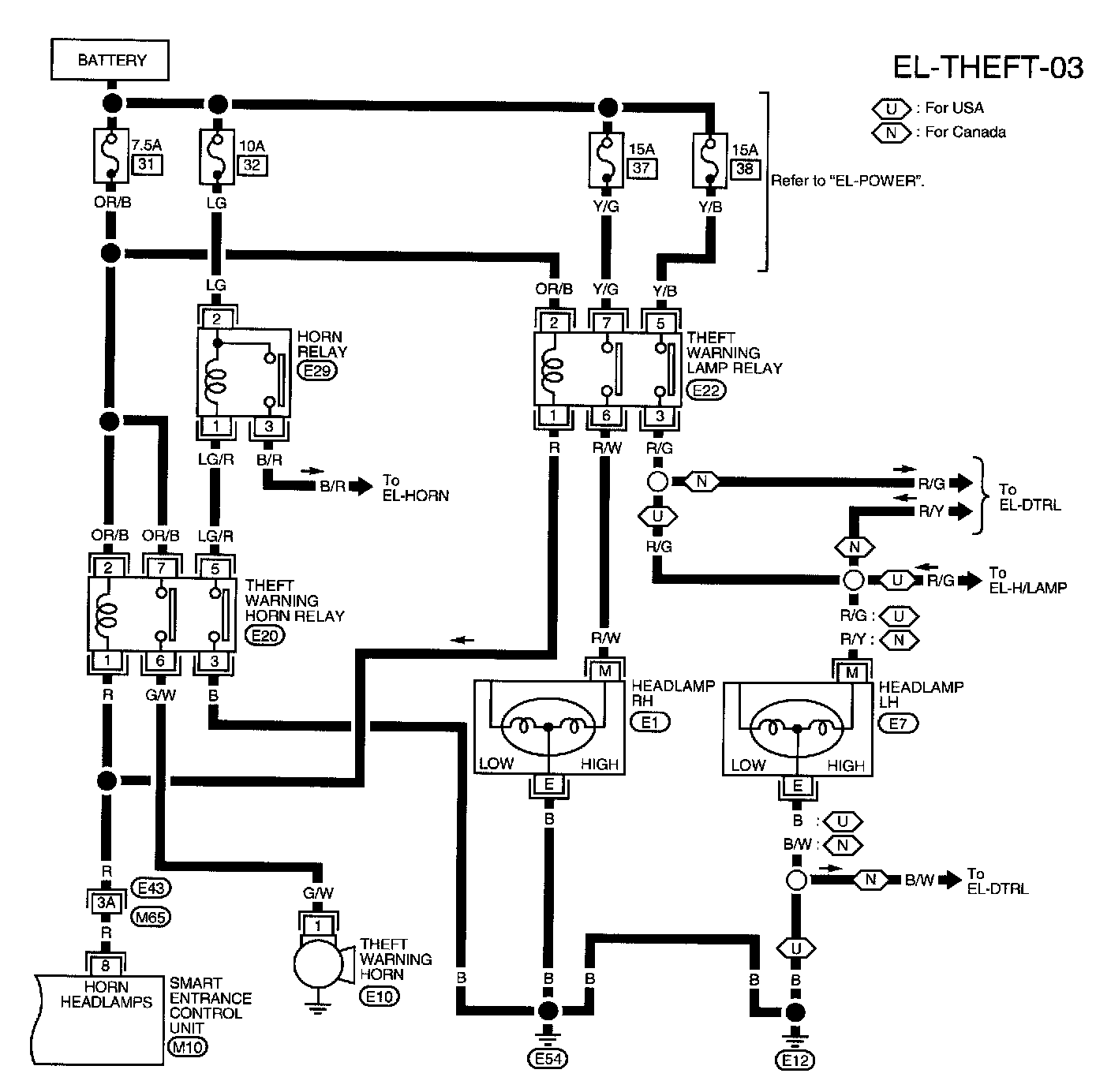

Circuit Diagrams

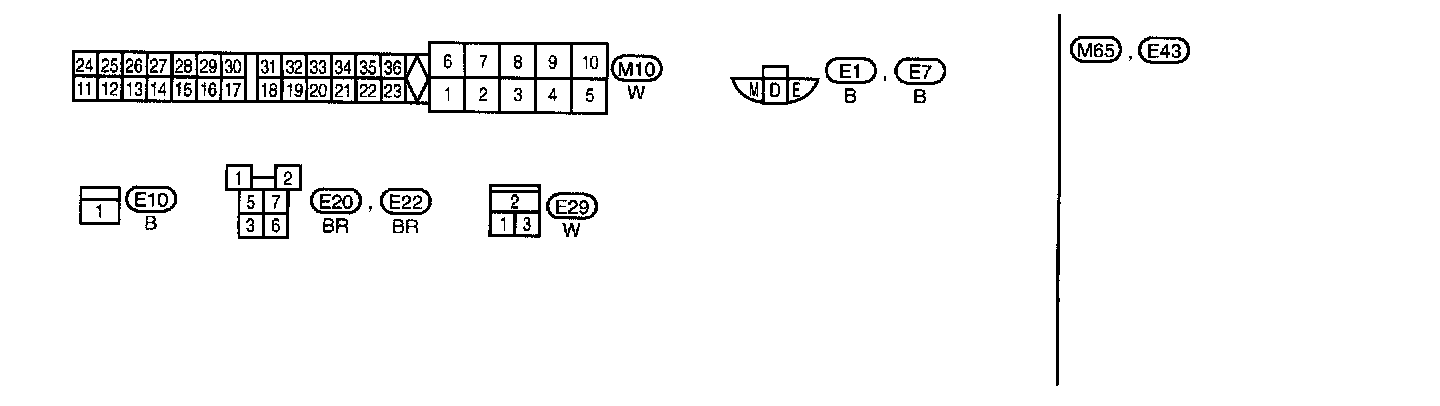

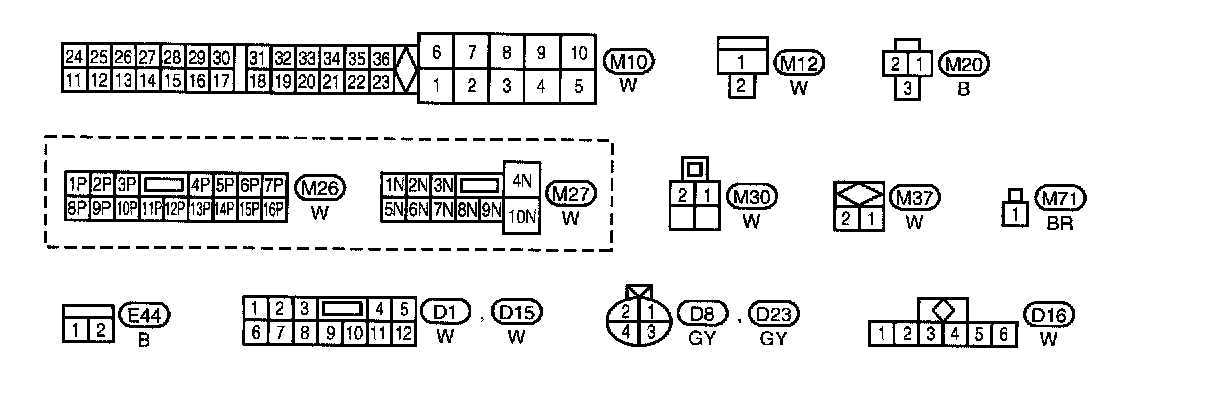

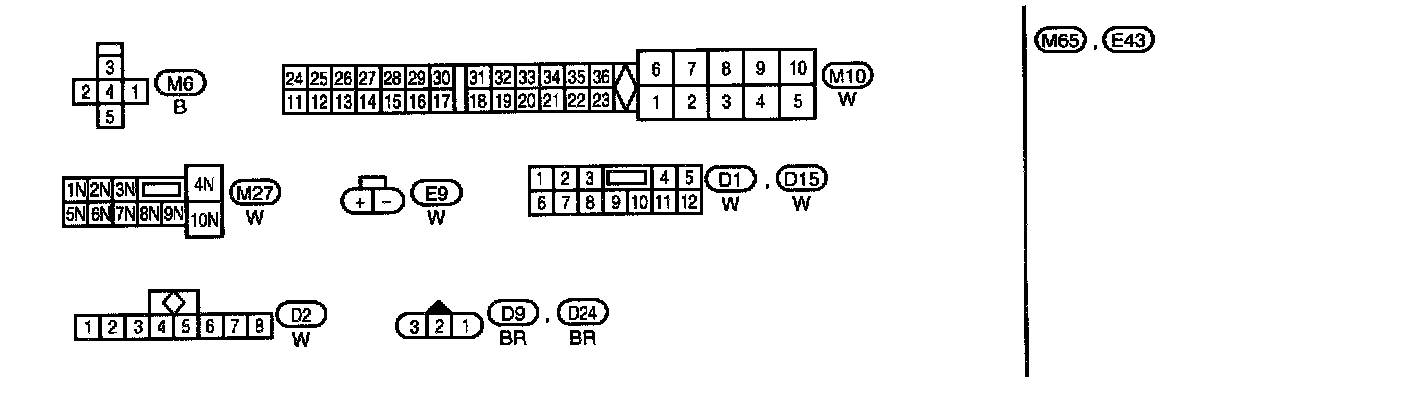

Circuit Connectors




M65, E43 Super Multiple Junction (SMJ) Terminal Arrangement
