Engine Control Module

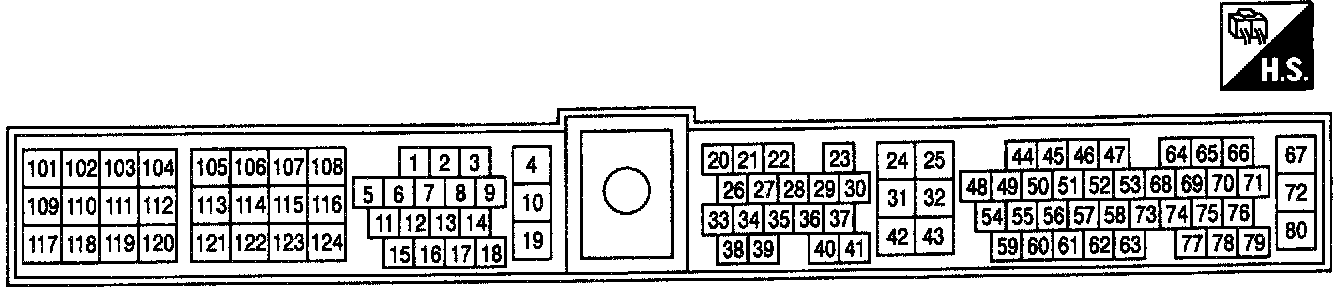

ECM HARNESS CONNECTOR TERMINAL LAYOUT

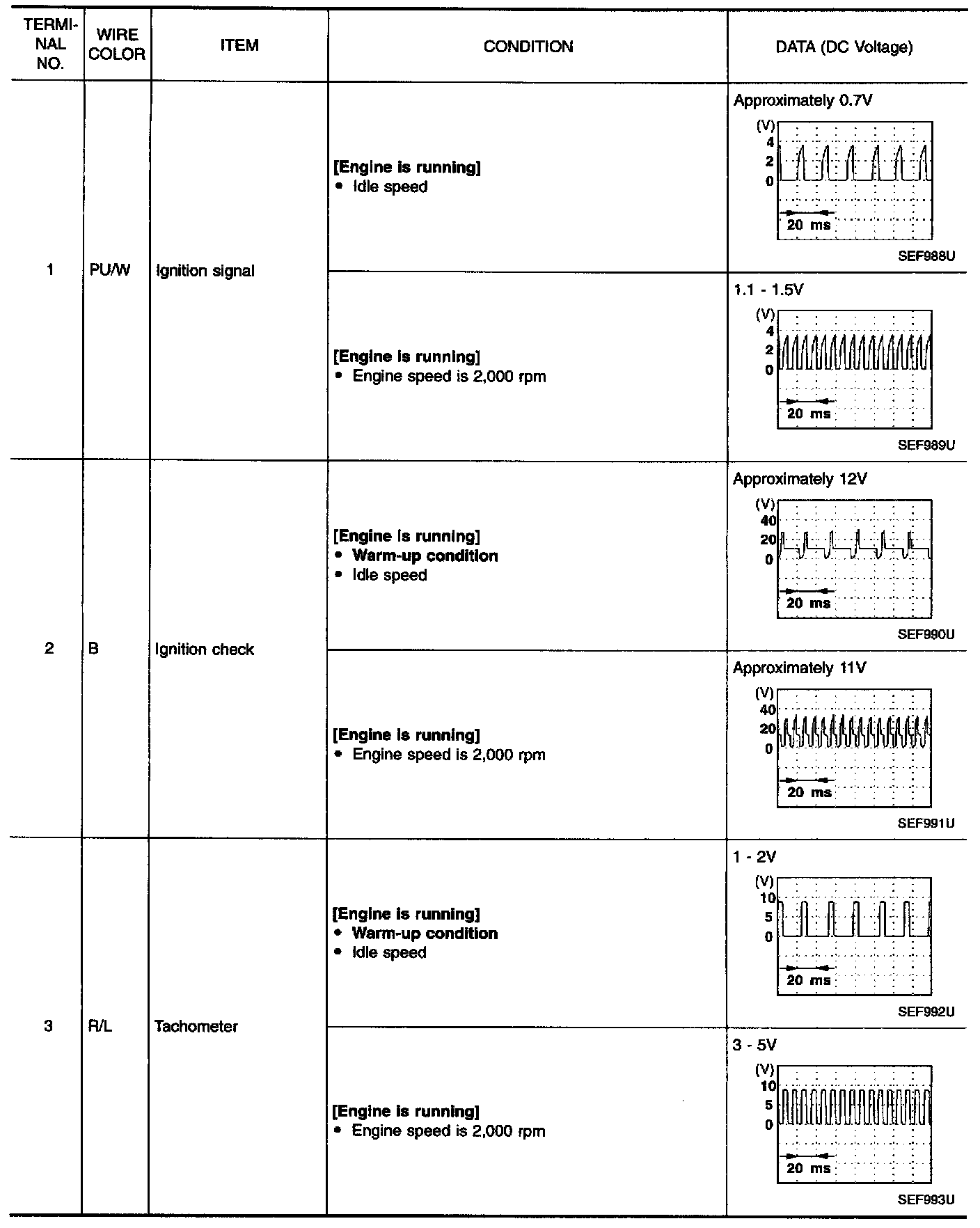

Terminals 1 Thru 3:

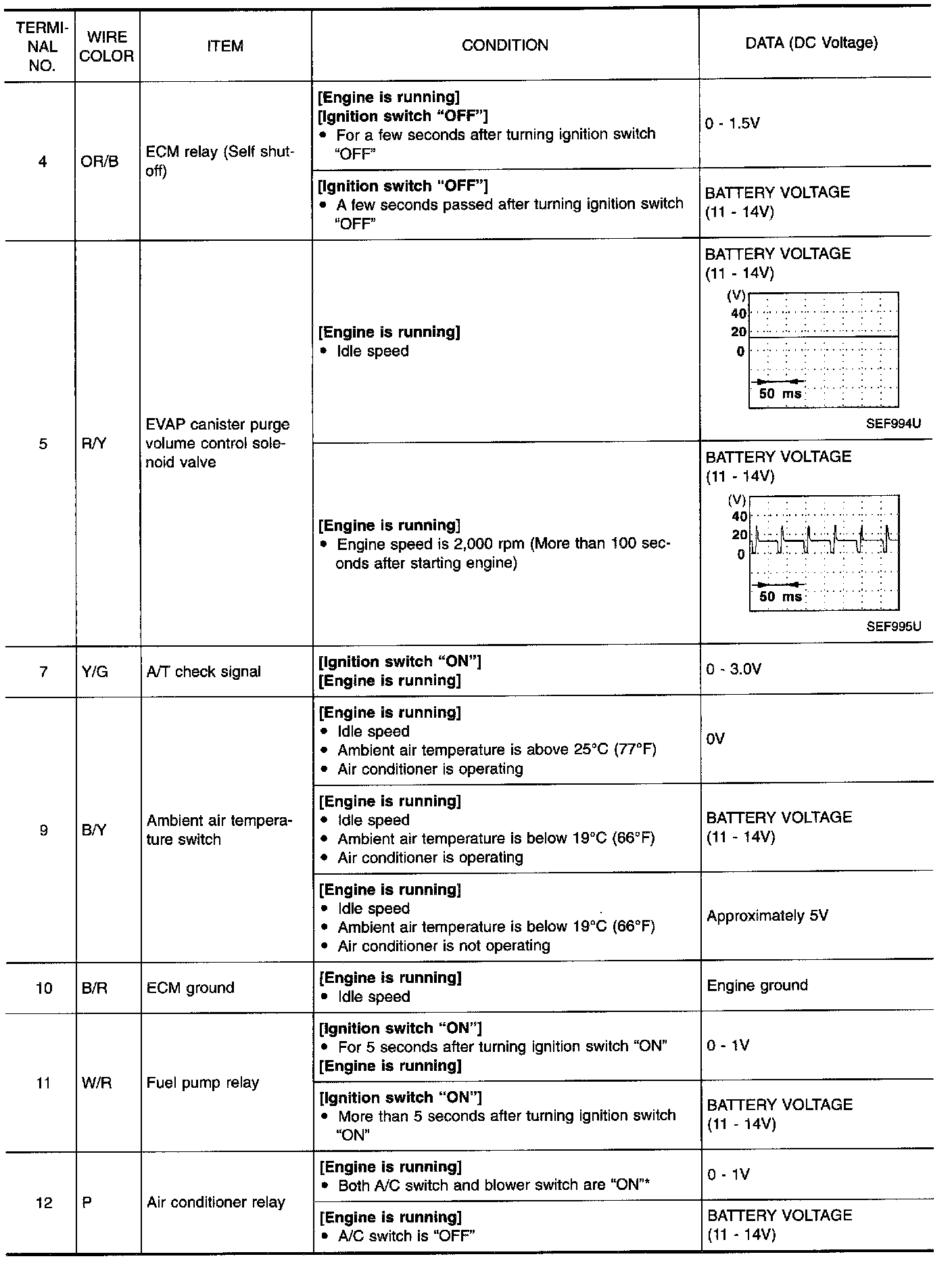

Terminals 4 Thru 12:

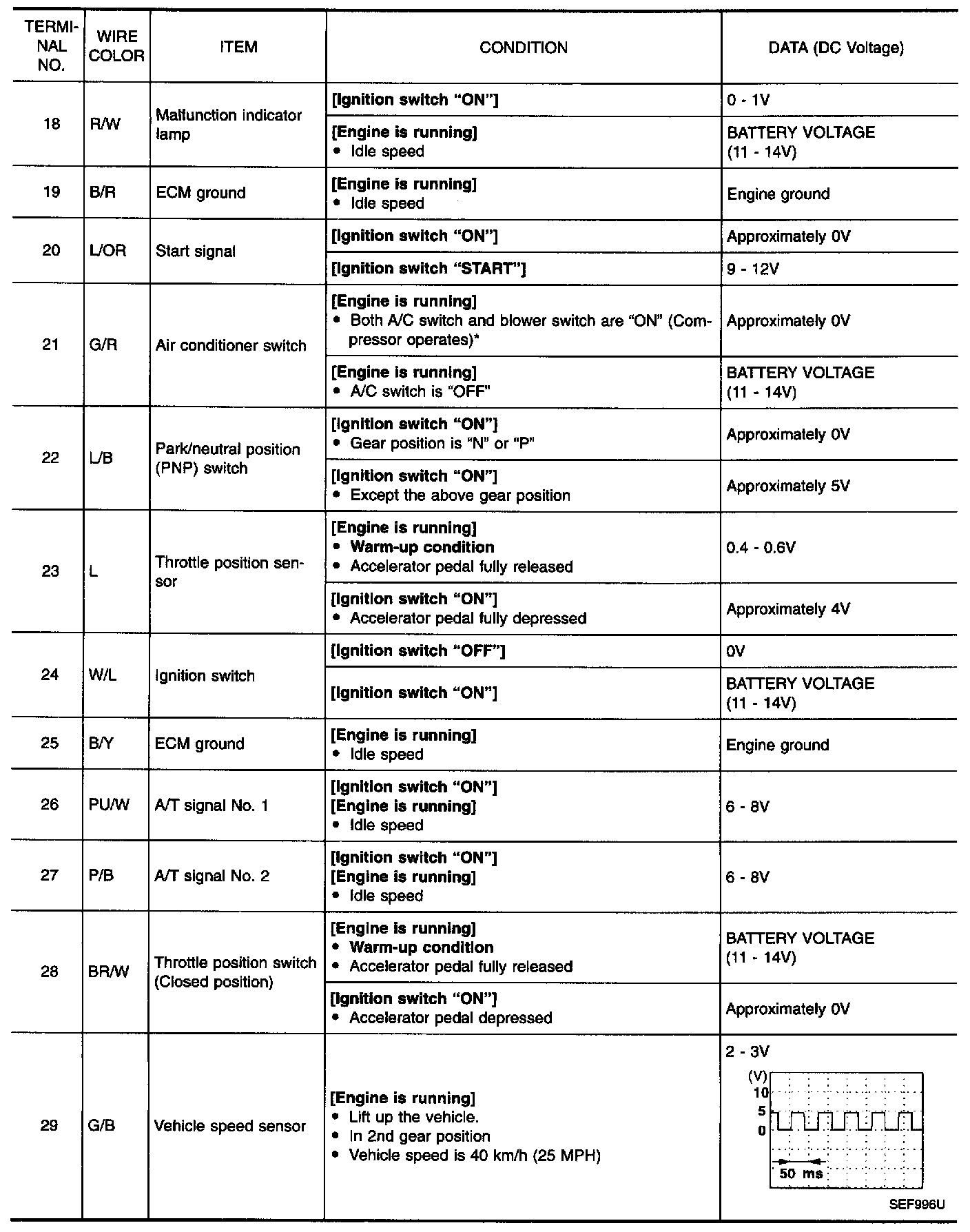

Terminals 18 Thru 29:

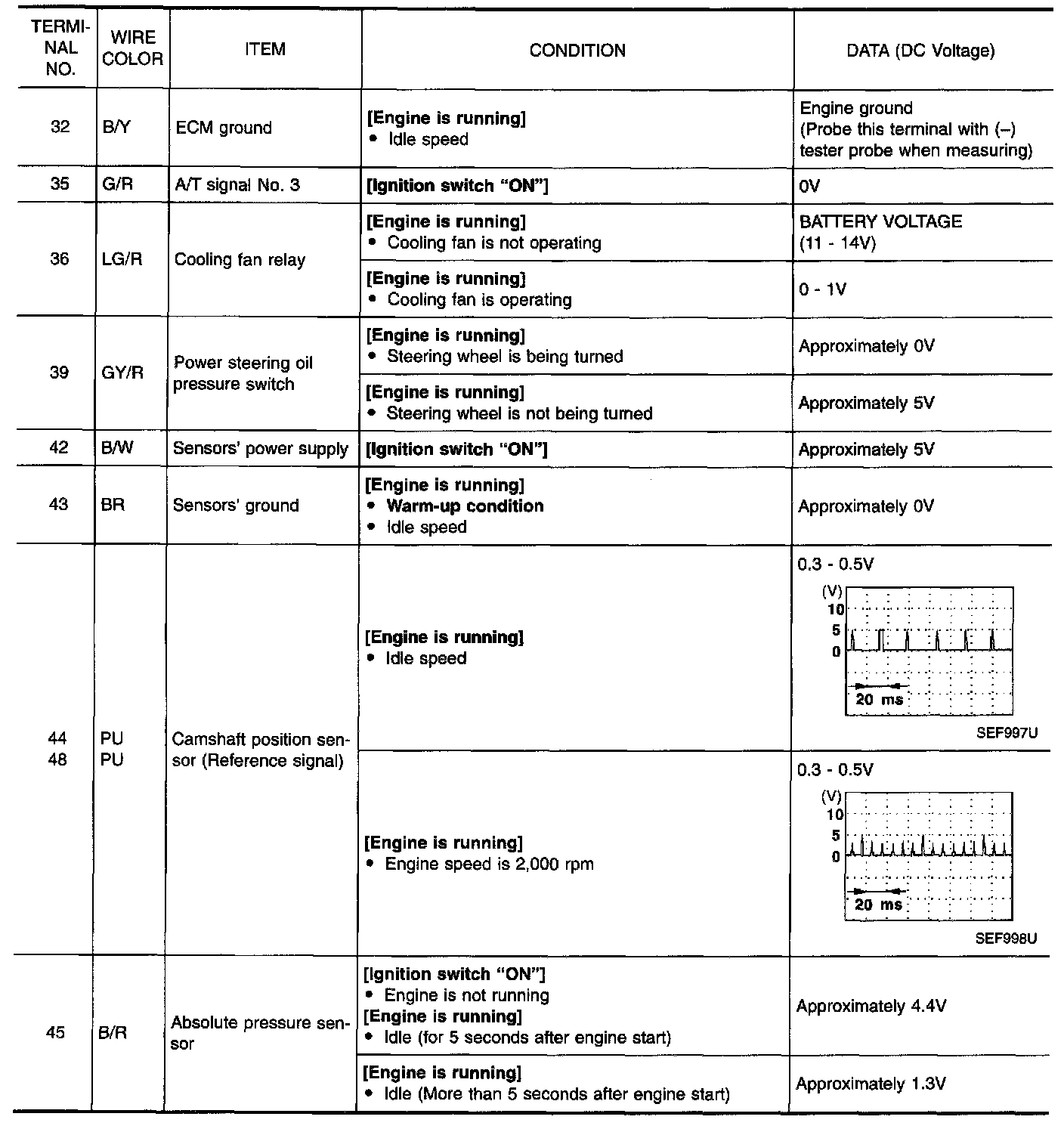

Terminals 32 Thru 45:

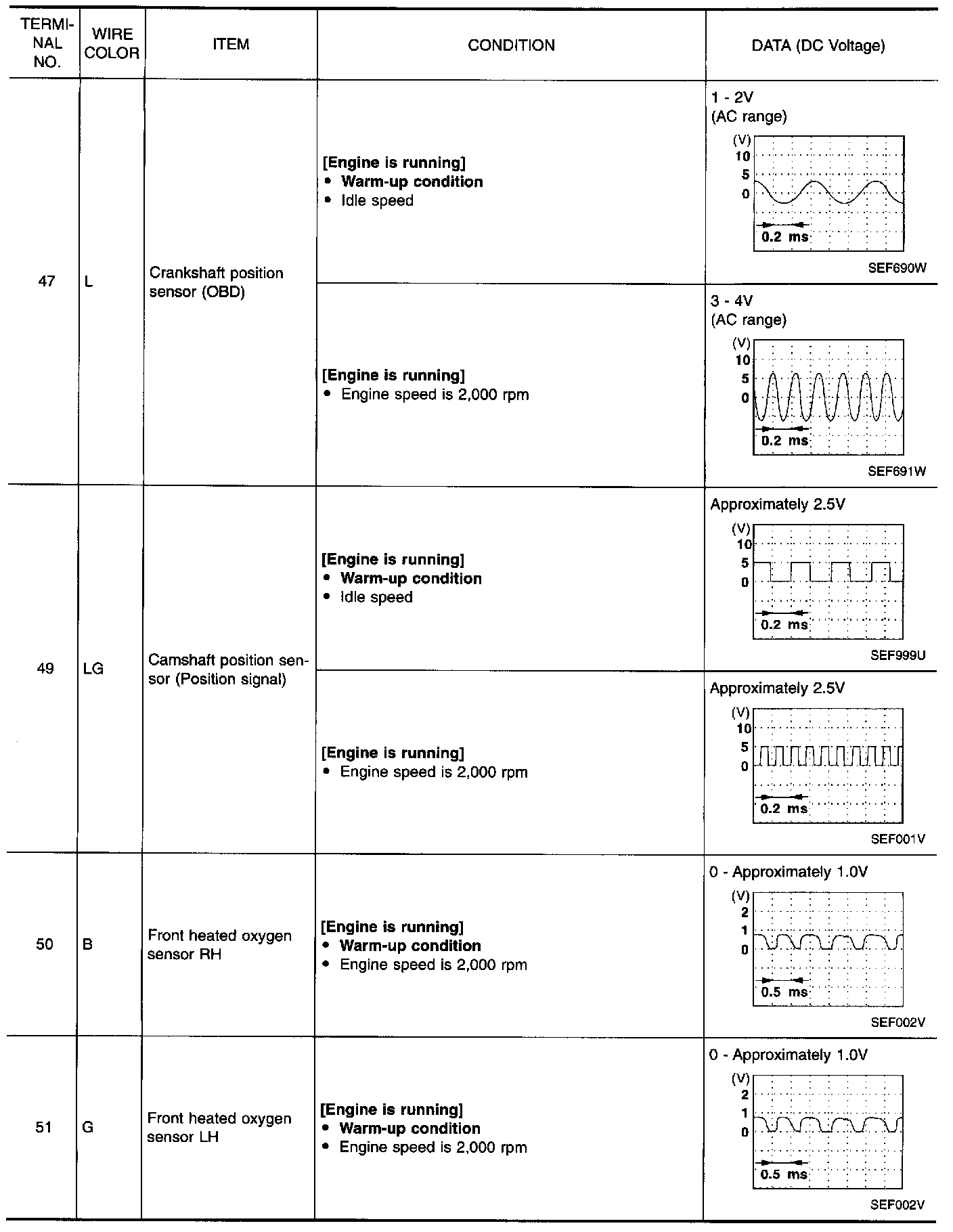

Terminals 47 Thru 51:

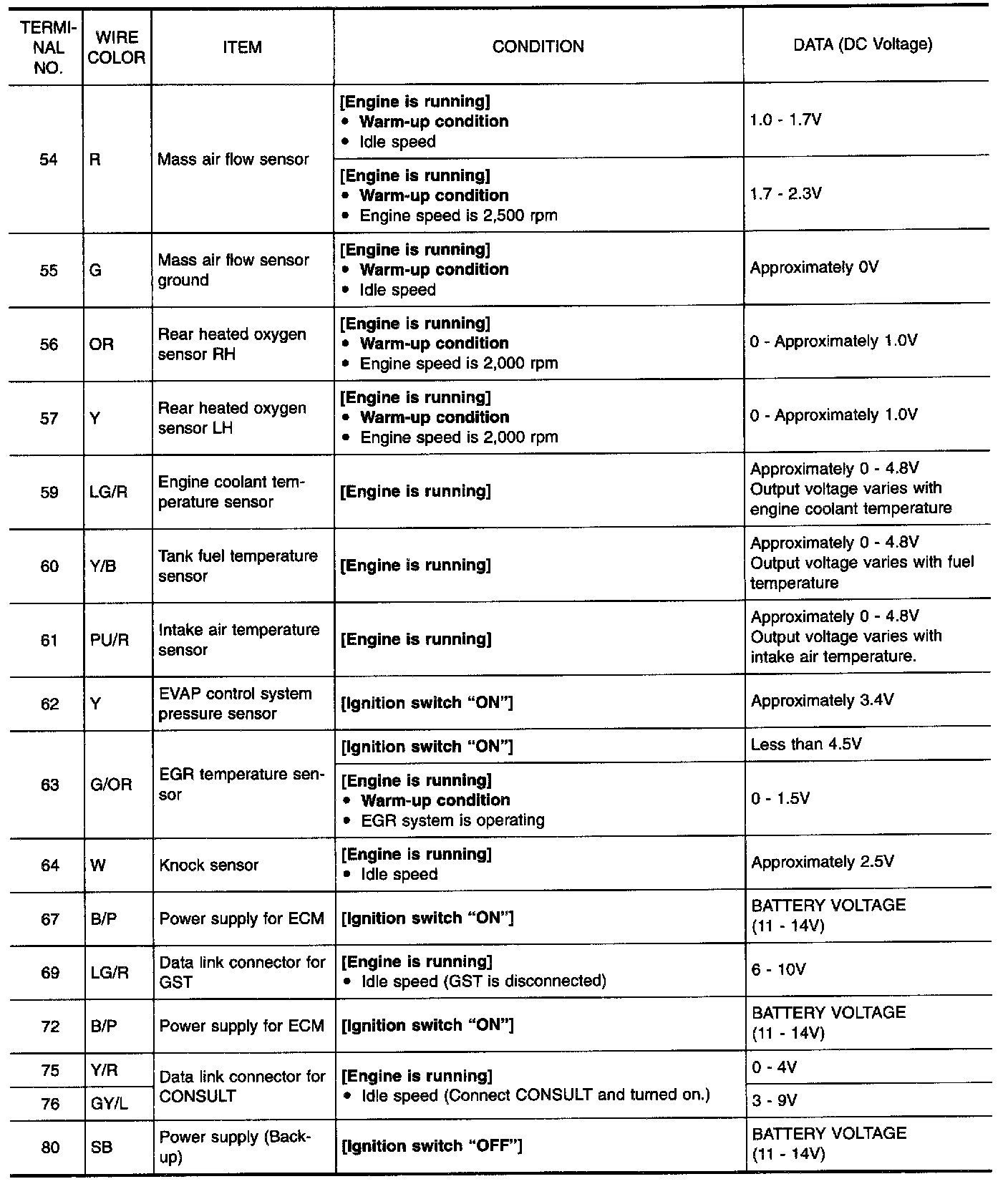

Terminals 54 Thru 80:

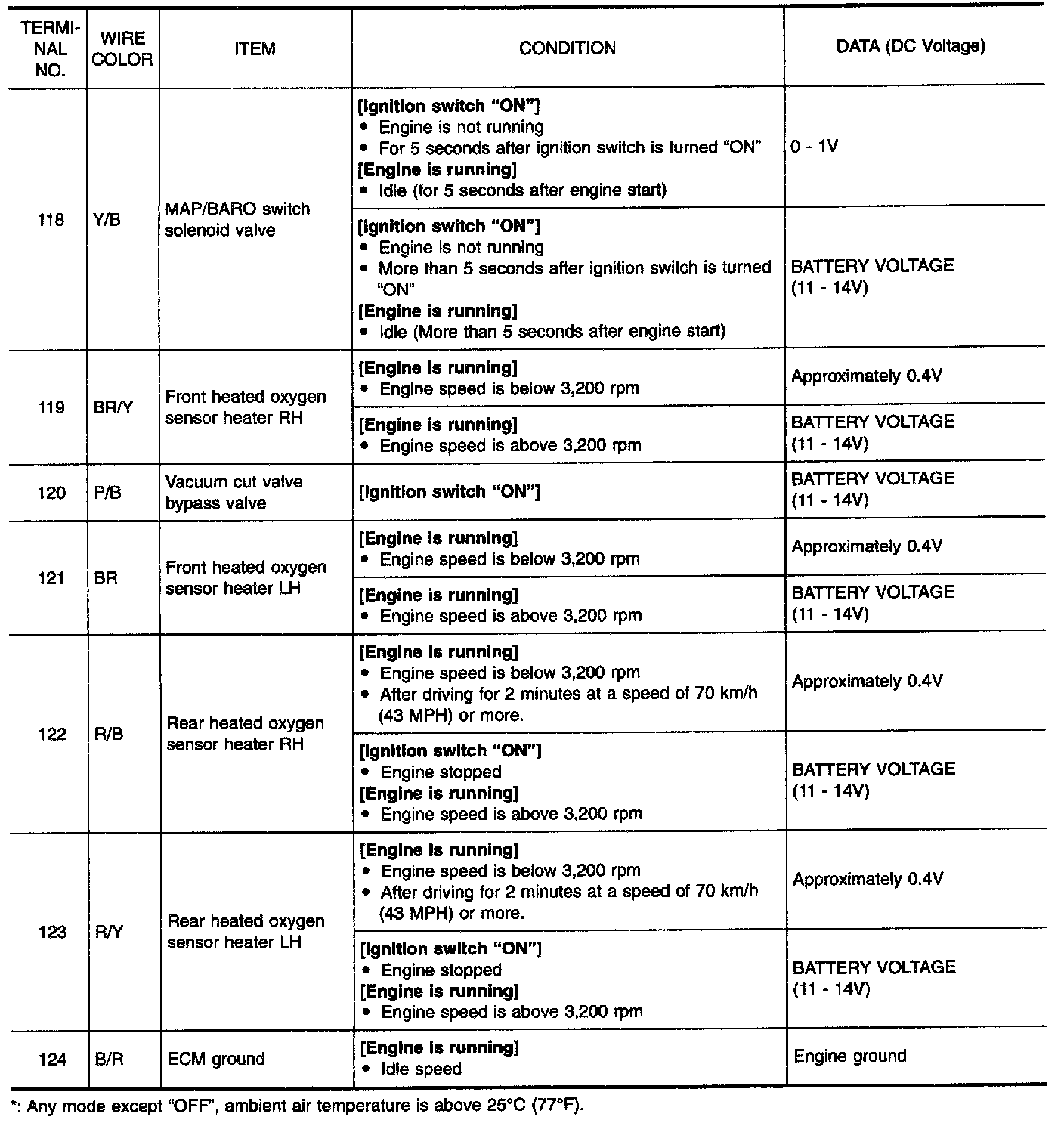

Terminals 101 Thru 117:

Terminals 118 Thru 124:

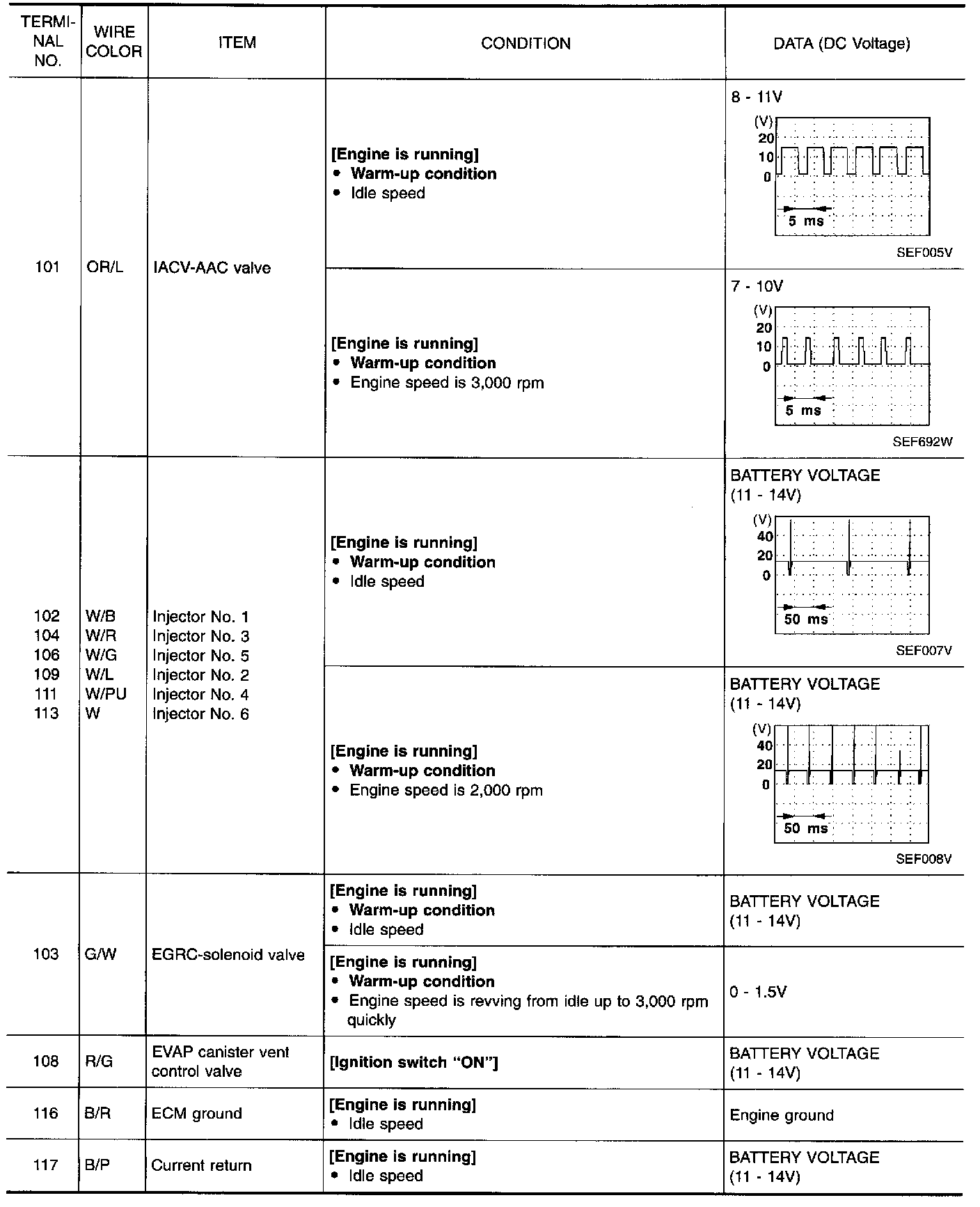

ECM INSPECTION TABLE
Specification data are reference values and are measured between each terminal and 32 (ECM ground).
