Engine Control Module (ECM)




Component Parts and Harness Connector Location

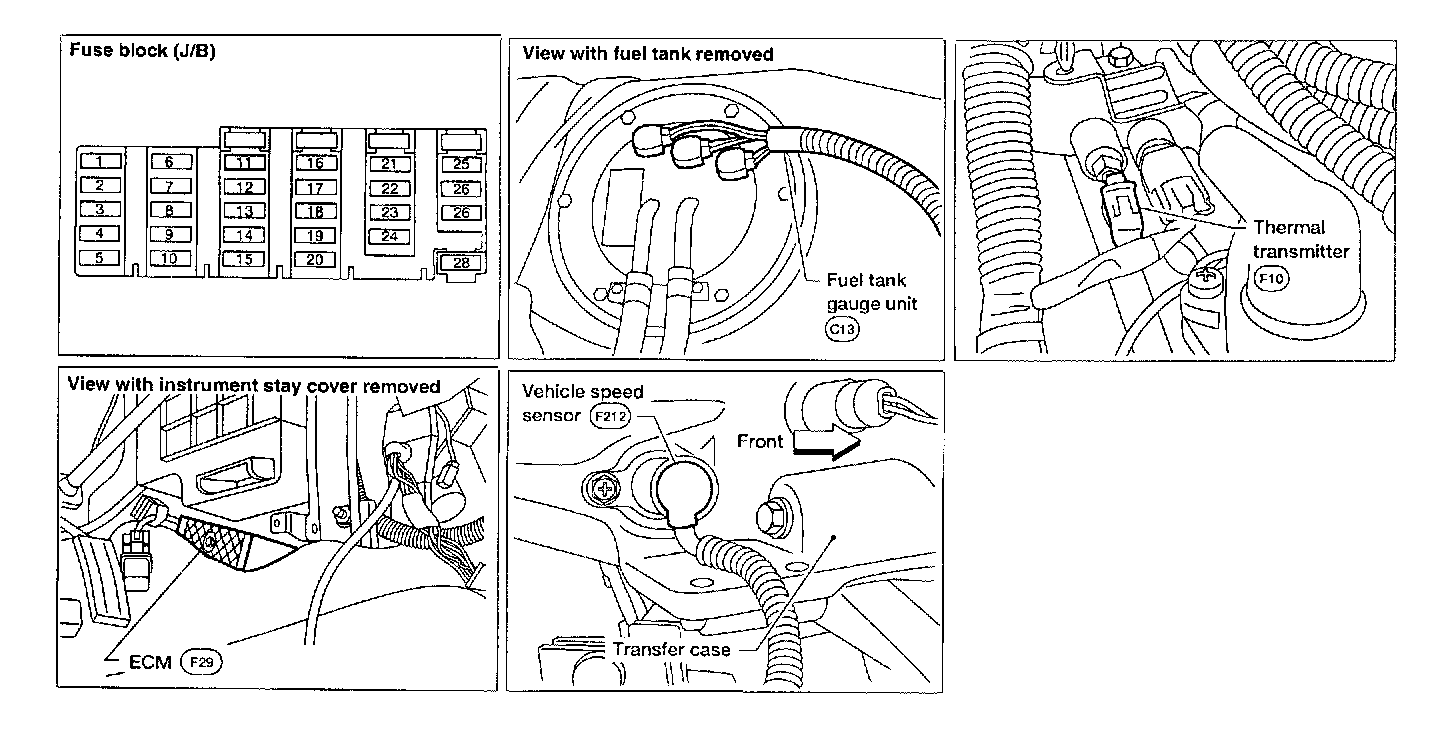

Part 1 Of 2:

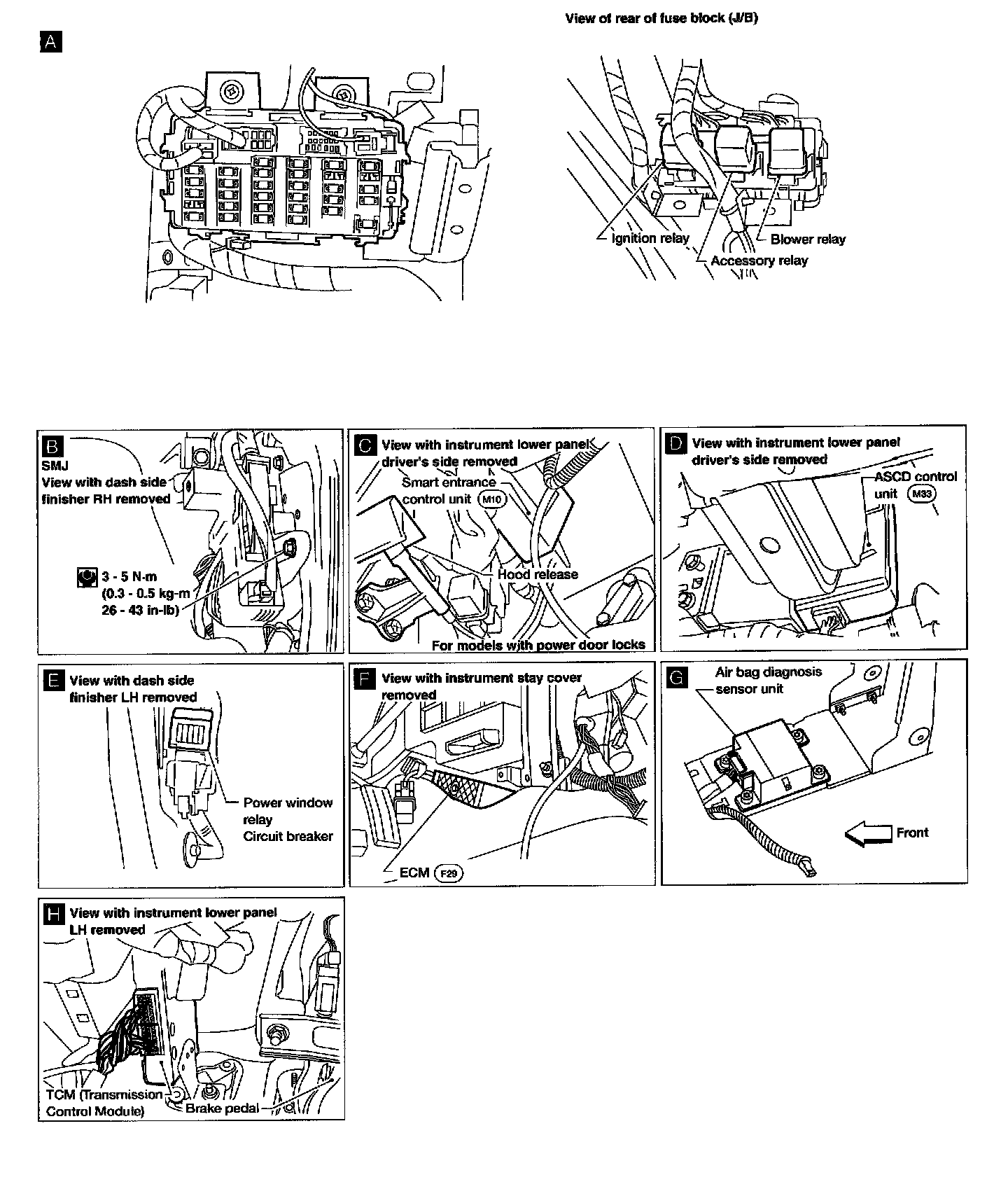

Part 2 Of 2:

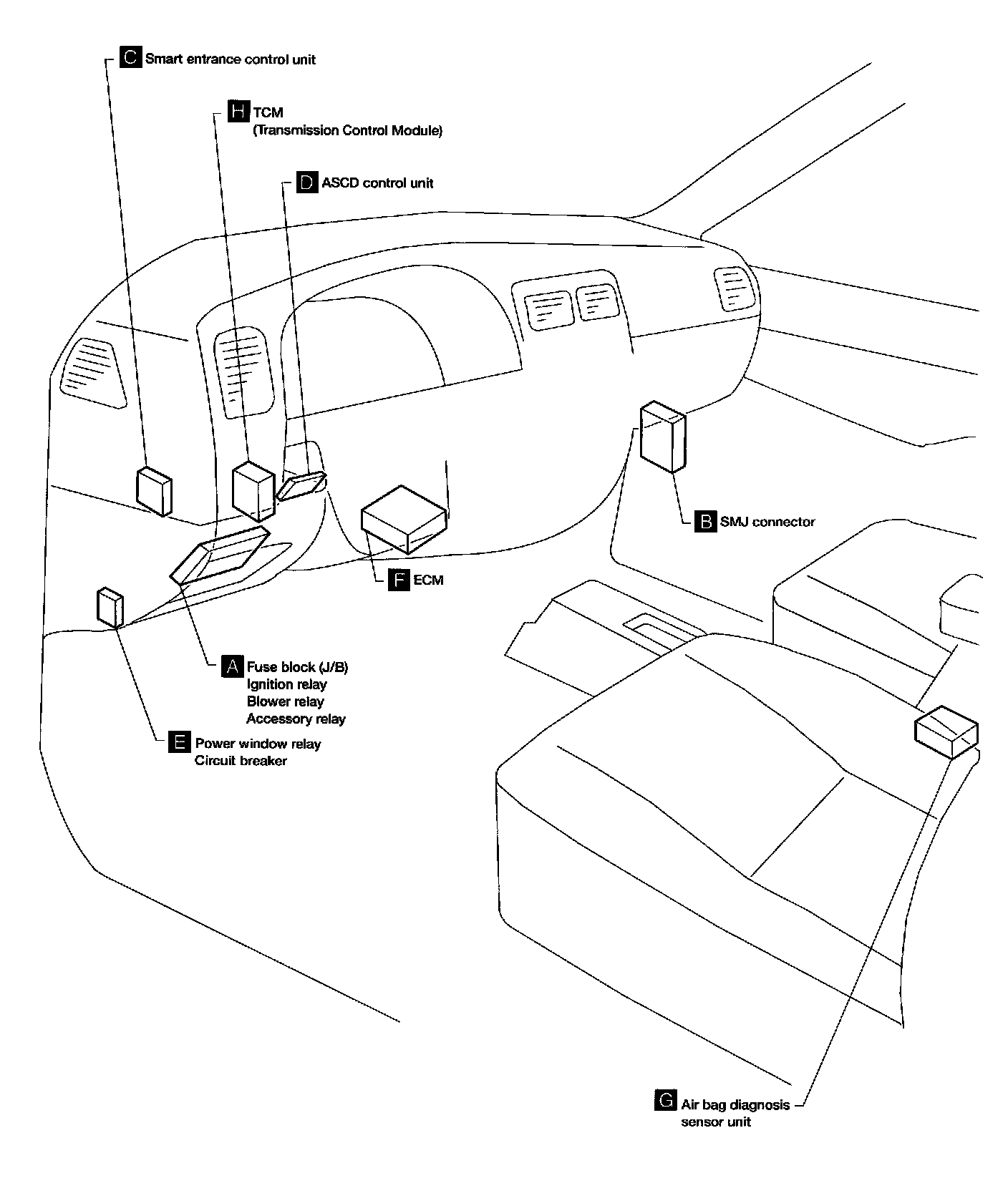

Passenger Compartment
