Scan Tool Testing and Procedures

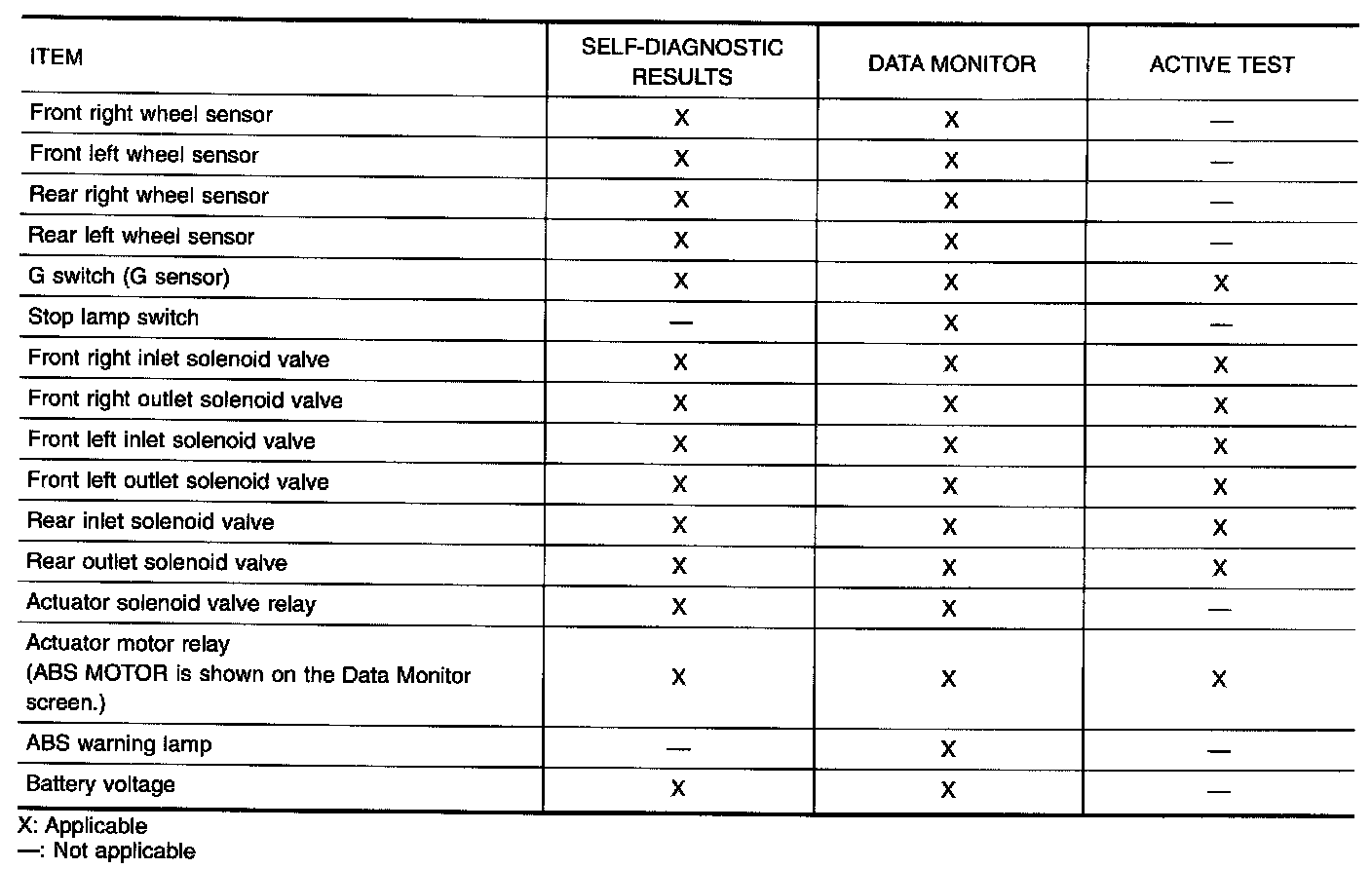

CONSULT APPLICATION TO ABS

ECU (ABS control unit) part number mode
Ignore the ECU part number displayed in the ECU PART NUMBER MODE. ECU (ABS control unit) is part of the ABS actuator and electric unit, serviced as an assembly.

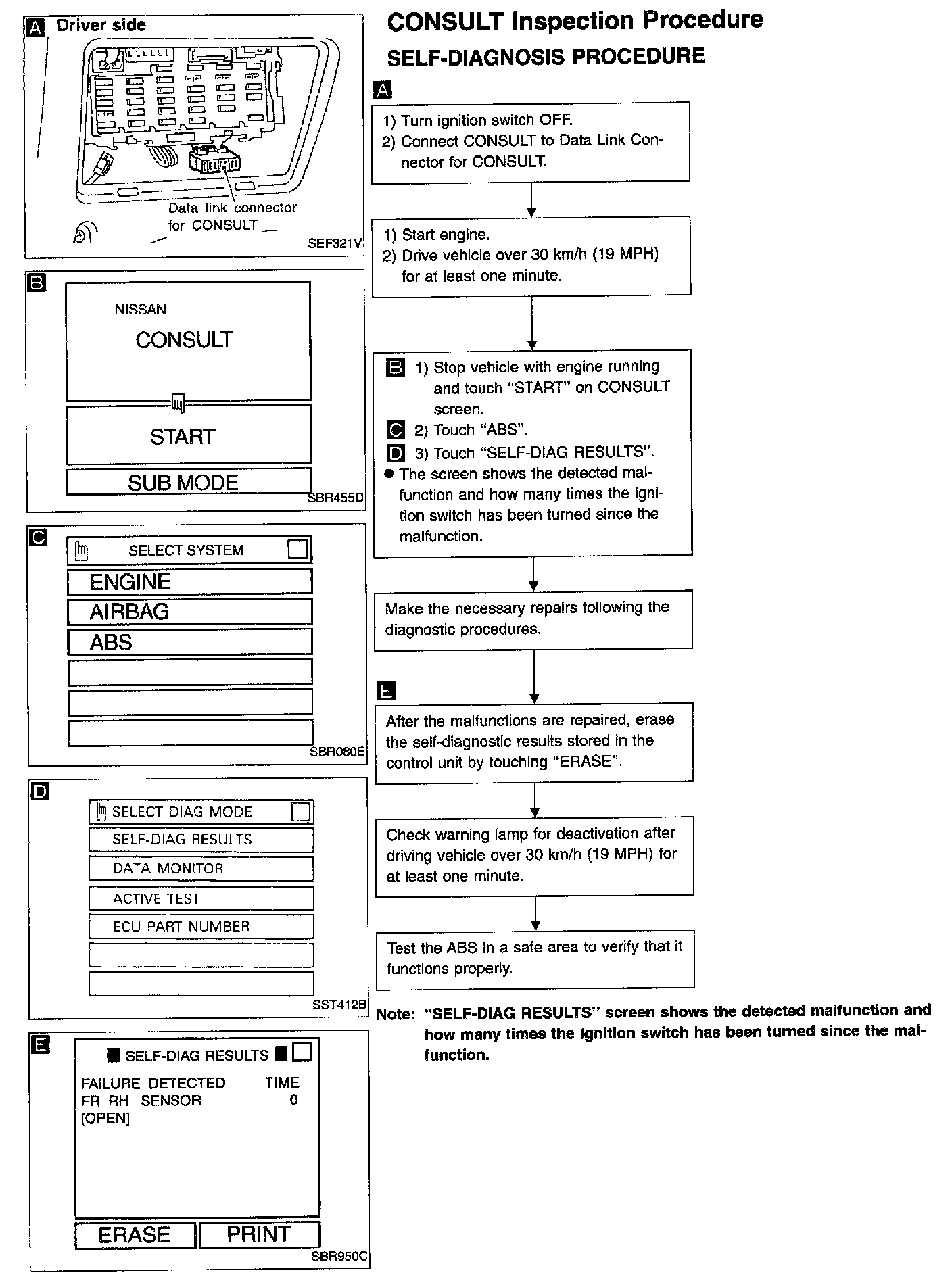

SELF-DIAGNOSIS PROCEDURE

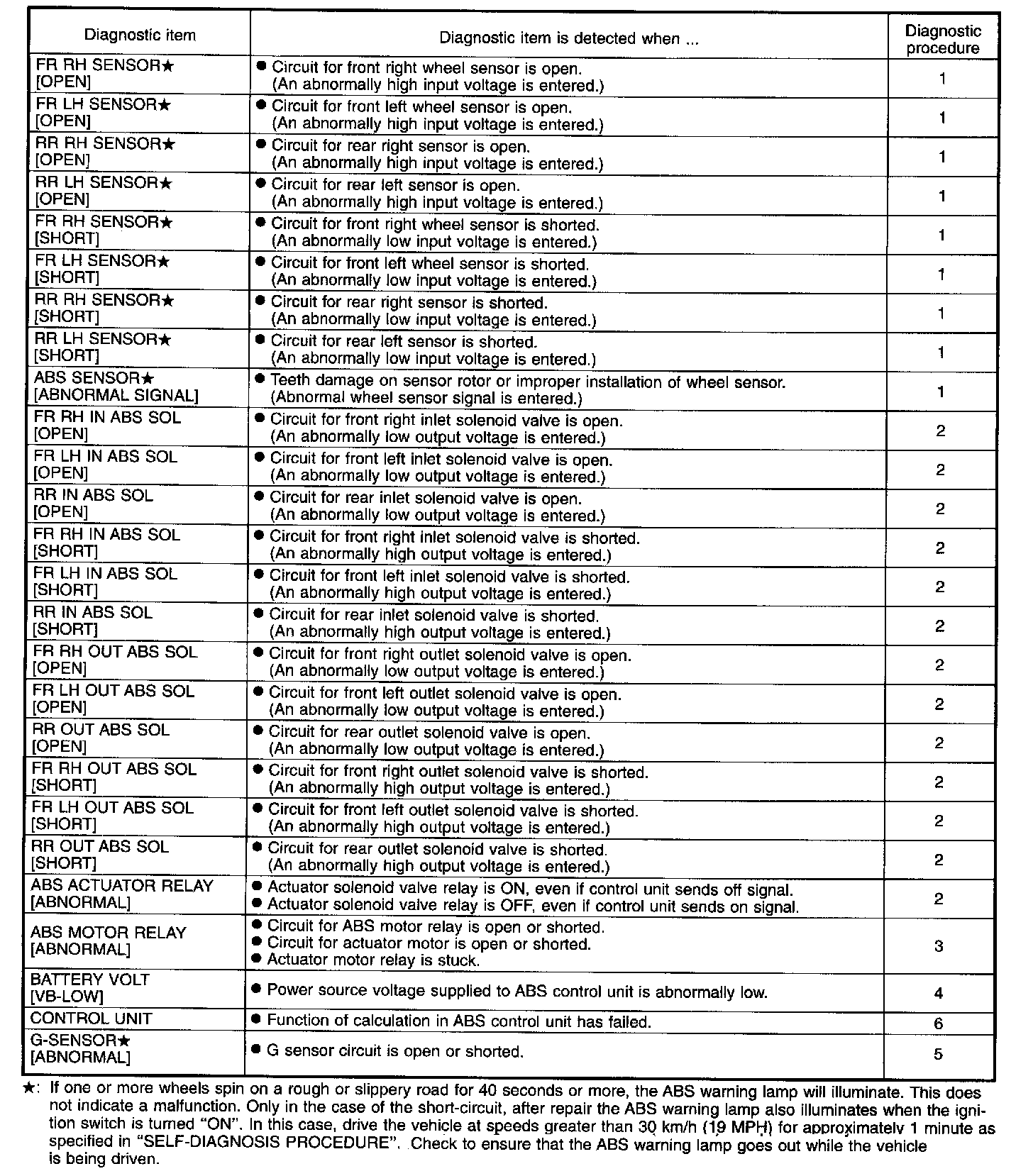

SELF-DIAGNOSTIC RESULTS MODE

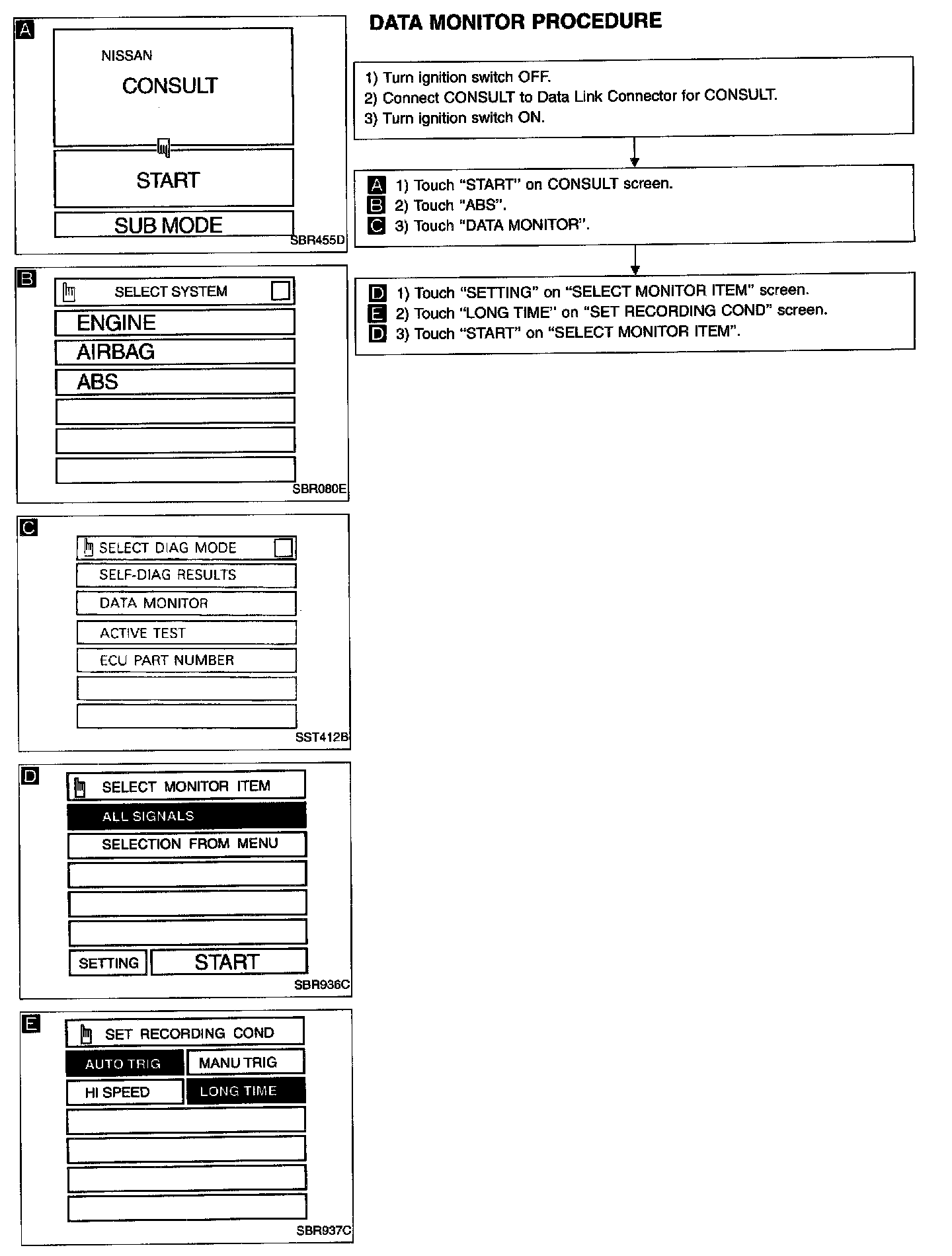

DATA MONITOR PROCEDURE

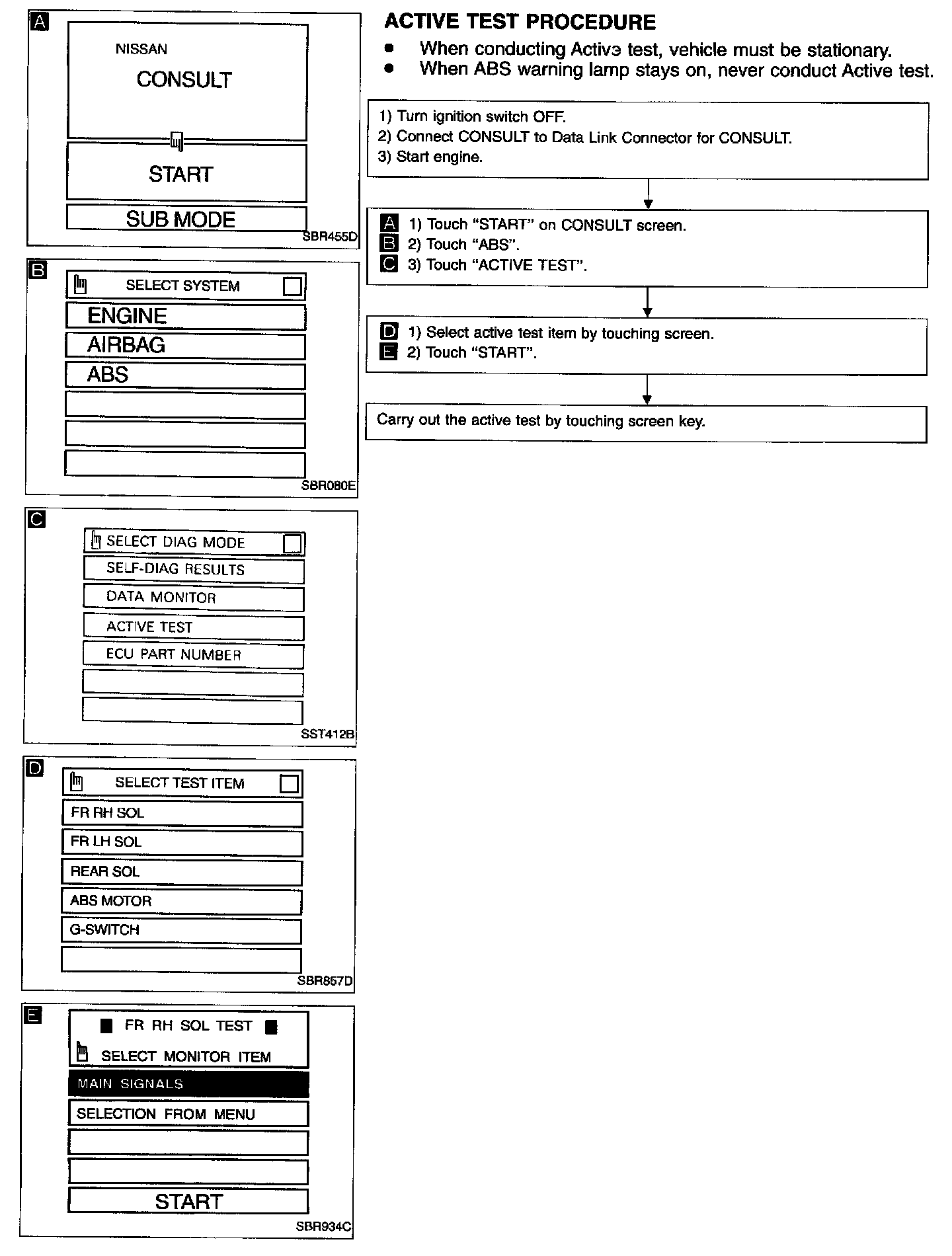

ACTIVE TEST PROCEDURE





- When conducting Active test, vehicle must be stationary.
- When ABS warning lamp stays on, never conduct Active test.

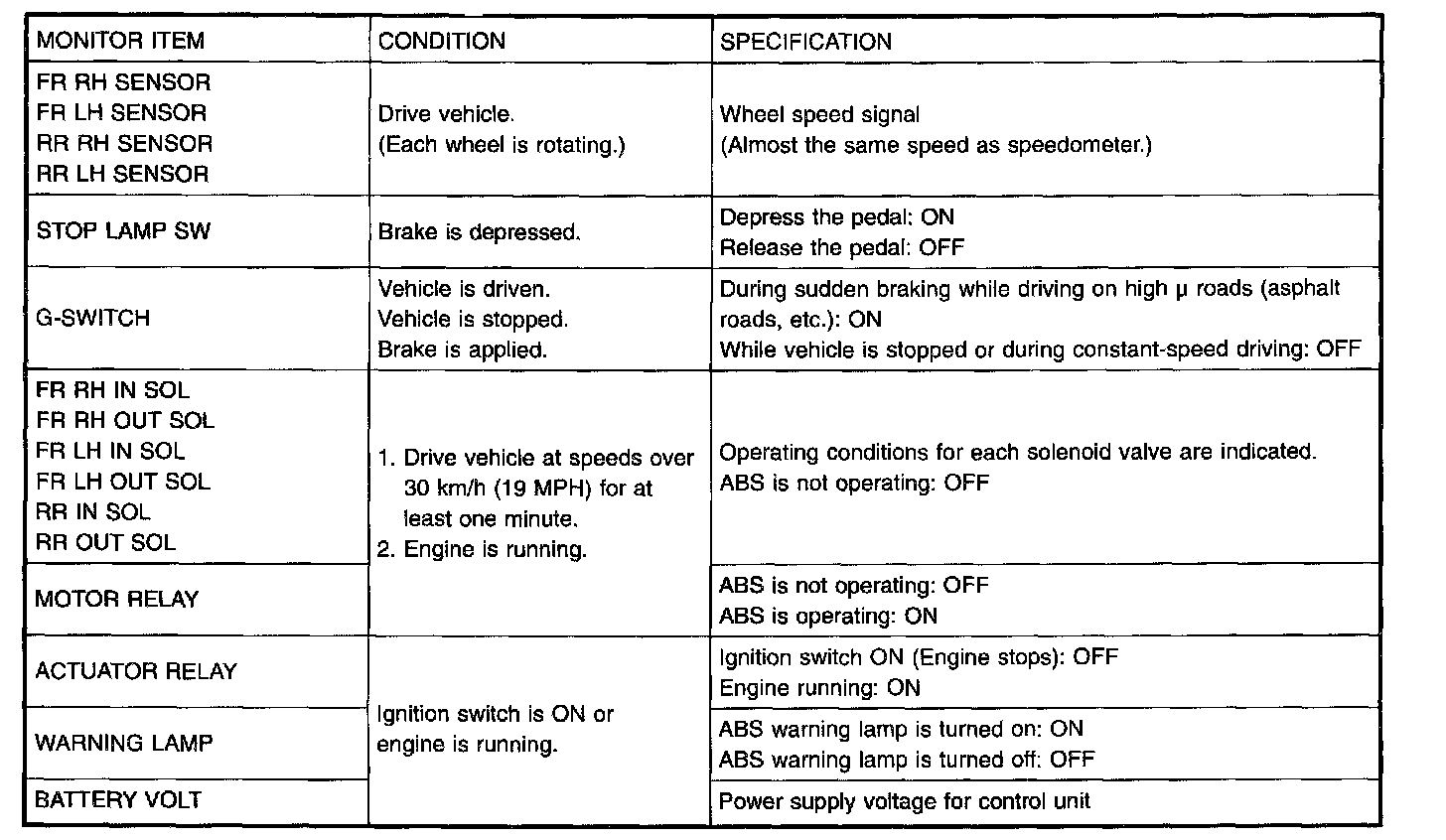

DATA MONITOR MODE

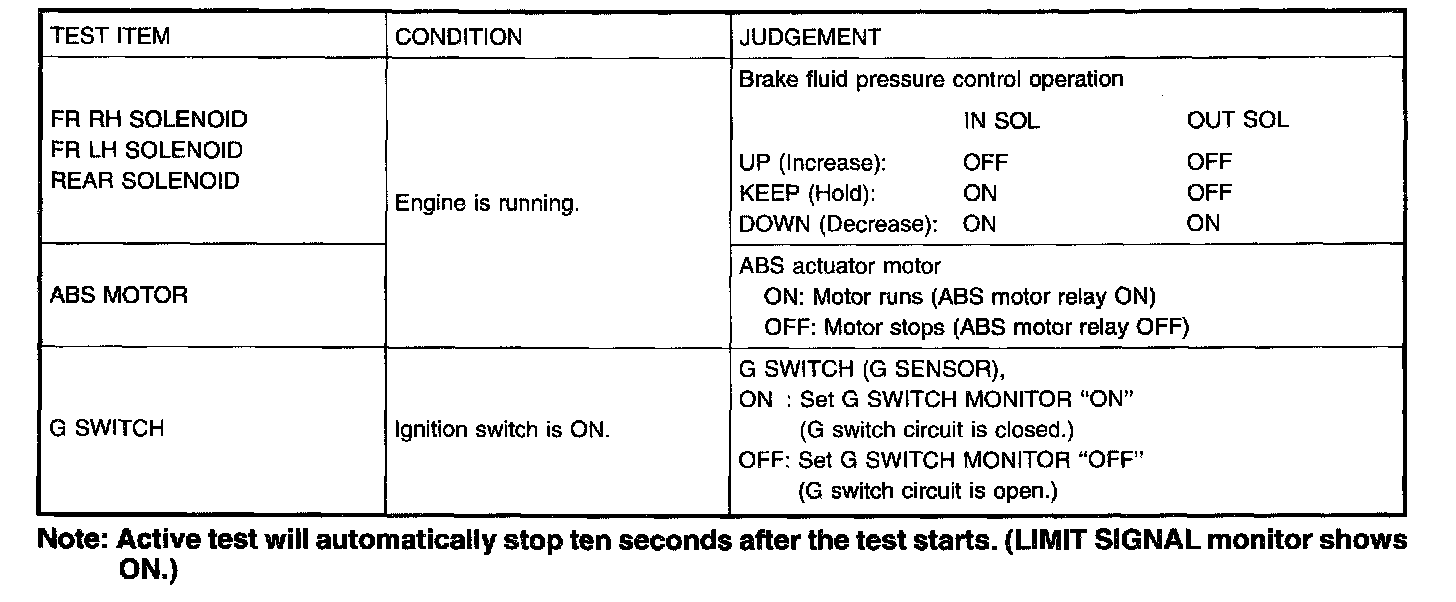

ACTIVE TEST MODE
