Trouble Diagnosis

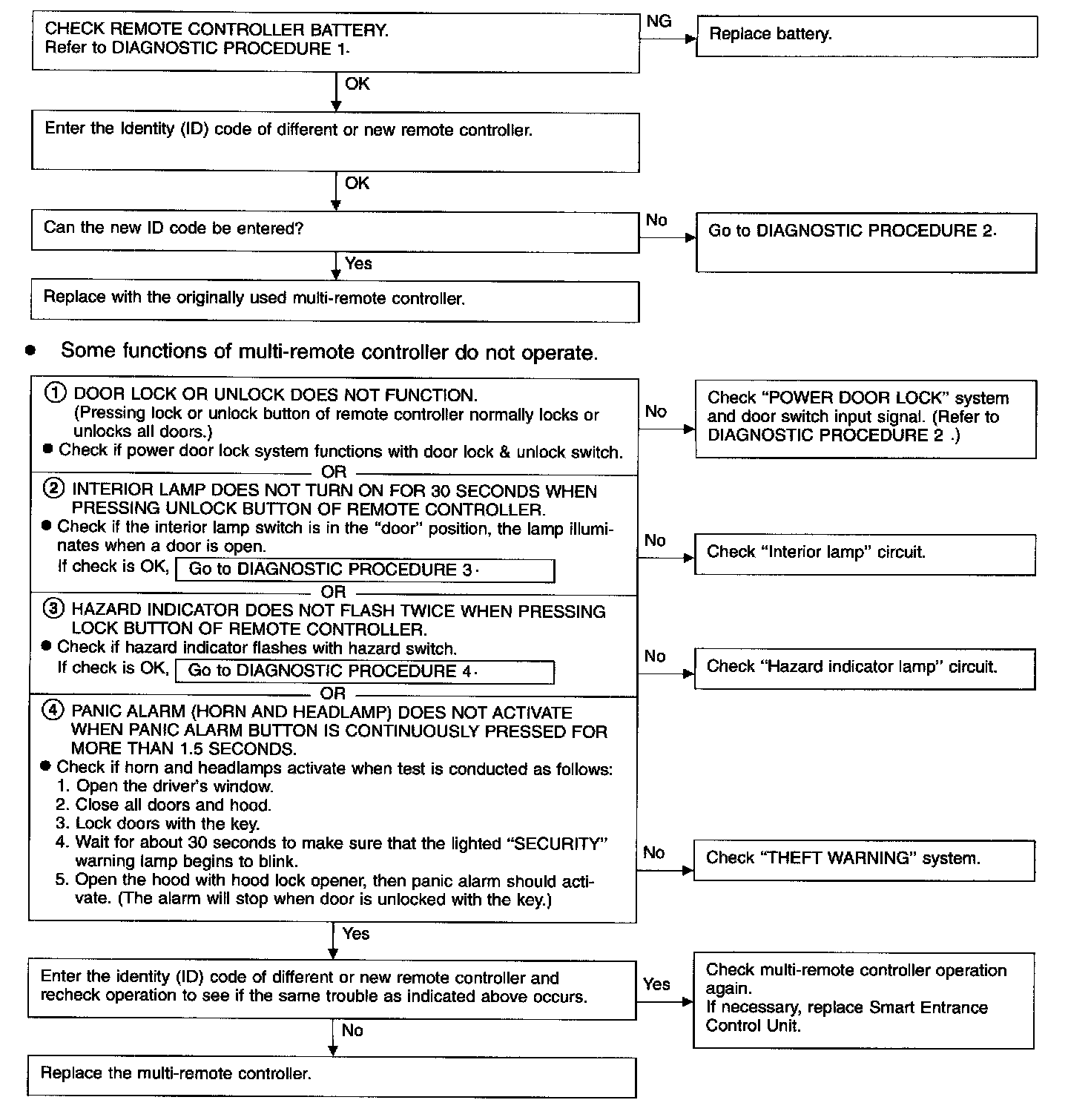

TROUBLE SYMPTOM
- All functions of remote control system do not operate.


NOTE:
- The unlock and panic alarm operation of the multi-remote control system does not activate with the ignition key inserted in the ignition key cylinder.
- The lock operation of the multi-remote control system does not activate with the key inserted in the ignition key cylinder or if one of the doors is opened.







DIAGNOSTIC PROCEDURE 1

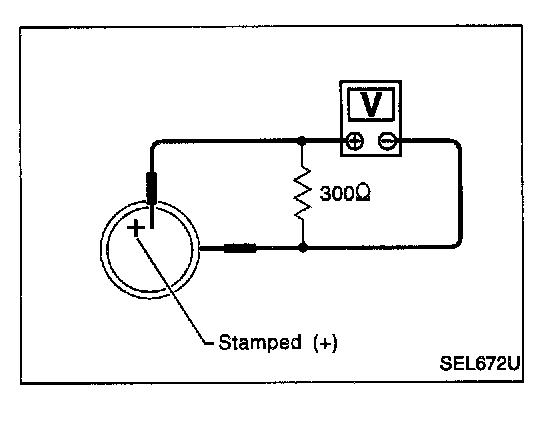

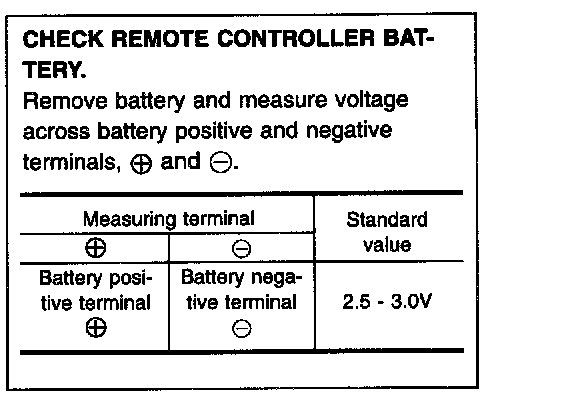

Check Remote Controller Battery.

NOTE: Remote controller does not function if battery is not set correctly.

To Part 2 Of 2:

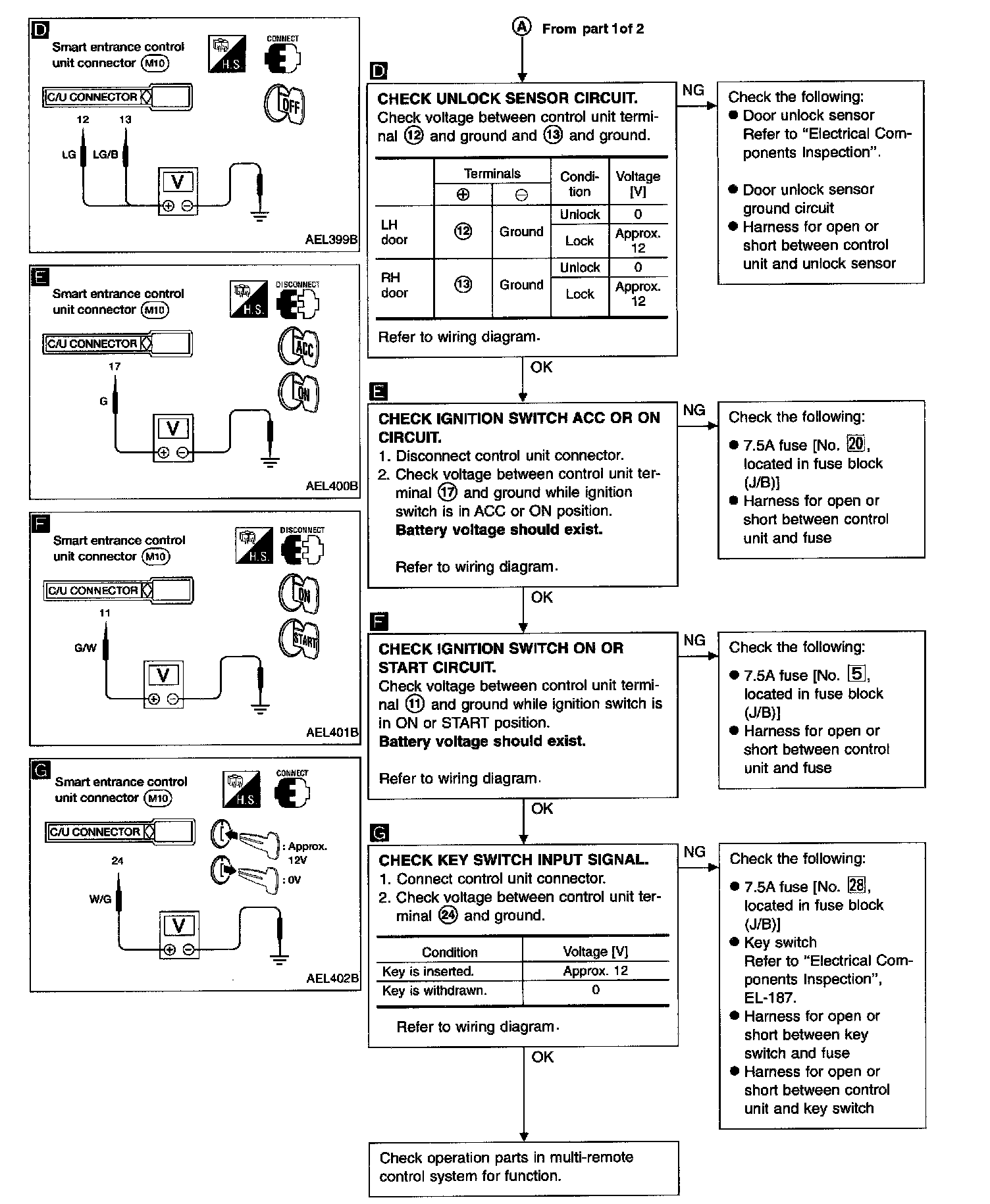

From Part 1 Of 2:

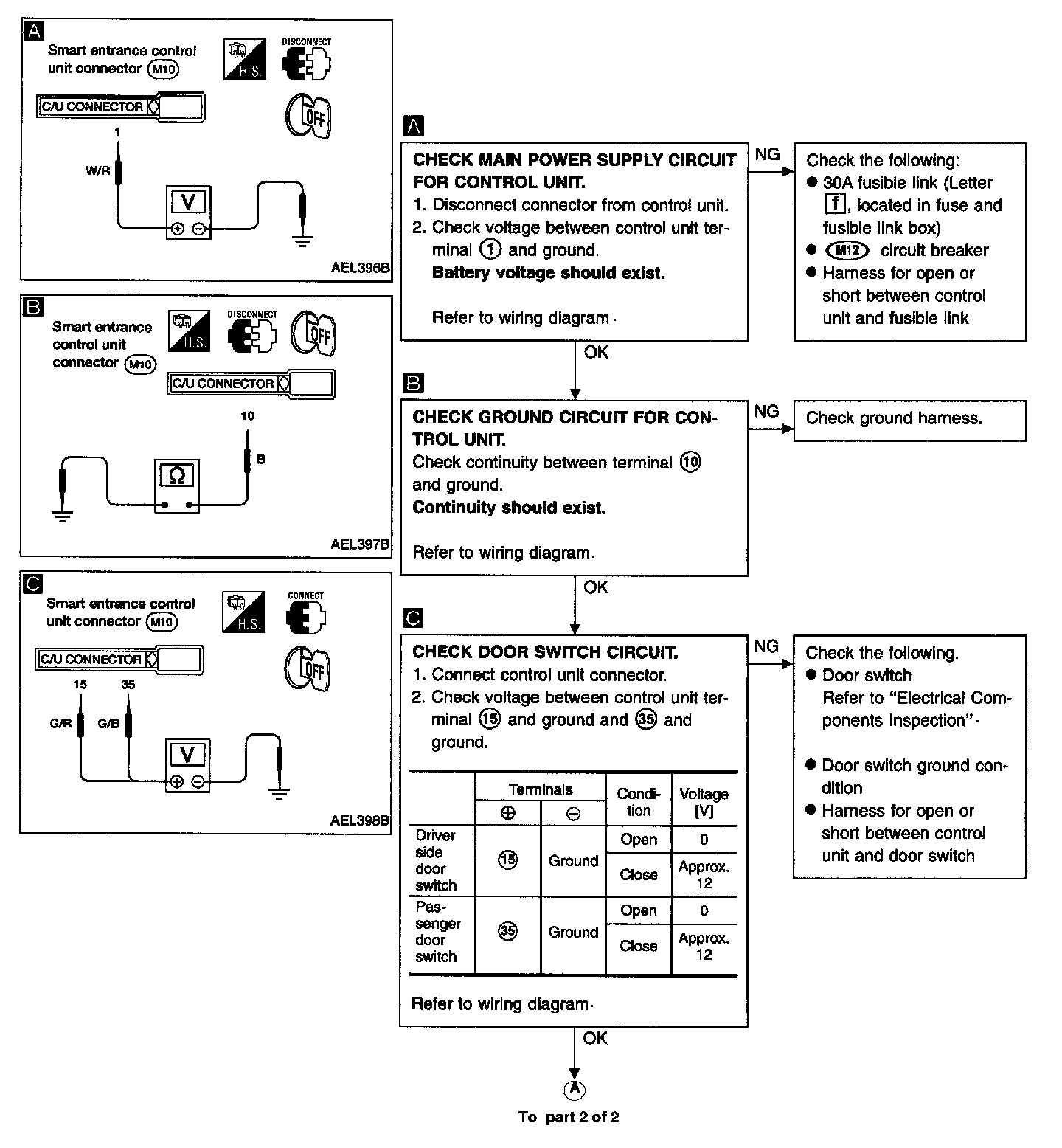

DIAGNOSTIC PROCEDURE 2
All remote controls do not function even it remote controller is operated properly.




DIAGNOSTIC PROCEDURE 3
Interior lamp does not turn on for 30 seconds when pressing unlock button of remote controller. Everything else functions.

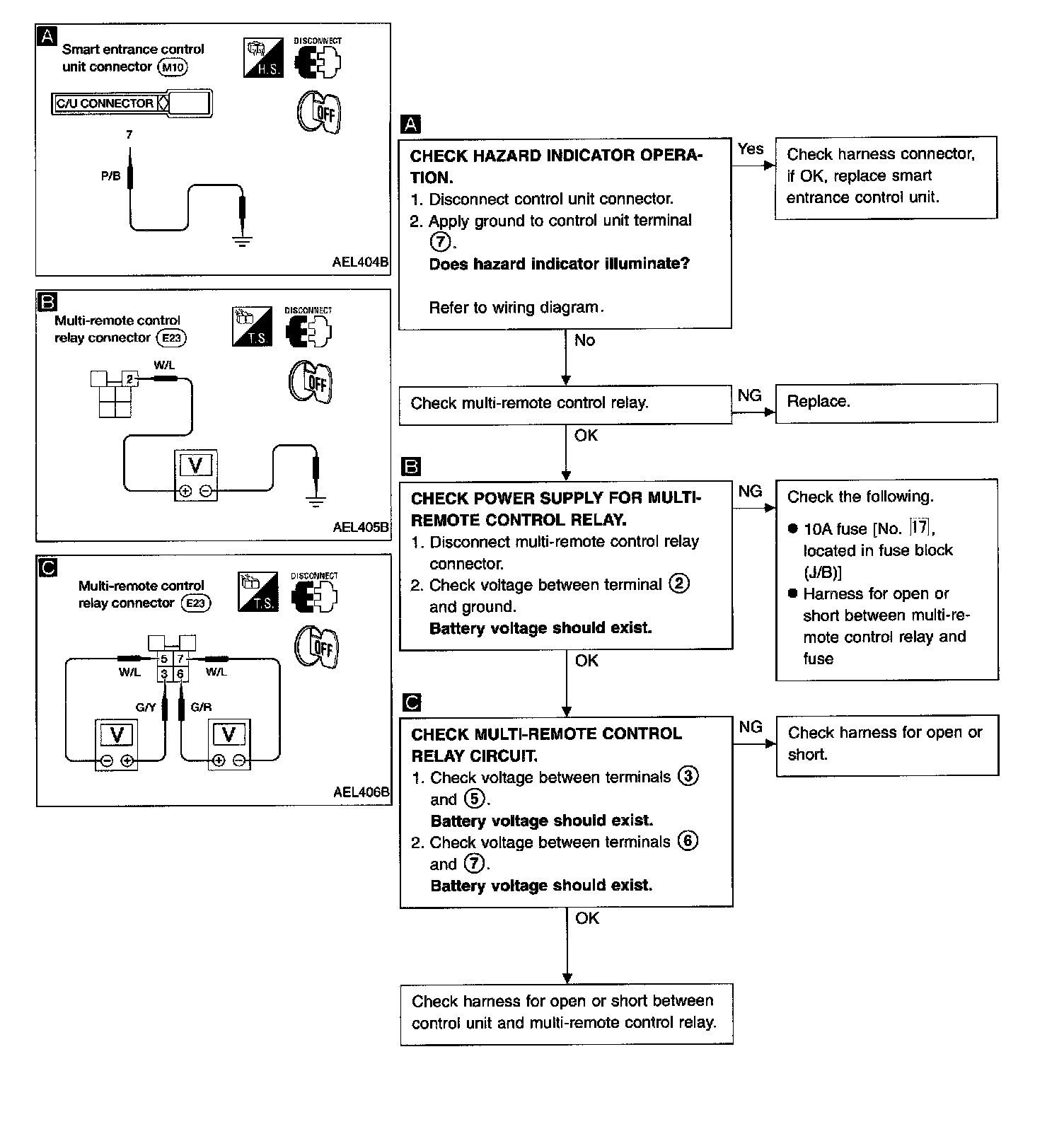

DIAGNOSTIC PROCEDURE 4
Hazard indicator does not flash twice when pressing lock button of remote controller. Everything else functions.
