Home >> Nissan-Datsun Truck >> 1999 >> Frontier XE King Cab 4WD V6-3.3L (VG33E) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Keyless Entry >> Locations >> Multi-Remote Control Relay

Multi-Remote Control Relay

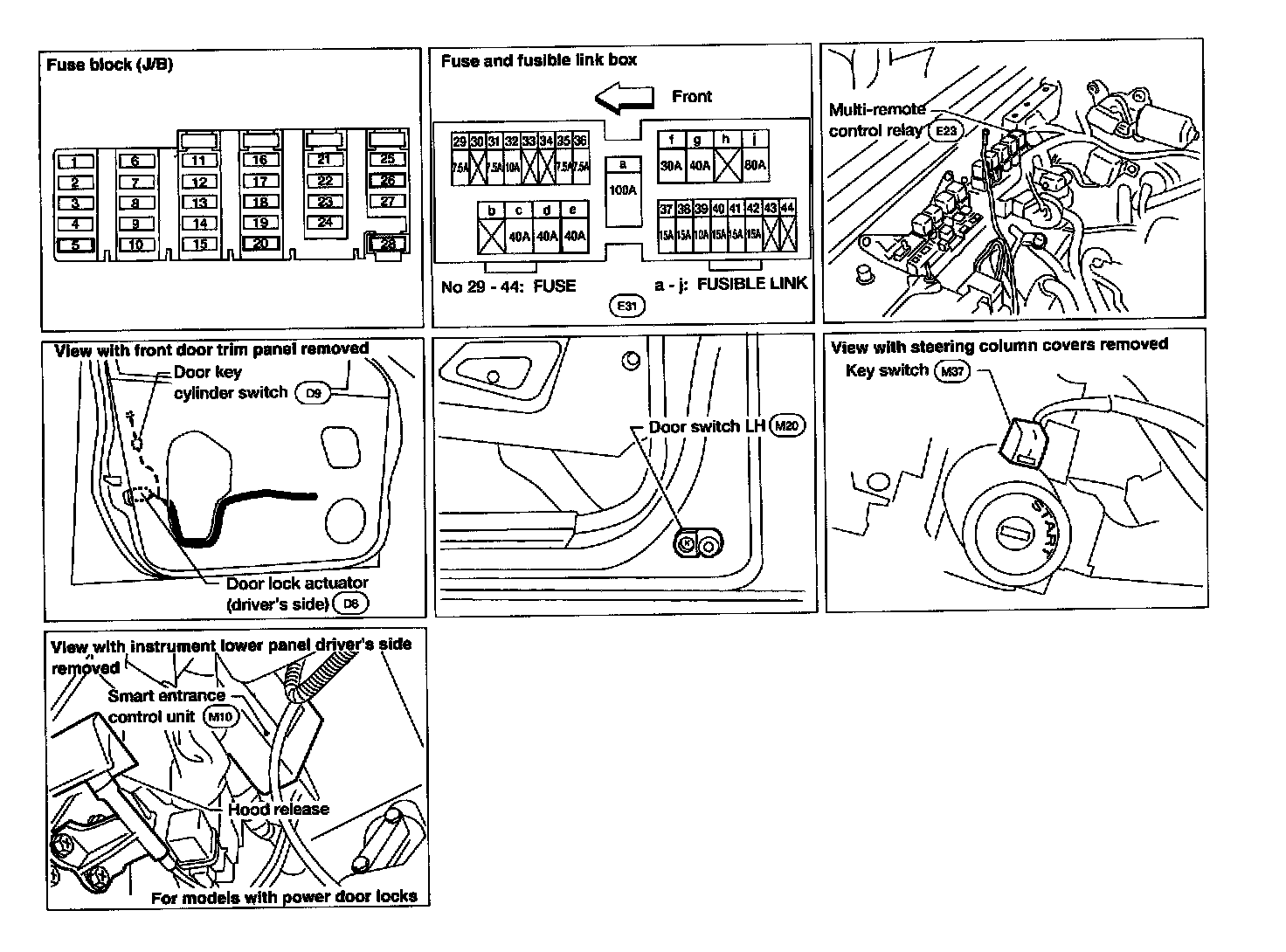

Component Parts and Harness Connector Location

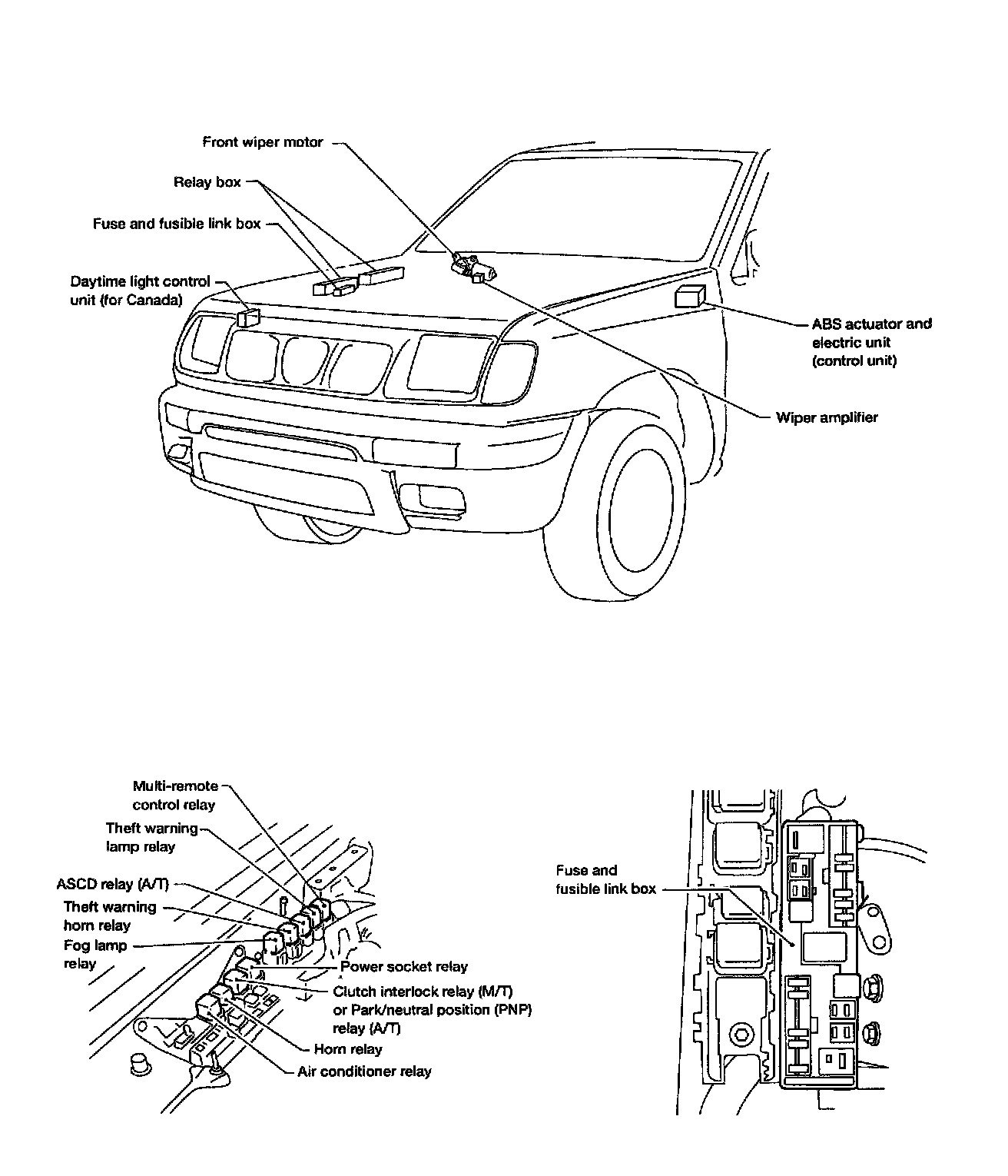

Engine Compartment
