Multi-Remote Control System

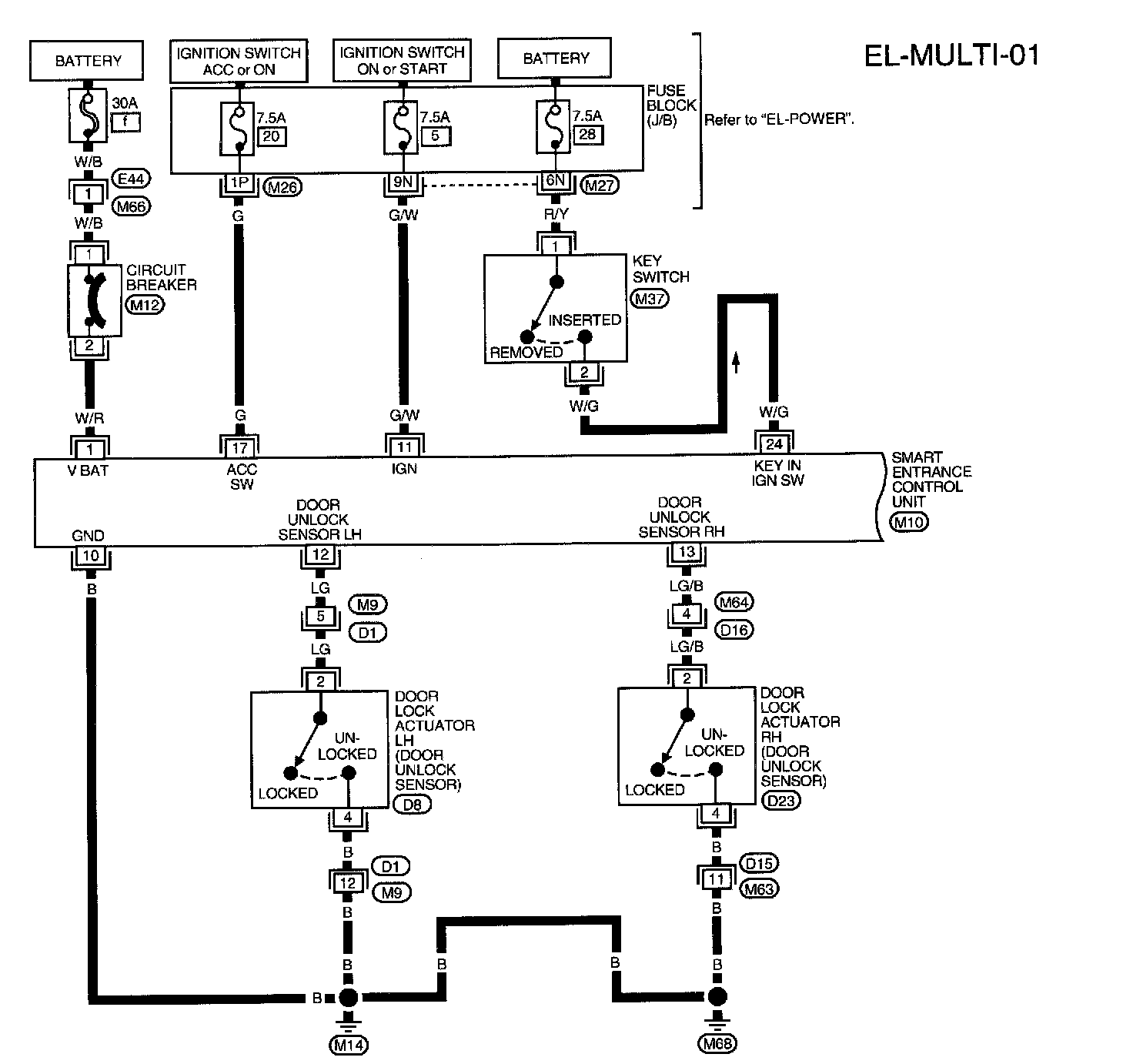

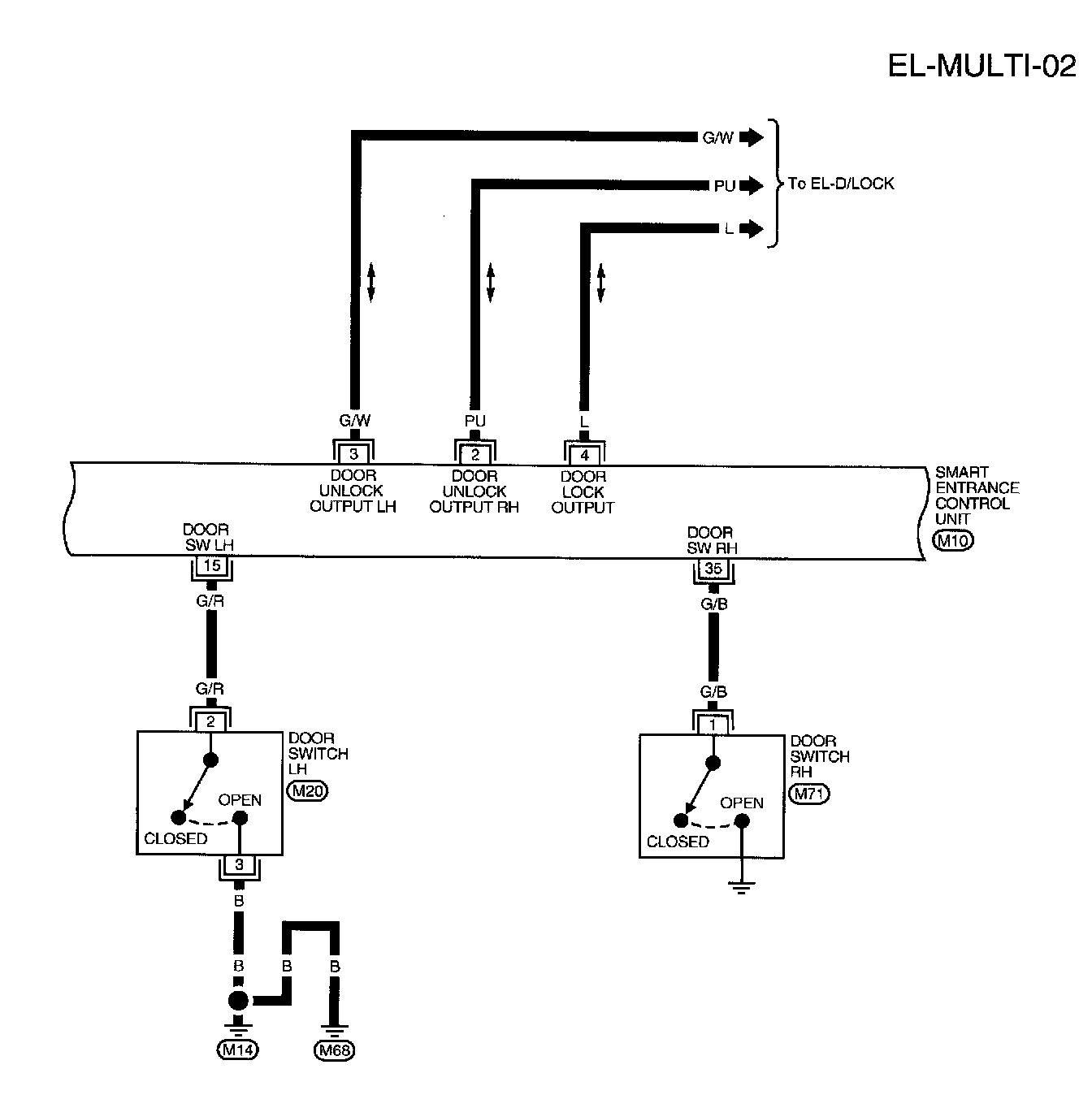

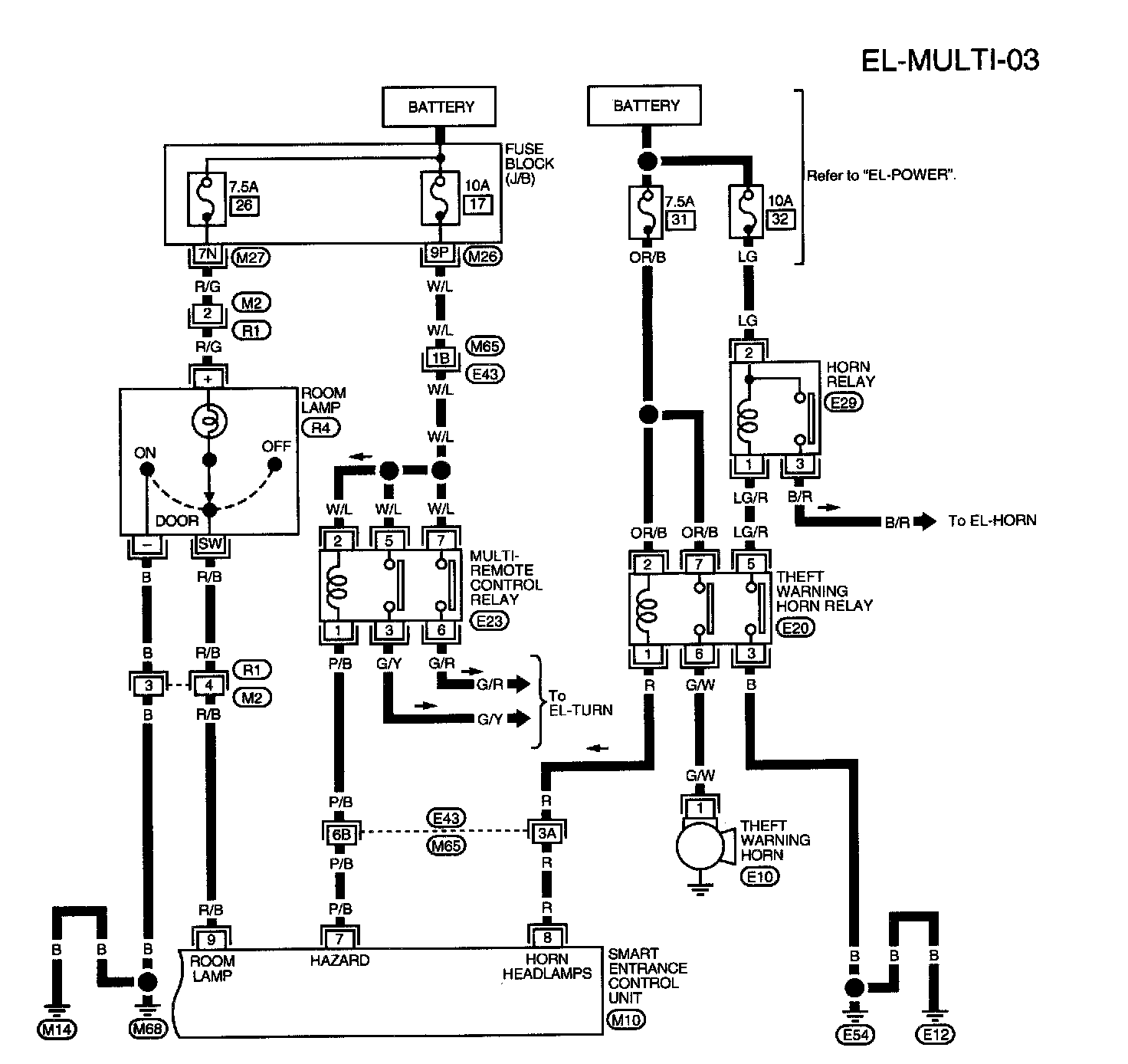

Schematic

Part 1 Of 3:

Part 2 Of 3:

Part 3 Of 3:

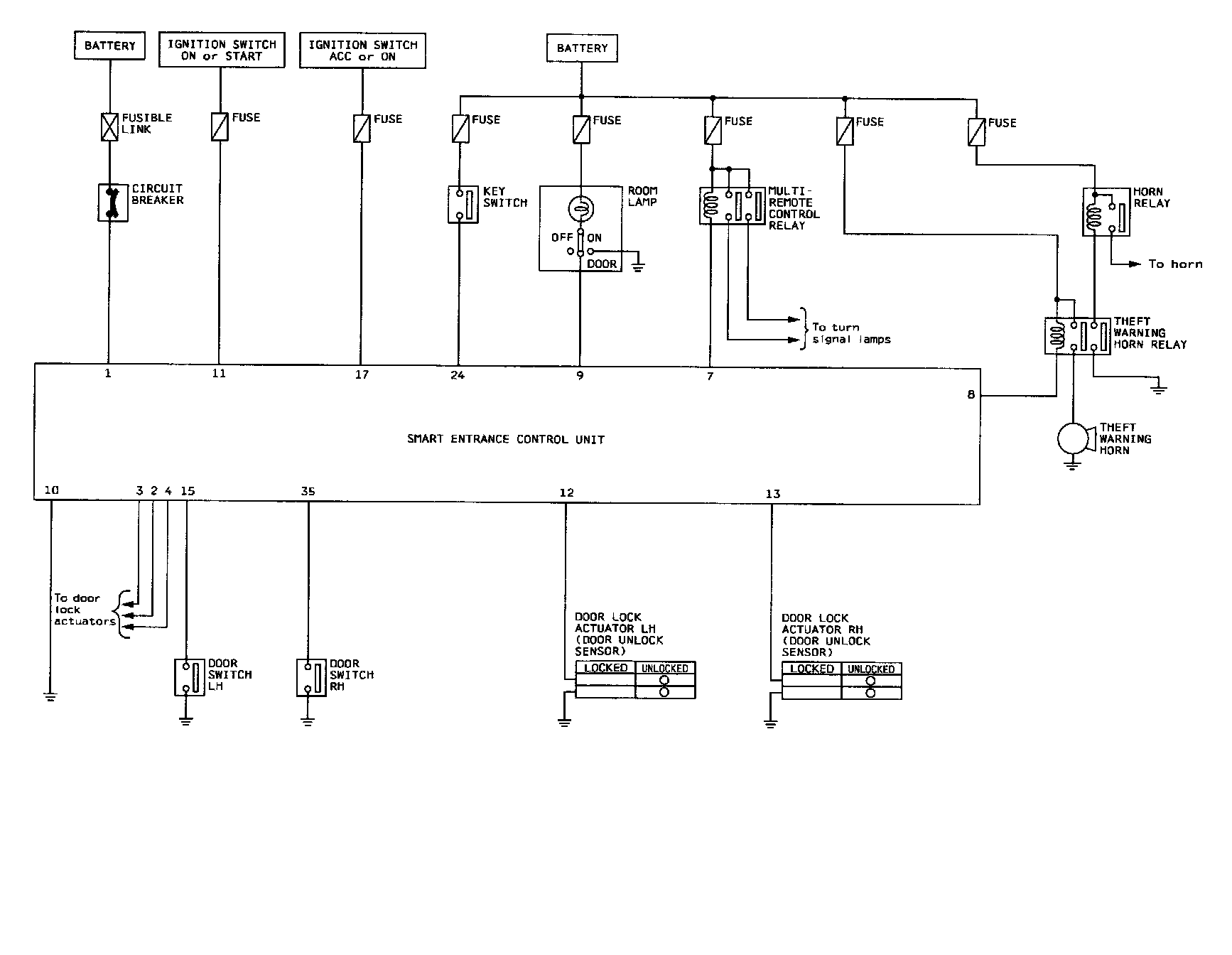

Circuit Diagrams

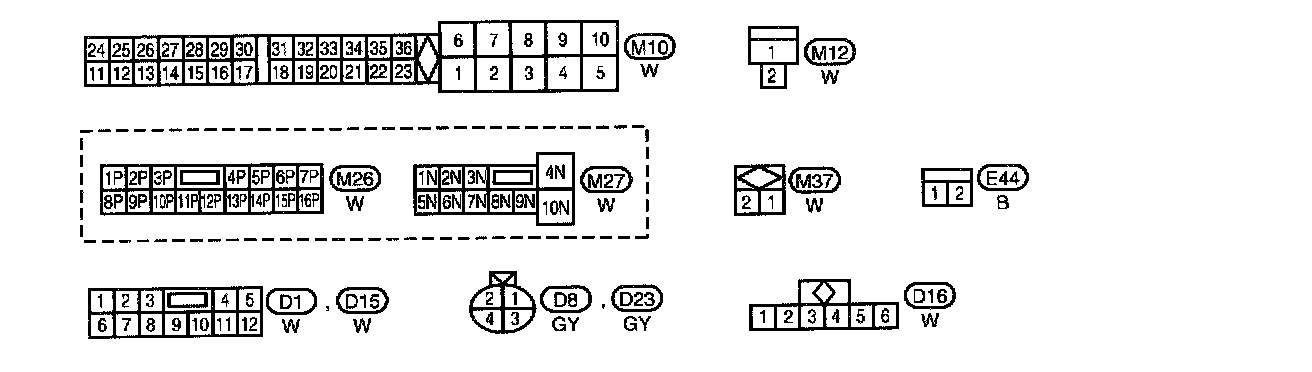

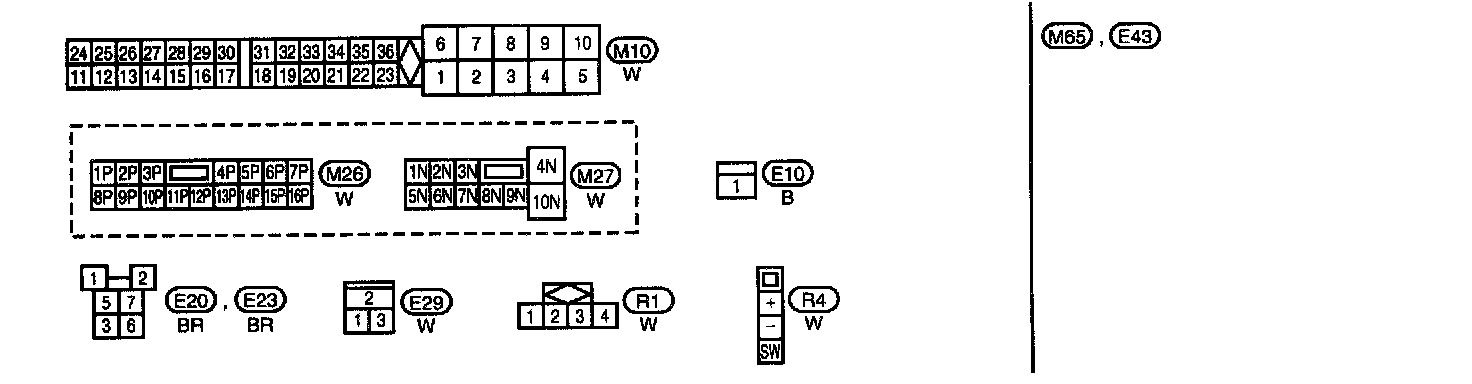

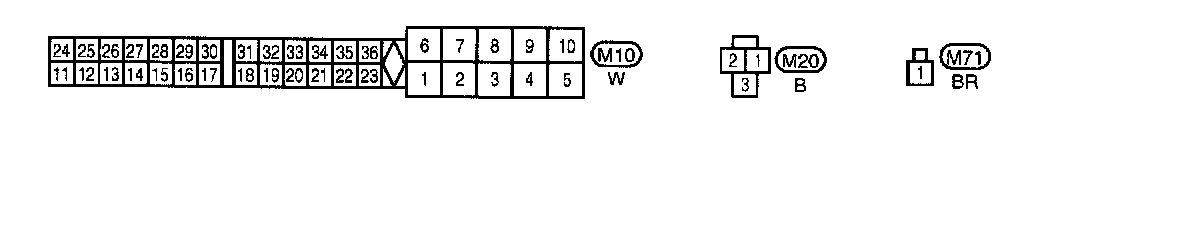

Circuit Connectors

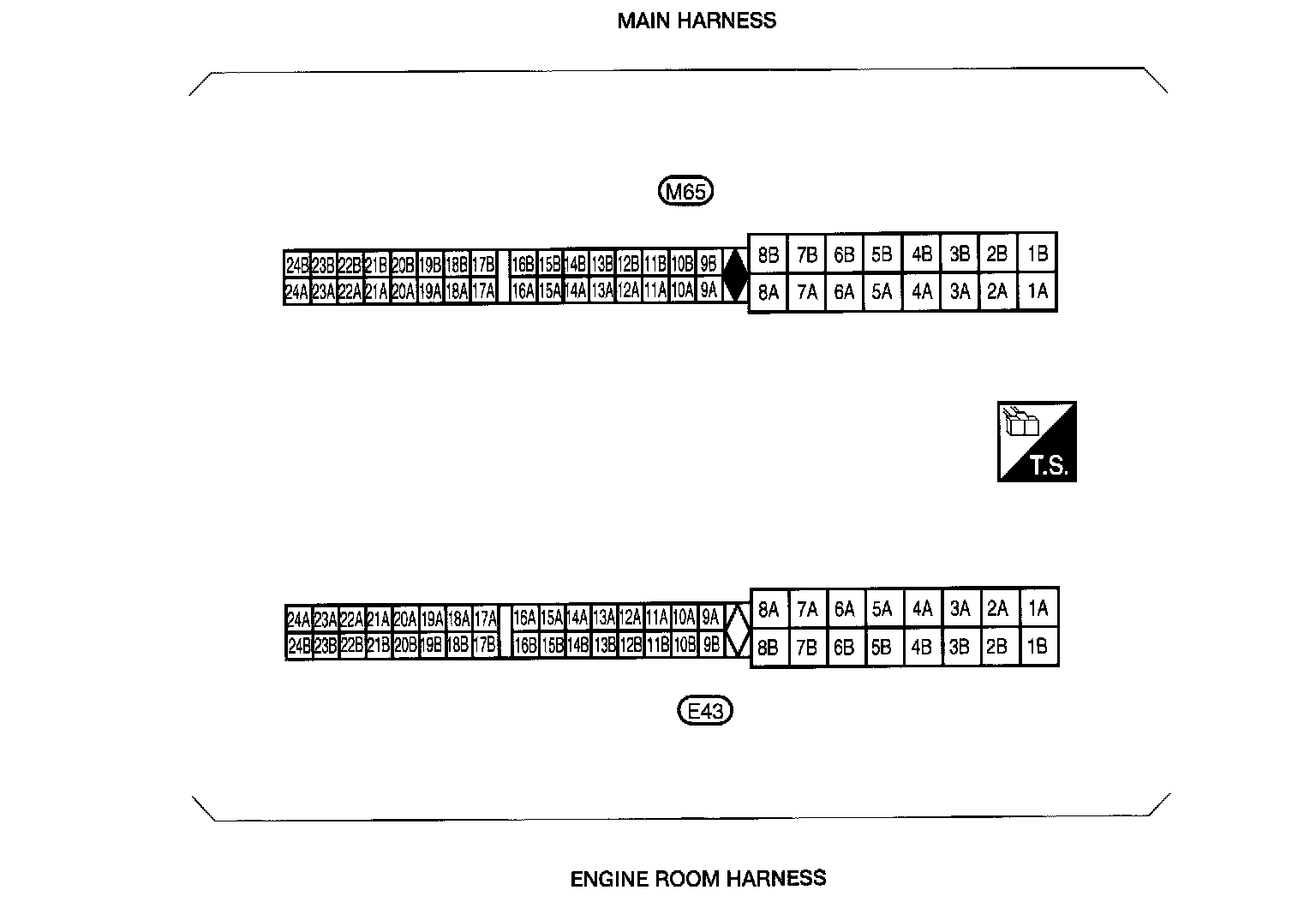

M65, E43 Super Multiple Junction (SMJ) Terminal Arrangement
