P1760

DESCRIPTION





The overrun clutch solenoid valve is activated by the TCM in response to signals sent from the park/neutral position (PNP) switch, overdrive control switch, vehicle speed and throttle position sensors. The overrun clutch operation will then be controlled.

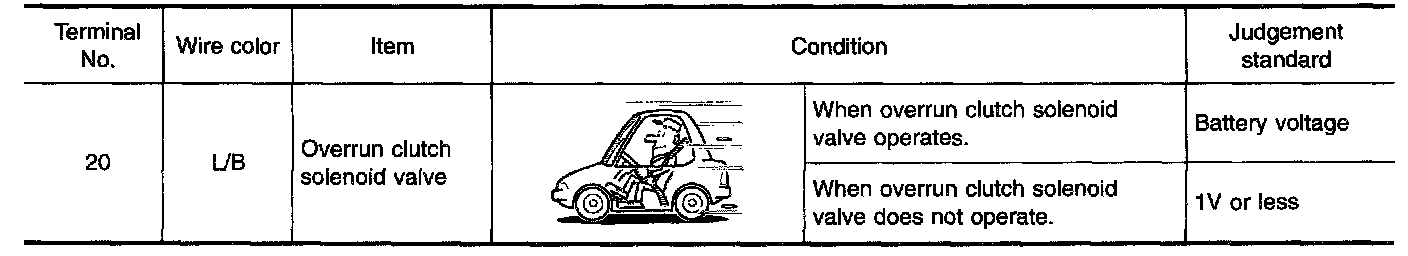

TCM TERMINALS AND REFERENCE VALUE

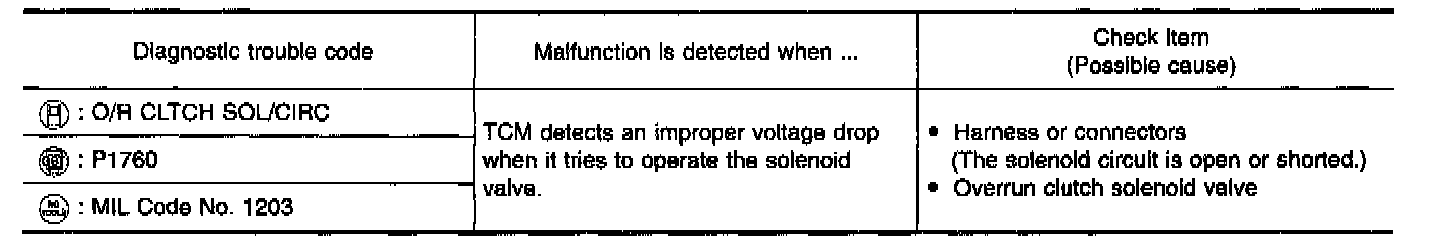

ON BOARD DIAGNOSIS LOGIC





DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCEDURE

CAUTION: Always drive vehicle at a safe speed.

NOTE: If "DIAGNOSTIC TROUBLE CODE CONFIRMATION PROCEDURE" has been previously conducted, always turn ignition switch OFF and wait at least 5 seconds before conducting the next test.

TESTING CONDITION: Always drive vehicle on a level road to improve accuracy of test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
With CONSULT

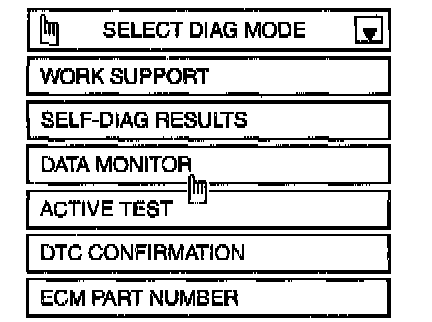

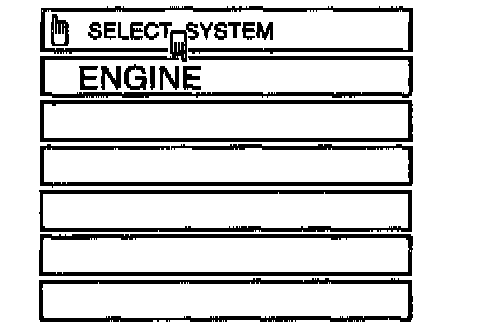

1. Turn ignition switch ON and select "DATA MONITOR" mode for "ENGINE" with CONSULT.
2. Start engine.
3. Accelerate vehicle to a speed of more than 10 km/h (6MPH) in D position (O/D ON).
4. Release accelerator pedal completely in D position (O/D OFF).

With GST
1. Start engine.
2. Drive vehicle under the following conditions: Selector lever in D position, overdrive control switch in OFF position and vehicle speed higher than 10 km/h (6 MPH).
3. Select "MODE 7" with GST.

With No Tools
1. Start engine.
2. Drive vehicle under the following conditions: Selector lever in D position, overdrive control switch in OFF position and vehicle speed higher than 10 km/h (6 MPH).
3. Perform self-diagnosis for ECM. Refer to Computers and Control Systems.

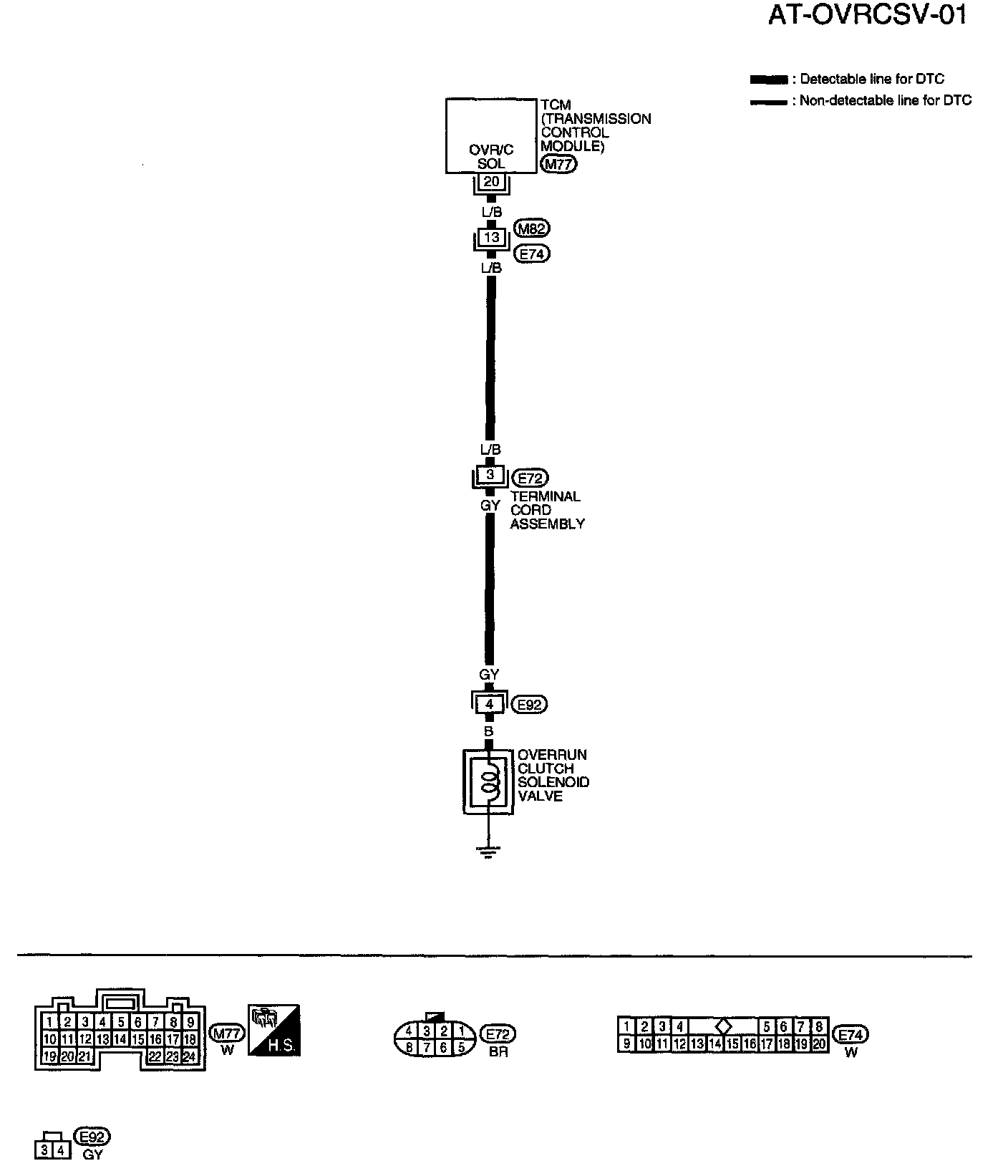

WIRING DIAGRAM - AT - OVRCSV

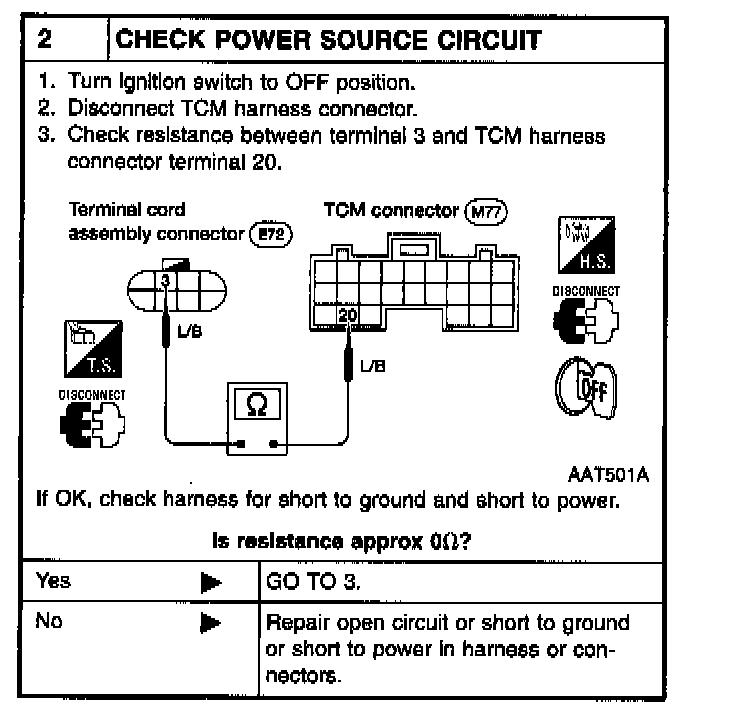

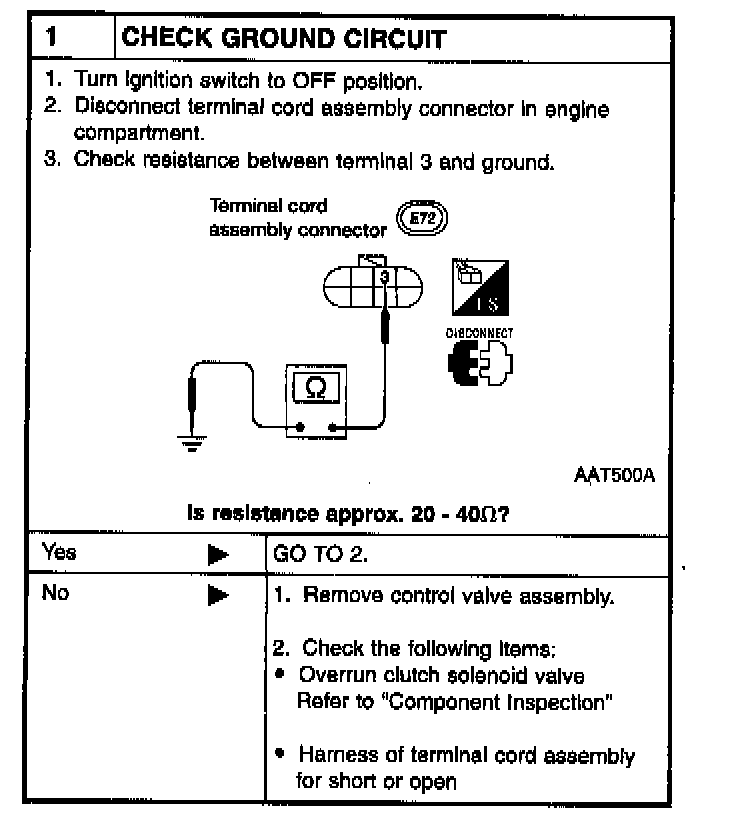

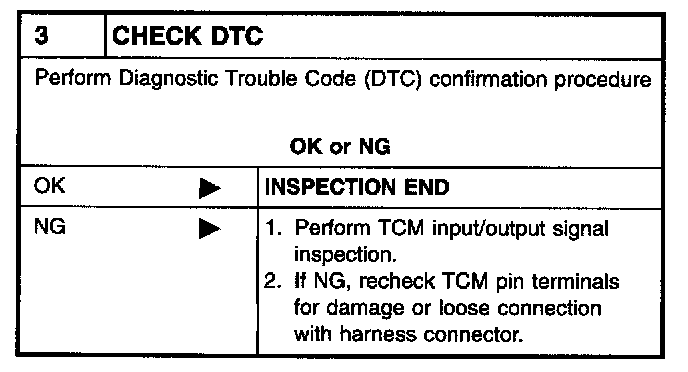

DIAGNOSTIC PROCEDURE











COMPONENT INSPECTION
OVERRUN CLUTCH SOLENOID VALVE

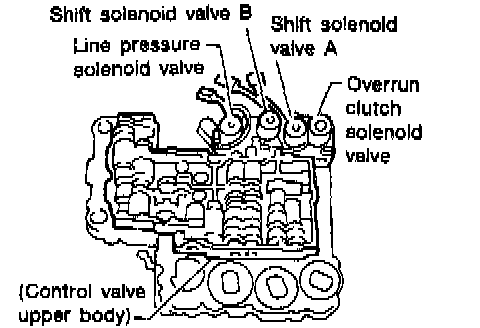

^ For removal, refer to Valve Body service procedures.

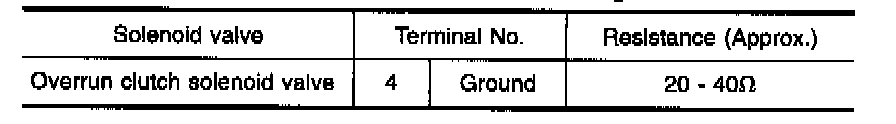

Resistance Check








^ Check resistance between terminal 4 and ground.

Operation Check

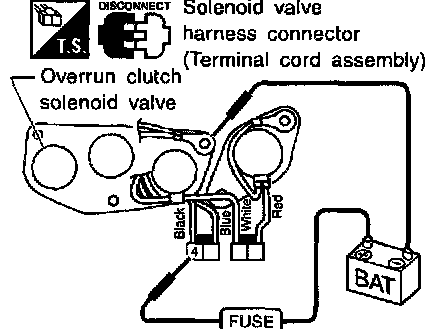

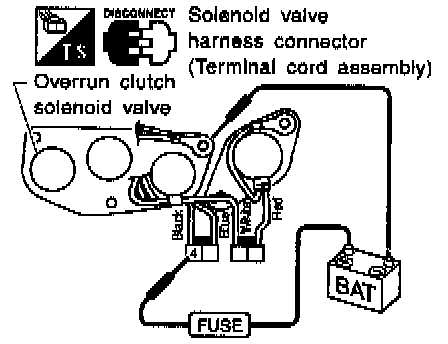

^ Check solenoid valve by listening for its operating sound while applying battery voltage to the terminal 4 and ground.
