Model H190A

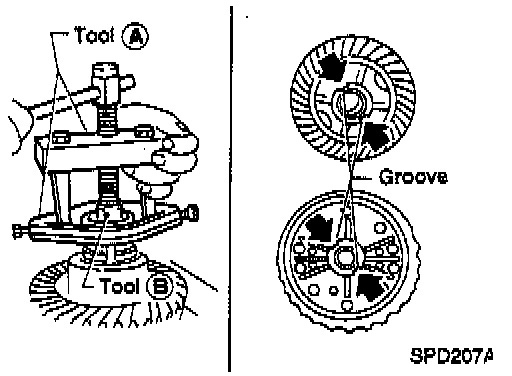

1. Remove side bearing inner cones.
- To prevent damage to bearing, engage puller jaws in groove with Tool numbers:
(A) ST33051001 (J22888-20)
(B) ST33061000 (J8107-2)

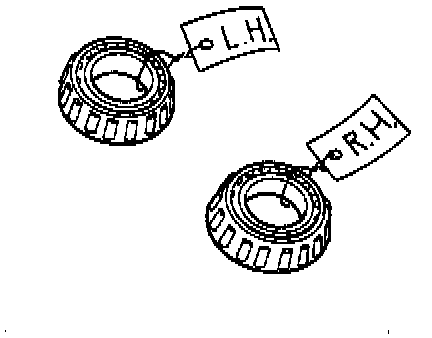

NOTE: Be careful not to confuse the left and right hand parts.

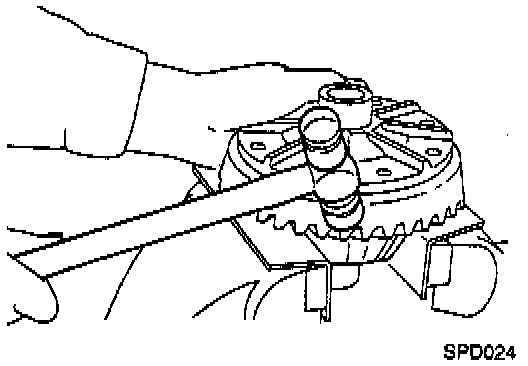

2. Spread out lock straps and loosen ring gear bolts in a criss-cross fashion.
3. Tap ring gear off differential case with a soft hammer.
- Tap evenly all around to keep ring gear from binding.

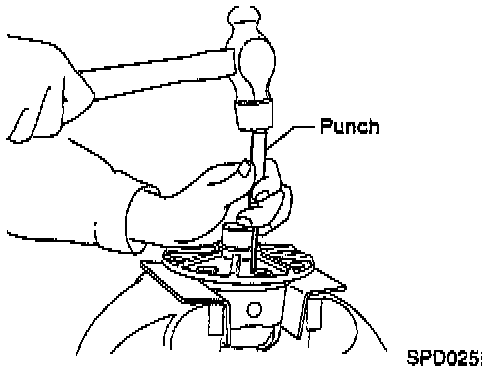

4. Drive out pinion mate shaft lock pin, with Tool from ring gear side.
- Lock pin is calked at pin hole mouth on differential case.
