Model H190A
H190A:
CAUTION: Do not run engine when one wheel (rear) is off the ground.
CHECKING DIFFERENTIAL TORQUE

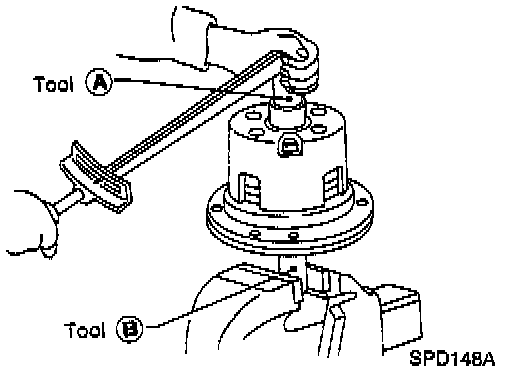

Measure differential torque with Tool A and Tool B:
Tool A: KV38105210
Tool B: KV38105120
If it is not within the specifications, inspect components of limited slip differential.
Differential torque:
New parts: 69 - 118 Nm (51 - 87 ft. lbs.)
Used parts: 39 - 74 Nm (29 - 54 ft. lbs.)
