Wiper Control Module: Testing and Inspection

Wiper Amplifier Check:

Wiper Amplifier Check

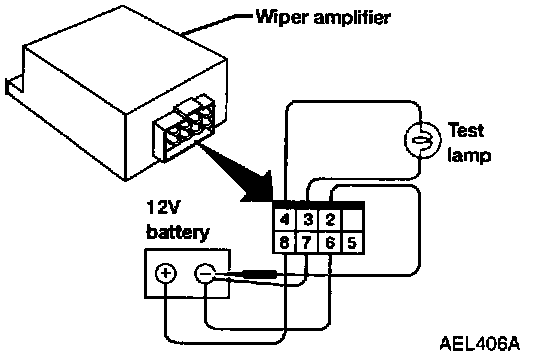

1. Connect as shown in the figure.
2. If test lamp comes on when connected to terminal (2) and battery ground, wiper amplifier is normal.
