Windshield Washer Spray Nozzle: Adjustments

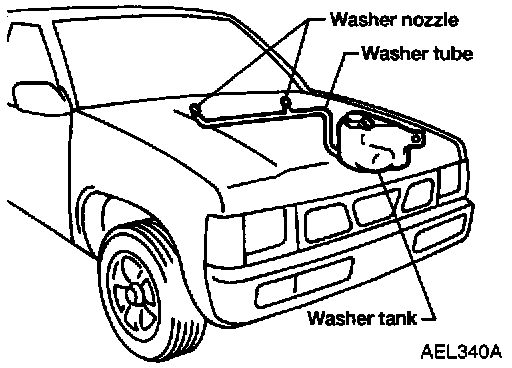

Washer Nozzle Adjustment:

Washer Nozzle Adjustment:

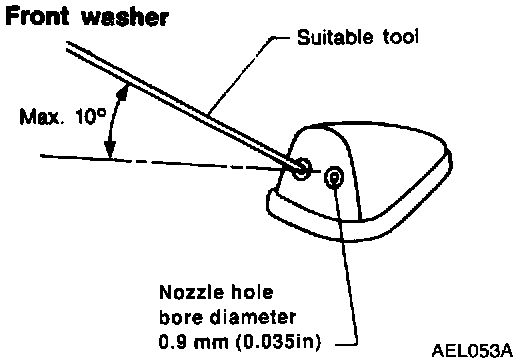

^ Adjust washer nozzle with suitable tool as shown in the figure.
Adjustable range: +/- 10°
