Output Shaft: Service and Repair

REPLACEMENT
1. Remove rear propeller shaft.

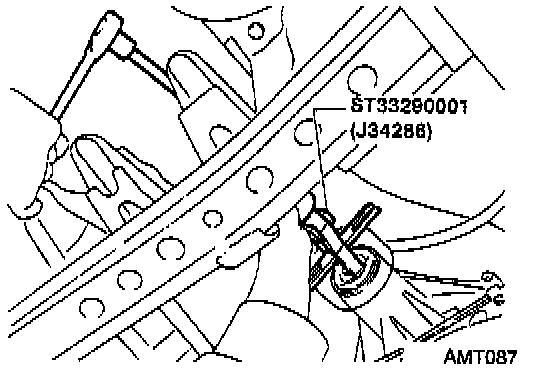

2. Remove rear oil seal.





3. Install rear oil seal. Before installing apply multi-purpose grease to seal lip.
4. Install rear propeller shaft.
