Home >> Nissan-Datsun Truck >> 1997 >> D21 Hardbody SE King Cab 4WD L4-2389cc 2.4L SOHC MFI (KA24E) >> Repair and Diagnosis >> Transmission and Drivetrain >> Transfer Case >> Main Shaft >> Application and ID

Main Shaft: Application and ID

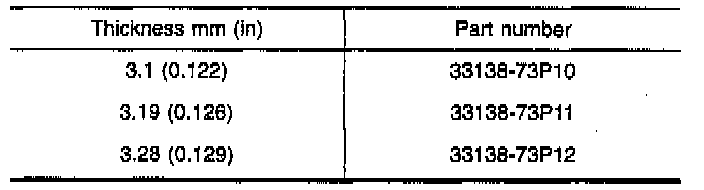

Available Snap Rings For Mainshaft Rear Bearing:

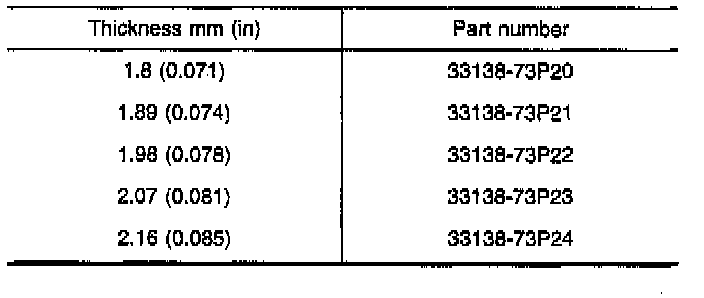

Available Snap Rings For Mainshaft Front Bearing:
